New Holland Hydraulic Excavator E235BSR 87677758A Service Manual – PDF DOWNLOAD

Description

New Holland Hydraulic Excavator E235BSR 87677758A Service Manual

FILE DETAILS:

New Holland Hydraulic Excavator E235BSR 87677758A Service Manual
Size : 58.1 MB
Format : PDF
Language : English
Number of Pages : 1125 Pages

NEW HOLLAND HYDRAULIC EXCAVATOR E235BSR 87677758A SERVICE MANUAL – PDF DOWNLOAD:

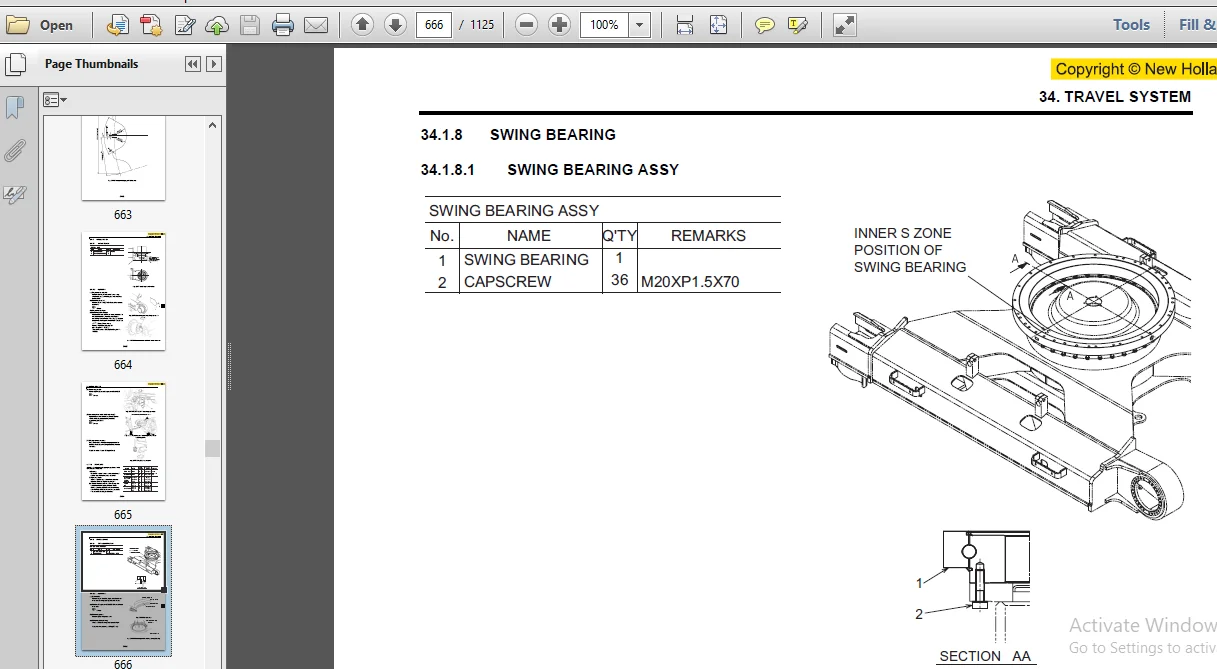

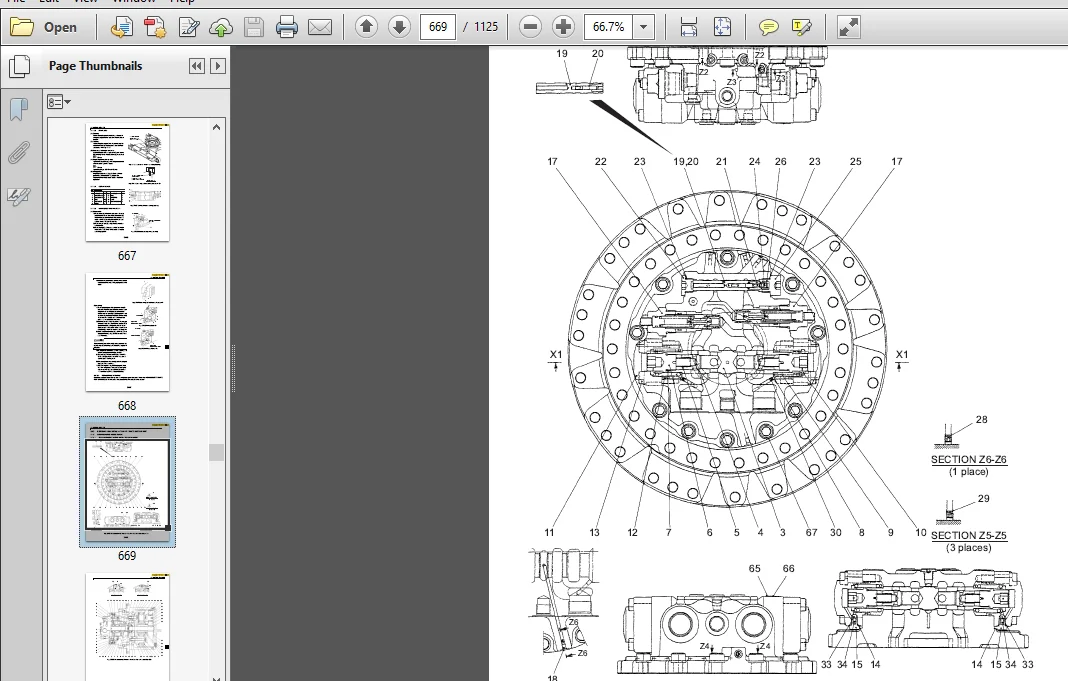

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

New Holland Hydraulic Excavator E235BSR 87677758A Service Manual

DESCRIPTION OF THE WORKSHOP MANUAL:

1.  This repair manual consists of one single volume, identified with: E235BSR – Workshop Manual “Mini excavator”
2.  The “Mini excavator” Workshop Manual contains the technical information necessary for machine service and repair, the service equipment, the information on maintenance standards, the removal and installing procedures, and the disassembly and assembly procedures.
3.  The complete Workshop Manual for the model E18SR consists of the following volume identified by print number as shown herebelow: VOLUME MACHINE TYPE PRINT No. Workshop Manual – “Hydraulic excavator” E235BSR 87677758A

SAFETY PRECAUTIONS:

• The serviceman or mechanic may be unfamiliar with many of the systems on this machine. This makes it important to use caution when performing service work. A knowledge of the system and or components is important before the removal or disassembly of any component.
• Because of the size of some of the machine components, the serviceman or mechanic should check the weights noted in this manual. Use proper lifting procedures when removing any components. Weight of components table is shown in the section ; SPECIFICATIONS. The following is a list of basic precautions that must always be observed.

(1) Read and understand all Warning plates and decal on the machine before Operating, Maintaining or Repairing this machine.
(2) Always wear protective glasses and protective shoes when working around machines. In particular, wear protective glasses when using hammers, punches or drifts on any part of the machine or attachments. Use welders gloves, hood/goggles, apron and the protective clothing appropriate to the welding job being performed. Do not wear loose fitting or torn clothing. Remove all rings from fingers, loose jewelry, confine long hair and loose clothing before working on this machinery.
(3) Disconnect the battery and hang a “Do Not Operate” tag in the Operators Compartment. Remove ignition keys.
(4) If possible, make all repairs with the machine parked on a firm level surface. Block the machine so it does not roll while working on or under the machine. Hang a “Do Not Operate” tag in the Operators Compartment.
(5) Do not work on any machine that is supported only by lift, jacks or a hoist. Always use blocks or jack stands, capable of supporting the machine, before performing any disassembly.

INDEX DETAILS:

New Holland Hydraulic Excavator E235BSR 87677758A Service Manual

OUTLINE 1
SPECIFICATIONS 2
ATTACHMENT DIMENSIONS 3
MAINTENANCE
TOOLS 11
STANDARD MAINTENANCE TIME SCHEDULE 12
MAINTENANCE STANDARD AND TEST PROCEDURE 13
SYSTEM
MECHATRO CONTROL SYSTEM 21
HYDRAULIC SYSTEM 22
ELECTRIC SYSTEM 23
COMPONENTS SYSTEM 24
AIR-CONDITIONER SYSTEM 25
DISASSEMBLING
DISASSEMBLING AND ASSEMBLING 31
ATTACHMENT 32
UPPER STRUCTURE 33
TRAVEL SYSTEM 34
TROUBLESHOOTING
BY ERROR CODES 46
BY TROUBLE 47
TROUBLE DIAGNOSIS MODE 48
E/G
ENGINE 51
APPLICABLE MACHINES

TABLE OF CONTENTS:

New Holland Hydraulic Excavator E235BSR 87677758A Service Manual

•  GENERAL
•  STANDARD VALUE
• Engine Body
• Fuel System
• Emission Control
• Electrical
• Intake
• Engine Mechanical
• Exhaust
• Cooling
• Lubrication
• Starting and Charging
• Turbocharger
• Air compressor
• Engine Body
• Fuel System
• Electrical
• Engine Mechanical
• Lubrication
• Starting and Charging
• Turbocharger
• Air compressor
• Engine Failure Diagnosis
• Inspection Before Service
• Engine Body
• Fuel System
• EGR
• Electrical System
• Intake Manifold
• Cylinder Head
• Cylinder Block
• Timing Gear Cover and Flywheel Housing
• Main Moving Parts
• Camshaft and Idle Gear
• Valve System
• Exhaust Manifold
• Cooling System
• Oil Cooler, Oil Filter and Oil Pump
• Oil Pan
• Starter
• Alternator (50A)
• Turbocharger Assembly
• Air Compressor Assembly
• Air Compressor
• FAILURE DIAGNOSIS FOR EACH ENGINE STATUS
  Engine ECU

PLEASE NOTE:

• This is not a physical manual but a digital manual – meaning no physical copy will be couriered to you. The manual can be yours in the next 2 mins as once you make the payment, you will be directed to the download page IMMEDIATELY.
• This is the same manual used by the dealers inorder to diagnose your vehicle of its faults.
• Require some other service manual or have any queries: please WRITE to us at [email protected]
