New Holland Issue 8,05 AG Service Journal (87059238) – New Holland Issue 8,05 AG – PDF Download

Description

New Holland Issue 8,05 AG Service Journal (87059238) – New Holland Issue 8,05 AG

File Details:

New Holland Issue 8,05 AG Service Journal_87059238
Size: 3.71 MB
Format: PDF
Language: English
Number of Pages: 124 pages
Brand: New Holland
Type of document: Repair Manual
Model: 08,05 AG
Part No: 87059238

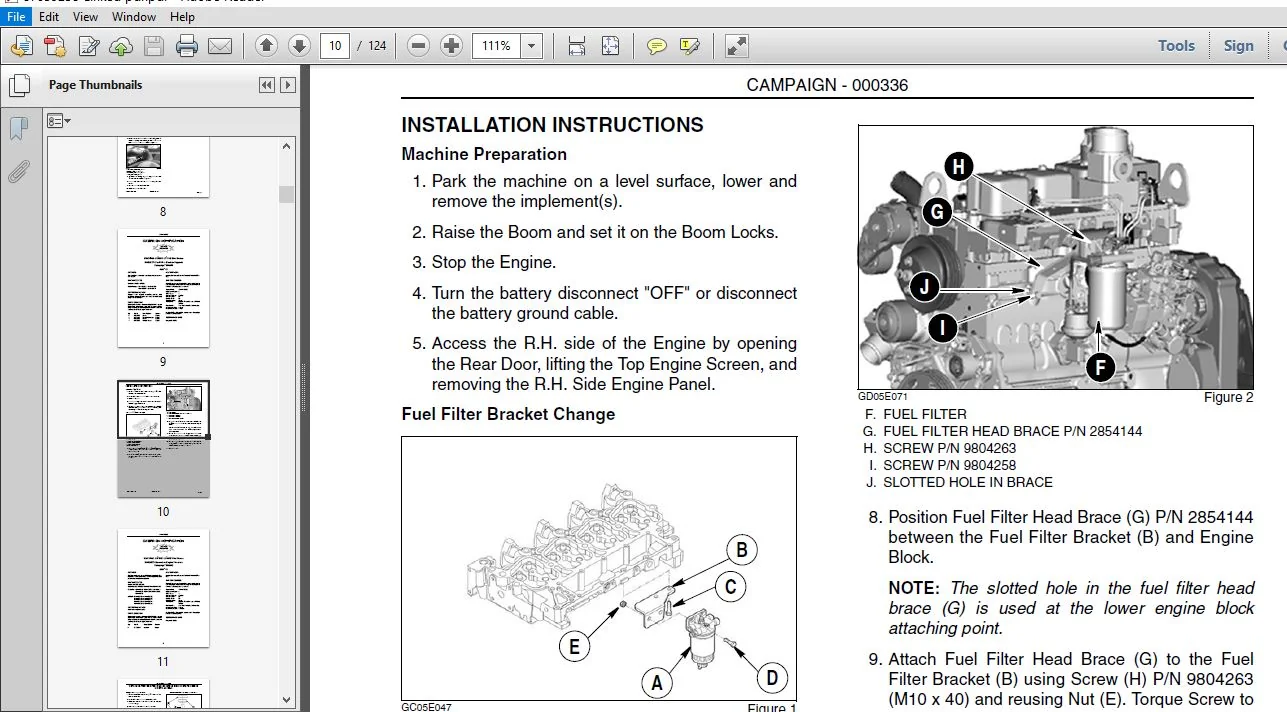

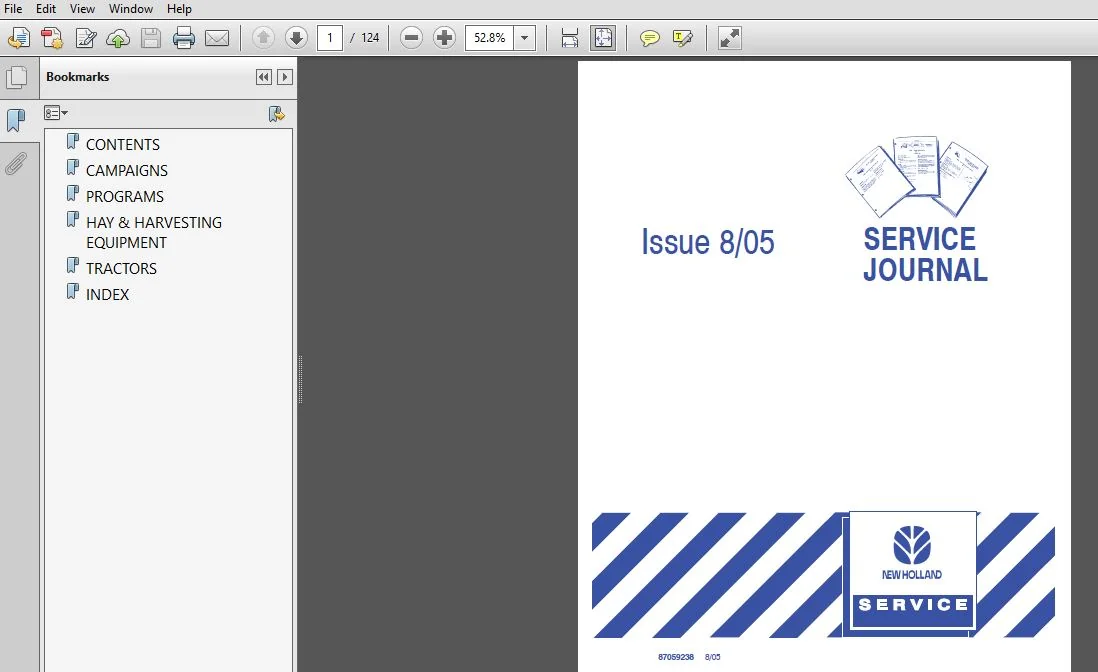

Image Preview:

NEW HOLLAND ISSUE 8,05 AG SERVICE JOURNAL (87059238) – NEW HOLLAND ISSUE 8,05 AG – PDF DOWNLOAD:

Sample Page From The Manual:

New Holland Issue 8,05 AG Service Journal (87059238) – New Holland Issue 8,05 AG

1. Remove the header to minimize the load on the front axle.
2. Thoroughly clean the area around the main frame and front axle.
3. Ensure that a suitable fire extinguisher is available.
4. Working with one reinforcement plate, remove the two front bolts, 1.
5. Cut away the u-shaped segments, 2, and the reinforcement plate, 3.
6. Clean off any residual welding material and remove all paint from the areas to be welded.
7. Position the new reinforcement plate, 1, (part number 84453482), and u-shaped segments, 2, (part number 84057820), and weld at the same locations as the original parts.
8. Reinstall the two front bolts, 3, and tighten to a torque of 485 N⋅m (358 lb-ft).
9. Weld around the hole in the new plate, 4.

Table Of Contents:

New Holland Issue 8,05 AG Service Journal (87059238) – New Holland Issue 8,05 AG

CONTENTS......................  3
CAMPAIGNS.....................  5
PROGRAMS...................... 27
HAY & HARVESTING EQUIPMENT.... 32
TRACTORS...................... 80
INDEX.........................111

Please Note:

• This is not a physical manual but a digital manual – meaning no physical copy will be couriered to you. The manual can be yours in the next 2 mins as once you make the payment, you will be directed to the download page IMMEDIATELY.
• This is the same manual used by the dealers inorder to diagnose your vehicle of its faults.
• Require some other service manual or have any queries: please WRITE to us at [email protected]
