New Holland Kobelco E175B E195B 87690582A Workshop Manual – PDF DOWNLOAD

Description

New Holland Kobelco E175B E195B 87690582A Workshop Manual

FILE DETAILS:

New Holland Kobelco E175B E195B 87690582A Workshop Manual
Size : 58.3 MB
Format : PDF
Language : English
Number of Pages : 837 Pages

NEW HOLLAND KOBELCO E175B E195B 87690582A WORKSHOP MANUAL – PDF DOWNLOAD:

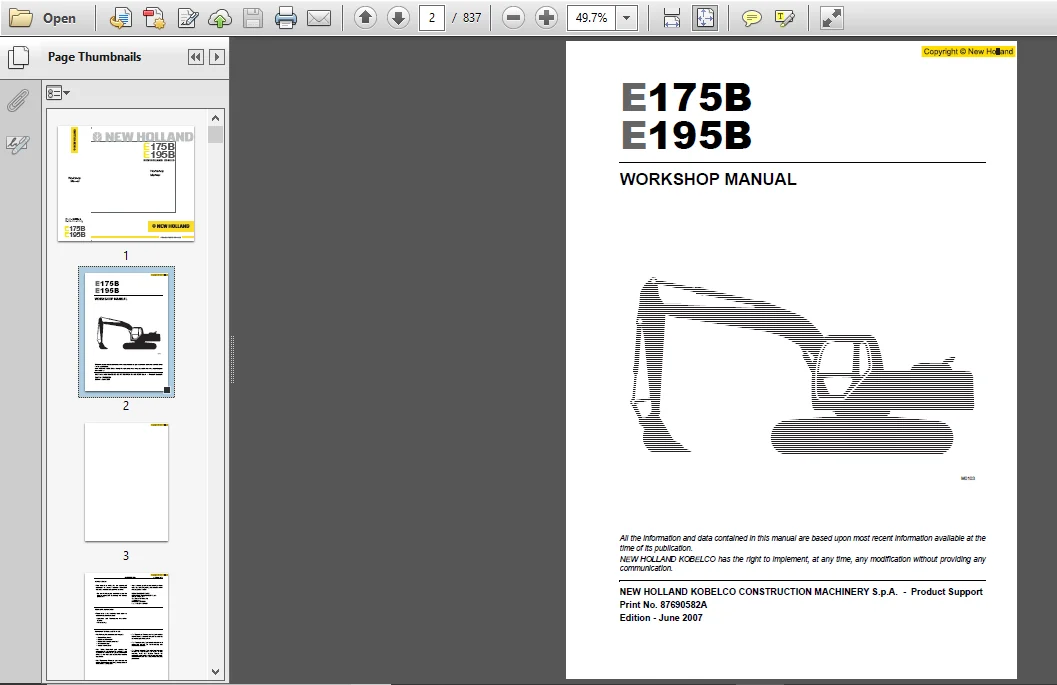

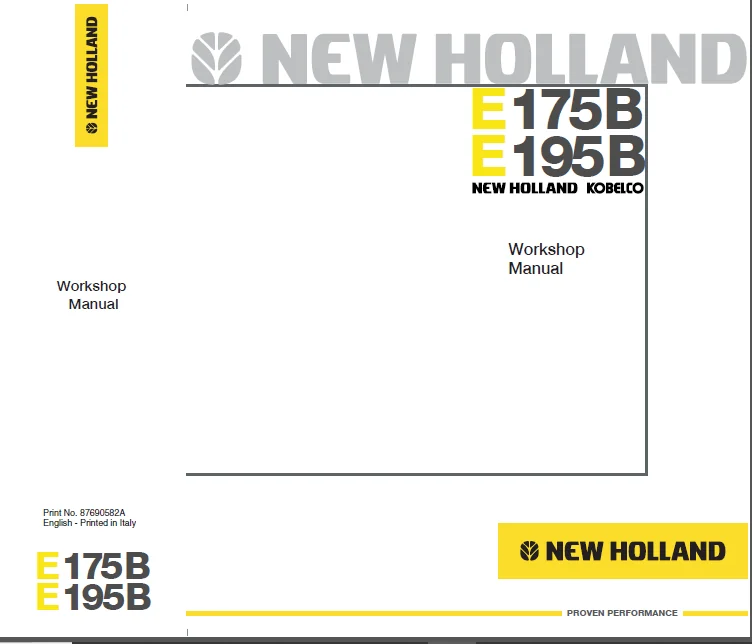

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

New Holland Kobelco E175B E195B 87690582A Workshop Manual

WORKSHOP MANUAL COMPOSITION

• The Workshop Manual consists of five parts:

•  “Safety Precautions”
•  “Operational Principle”
•  “Operational Performance Test”
•  “Troubleshouting”
• “Repair Instructions”

The “Safety Precaution” part includes the recommended procedures that, if followed, can avoid the risk of accident for operator and for staff related to the work and maintenance machine operations.

•  The “Operational Principle” part includes the technical information concerning the operation of main devices and systems.
•  The “Operational Performance Test” part includes the information needed to carry out the machine operational performance test.
•  The “Troubleshooting” part includes the technical information needed for troubleshooting and malfunction detection.
•  The “Repair Instruction” part includes information needed for maintenance and repair of the machine, tools and devices needed for maintenance and repair, maintenance standards, removal/installation and assembly/disassembly procedures.

GENERALITIES:

Read the Operation and Maintenance Instruction Manual carefully before starting, operating, maintaining, fuelling or servicing the machine. Carefully read the explanation to each and all safety signs in the special section of this Manual before starting, operating, maintaining, fuelling or servicing the machine. Machine-mounted safety plates are colour coded yellow with black borders when they refer to points where special ATTENTION must be paid and failure to observe them may cause a serious DANGER to the integrity of machine operators.

• They are white with red borders and black lettering when they refer to a FORBIDDEN practice. It is fundamental that all machine operators know very well the meaning of each safety plate as this considerably decreases operating hazards and accidents.
• Do not allow unauthorised personnel to operate or service this machine. Do not wear rings, wrist watches, jewellery, loose or hanging garments, such as ties, torn clothing, scarves, unbuttoned or unzipped jackets that can get caught in moving parts.
• Wear certified safety clothes such as: hard hat, no-slip footwear, heavy gloves, ear protection, safety glasses, reflector vests, respirators every time the job requires it. Ask your employer about safety regulations in force and protective equipment.
• Always keep the operator’s compartment, step plates, grab-rails and handles clean and clear of foreign objects, oil, grease, mud or snow to minimise the danger of slipping or stumbling. Remove mud or grease from your shoes before operating the machine. Do not jump on or off the machine. Always keep both hands and one foot, or both feet and one hand in contact with steps and/or grab rails.

TABLE OF CONTENTS:

New Holland Kobelco E175B E195B 87690582A Workshop Manual

SAFETY PRECAUTIONS
Section 1 GENERALITIES S1
Section 2 SAFETY PRECAUTIONS S2

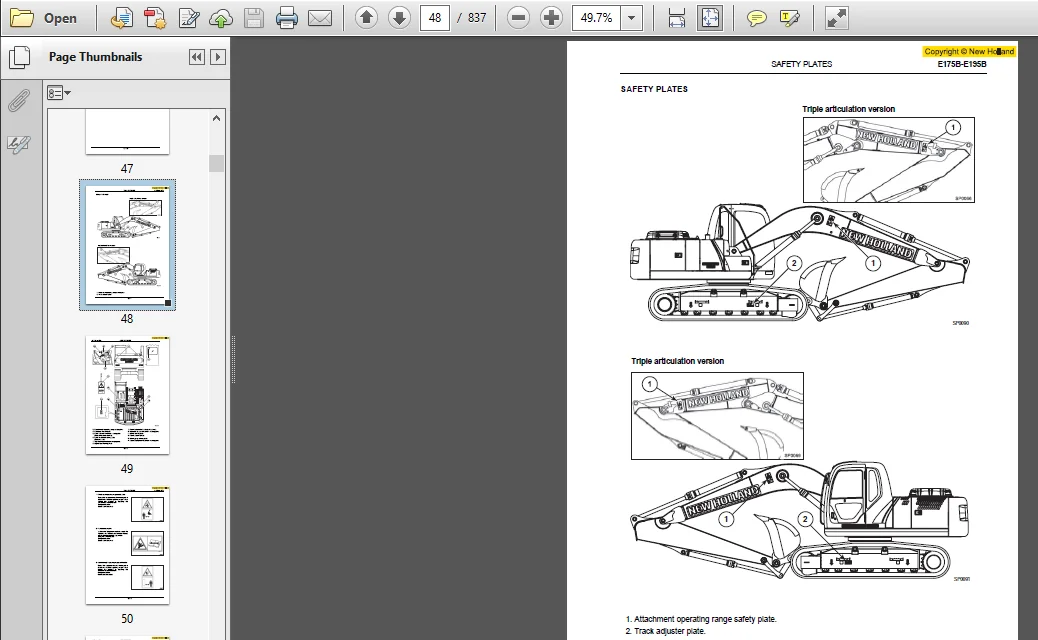

Section 3 SAFETY PLATES S3
OPERATIONAL PRINCIPLE
Section 1 GENERAL
Group 1 Specifications T1-1
Section 2 SYSTEM
Group 1 Mechatro control system T2-1
Group 2 Hydraulic System T2-2
Group 3 Electrical System T2-3
Section 3 COMPONENT OPERATION
Group 1 Hydraulic Pump Assy T3-1
Group 2 Pilot Valve T3-2
Group 3 Control Valve T3-3
Group 4 Swing Device T3-4
Group 5 Travel Device T3-5
Group 6 Swivel Joint T3-6
Group 7 Cylinders T3-7
Group 8 Air Conditioner system T3-8
OPERATIONAL PERFORMANCE TEST
Section 4 OPERATIONAL PERFORMANCE TEST
Group 1 Introduction T4-1
Group 2 Standard Performances T4-2
Group 3 Test Procedures T4-3
Group 4 Mechatro Controller T4-4
TROUBLESHOOTING
Section 5 TROUBLESHOOTING
Group 1 Troubleshooting (by error codes) T5-1
Group 2 Troubleshooting (by trouble) T5-2
Group 3 Troubleshooting (trouble diagnosis mode) T5-3
E175B-E195B INDEX
REPAIR INSTRUCTIONS
Section 1 GENERAL INFORMATION
Group 1 Precautions for Disassembly and AssemblyW1-1
Group 2 Tightening Torque W1-2
Section 2 UPPERSTRUCTURE
Group 1 Upperstructure W2-1
Group 2 Pump DeviceW2-2
Group 3 Control Valve W2-3
Group 4 Swing Device W2-4
Group 5 Pilot Valve W2-5
Section 3 UNDERCARRIAGE
Group 1 Swing Bearing W3-1
Group 2 Travel Device W3-2
Group 3 Swivel Joint W3-3
Group 4 Track Adjuster W3-4
Group 5 Front Idler W3-5
Group 6 Upper and Lower Roller W3-6
Group 7 Tracks W3-7
Section 4 FRONT ATTACHMENT
Group 1 Front attachment

PLEASE NOTE:

• This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
• You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
• Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted
