New Holland Kobelco E235SR Workshop Manual 60413436 – PDF DOWNLOAD

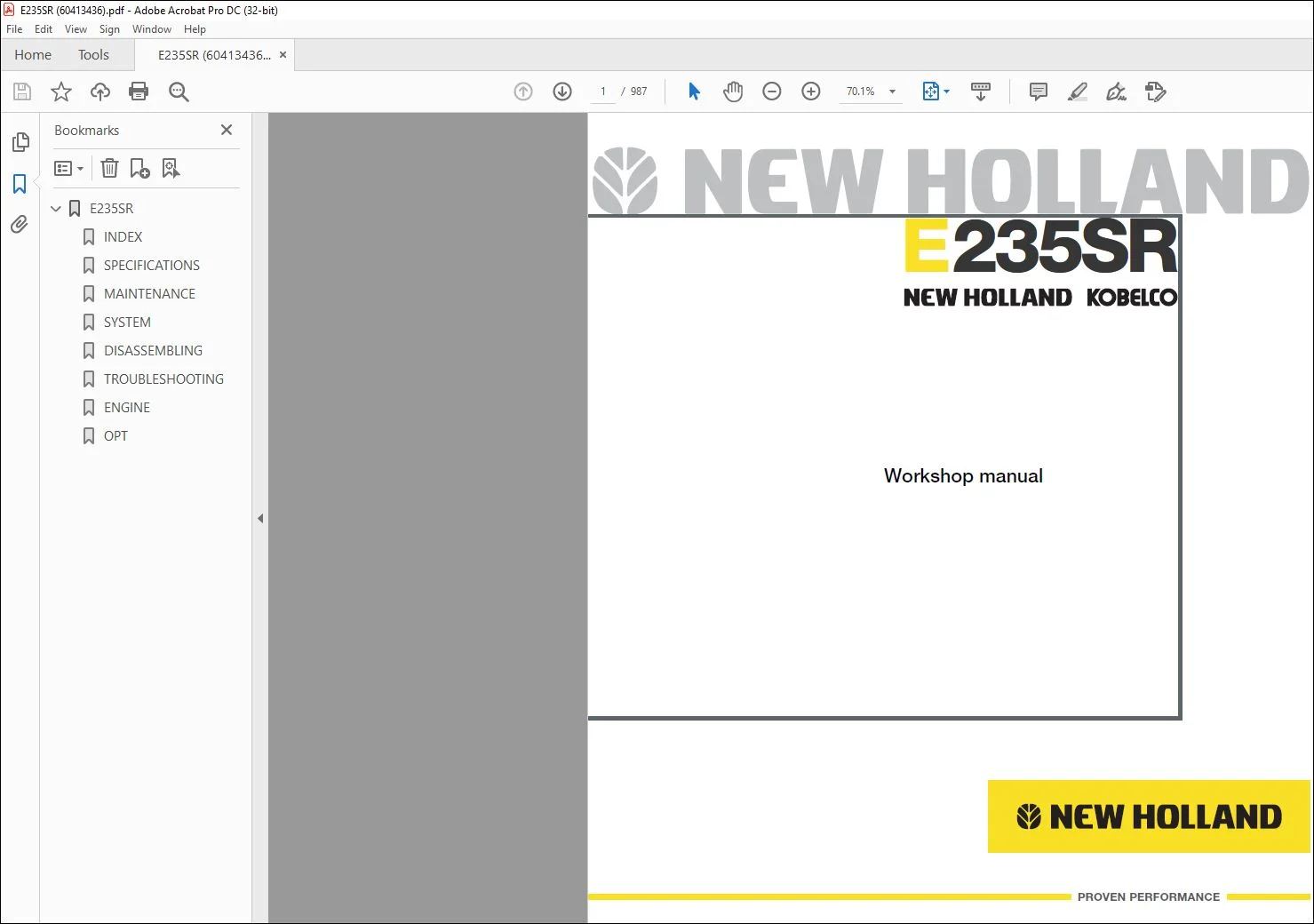

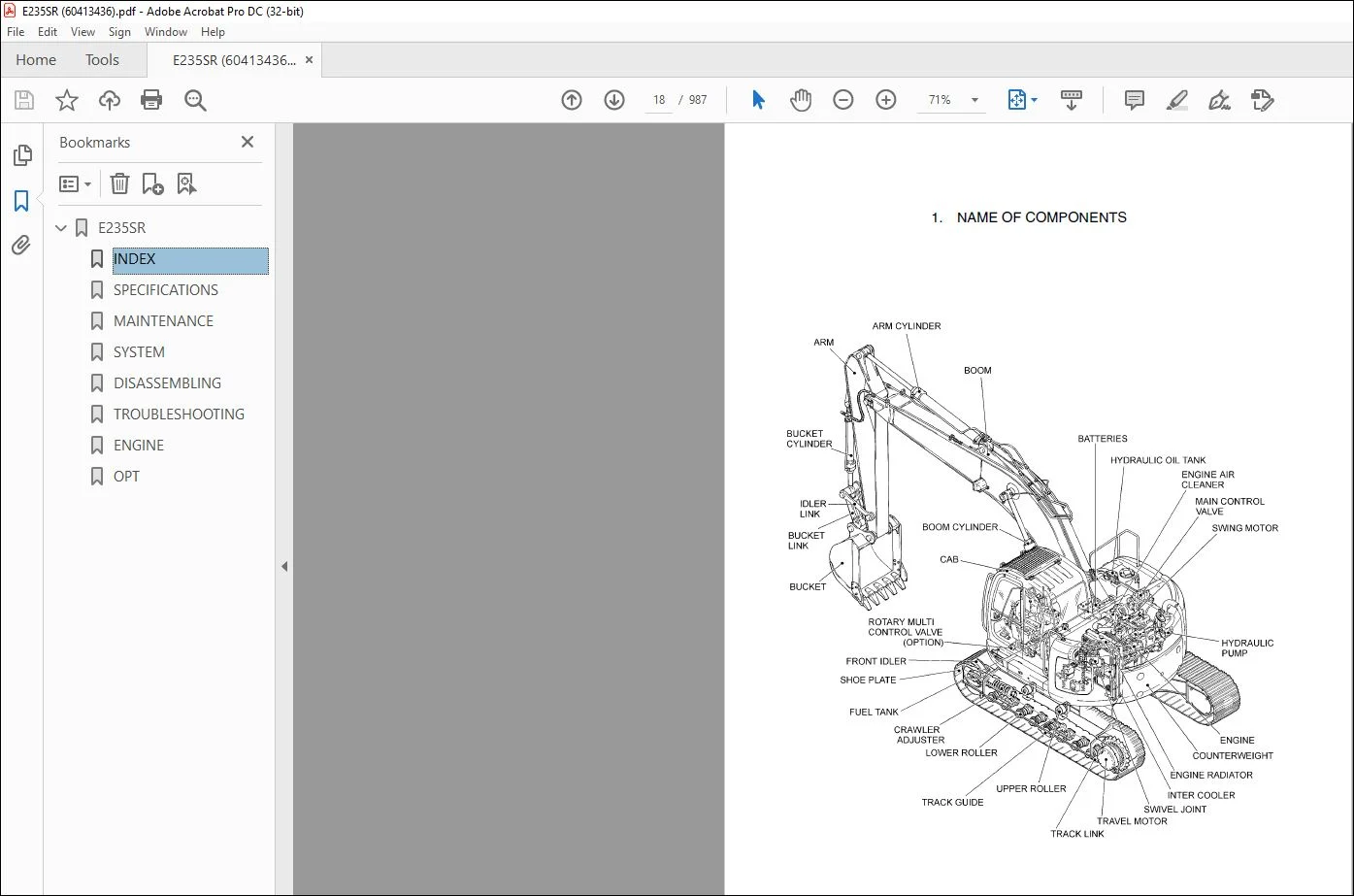

IMAGES PREVIEW OF THE MANUAL:
DESCRIPTION:
New Holland Kobelco E235SR Workshop Manual 60413436 – PDF DOWNLOAD
The serviceman or mechanic may be unfamiliar with
many of the systems on this machine. This makes it
important to use caution when performing service
work. A knowledge of the system and or components
is important before the removal or disassembly of any
component.
Because of the size of some of the machine
components, the serviceman or mechanic should
check the weights noted in this manual. Use proper
lifting procedures when removing any components.
Weight of components table is shown in the section;
SPECIFICATIONS
The following is a list of basic precautions that must always be observed.
1. Read and understand all Warning plates and decal on the machine before Operating, Maintaining or Repairing this machine.
many of the systems on this machine. This makes it
important to use caution when performing service
work. A knowledge of the system and or components
is important before the removal or disassembly of any
component.
Because of the size of some of the machine
components, the serviceman or mechanic should
check the weights noted in this manual. Use proper
lifting procedures when removing any components.
Weight of components table is shown in the section;
SPECIFICATIONS
The following is a list of basic precautions that must always be observed.
1. Read and understand all Warning plates and decal on the machine before Operating, Maintaining or Repairing this machine.
2. Always wear protective glasses and protective shoes when working around machines. In particular, wear protective glasses when using hammers, punches or drifts on any part of the machine or attachments. Use welders gloves, hood/goggles, apron and the protective clothing appropriate to the welding job being performed. Do not wear loose fitting or torn clothing. Remove all rings from fingers, loose jewelry, confine long hair and loose clothing before working on this machinery.
3. Disconnect the battery and hang a “Do Not Operate” tag in the Operators Compartment. Remove ignition keys.
4. If possible, make all repairs with the machine parked on a level, hard surface. Block the machine so it does not roll while working on or under the machine. Hang a “Do Not Operate” tag in the Operators Compartment. The proper and safe lubrication and maintenance for this machine, recommended by Distributor, are outlined in the OPERATOR’S MANUAL for the machine. Improper performance of lubrication or maintenance procedures are dangerous and could result in injury or death. Read and understand the MANUAL before performing any lubrication or maintenance.
5. Do not work on any machine that is supported only by lift, jacks or a hoist. Always use blocks or jack stands, capable of supporting the machine, before performing any disassembly. Do not operate this machine unless you have read and understand the instructions in the OPERATOR’S MANUAL. Improper machine operation is dangerous and could result in injury or death.
6. Relieve all pressure in air, oil or water systems before any lines, fittings or related items are disconnected or removed. Always make sure all raised components are blocked correctly and be alert for possible pressure when disconnecting any device from a system that utilizes pressure.
7. Lower the bucket, dozer, or other attachments to the ground before performing any work on the machine. If this cannot be done, make sure the bucket, dozer, ripper or other attachment is blocked correctly to prevent it from dropping unexpectedly.
8. Use steps and grab handles when mounting or dismounting a machine. Clean any mud or debris from steps, walkways or work platforms before using. Always face to the machine when using steps, ladders and walkways. When it is not possible to use the designed access system, provide ladders, scaffolds, or work platforms to perform safe repair operations.
9. To avoid back injury, use a hoist when lifting components which weigh 20 kg (45 lbs) or more. Make sure all chains, hooks, slings, etc., are in good condition and are the correct capacity. Be sure hooks are positioned correctly. Lifting eyes are not to be side loaded during a lifting operation.
10. To avoid burns, be alert for hot parts on machines which have just been stopped and hot fluids in lines, tubes and compartments.
11. Be careful when removing cover plates. Gradually back off the last two capscrews or nuts located at opposite ends of the cover or device and carefully pry cover loose to relieve any spring or other pressure, before removing the last two capscrews or nuts completely.
12. Be careful when removing filler caps, breathers and plugs on the machine. Hold a rag over the cap or plug to prevent being sprayed or splashed by liquids under pressure.

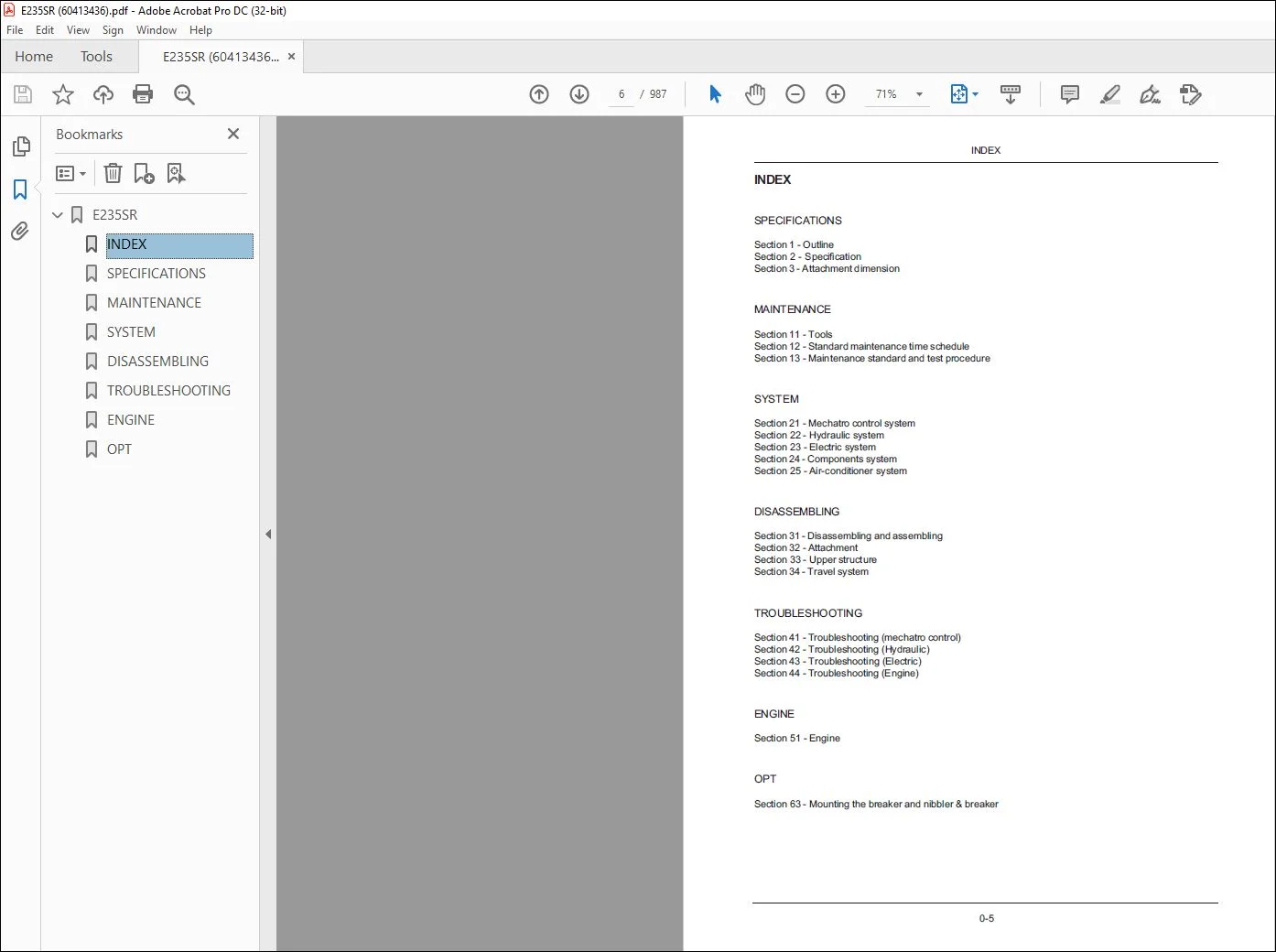

TABLE OF CONTENTS:
New Holland Kobelco E235SR Workshop Manual 60413436 – PDF DOWNLOAD
SPECIFICATIONS
Section 1 – Outline
Section 2 – Specification
Section 3 – Attachment dimension
MAINTENANCE
Section 11 – Tools
Section 12 – Standard maintenance time schedule
Section 13 – Maintenance standard and test procedure
SYSTEM
Section 21 – Mechatro control system
Section 22 – Hydraulic system
Section 23 – Electric system
Section 24 – Components system
Section 25 – Air-conditioner system
DISASSEMBLING
Section 31 – Disassembling and assembling
Section 32 – Attachment
Section 33 – Upper structure
Section 34 – Travel system
TROUBLESHOOTING
Section 41 – Troubleshooting (mechatro control)
Section 42 – Troubleshooting (Hydraulic)
Section 43 – Troubleshooting (Electric)
Section 44 – Troubleshooting (Engine)
ENGINE
Section 51 – Engine
OPT
Section 63 – Mounting the breaker and nibbler & breaker
