New Holland Kobelco E385 Tier 3 Excavator Workshop Manual 60413679 – PDF DOWNLOAD

Description

New Holland Kobelco E385 Tier 3 Excavator Workshop Manual 60413679 – PDF DOWNLOAD

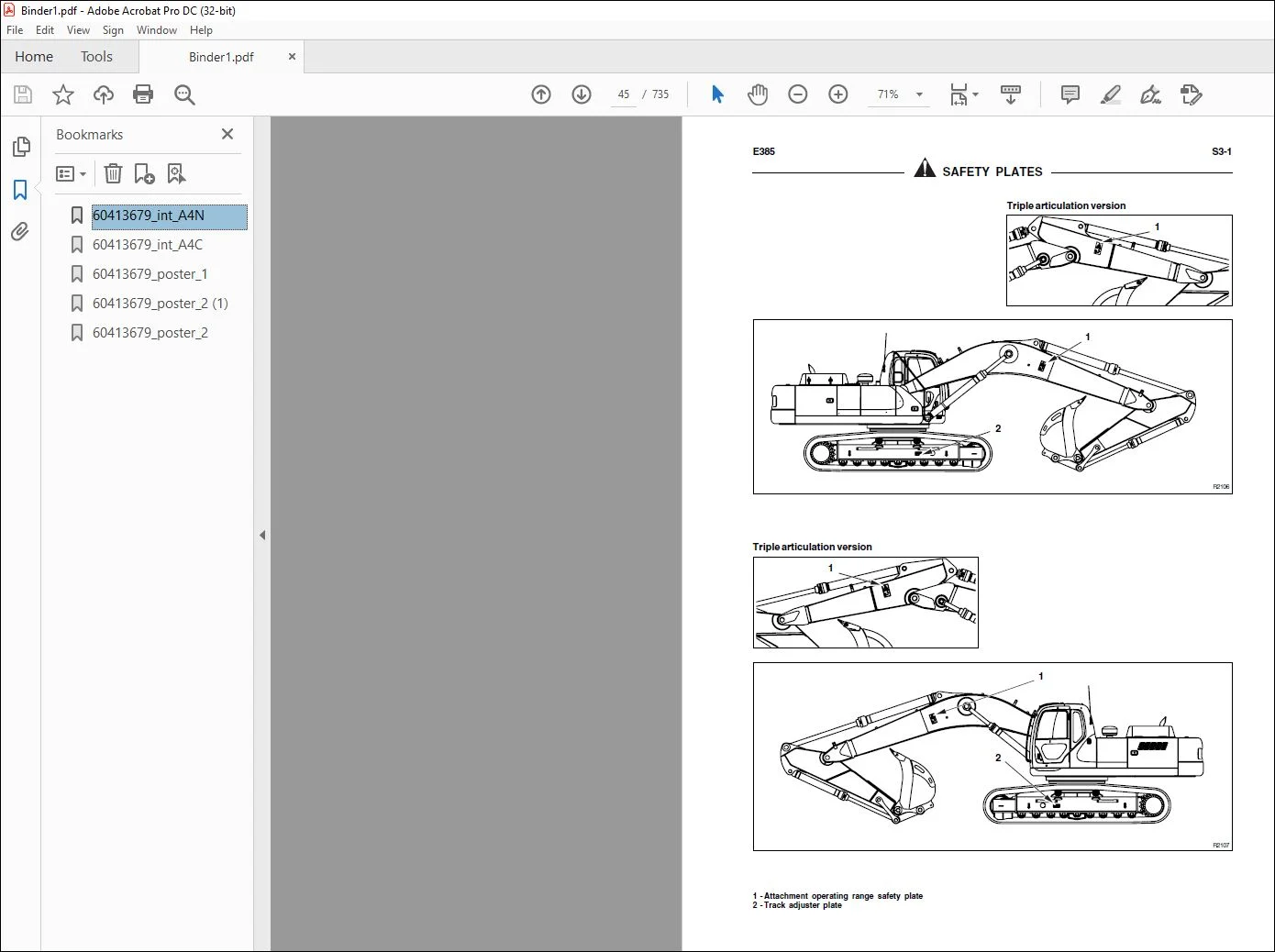

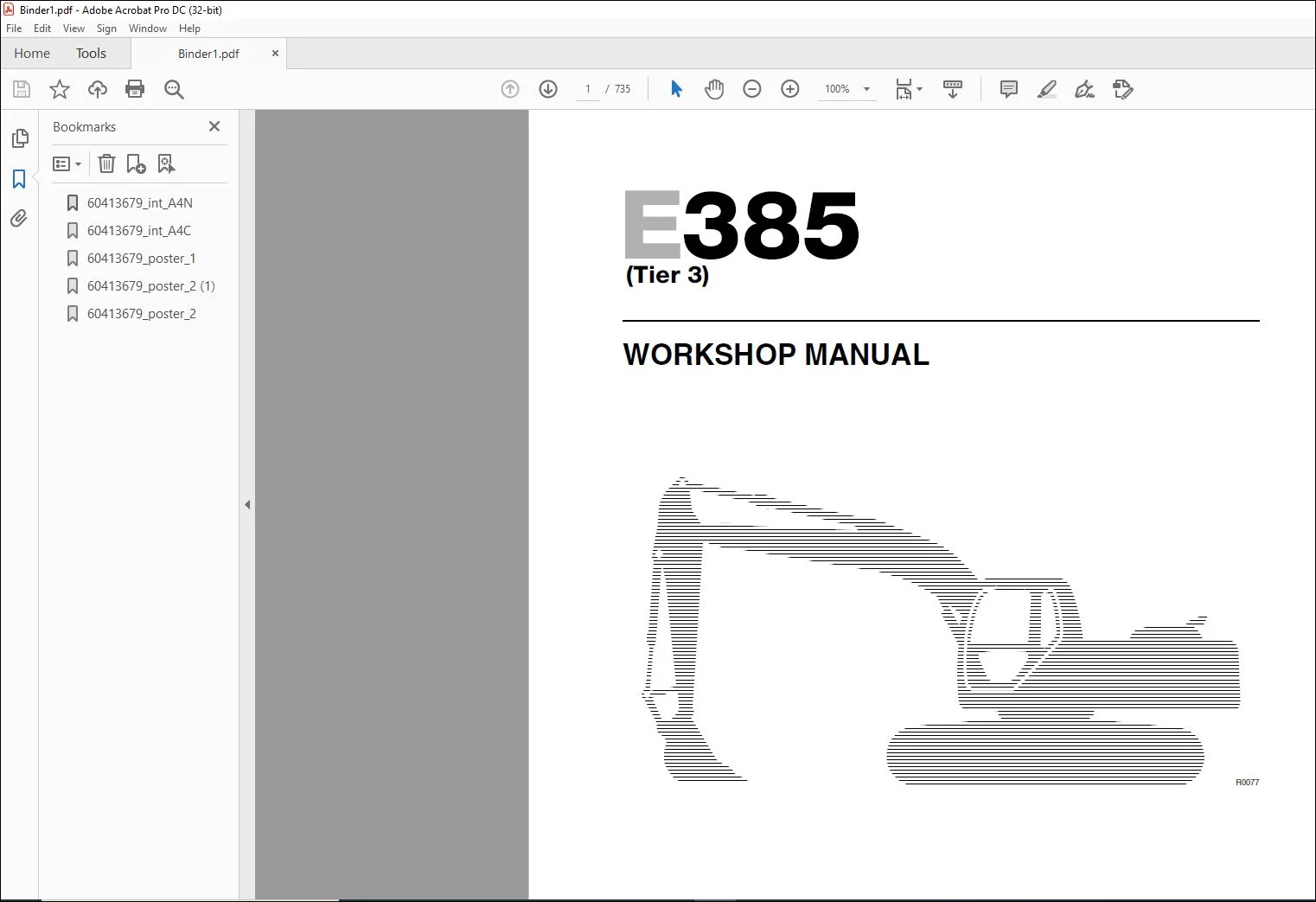

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

New Holland Kobelco E385 Tier 3 Excavator Workshop Manual 60413679 – PDF DOWNLOAD

GENERALITIES:

Read the Operation and Maintenance Instruction Manual carefully before starting, operating, maintaining, fuelling or servicing the machine. Carefully read the explanation to each and all safety signs in the special section of this Manual before starting, operating, maintaining, fuelling or servicing the machine.

• Machine-mounted safety plates are colour coded yellow with black borders when they refer to points where special ATTENTION must be paid and failure to observe them may cause a serious DANGER to the integrity of machine operators. They are white with red borders and black lettering when they refer to a FORBIDDEN practice.
• It is fundamental that all machine operators know very well the meaning of each safety plate as this considerably decreases operating hazards and accidents. Do not allow unauthorised personnel to operate or service this machine. Do not wear rings, wrist watches, jewellery, loose or hanging garments, such as ties, torn clothing, scarves, unbuttoned or unzipped jackets that can get caught in moving parts.
• Wear certified safety clothes such as: hard hat, no-slip footwear, heavy gloves, ear protection, safety glasses , reflector vests, respirators every time the job requires it. Ask your employer about safety regulations in force and protective equipment. Always keep the operator’s compartment, step plates, grab-rails and handles clean and clear of foreign objects, oil, grease, mud or snow to minimise the danger of slipping or stumbling.
• Remove mud or grease from your shoes before operating the machine. Do not jump on or off the machine. Always keep both hands and one foot, or both feet and one hand in contact with steps and/or grab rails. Do not use controls or hoses as hand holds. Hoses and controls are movable parts and do not provide solid support.
• Besides, controls may be inadvertently moved and cause unexpected movement of the machine or its attachments. Never operate the machine or its attachments from any position other than sitting in the driver’s seat. Keep head, body, limbs, hands and feet inside the operator’s compartment at all times to reduce exposure to external hazards. Be careful of possible slippery conditions of the steps and hand rails as well as of the ground around the machine.
• Wear protective boots or shoes with the soles made of highly no-slip rubber Do not leave the machine until it has come to a complete stop. Always check height, width and weight limitations which may be encountered in the working site and ensure the machine does not exceed them.
• Assess exact paths of gas ducts, water mains, telephone lines, sewers, overhead and underground electric lines and all other possible obstacles. Such paths should be opportunely defined by competent Authorities. If necessary, require that the service is interrupted or said installations are moved prior to starting the work.
• You must know the working capacity of the machine. Define the rear upperstructure swing area and provide for opportune barriers to prevent access into it. Never exceed machine lifting capacity. Remain within the limits shown in the loading capacity chart which located on the machine.

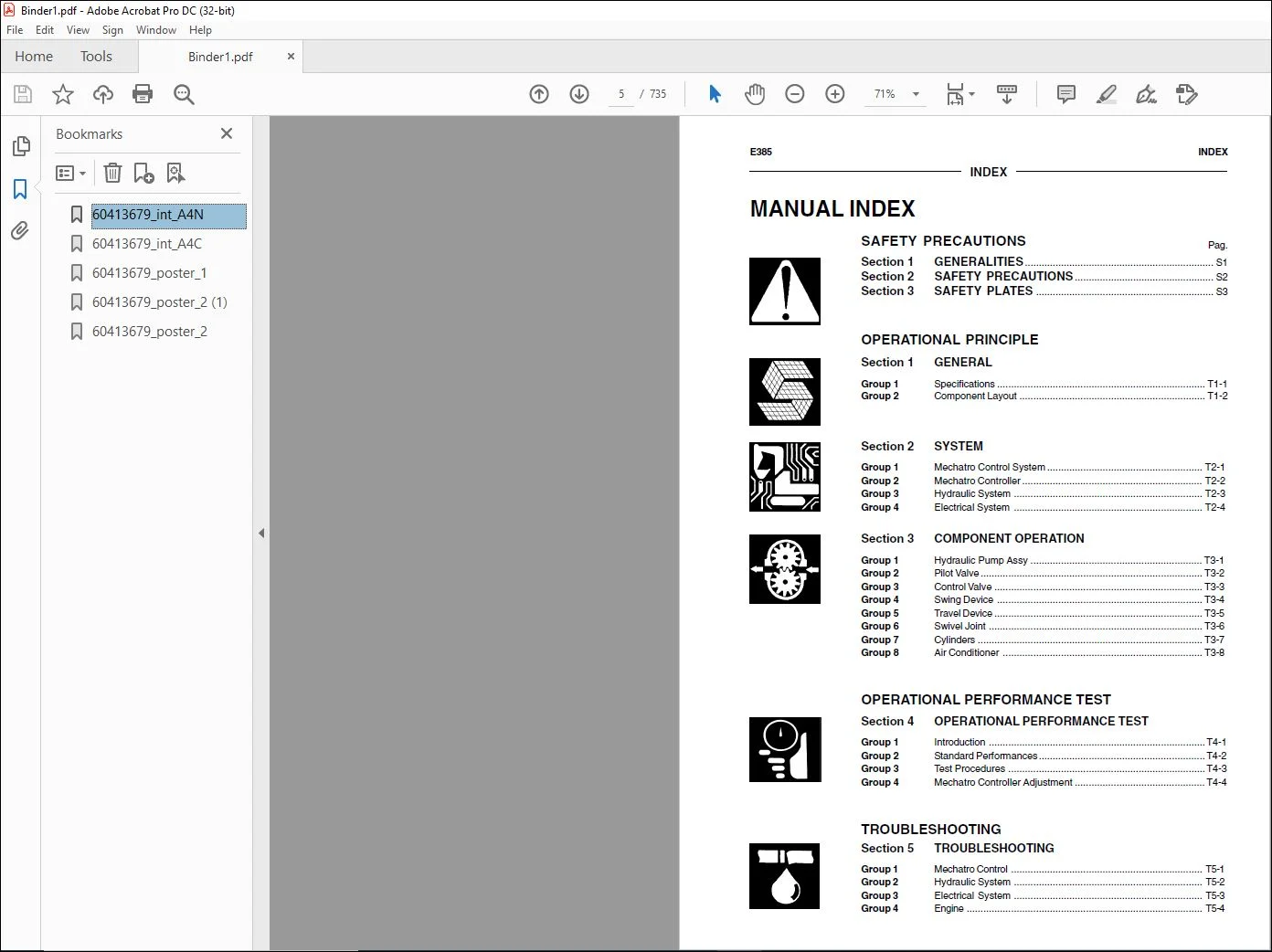

TABLE OF CONTENTS:

New Holland Kobelco E385 Tier 3 Excavator Workshop Manual 60413679 – PDF DOWNLOAD

SAFETY PRECAUTIONS
TROUBLESHOOTING
Section 5 TROUBLESHOOTING
Group 1 Mechatro Control T5-1
Group 2 Hydraulic System T5-2
Group 3 Electrical System T5-3
Group 4 Engine T5-4
Section 1 GENERAL
Group 1 Specifications T1-1
Group 2 Component Layout T1-2
Section 2 SYSTEM
Group 1 Mechatro Control System T2-1
Group 2 Mechatro Controller T2-2
Group 3 Hydraulic System T2-3
Group 4 Electrical System T2-4
OPERATIONAL PRINCIPLE
INDEX E385
INDEX
Section 1 GENERAL INFORMATION
Group 1 Precautions for Disassembly and Assembly W1-1
Group 2 Tightening Torque W1-2
Section 2 UPPERSTRUCTURE
Group 1 Cab W2-1
Group 2 Air Conditioner W2-2
Group 3 Counterweight W2-3
Group 4 Main Frame W2-4
Group 5 Pump Device W2-5
Group 6 Control Valve W2-6
Group 7 Swing Device W2-7
Group 8 Pilot Valve W2-8
Group 9 Solenoid Valve Unit W2-9
Section 3 UNDERCARRIAGE
Group 1 Swing Bearing W3-1
Group 2 Travel Device W3-2
Group 3 Swivel Joint W3-3
Group 4 Track Adjuster W3-4
Group 5 Front Idler W3-5
Group 6 Upper and Lower Roller W3-6
Group 7 Tracks W3-7
Section 4 FRONT ATTACHMENT
Group 1 Front Attachment W4-1
Group 2 Cylinders W4-2

Customer Support: [email protected]

PLEASE NOTE:

• This is the SAME exact manual used by your dealers to fix your vehicle.
• The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
• Any queries / doubts regarding your purchase, please feel free to contact [email protected]

S.V
