New Holland Kobelco E40.2SR E50.2SR Excavator Workshop Manual 60413411 – PDF DOWNLOAD

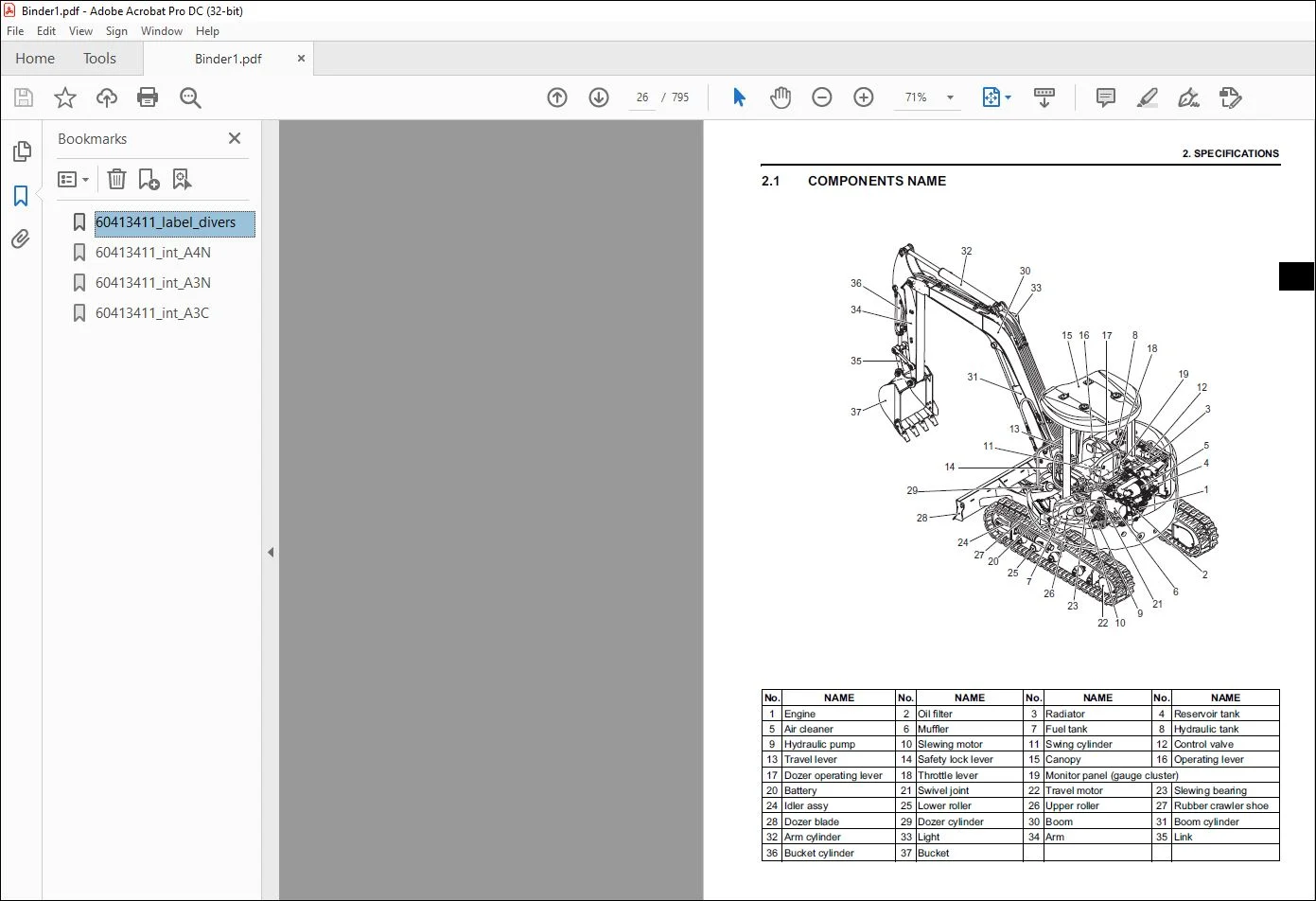

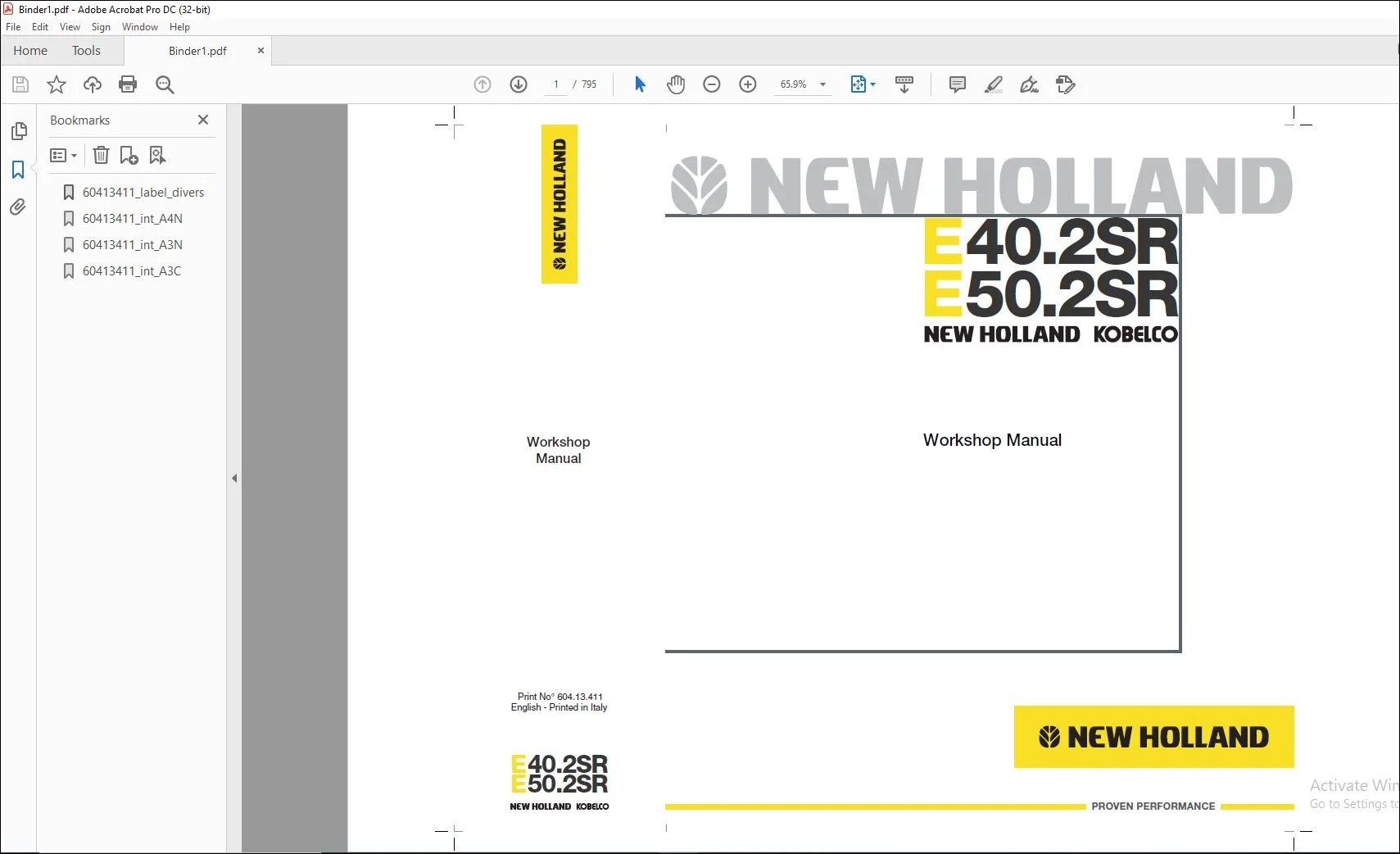

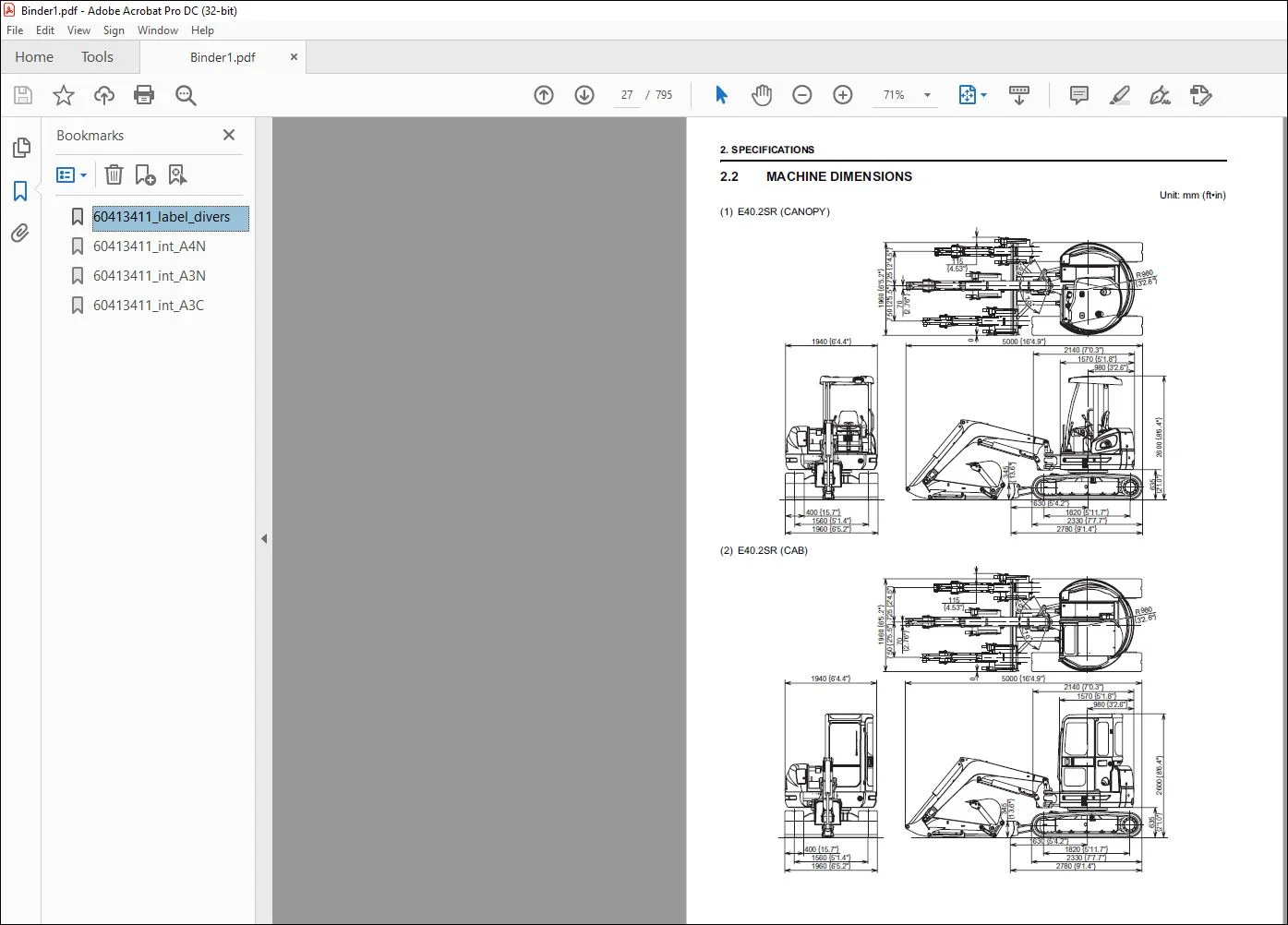

IMAGES PREVIEW OF THE MANUAL:
DESCRIPTION:
New Holland Kobelco E40.2SR E50.2SR Excavator Workshop Manual 60413411 – PDF DOWNLOAD
SAFETY PRECAUTIONS:
- The serviceman may be unfamiliar with many of the systems on this machine. This makes it important to use caution when performing service work. A knowledge of the system and or components is important before the removal or disassembly of any component.
- Because of the size of some of the machine components, the serviceman should check the weights noted in this manual. Use proper lifting procedures when removing any components. Weight of components table is shown in the SPECIFICATIONS section.
The following is a list of basic precautions that must always be observed.
1. Read and understand all Warning plates and decals on the machine before Operating, Maintaining or Repairing machine. 2. Always wear protective glasses and protective shoes when working around machines. Wear protective glasses when using hammers, punches or drifts on any part of the machine or attachments. Use welders gloves, hood/goggles, apron and the protective clothing appropriate to the welding job being performed. Do not wear loose fitting or torn clothing. Remove all rings from fingers, loose jewelry, confine long hair and loose clothing before working on this machinery.
3. Disconnect the battery and hang a “Do Not Operate” tag in the Operators Compartment. Remove ignition keys.
4. If possible, make all repairs with the machine parked on a level, hard surface. Block the machine so it does not roll while working on or under the machine. Hang a “Do Not Operate” tag in the Operators Compartment.
5. Do not work on any machine that is supported only by jacks or a hoist. Always use blocks or jack stands capable of supporting the machine.
6. Relieve all pressure in air, oil, or water systems before any lines, fittings, or related items are disconnected or removed. Always make sure all raised components are blocked correctly and be alert for possible pressure when disconnecting any device from a system that utilizes pressure.
7. Lower the bucket, dozer, or other attachments to the ground before performing any work on the machine. If this cannot be done, make sure the bucket, dozer, ripper or other attachment is blocked correctly to prevent it from dropping unexpectedly.
8. Use steps and grab handles when mounting or dismounting a machine. Clean any mud or debris from steps, walkways or work platforms before using. Always face to the machine when using steps, ladders, and walkways. When it is not possible to use the designed access system, provide ladders, scaffolds, or work platforms to perform safe repair operations.
9. To avoid back injury, use a hoist when lifting components which weigh 20 kg (45 lbs) or more. Make sure all chains, hooks, slings, etc., are in good condition and are the correct capacity. Be sure hooks are positioned correctly. Lifting eyes are not to be side loaded dur ing a lifting operation.
10. To avoid burns, be alert for hot parts on machines which have just been stopped and hot fluids in lines, tubes and compartments.
TABLE OF CONTENTS:
New Holland Kobelco E40.2SR E50.2SR Excavator Workshop Manual 60413411 – PDF DOWNLOAD
OUTLINE 1
SPECIFICATIONS 2
ATTACHMENT DIMENSIONS 3
MAINTENANCE
TOOLS 11
STANDARD MAINTENANCE TIME TABLE 12
MAINTENANCE STANDARDS AND TEST PROCEDURES 13
SYSTEM
HYDRAULIC SYSTEM 22
ELECTRICAL SYSTEM 23
COMPONENTS SYSTEM 24
DISASSEMBLING
WHOLE DISASSEMBLING & ASSEMBLING 31
ATTACHMENTS 32
UPPER SLEWING STRUCTURE 33
TRAVEL SYSTEM 34
TROUBLESHOOTING
HYDRAULIC SYSTEM 42
ELECTRICAL SYSTEM 43
ENGINE
ENGINE 51
DATA OPT.
SUPPORTING DATA 71
APPLICABLE MACHINES
