NEW HOLLAND L775 SKID STEER LOADER SERVICE PARTS MANUAL – PDF DOWNLOAD

Description

NEW HOLLAND L775 SKID STEER LOADER SERVICE PARTS MANUAL – PDF DOWNLOAD

FILE DETAILS:

NEW HOLLAND L775 SKID STEER LOADER SERVICE PARTS MANUAL – PDF DOWNLOAD

DESCRIPTION:

NEW HOLLAND L775 SKID STEER LOADER SERVICE PARTS MANUAL – PDF DOWNLOAD

GENERAL INFORMATION:

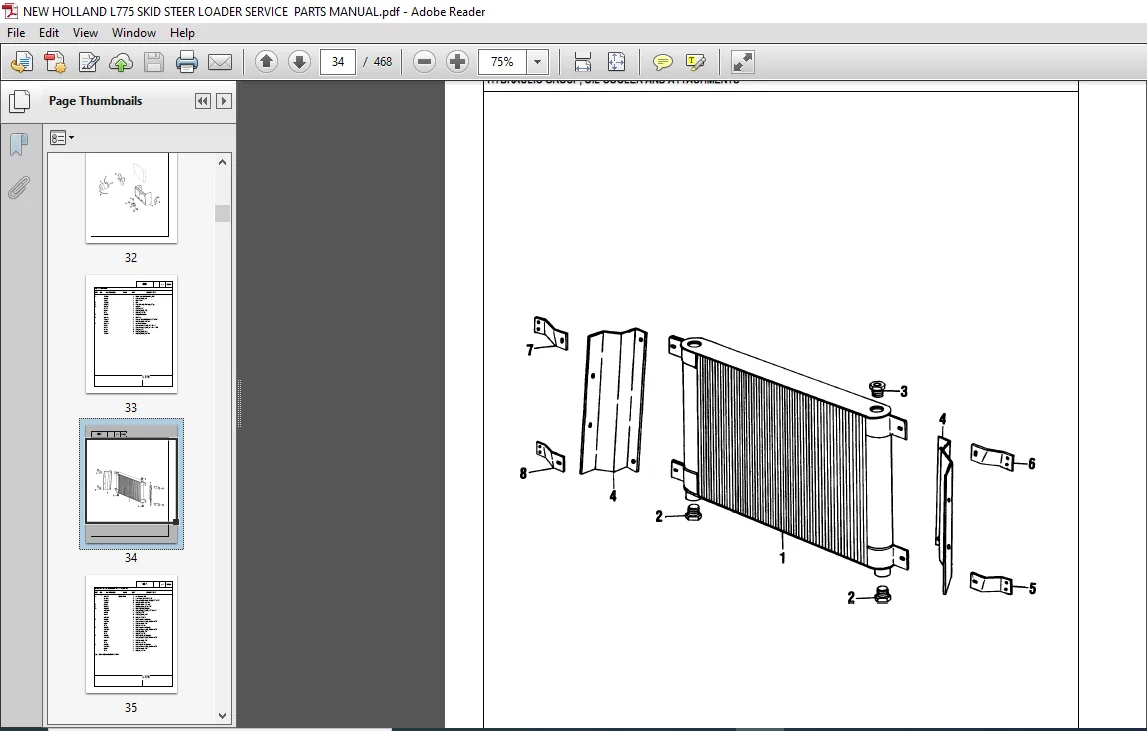

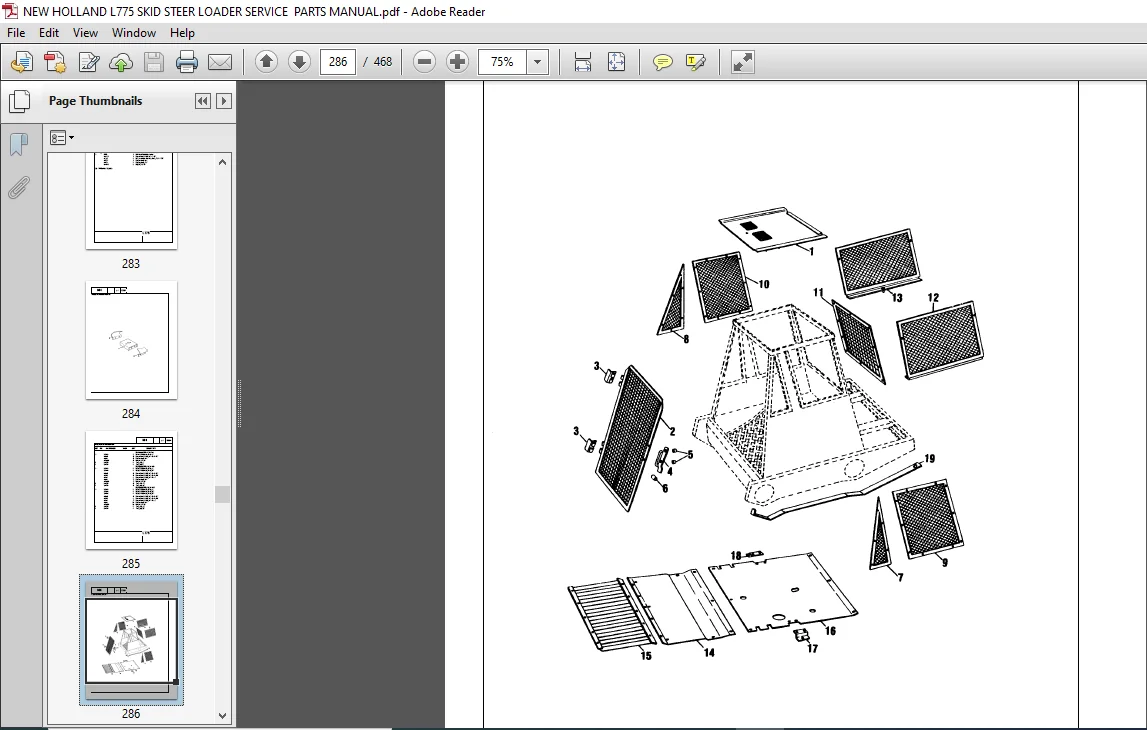

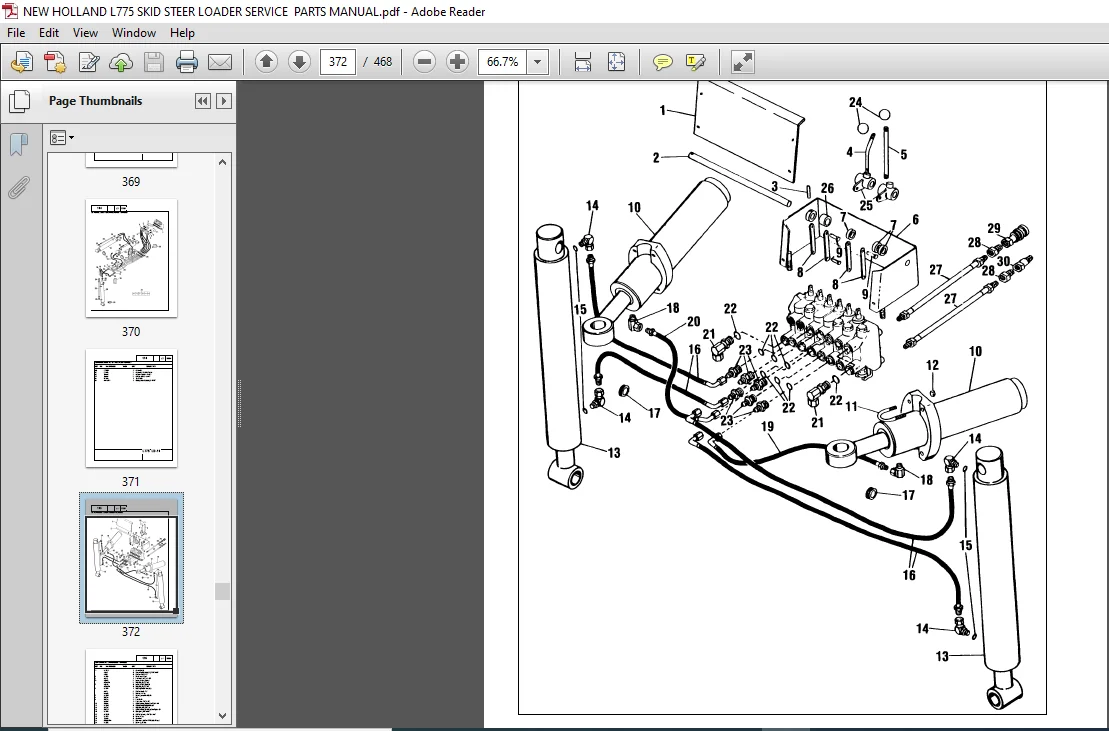

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

NEW HOLLAND L775 SKID STEER LOADER SERVICE PARTS MANUAL – PDF DOWNLOAD

001 MAIN FRAME AND ENGINE SHROUDING, MAIN FRAME GROUP
002 REMOVABLE ROOF GROUP
003 MAIN FRAME GROUP, FUEL TANK AND SUPPORT ASSEMBLY
004 SEAT ASSEMBLY AND SUPPORT GROUP, BSN 527904
005 SEAT ASSEMBLY AND SUPPORT GROUP, ASN 527905
006 OIL COOLER GROUP
007 HYDRAULIC GROUP, OIL COOLER AND ATTACHMENTS
008 SUPPLEMENTARY OIL RESERVOIR GROUP
009 WHEELS, SPINDELS, DRIVE GEARS AND DRIVE GROUP
010 BOOM AND MOUNTING PLATE
011 BOOM CYLINDER, 245048, CESSNA
012 BOOM CYLINDER, 592772, NEW HOLLAND
013 BUCKET CYLINDER, 247155, CESSNA
014 BUCKET CYLINDER, 592771, NEW HOLLAND
014A BUCKET CYLINDER, 771699, NEW HOLLAND
014B BUCKET CYLINDER, 86509051, NEW HOLLAND
015 BOOM LOCK GROUP
016 PARKING BRAKE GROUP
017 DRIVE CONTROL GROUP, VICKERS TRANSMISSION
018 STEERING VALVE AND CYLINDER, VICKERS
019 DRIVE CONTROL GROUP, CESSNA TRANSMISSION
020 CONTROL PEDAL GROUP
021 GEARBOX AND TRANSMISSION GROUP
022 DOUBLE GEAR PUMP
023 HYDROSTATIC TRANSMISSION GROUP, VICKERS
024 VICKERS HYDRAULIC PUMP
025 HYDROSTATIC TRANSMISSION, CESSNA PUMP, BSN 527904
026 HYDROSTATIC TRANSMISSION, CESSNA PUMP, ASN 527905
027 HYDROSTATIC TRANSMISSION, BACKPLATE, CESSNA
028 HYDROSTATIC TRANSMISSION, CESSNA MOTOR, BSN 527904
029 HYDROSTATIC TRANSMISSION, CESSNA MOTOR, ASN 527905
030 HYDRAULIC CYLINDER, CONTROL VALVE & PUMP, VICKERS TRANSMISSION
031 HYDRAULIC RESERVOIR & FILTER, VICKERS TRANSMISSION
032 HYDRAULIC CYLINDER, CONTROL VALVE & PUMP, CESSNA TRANSMISSION
033 HYDRAULIC SOLENOID VALVE ASSEMBLY
034 HYDRAULIC GROUP, RESERVOIR & FILTER, CESSNA TRANSMISSION
035 OIL FILTER
036 CONTROL VALVE
037 HYDRAULIC GROUP, CESSNA, TWO SPEED AUXILIARY HYDRAULICS
038 RELIEF VALVE
039 PROPORTION FLOW DIVIDER
040 CYLINDER RELIEF VALVE
041 ELECTRICAL GROUP SCHEMATICS
042 ELECTRICAL GROUP, INSTRUMENT PANEL ASSEMBLY
043 ELECTRICAL GROUP, OPTIONAL LIGHTS, WINDSHIELD WIPER AND HORN
044 ALTERNATOR ASSEMBLY, MOTOROLA, 235175
044A ALTERNATOR ASSEMBLY, PRESTOLITE, 235703
044B ALTERNATOR ASSEMBLY, PRESTOLITE, 9609165
044C ALTERNATOR ASSEMBLY, PRESTOLITE, 86520116
044D ALTERNATOR, TOTALLY ENCLOSED
045 ENGINE GROUP, DRIVE SHAFT ASSEMBLY
TABLE OF CONTENTS
046 ENGINE GROUP, GAS
047 ENGINE GROUP, GAS, THROTTLE AND CHOKE CONTROL ASSEMBLY
048 ENGINE GROUP, DIESEL
049 ENGINE GROUP, DIESEL, THROTTLE CONTROLS
050 MUD GUARD & BELLY PAN
051 STARTING FLUID KIT
052 CAB ENCLOSURE
053 WINDSHIELD WIPER
054 BATTERY HEATER KIT
055 WEIGHT KIT
056 SPILL GUARD
057 UTILITY FORK
058 DIRT TEETH
059 DRAW BAR
060 BUCKETS
061 PALLET FORK
062 FRONT BLADE
063 BOOM HYDRAULIC KIT
064 AUXILIARY VALVE KIT
065 CONTROL VALVE
066 HYDRAULIC MOTOR ASSEMBLY
067 HYDRAULIC MOTOR KIT
068 AUXILIARY HYDRAULIC KIT
069 UTILITY GRAPPLE FORK
070 HIGH LIFT PALLET FORK
071 SELF LEVEL KIT, 202694
072 SELF LEVEL KIT, 207391
073 FLOW CONTROL VALVE KIT
074 FLOW CONTROL VALVE ASSEMBLY
075 BOOM LOCK VALVE KIT
076 TRENCHER AUGER DRIVE GROUP
077 TRENCHER CONTROL GROUP
078 TRENCHER BOOM KIT, 2-1/2” & 3-1/2”
079 TRENCHER BOOM KIT, 4-1/2” & 5-1/2”
080 TRENCHER CRUMBER ATTACHMENT
081 TRENCHER CRUMBER BLADES
082 TRENCHER CRUMBER SUPPORT KIT
083 TRENCHER AUGER EXTENSION
084 TRENCHER DIGGING WIDTH KIT
085 H.D. CAB ENCLOSURE KIT
086 D-100 BACKHOE MOUNTING KIT
087 D-100 BACKHOE MOUNTING KIT
088 D-100 BACKHOE MOUNTING COMPLETING KIT
089 D-100 MAIN FRAME, DIPPER STICK, BOOM & BUCKET
090 D-100 BOOM, CROWD, BUCKET CYLINDER, BTW S/N 178042 – 178146
091 D-100 BOOM, CROWD, BUCKET CYLINDER, BTW S/N 178147 – 192227
092 D-100 BOOM, CROWD, BUCKET CYLINDER, ASN 192228 CROWD & 192344 BUCKET
& BOOM
093 D-100 BOOM-CROWD-BUCKET CYLINDER
094 D-100 SWING CYLINDER ASSEMBLY
095 D-100 HYDRAULIC GROUP
TABLE OF CONTENTS
096 D-100 STABILIZER CYLINDER
097 D-100 CONTROL VALVE
098 D-130 BACKHOE MOUNTING
099 D-130 MAIN FRAME, MAST & STABILIZER
100 D-130 BOOM, DIPPER STICK & BUCKET
101 D-130 BOOM, BUCKET & CROWD CYLINDER HYDRAULICS
102 D-130 STABILIZER & SWING CYLINDER HYDRAULICS
103 D-130 CONTROL VALVE ASSEMBLY
104 D-130 BUCKET CYLINDER ASSEMBLY
105 D-130 SWING CYLINDER ASSEMBLY
106 D-130 HYDRAULIC SWING CYLINDER ASSEMBLY
107 D-130 STABILIZER CYLINDER ASSEMBLY
108 D-130 BOOM-CROWD CYLINDER ASSEMBLY
109 D-130 BOOM-CROWD CYLINDER, BSN 183636
110 D-130 BOOM-CROWD CYLINDER, ASN 183637
111 D-130 BOOM & CROWD CYLINDER
112 LB-11 BACKHOE MOUNTING
113 LB-11 BOOM, DIPPER STICK & BUCKET
114 LB-11 BOOM, BUCKET AND CROWD CYLINDER HYDRAULICS
115 LB-11 STABILIZER & SWING CYLINDER HYDRAULICS
116 LB-11 MAIN FRAME, MAST & STABILIZER
117 LB-11 SWING CYLINDER ASSEMBLY
118 LB-11 BUCKET CYLINDER ASSEMBLY
119 LB-11 BOOM & CROWD CYLINDER ASSEMBLY
120 LB-11 STABILIZER CYLINDER ASSEMBLY
121 LB-11 HYDRAULIC VALVE ASSEMBLY
122 WISCONSIN V-465D ENGINE, CYLINDER AND HEAD GROUP
123 WISCONSIN V-465D ENGINE, CRANKSHAFT AND PISTON GROUP
124 WISCONSIN V-465D ENGINE, CRANKCASE AND OIL DISTRIBUTION GROUP
125 WISCONSIN V-465D ENGINE, CAMSHAFT AND FUEL PUMP MOUNTING GROUP
126 WISCONSIN V-465D ENGINE, OIL PUMP GROUP
127 WISCONSIN V-465D ENGINE, MANIFOLD GROUP
128 WISCONSIN V-465D ENGINE, ZENITH CARBURETOR
129 WISCONSIN V-465D ENGINE, GOVERNOR AND GOVERNOR CONTROL GROUP
130 WISCONSIN V-465D ENGINE, ELECTRICAL SYSTEM
131 WISCONSIN V-465D ENGINE, PRESTOLITE STARTING MOTOR
132 WISCONSIN V-465D ENGINE, DISTRIBUTOR
133 WISCONSIN V-465D ENGINE, ALTERNATOR AND DISTRIBUTOR DRIVE GROUP
134 WISCONSIN V-465D ENGINE, AIR SHROUDING GROUP
135 WISCONSIN V-465D ENGINE, GASKET SETS
136 RECOMMENDED INITIAL PARTS STOCK LIST – 5 UNITS
