NEW HOLLAND LB75.B LOADER BACKHOE PARTS MANUAL – PDF DOWNLOAD

Description

NEW HOLLAND LB75.B LOADER BACKHOE PARTS MANUAL – PDF DOWNLOAD

FILE DETAILS:

NEW HOLLAND LB75.B LOADER BACKHOE PARTS MANUAL – PDF DOWNLOAD

DESCRIPTION:

NEW HOLLAND LB75.B LOADER BACKHOE PARTS MANUAL – PDF DOWNLOAD

Publication Part Number: 6036803200NA
Serial Number 031044851 and After

We want you to be completely satisfied with your investment. Normally any problems with your equipment will be handled by your dealer’s Service Department; however, misunderstandings can occur. If your problem has not been handled to your satisfaction, we suggest the following:

Be aware that your problem will likely be resolved in the dealership using the dealer’s facilities, equipment, and personnel. So it is important that your initial contact be with the dealer.

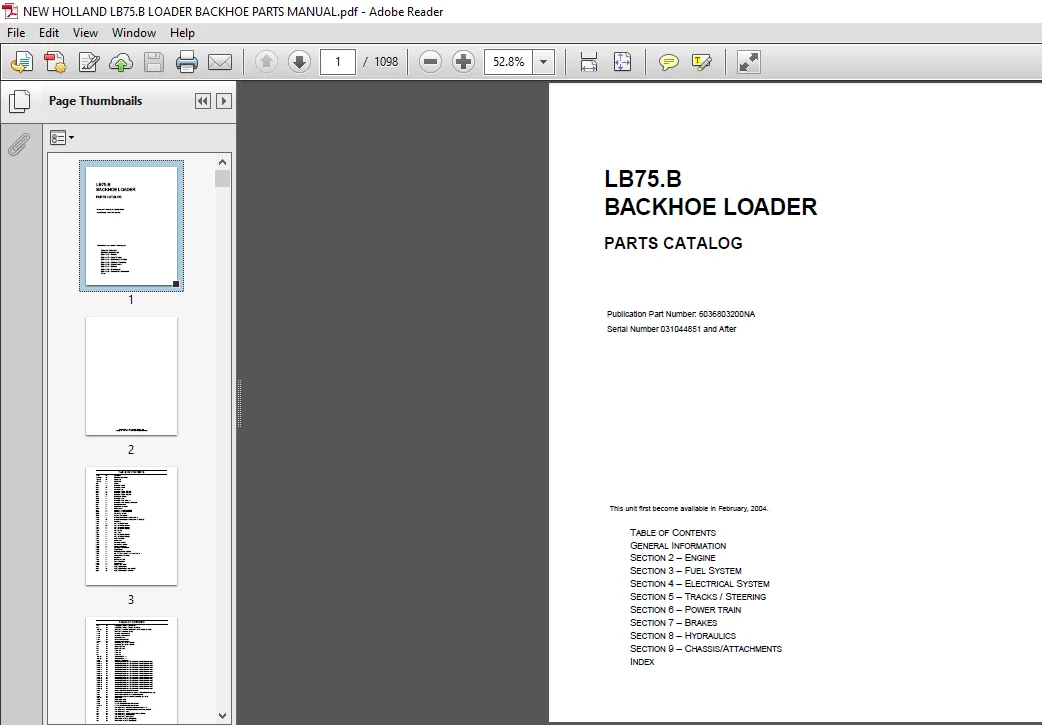

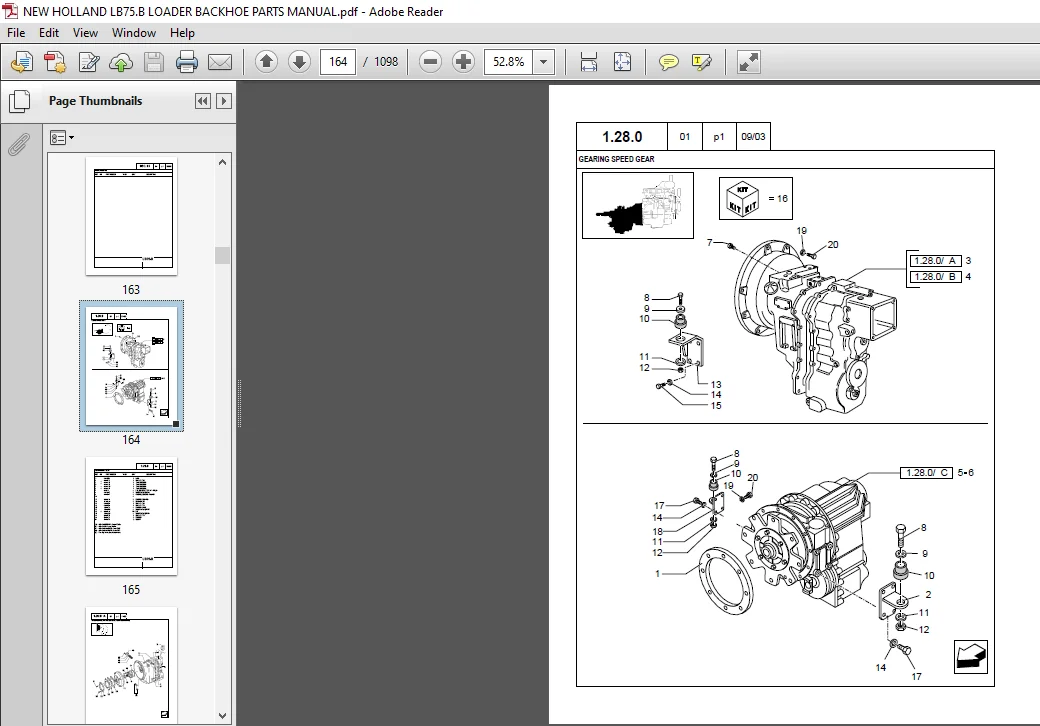

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

NEW HOLLAND LB75.B LOADER BACKHOE PARTS MANUAL – PDF DOWNLOAD

MAIN 00 SECTIONS
MPARTS 00 MAINTENANCE PARTS
SEC. 01 00 ENGINE 1/2
SEC. 01 01 ENGINE 2/2
0.021 01 ENGINE
0.040 01 CYLINDER BLOCK
0.040 02 CYLINDER BLOCK
0.042 01 OIL PUMP, PAN
0.043 01 CYLINDER BLOCK – COVERS
0.043 02 CYLINDER BLOCK – COVERS
0.043 03 CYLINDER BLOCK – COVERS
0.045 01 BREATHER – ENGINE
0.060 01 CYLINDER HEAD
0.063 01 CYLINDER HEAD – COVERS
0.066 01 CYLINDER HEAD – VALVE MECHANISM
0.071 01 MANIFOLD – INTAKE
0.077 01 MANIFOLD – EXHAUST
0.080 01 CRANKSHAFT
0.081 01 PISTONS – CONNECTING ROD
0.082 01 PISTONS – CONNECTING ROD
0.083 01 FLYWHEEL – ENGINE
0.084 01 PULLEY – CRANKSHAFT
0.105 01 DYNAMIC BALANCER, GEARS & SHAFTS
0.105 02 DYNAMIC BALANCER, GEARS & SHAFTS (2830952)
0.120 01 CAMSHAFT
0.140 01 FUEL INJECTION PUMP
0.140 02 FUEL INJECTION SYSTEM
0.142 01 FUEL INJECTION SYSTEM
0.149 01 FUEL INJECTION SYSTEM
0.200 01 FUEL FILTER
0.201 01 FUEL PUMP
0.203 01 FUEL INJECTION SYSTEM
0.204 01 FUEL INJECTION SYSTEM
0.240 01 TURBOCHARGER
0.270 01 ENGINE, OIL
0.300 01 OIL PUMP – ENGINE
0.302 01 OIL FILTERS – ENGINE
0.305 01 PIPING – ENGINE OIL
0.315 01 OIL FILTER AND COOLER
0.320 01 WATER PUMP
0.323 01 COOLING SYSTEM – ENGINE
0.326 01 THERMOSTAT – ENGINE COOLING SYSTEM
0.340 01 WATER PUMP – CONTROL
0.345 01 FAN DRIVE
0.350 01 POWER TAKE-OFF
0.360 01 STARTER MOTOR
0.400 01 ALTERNATOR
0.450 01 ENGINE – LIFT HOOK
636A 01 ACCESSORY ENGINE
636A 02 ACCESSORY ENGINE – VENTILATOR
636A 03 ACCESSORY ENGINE – STARTER
TABLE OF CONTENTS
636A 04 ACCESSORY ENGINE- ALTERNATOR
636A 05 ACCESSORY ENGINE – BRACKET MUFFLER
SEC. 02 00 FUEL TANK – MUFFLER – RADIATOR – AIR CLEANER – CHASSIS
1.14.0 01 FUEL TANK & RELATED PARTS
1.15.0 01 MUFFLER & EXTENSIONS
1.15.0 02 MUFFLER & EXTENSIONS
1.17.2 01 EXPANSION TANK
1.19.1 01 AIR CLEANER & HOSES
1.21.5/ 1 01 FRAME (CENTER PIVOT)
175 01 AIR INTAKE CAP & PRE-CLEANER
176 01 AIR INTAKE CAP & PRE-CLEANER
203 01 FRONT WEIGHTS
215 01 FRONT WEIGHTS
636 01 RADIATOR
636 02 RADIATOR
637 01 RADIATOR
SEC. 03 00 TRANSMISSION 1/2
SEC. 03 01 TRANSMISSION 2/2
1.28.0 01 GEARING SPEED GEAR
1.28.0/ A 01 TRANSMISSIONGEARING SPEED GEAR (2WD POWER-SHUTTLE)
1.28.0/ A 02 TRANSMISSIONGEARING SPEED GEAR (2WD POWER-SHUTTLE)
1.28.0/ A 03 TRANSMISSIONGEARING SPEED GEAR (2WD POWER-SHUTTLE)
1.28.0/ A 04 TRANSMISSIONGEARING SPEED GEAR (2WD POWER-SHUTTLE)
1.28.0/ A 05 TRANSMISSIONGEARING SPEED GEAR (2WD POWER-SHUTTLE)
1.28.0/ A 06 TRANSMISSIONGEARING SPEED GEAR (2WD POWER-SHUTTLE)
1.28.0/ A 07 TRANSMISSIONGEARING SPEED GEAR (2WD POWER-SHUTTLE)
1.28.0/ B 01 TRANSMISSIONGEARING SPEED GEAR (4WD POWER-SHUTTLE)
1.28.0/ B 02 TRANSMISSIONGEARING SPEED GEAR (4WD POWER-SHUTTLE)
1.28.0/ B 03 TRANSMISSIONGEARING SPEED GEAR (4WD POWER-SHUTTLE)
1.28.0/ B 04 TRANSMISSIONGEARING SPEED GEAR (4WD POWER-SHUTTLE)
1.28.0/ B 05 TRANSMISSIONGEARING SPEED GEAR (4WD POWER-SHUTTLE)
1.28.0/ B 06 TRANSMISSIONGEARING SPEED GEAR (4WD POWER-SHUTTLE)
1.28.0/ B 07 TRANSMISSIONGEARING SPEED GEAR (4WD POWER-SHUTTLE)
1.28.0/ B 08 TRANSMISSIONGEARING SPEED GEAR (4WD POWER-SHUTTLE)
1.28.6 01 GEAR FILTER PIPES (POWER-SHUTTLE)
1.29.1 01 TRANSMISSION ESTERNALSHIFTING CONTROLS (POWER-SHUTTLE)
1.38.1 01 FRONT & REAR DRIVESHAFT, POWER-SHUTTLE
1.39.8 01 TRANSMISSION OIL COOLING PIPES (POWER-SHUTTLE)
SEC. 04 01 FRONT AXLE
1.40.0 01 FRONT AXLE (2WD)
1.40.0 02 FRONT AXLE (2WD)
1.42.0 01 POWER STEERING HYDRAULIC SYSTEM
1.42.0/ A 01 POWER STEERING HYDRAULIC SYSTEM
402 01 4WD FRONT AXLE, HOUSING, BUSHINGS & SUPPORTS
402 02 4WD FRONT AXLE, SWIVEL HOUSING & STEERING CYLINDER
402 03 4WD FRONT AXLE, HUBS
402 04 4WD FRONT AXLE, RING GEAR & PINION ASSEMBLY
402 05 4WD FRONT AXLE, DIFFERENTIAL
402 06 4WD FRONT AXLE, DRIVE SHAFT
415 01 FRONT AXLE – (4WD) W/GEAR,BEVEL
415 02 FRONT AXLE – (4WD) W/GEAR,BEVEL
TABLE OF CONTENTS
415 03 FRONT AXLE – (4WD) W/GEAR,BEVEL
415 04 FRONT AXLE – (4WD) W/GEAR,BEVEL
415 05 FRONT AXLE – (4WD) W/GEAR,BEVEL
415 06 FRONT AXLE – (4WD) W/GEAR,BEVEL
SEC. 05 00 REAR AXLE
1.44.0A 01 REAR AXLE (POWER-SHUTTLE)
1.44.0A 02 REAR AXLE (POWER-SHUTTLE)
1.44.0A 03 REAR AXLE (POWER-SHUTTLE)
1.44.0A 04 REAR AXLE (POWER-SHUTTLE)
SEC. 06 00 ELECTRICAL
1.75.2 01 CHASSIS HARNESS & GROUND WIRE (POWER SHUTTLE)
1.75.2 02 BATTERY LOCK-OUT SWITCH & GROUND WIRE (POWER SHUTTLE)
1.75.2 03 ENGINE HARNESS (POWER SHUTTLE)
1.75.2/ 3 01 CHASSIS HARNESS & GROUND WIRE (POWER SHUTTLE)
1.75.2/ 3 02 BATTERY LOCK-OUT SWITCH & GROUND WIRE (POWER SHUTTLE)
1.75.2/ 3 03 ENGINE HARNESS (POWER SHUTTLE)
131 01 SINGLE BATTERY
321 01 DOUBLE BATTERY
995 01 COLD START
995 02 COLD START
SEC. 07 00 SLIDES VALVES
1.82.0 01 HYDRAULIC OIL RESERVOIR
1.82.3 01 HYDRAULIC PUMP (35+35-154L/MM)
1.82.6 01A HYDRAULIC SYSTEM PIPING (CENTER PIVOT)
1.82.6 01B FRONT HYDRAULIC PUMP INTAKE & OUTLET HOSES (CENTER PIVOT)
1.82.6 02A HYDRAULIC SYSTEM PIPING(CENTER PIVOT)
1.82.6 02B REAR HYDRAULIC PUMP STABILIZER, LOADER & BACKHOE VALVE HOSES
(CENTER PIVOT)
1.82.6 03A HYDRAULIC SYSTEM PIPING(CENTER PIVOT)
1.82.6 03B QUICK RELEASE COUPLERS & HOSES (CENTER PIVOT)
1.82.6 04A RETURN MANIFOLD HOSES (CENTER PIVOT)
1.82.6 04B RETURN MANIFOLD HOSES (CENTER PIVOT)
1.82.6 05F OIL COOLER & FILTER HOSES (CENTER PIVOT)
1.82.6 05G HYDRAULIC SYSTEM PIPING (CENTER PIVOT)
1.82.6 06A FILTER ASSEMBLY & HOSE TO RETURN MANIFOLD (CENTER PIVOT)
1.82.6 06B FILTER ASSEMBLY & HOSE TO RETURN MANIFOLD (CENTER PIVOT)
1.82.6 07 HYDRAULIC SYSTEM PIPING
1.82.6 08A LOADER LIFT CYLINDER HOSES (CENTER PIVOT)
1.82.6 08C LOADER LIFT CYLINDER HOSES (CENTER PIVOT)
1.82.6 09A LOADER BUCKET CYLINDER HOSES (CENTER PIVOT)
1.82.6 09B LOADER BUCKET CYLINDER HOSES (CENTER PIVOT)
1.82.6 09C BACKHOE SWING CYLINDER HOSES (CENTER PIVOT)
1.82.6 11A BACKHOE CONTROL VALVE HOSES (CENTER PIVOT)
1.82.6 11B HYDRAULIC SYSTEM PIPING(CENTER PIVOT)
1.82.6 12B HYDRAULIC SYSTEM PIPING(CENTER PIVOT)
1.82.6 13A ROTATION PLATE HOSE CLAMPS (CENTER PIVOT)
1.82.6 16 BACKHOE CONTROL VALVE(CENTER PIVOT)
1.82.6 17 DIPPER VALVE SECTION (CENTER PIVOT)
1.82.6 18 BUCKET, SWING, & BOOM VALVE SECTION (CENTER PIVOT)
302 01 TWO-SECTION CONTROL VALVE FOR LOADER
302 02 TWO-SECTION CONTROL VALVE FOR LOADER
TABLE OF CONTENTS
302 03 TWO-SECTION CONTROL VALVE FOR LOADER
302 04 TWO-SECTION CONTROL VALVE FOR LOADER
331 01 BACKHOE CONTROL VALVE, 6 SECTIONS (CENTER PIVOT) NORTH AMERICA
331/A 01 6 SECTION PILOT CONTROL VALVE SUPPORT,COMPLETE
331/A 02 6 SECTION PILOT CONTROL VALVE SUPPORT,COMPLETE
331/B 01 PILOT CONTROL VALVE SUPPORT,COMPLETE
331/C 01 6 SECTION PILOT CONTROL VALVE SUPPORT,COMPLETE
331/C 02 6 SECTION PILOT CONTROL VALVE SUPPORT,COMPLETE
331/C 03 6 SECTION PILOT CONTROL VALVE SUPPORT,COMPLETE
331/C 04 6 SECTION PILOT CONTROL VALVE SUPPORT,COMPLETE
331/C 05 6 SECTION PILOT CONTROL VALVE SUPPORT,COMPLETE
331/C 06 6 SECTION PILOT CONTROL VALVE SUPPORT,COMPLETE (CENTER PIVOT)
333/1 01 7-SECTIONS EXCAVATOR CONTROL VALVE (CENTER PIVOT) NORTH AMERICA
333/1 02 7-SECTIONS EXCAVATOR CONTROL VALVE (CENTER PIVOT) NORTH AMERICA
333/1 03 7-SECTIONS EXCAVATOR CONTROL VALVE (CENTER PIVOT) NORTH AMERICA
333/1 04 7-SECTIONS EXCAVATOR CONTROL VALVE (CENTER PIVOT) NORTH AMERICA
333/1 05 7-SECTIONS EXCAVATOR CONTROL VALVE (CENTER PIVOT) NORTH AMERICA
333/1 06 7-SECTIONS EXCAVATOR CONTROL VALVE (CENTER PIVOT) NORTH AMERICA
333/1 07 7-SECTIONS EXCAVATOR CONTROL VALVE (CENTER PIVOT) NORTH AMERICA
333/A 02 7 SECTION PILOT CONTROL VALVE SUPPORT,COMPLETE
333/A 03 7 SECTION PILOT CONTROL VALVE SUPPORT,COMPLETE
333/B 01 7 SECTION PILOT CONTROL VALVE SUPPORT,COMPLETE
333/B 02 7 SECTION PILOT CONTROL VALVE SUPPORT,COMPLETE (CENTER PIVOT) EUROPE
333/B 03 7 SECTION PILOT CONTROL VALVE SUPPORT,COMPLETE
333/B 04 7 SECTION PILOT CONTROL VALVE SUPPORT,COMPLETE
333/B 05 7 SECTION PILOT CONTROL VALVE SUPPORT,COMPLETE
333/B 06 7 SECTION PILOT CONTROL VALVE SUPPORT,COMPLETE (CENTER PIVOT) EUROPE
333/B 07 7 SECTION PILOT CONTROL VALVE SUPPORT,COMPLETE (CENTER PIVOT) EUROPE
333/B 08 7 SECTION PILOT CONTROL VALVE SUPPORT,COMPLETE
333/B 09 7 SECTION PILOT CONTROL VALVE SUPPORT,COMPLETE (CENTER PIVOT) EUROPE
334 09 7-SECTIONS EXCAVATOR CONTROL VALVE
334 11 7-SECTIONS EXCAVATOR CONTROL VALVE
336/ A 01 THREE-SECTION CONTROL VALVE FOR LOADER(CENTER PIVOT)
336/ 1 01 LOADER CONTROL VALVE, TWO SECTION, LOADER, BUCKET & DUMP VALVES
(CENTER PIVOT)
336/ 1 02 LOADER CONTROL VALVE, TWO SECTION, CAP & UNLOAD VALVE (CENTER PIVOT)
336/ 1 03 LOADER CONTROL VALVE, TWO SECTION, RELIEF & CHECK VALVES (CENTER
PIVOT)
336/ 1 04 LOADER CONTROL VALVE, TWO SECTION, BY-PASS KIT (CENTER PIVOT)
336/ 1 05 LOADER CONTROL VALVE, TWO SECTION, UNLOAD KIT OR DUMP VALVE (CENTER
PIVOT)
337 01 LOCK VALVE ON LOADER TILTING CYLINDERS
337 02 LOCK VALVE ON LOADER LIFT CYLINDERS
339 01 LOADER CONTROL VALVE, THREE SECTION, LOADER & BUCKET VALVES (CENTER
PIVOT)
339 02 LOADER CONTROL VALVE, THREE SECTION, CAP & THIRD SECTION RELIEF
VALVE (CENTER PIVOT)
339 03 LOADER CONTROL VALVE, THREE SECTION, RELIEF, UNLOAD, DUMP & CHECK
VALVES (CENTER PIVOT)
339 04 LOADER CONTROL VALVE, THREE SECTION, BY-PASS KIT (CENTER PIVOT)
TABLE OF CONTENTS
339 05 LOADER CONTROL VALVE, THREE SECTION, UNLOAD KIT OR DUMP VALVE
(CENTER PIVOT)
339/ 1 01 LOADER CONTROL VALVE
339/ 1 02 LOADER CONTROL VALVE, INLET SECTION
339/ 1 03 LOADER CONTROL VALVE, BOOM SECTION
339/ 1 04 TWO-SECTION CONTROL VALVE FOR LOADER
339/ 1 05 LOADER CONTROL VALVE, 4X1& 6X1 BUCKET SECTION
344 01 STABILIZER CONTROL VALVE, TWO SECTION (CENTER PIVOT)
344/ A 01 STABILIZER CONTROL VALVE, LH & RH SECTION (CENTER PIVOT)
356/ A 01 STABILIZER CONTROL VALVE, THIRD SECTION, HED (CENTER PIVOT)
391 01 LOCK VALVE FOR BUCKET 4X1 / 6X1
392 01 LOCKING VALVE ON BACKHOE LIFT AND DIPP. CYLINDER
392 02 BACKHOE LIFT & DIPPERSTICK CYLINDER LOCK VALVE
437 01 GLIDE RIDE VALVE,HYDRAULIC SYSTEM FOR MACHINE FRAME LEVELLING &
ON/OFF SWITCH
437 02 GLIDE RIDE VALVE
721 01 TELESCOPIC CONTROL VALVE, 3 SECTIONS(CENTER PIVOT)
721 02 HED TELESCOPIC CONTORL VALVE, SECTION HOSES(CENTER PIVOT)
721 03 HED CYLINDER PISTON END HYDRAULIC LINES(CENTER PIVOT)
721 04 HED CYLINDER ROD END HYDRAULIC LINES(CENTER PIVOT)
721 05 HED FOOT PEDAL, CABLE & DECALS(CENTER PIVOT)
SEC. 08 00 BODY & HOOD
1.83.0 01 HOOD, GRILLE & RELATED PARTS
1.87.2 01 CAB SCREEN
1.87.8 01 CAB FASTENERS
SEC. 09 00 LOADER 1/1
SEC. 09 01 BACKHOE 1/2
SEC. 09 02 BACKHOE 2/2
1.88.01 01 TRANSPORT LOCK” REAR LOCKING” (CENTER PIVOT)
1.88.01 02 TRANSPORT LOCK” REAR LOCKING” (CENTER PIVOT)
1.88.08 01 SWING POST ASSEMBLY, BUSHINGS & PINS
1.88.08 02 SWING POST PINS & TRANSPORT LOCK HOOK
1.88.09 01 DISTRIBUTOR VALVE SUPPORT (CENTER PIVOT)
1.88.11 01 ARMS AND JOINTS
1.88.11/ 1 01 LOADER CYLINDER
1.88.11/ 2 01 LOADER BUCKET CONTROL CYLINDER
1.88.11/ 2 02 LOADER BUCKET CONTROL CYLINDER
1.88.11/ 3 01 LIFT CYLINDER AND BUCKET PIPES
1.88.11/ 5 01 SELF-LEVELING LINKAGE, LOADER CONTROLS (CENTER PIVOT)
1.88.11/ 5 02 SELF-LEVELING LINKAGE, LOADER ARM (CENTER PIVOT)
1.88.11/ 6 01 STABILIZER CYLINDERS (CENTER PIVOT)
1.88.11/ 7 01 PIPES FOR STABILIZER CYLINDERS (CENTER PIVOT)
1.88.11/ 8 01 RETURN TO DIG SENSOR
1.88.11/ 9 01 CYLINDERS AND ROTATION PLATE (SIDE SHIFT)
1.88.11/ 9A 01 CYLINDERS AND ROTATION PLATE (CENTER PIVOT)
1.88.11/ 9B 01 SWING CYLINDERS, THREADED TRUNNION
1.88.12/ 3 01 FRONT CONTROL VALVE SUPPORT AND TRANSMISSIONS (CENTER PIVOT)
200 01 SHOVEL AND REAR LIFTING HOOKS
469-A 01 HYDRAULIC CYLINDER (BUCKET 4X1-6X1)
471 01 BUCKET 4X1 (1 M3) WITH BLADE
471 02 BUCKET 4X1 (1 M3) WITH BLADE
TABLE OF CONTENTS
472 01 BUCKET 4X1 (1 M3) WITH TINE
472 02 BUCKET 4X1 (1 M3) WITH TINE
473 01 BUCKET 6X1 (1 M3) WITH BLADE
473 02 BUCKET 6X1 (1 M3) WITH BLADE
474 01 BUCKET 6X1 (1 M3) WITH TINE
474 02 BUCKET 6X1 (1 M3) WITH TINE
514 01 BOOM – DIPPER SHORT
514 02 SHORT DIPPER
514 03 SHORT DIPPER – BUCKET MOTION
514 04 SHORT DIPPER – HYDRAULIC SYSTEM
514 05 SHORT DIPPER – HYDRAULIC SYSTEM
514 06 SHORT DIPPER – HYDRAULIC SYSTEM
514 07 SHORT DIPPER – HYDRAULIC SYSTEM
514 08 SHORT DIPPER – HYDRAULIC SYSTEM
514-A 01 HYDRAULIC LIFTING CYLINDER
514-B 01 HYDRAULIC DITCHING CYLINDER
514-C 01 HYDRAULIC BUCKET CYLINDER
515 01 12″ (305MM) BACKHOE BUCKET WITH PIN TEETH
515 02 12″ (305MM) BACKHOE BUCKET WITH BOLT-ON TEETH
516 01 18″ (457MM) BACKHOE BUCKET WITH PIN TEETH
516 02 18″ (457MM) BACKHOE BUCKET WITH BOLT-ON TEETH
517 01 24″ (610MM) BACKHOE BUCKET WITH PIN TEETH
517 02 24″ (610MM) BACKHOE BUCKET WITH BOLT-ON TEETH
518 01 30″ (762MM) BACKHOE BUCKET WITH PIN TEETH
518 02 30″ (762MM) BACKHOE BUCKET WITH BOLT-ON TEETH
519 01 36″ (914MM) BACKHOE BUCKET WITH PIN TEETH
519 02 36″ (914MM) BACKHOE BUCKET WITH BOLT-ON TEETH
520 01 0.88 M3 BUCKET WITHOUT TINES
522-B 01 1 M3 BUCKET
522-C 01 STANDARD 1MC BUCKET WITH FORKS
525 01 STANDARD 1M3 BUCKET WITH FORKS AND EXTRA REVERSIBLE BLADE
525 02 STANDARD 1M3 BUCKET WITH FORKS AND EXTRA REVERSIBLE BLADE
526 01 BOLT-ON TOOTH KIT, 12″ (305MM) BACKHOE BUCKET
526-1 01 STANDARD 1M3 BUCKET WITH FORKS AND TINE
527 01 BOLT-ON TOOTH KIT, 18″ (457MM) & 24″ (610MM) BACKHOE BUCKETS
527-1 01 0.88 M3 BUCKET AND EXTRA REVERSIBLE BLADE
528 01 BOLT-ON TOOTH KIT, 30″ (762MM) BACKHOE BUCKET
529 01 BOLT-ON TOOTH KIT, 36″ (914MM) BACKHOE BUCKET
530 01 PIN TOOTH KIT, 12″ (305MM) BACKHOE BUCKET
531 01 PIN TOOTH KIT, 18″ (457MM) & 24″ (610MM) BACKHOE BUCKETS
532 01 PIN TOOTH KIT, 30″ (762MM) BACKHOE BUCKET
533 01 PIN TOOTH KIT, 36″ (914MM) BACKHOE BUCKET
533/ 1 01 1.15 M3 BUCKET WITH FORKS AND CUTTER BLADE
536/ 1 01 STANDARD 1MC BUCKET WITH TINE
537/ 1 01 STANDARD 1MC BUCKET WITH EXTRA REVERSIBLE BLADE
548 01 DITCH CLEANING BUCKET
555 01 FRONT BUCKET TEETH
556 01 LOADER BUCKET REVERSIBLE BLADE
626 01 SCRAB GRAB
648 01 FORK KIT, CONVERTS4X1 BUCKET TO 6X1
699 01 HAND HAMMER SWITCH
TABLE OF CONTENTS
700 01 4X1 & 6X1 BUCKET CONTROL LEVER, CABLE & DECALS
700 02 4X1 & 6X1 BUCKET HYDRAULIC LINES
704 01 MANUAL HAMMER SYSTEM
704 02 MANUAL HAMMER SYSTEM
704/ A 01 MANUAL HAMMER VALVE
718 01 4X1 & 6X1 BUCKET HYDRAULIC LINES CENTER PIVOT)
718 02 4X1 & 6X1 BUCKET CONTROL LEVER, CABLE & DECALS (CENTER PIVOT)
724 01 HYDRAULIC SYSTEM FOR HAMMER (CENTER PIVOT)
724 02 HYDRAULIC SYSTEM FOR HAMMER (CENTER PIVOT)
724/ A 01 REAR HAMMER CONTROL VALVE
724/ 3 01 HYDRAULIC SYSTEM FOR HAMMER (CENTER PIVOT)
724/ 3 02 HYDRAULIC SYSTEM FOR HAMMER (CENTER PIVOT)
725 01 HAMMER KIT FROM LIFTING ARM TO DEMOLITION ARM
725/ 1 01 4X1 & 6X1 BUCKET CONTROL LEVER, CABLE & DECALS(CENTER PIVOT)
725/ 1 02 4X1 & 6X1 BUCKET HYDRAULIC LINES(CENTER PIVOT)
732 01 REAR MECHANICAL QUICK-COUPLING
732-A 01 REAR MECHANICAL QUICK-COUPLING
734 01 FRONT MECHANICAL QUICK-COUPLING
902 01 BOOM – TELESCOPIC DIPPER SHORT
902 02 TELESCOPIC DIPPER SHORT – HYDRAULIC SYSTEM
902 03 TELESCOPIC DIPPER SHORT – HYDRAULIC SYSTEM
902 04 TELESCOPIC DIPPER SHORT- BUCKET MOTION
902 05 TELESCOPIC DIPPER SHORT – HYDRAULIC SYSTEM
902 06 TELESCOPIC DIPPER SHORT – HYDRAULIC SYSTEM
902 07 TELESCOPIC DIPPER SHORT – HYDRAULIC SYSTEM
902/ A 01 TELESCOPIC DIPPER SHORT
902/ A 02 TELESCOPIC DIPPER SHORT – HYDRAULIC SYSTEMM
SEC. 10 00 BODY, HOOD & DRIVER”S POST 1/3
SEC. 10 01 BODY, HOOD & DRIVER”S POST 2/3
SEC. 10 02 BODY, HOOD & DRIVER”S POST 3/3
095 01 STABILIZER CONTROL WITHOUT AUTO-UP (CENTER PIVOT)
096 01 STABILIZER CONTROL WITH AUTO-UP (CENTER PIVOT)
1.91.1 01 CAB / CEILING LIGHT
1.91.1/ 1 01 SAFETY FRAME- INSTRUMENTS AND GAUGES
1.91.3 01 BACK-UP ALARM
1.91.4 01 IGNITON SWITCH, POWER POINT, FUSE PANEL & SIDE CONSOLE HARNESS (ROPS
CP POWER SHUTTLE)
1.91.4 02 IGNITON SWITCH, POWER POINT, FUSE PANEL & SIDE CONSOLE HARNESS (ROPS
CP POWER SHUTTLE)
1.91.4 03 IGNITON SWITCH, POWER POINT, FUSE PANEL & SIDE CONSOLE HARNESS (ROPS
CP POWER SHUTTLE)
1.91.4 04 IGNITON SWITCH, POWER POINT, FUSE PANEL & SIDE CONSOLE HARNESS (ROPS
CP POWER SHUTTLE)
1.91.4 05 RH SIDE CONSOLE TRIM, INSTRUMENT CLUSTER & SWITCHES (ROPS CP POWER
SHUTTLE)
1.91.4/ 2 01 IGNITON SWITCH, POWER POINT, FUSE PANEL & SIDE CONSOLE HARNESS (CAB
CP POWER SHUTTLE)
1.91.4/ 2 02 IGNITON SWITCH, POWER POINT, FUSE PANEL & SIDE CONSOLE HARNESS (CAB
CP POWER SHUTTLE)
1.91.4/ 2 03 IGNITON SWITCH, POWER POINT, FUSE PANEL & SIDE CONSOLE HARNESS (CAB
CP POWER SHUTTLE)
TABLE OF CONTENTS
1.91.4/ 2 04 IGNITON SWITCH, POWER POINT, FUSE PANEL & SIDE CONSOLE HARNESS (CAB
CP POWER SHUTTLE)
1.91.4/ 2 05 IGNITON SWITCH, POWER POINT, FUSE PANEL & SIDE CONSOLE HARNESS (CAB
CP POWER SHUTTLE)
1.91.5 01 FRONT AND REAR WINDSCREEN WIPERS
1.91.5 02 WINDSCREEN WIPERS RESERVOIR & NOZZLES
1.91.6 01 RADIO ANTENNA & SPEAKER COVER
1.91.7/ 1 01 LAMPS & LIGHTS – CAB (USA)
1.91.7/ 3 01 LAMPS & LIGHTS – ROPS (USA)
1.92.1 01 CAB – FRAME-DOOR
1.92.1/ 1 01 ROPS – SAFETY FRAME
1.92.1/ 2 01 CAB – FRAME-DOOR
1.92.1/ 3 01 ROPS – SAFETY FRAME
1.92.3 01 WINDOWS
1.92.4 01 WINDOWS
1.92.4 02 WINDOWS
1.92.4 03 WINDOWS
1.92.5 01 FENDERS, REAR
1.92.6 01 DOOR COMPONENTS
1.92.6 02 DOOR COMPONENTS
1.92.6 03 DOOR COMPONENTS
1.92.8 01 FIREWALL SEAL, ROPS
1.92.9 01 REAR WINDOWS
1.92.9 02 REAR WINDOWS
1.92.9 03 REAR WINDOWS
1.93.0 01 CAB / SOFT TRIM
1.93.0 02 CAB / SOFT TRIM (POWER SHUTTLE)
1.93.0 03 CAB / SOFT TRIM
1.93.0 04 CAB / SOFT TRIM
1.93.0/ 2 01 RH & BACKHOE CONSOLE TRIM, ROPS (CENTER PIVOT)
1.93.0/ 3 01 CAB / SOFT TRIM
1.93.0/ 3 04 CAB / SOFT TRIM
1.93.0/ 5 01 RH & BACKHOE CONSOLE TRIM, ROPS (CENTER PIVOT)
1.93.4 01 REAR MIRROR- SUN SCREEN
1.93.5 01 FRONT CONSOLE – ROPS (POWER SHUTTLE)
1.93.5 02 RH SIDE CONSOLE SEAL & CLIPS – ROPS (POWER SHUTTLE)
1.93.5/ 1 01 CAB / PANEL DASH
1.93.5/ 1 02 CAB / PANEL DASH
1.94.0 01 CAB/ CANOPY
1.94.0/ 1 01 ROOF, ROPS
1.94.2 01 HEATER HOUSING, COIL, BLOWER & VALVE
1.94.2 02 HEATER ASSEMBLY & FILTERS
1.94.2 03 HEATER WATER HOSES
1.94.2 04 AIR DUCTS & VENTS
1.94.2 05 HEATER CONTROL PANEL
1.94.2/ 1 01 HEATER HOUSING, COIL, BLOWER & VALVE
1.94.2/ 1 04 AIR DUCTS & VENTS
1.95.0 01 CAB-SAFETY FRAME / BRAKE PEDAL
1.95.0 02 CAB-SAFETY FRAME / BRAKE PEDAL
1.95.0 03 CAB-SAFETY FRAME / BRAKE PEDAL
1.95.0/ A 01 CAB-SAFETY FRAME / BRAKE PEDAL
TABLE OF CONTENTS
1.95.1 01 CAB-SAFETY FRAME / HAND BRAKE
1.95.2 01 TRANSPORT LOCK CONTROL
1.95.3 01 HAND-OPERATED AND PEDAL-OPERATED ACCELERATOR CONTROL
1.95.5 01 POWER STEERING MOTOR, WHEEL & COLUMN TRIM (POWER-SHUTTLE)
1.95.5 02 POWER STEERING MOTOR HOSES
1.95.5/ A 01 POWER STEERING MOTOR
1.95.5/ B 01 POWER STEERING MOTOR
1.96.0 01 FOWARD/REVERSE & MULTI-PURPOSE LEVER (POWER-SHUTTLE – CENTER PIVOT)
1.96.2 01 STABILIZER CONTROL
1.96.2 02 STABILIZER CONTROL
1.96.2/ 1 01 PILOT CONTROL DIAGNOSTICS
1.96.7 01 CAB PLUGS, FLOOR PLATES & AIR CONVEYER, CENTER PIVOT
1.96.7/ 4 01 ROPS PLUGS & FLOOR PLATE (CENTER PIVOT)
1.96.7/ 6 01 CAB PLUGS, FLOOR PLATES & AIR CONVEYER, CENTER PIVOT
1.96.7/10 01 ROPS PLUGS & FLOOR PLATE (CENTER PIVOT)
1.98.0 01 INFORMATION SYMBOL DECALS – USA (POWER SHUTTLE)
1.98.0 02 CAB WARNING & INFORMATION DECALS (POWER SHUTTLE)
1.98.0 03 BACKHOE, LOADER & ENGINE WARNING DECALS (POWER SHUTTLE)
1.98.0 04 BACKHOE, LOADER & ENGINE WARNING DECALS (POWER SHUTTLE)
1.98.1 01 LB75.B MODEL IDENTIFICATION (POWER SHUTTLE)
343 01 LOADER CONTROL VALVE, THREE SECTION, CONTROL LEVER (CENTER PIVOT)
343 02 LOADER CONTROL VALVE, THREE SECTION, CONTROL LEVER CABLE (CENTER
PIVOT)
343/ 1 01 LOADER CONTROL VALVE, CONTROL LEVER & CABLE (SIDE SHIFT & LB115)
351 04 CASE 3 LEVER BACKHOE CONTROLS, CONSOLE & LEVERS
351 05 CASE 3 LEVER BACKHOE CONTROLS, BELLCRANK & SUPPORT
351 06 CASE 3 LEVER BACKHOE CONTROLS, BUCKET TIE-ROD ASSEMBLY
351 07 CASE 3 LEVER BACKHOE CONTROLS, UPPER SWING TIE-ROD ASSEMBLY
351 08 CASE 3 LEVER BACKHOE CONTROLS, DIPPER, SWING & BOOM LINKAGE
351 09 CASE 3 LEVER BACKHOE CONTROLS, SWING CONTROL PEDAL
353 01 4 LEVER BACKHOE CONTROLS, CONSOLE, LEVERS & BELLCRANK (SIDE SHIFT &
LB115)
353 02 4 LEVER BACKHOE CONTROLS, UPPER TIE-ROD ASSEMBLY (SIDE SHIFT)
353 03 4 LEVER BACKHOE CONTROLS, LOWER TIE-ROD ASSEMBLY (SIDE SHIFT)
390 01 LOADER CONTROL VALVE, TWO SECTION, LEVER & DECAL (CENTER PIVOT)
390/ 1 01 2 LEVER BACKHOE CONTROLS, LEVER, BOOT & DECALS (CENTER PIVOT)
393 01 LOCKING VALVE ON BACKHOE LIFT CYLINDER
394-397 01 ISO 2 LEVER BACKHOE CONTROLS, LEVERS, BOOT & DECALS (CENTER PIVOT)
394-397 02 ISO 2 LEVER BACKHOE CONTROLS, TIE-ROD ASSEMBLY (CENTER PIVOT)
394/ 1 01 4 LEVER BACKHOE CONTROLS, CONSOLE, LEVERS & BELLCRANK (CENTER PIVOT)
394/ 1 02 4 LEVER BACKHOE CONTROLS, UPPER TIE-ROD ASSEMBLY, CENTER PIVOT
394/ 1 03 4 LEVER BACKHOE CONTROLS, LOWER TIE-ROD ASSEMBLY (CENTER PIVOT)
522-A 01 THREE-SECTION LOADER CONTROL VALVE LEVER, CABLE & DECALS
622 01 INTERNAL FAN
644 01 A/C HOUSING & FILTERS
644 02 A/C BLOWER & COILS
644 03 HEATER COIL HOSES
644 04 A/C & HEATER CONTROL PANEL
644 04A A/C & HEATER CONTROL PANEL
644 05 A/C & HEATER CONSOLE DUCTS
644 05A A/C & HEATER CONSOLE DUCTS
TABLE OF CONTENTS
644 06 A/C & HEATER CONVEYOR
644 07 A/C HOUSING SIDE PANELS
644 08 RH CAB TRIM WITH VENT
644 09 A/C & HEATER CAB ROOF DUCTS
646 01 A/C DRYER FILTER HOSES
646A 01 A/C COMPRESSOR ATTACHING GROUP
650 01 STEERING COLUMN, FIXED & ADJUSTABLE
705 01 SEAT BELTS, 2″ & 3″
758 01 ROTATING BEACON
782 01 FRONT CONSOLE WITH SPEEDOMETER, 4WD
787/ 1 01 FRONT CONSOLE WITHOUT SPEEDOMETER (CAB)
787/ 2 01 FRONT CONSOLE WITHOUT SPEEDOMETER (CAB)
788/ 1 01 FRONT CONSOLE WITH SPEEDOMETER, 4WD
788/ 2 01 FRONT CONSOLE WITH SPEEDOMETER, 4WD
789 01 SPEED SENSOR(P.SHUTTLE)
791 01 RH CONSOLE WITH INSTRUMENTS
792 01 RH CONSOLE WITH INSTRUMENTS AND DIAGNOSTICS
795 01 RH CONSOLE WITH INSTRUMENTS AND DIAGNOSTICS
796 01 ANTITHEFT
851 01 CLOTH SEAT & ATTACHING HARDWARE
851/ 1 01 CLOTH SEAT CUSHIONS, ARMRESTS & RELATED PARTS
851/ 1 02 CLOTH SEAT MOUNTING PLATE, ADJUSTING RAILS & 2″ SEAT BELT
851/ 1 03 CLOTH SEAT UPPER SUSPENSION PARTS
851/ 1 04 CLOTH SEAT LOWER SUSPENSION PARTS
851/ 2 02 CLOTH SEAT MOUNTING PLATE, ADJUSTING RAILS & 3″ SEAT BELT
855 01 AIR RIDE CLOTH SEAT & ATTACHING HARDWARE
855/ 1 01 AIR RIDE CLOTH SEAT CUSHIONS, ARMRESTS & RELATED PARTS
855/ 1 02 AIR RIDE CLOTH SEAT MOUNTING PLATE, ADJUSTING RAILS & 2″ SEAT BELT
855/ 1 03 AIR RIDE CLOTH SEAT UPPER SUSPENSION PARTS
855/ 1 04 AIR RIDE CLOTH SEAT LOWER SUSPENSION PARTS
855/ 1 05 AIR RIDE CLOTH SEAT COMPRESSOR & TUBING
855/ 2 02 AIR RIDE CLOTH SEAT MOUNTING PLATE, ADJUSTING RAILS & 3″ SEAT BELT
856 01 VINYL SEAT CUSHIONS, ARMRESTS & RELATED PARTS (ROPS)
856/ 1 01 VINYL SEAT WITH ARMRESTS & MOUNTING HARDWARE (ROPS)
856/ 1 02 VINYL SEAT MOUNTING PLATE, ADJUSTING RAILS & 2″ SEAT BELT (ROPS)
856/ 1 03 VINYL SEAT UPPER SUSPENSION PARTS (ROPS)
856/ 1 04 VINYL SEAT LOWER SUSPENSION PARTS (ROPS)
856/ 2 02 VINYL SEAT MOUNTING PLATE, ADJUSTING RAILS & 3″ SEAT BELT (ROPS)
869 01 NON-SUSPENSION SEAT
869/ 1 01 NON-SUSPENSION SEAT CUSHIONS, RELATED PARTS & 2″ SEAT BELT
869/ 1 02 NON-SUSPENSION SEAT ADJUSTING MECHANISM
869/ 1 03 NON-SUSPENSION SEAT PEDESTAL & BASE
870/ 1 01 NON-SUSPENSION SEAT CUSHIONS, RELATED PARTS & 3″ SEAT BELT
990 01 TOOL KIT
SEC. 11 00 WHEELS
81.00 01 FRONT WHEELS, 2WD
82.00 01 DRIVING WHEELS(4WD)
83.00 01 DRIVE WHEELS
SEC. 18 00 VARIATION
535 01 STABILIZER FOOT GROUND (CENTER PIVOT)
535/ 1 01 STABILIZER FOOT STREET PAD (CENTER PIVOT)
TABLE OF CONTENTS
536 01 REVERSIBLE STABILIZER FOOT (CENTER PIVOT)
537 01 STABILIZER FOOT STREET PAD (CENTER PIVOT)
628 01 4WD STEERING LOCK
685 01 CABINET ACCESSORY
803 01 FENDERS, FRONT

NEW HOLLAND LB75.B LOADER BACKHOE PARTS MANUAL – PDF DOWNLOAD:

PLEASE NOTE:

• This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
• You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
• Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted
