New Holland LB90.B Backhoe Loader Parts Catalog Manual 6036803300NA – PDF DOWNLOAD

Description

New Holland LB90.B Backhoe Loader Parts Catalog Manual 6036803300NA – PDF DOWNLOAD

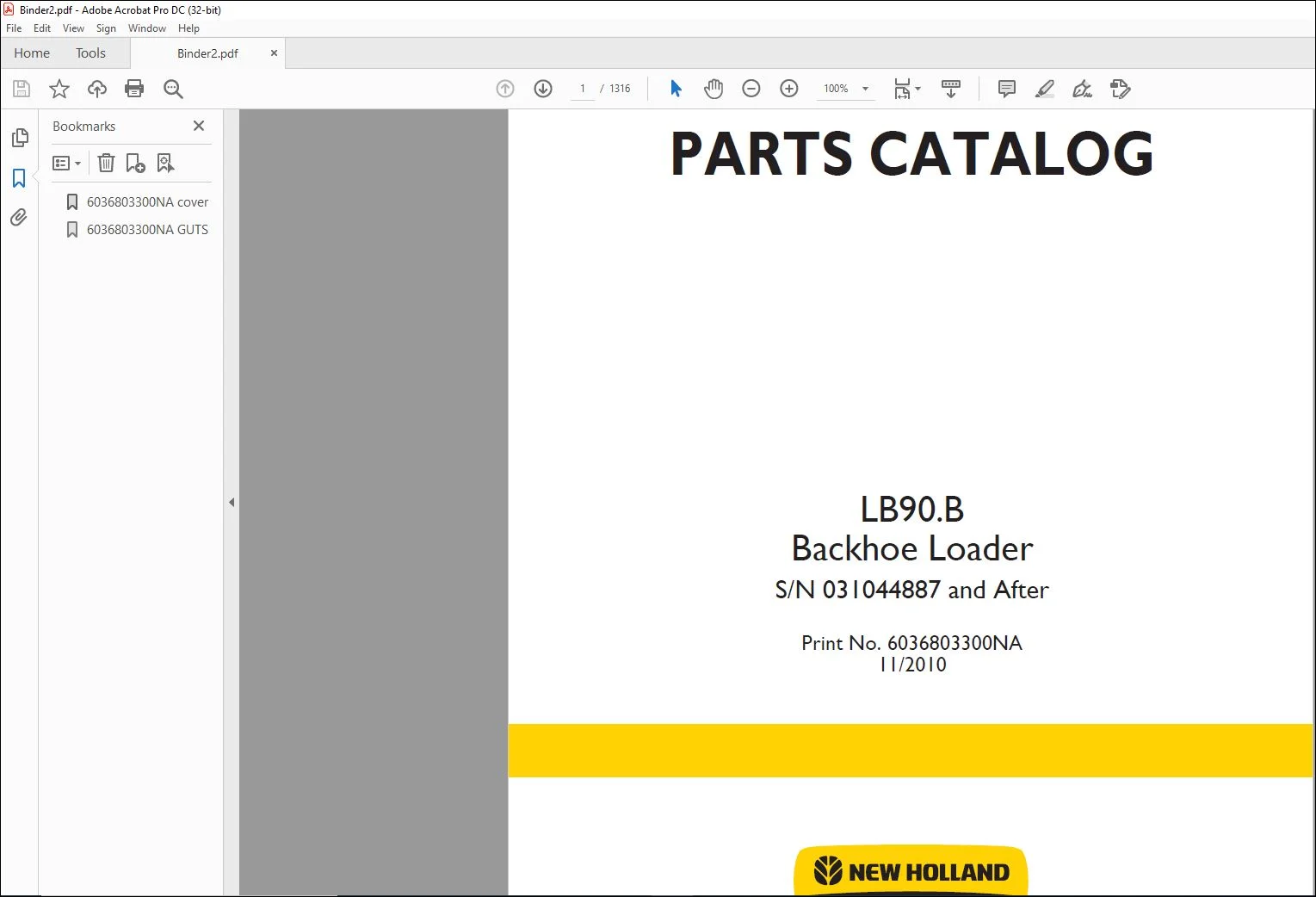

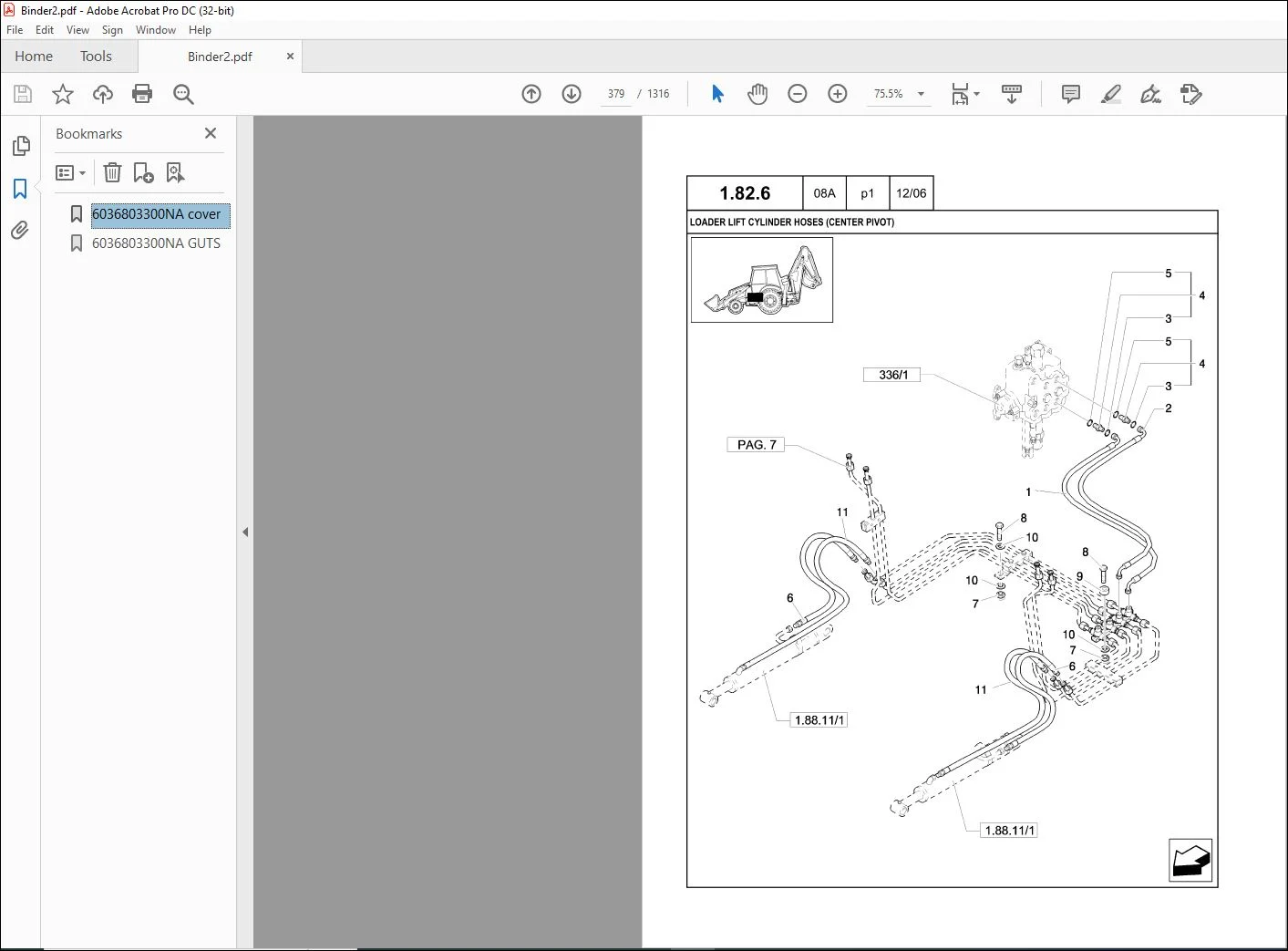

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

New Holland LB90.B Backhoe Loader Parts Catalog Manual 6036803300NA – PDF DOWNLOAD

S/N 031044887 and After

GENERAL INFORMATION:

1. Whenever the terms left and right are used, it should be understood to mean
from a position facing in direction of travel.
2. Throughout this manual you may find common hardware not illustrated, but
listed in the description column. The service part immediately preceding a
hardware listing is the part using these particular items for mounting purposes.
This hardware is not included with the service part or assembly when ordered as
a replacement.
3. The illustrations show typical assemblies plus individual parts but in all cases
may not show the exact shape or detail of parts required. However, the purpose
for the illustrations is to identify parts performing like functions. Whenever possible
illustrations are located at the beginning of each section or immediately adjacent
to the applicable text.
4. CNH America LLC is continually striving to improve its products. We must,
therefore, reserve the right to make improvements or changes when it becomes
practical and possible to do so, without incurring any obligation to make changes
or additions to the equipment sold previously.

How to Use Your Parts Catalog:
1. Figure Number
2. Sequence code within the Figure Number
3. Page number within the Sequence Code
4. Date of Printing (month / year)
5. Figure Description
6. General information regarding the figure
7. Parts supplied in repair kits per symbol reference
8. Figure call-out of the part number (REF)
9. Technical Specifications relating to the part indicated
10. Figure call-out includes bracketed items, the included items may also be listed in the additional description
area
11. Orientation – Arrow indicates front of the machine
12. Footnote -Additional information relating to the part number. In this example, 08-20 equals another figure
that this part is shown on.
13. Part Number
NSS = Non-serviced parts
Bracketed numbers= not available as service parts in this market
14. Not Available as service part in this market
15. YR/SN
Year
Before 01/85 = Part valid for production January 1985 and before
From 01 /85 = Part valid for production from January 1985 and after
BTW 01/85 & 02/02 = Part valid for machines produced between January 1985 and February 2002.
Serial Number (P.I.N.)
BSN JJC0268800 = Part valid for serial number JJC0268800 and below
ASN JJC0268800 = Part valid for serial number JJC0268800 and above
BTW JJC0178000 & JJC0179000 = Part valid for serial numbers between JJC0178000 & JJC0179000
16. Total Quantity of the Part referred to in the page. The quantity can be replaced by the following indications:
AR = quantity as required
X = as required
17. Part Description
18. Additional description of the part to help confirm identification
19. Figure Notes
20. Model Number(S)

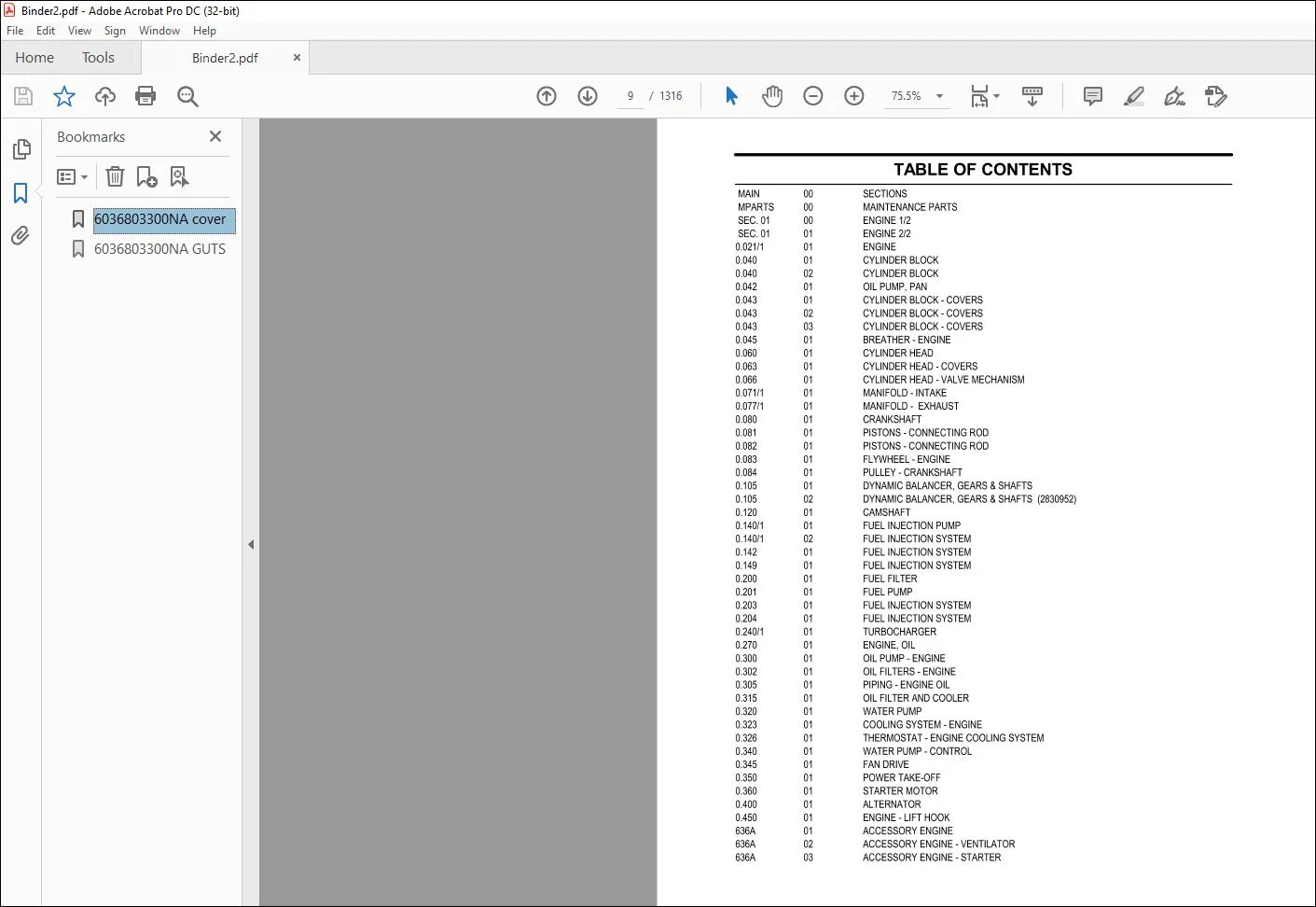

TABLE OF CONTENTS:

New Holland LB90.B Backhoe Loader Parts Catalog Manual 6036803300NA – PDF DOWNLOAD

MAIN 00 SECTIONS
MPARTS 00 MAINTENANCE PARTS
SEC. 01 00 ENGINE 1/2
SEC. 01 01 ENGINE 2/2
0.021/1 01 ENGINE
0.040 01 CYLINDER BLOCK
0.040 02 CYLINDER BLOCK
0.042 01 OIL PUMP, PAN
0.043 01 CYLINDER BLOCK – COVERS
0.043 02 CYLINDER BLOCK – COVERS
0.043 03 CYLINDER BLOCK – COVERS
0.045 01 BREATHER- ENGINE
0.060 01 CYLINDER HEAD
0.063 01 CYLINDER HEAD – COVERS
0.066 01 CYLINDER HEAD -VALVE MECHANISM
0.071/1 01 MANIFOLD – INTAKE
0.077/1 01 MANIFOLD – EXHAUST
0.080 01 CRANKSHAFT
0.081 01 PISTONS – CONNECTING ROD
0.082 01 PISTONS – CONNECTING ROD
0.083 01 FLYWHEEL – ENGINE
0.084 01 PULLEY – CRANKSHAFT
0.105 01 DYNAMIC BALANCER, GEARS & SHAFTS
0.105 02 DYNAMIC BALANCER, GEARS & SHAFTS (2830952)
0.120 01 CAMSHAFT
0.140/1 01 FUEL INJECTION PUMP
0.140/1 02 FUEL INJECTION SYSTEM
0.142 01 FUEL INJECTION SYSTEM
0.149 01 FUEL INJECTION SYSTEM
0.200 01 FUEL FILTER
0.201 01 FUEL PUMP
0.203 01 FUEL INJECTION SYSTEM
0.204 01 FUEL INJECTION SYSTEM
0.240/1 01 TURBOCHARGER
0.270 01 ENGINE, OIL
0.300 01 OIL PUMP – ENGINE
0.302 01 OIL FILTERS – ENGINE
0.305 01 PIPING – ENGINE OIL
0.315 01 OIL FILTER AND COOLER
0.320 01 WATER PUMP
0.323 01 COOLING SYSTEM – ENGINE
0.326 01 THERMOSTAT – ENGINE COOLING SYSTEM
0.340 01 WATER PUMP- CONTROL
0.345 01 FAN DRIVE
0.350 01 POWER TAKE-OFF
0.360 01 STARTER MOTOR
0.400 01 ALTERNATOR
0.450 01 ENGINE – LIFT HOOK
636A 01 ACCESSORY ENGINE
636A 02 ACCESSORY ENGINE-VENTILATOR
636A 03 ACCESSORY ENGINE – STARTER
TABLE OF CONTENTS
636A 04 ACCESSORY ENGINE-ALTERNATOR
636A 05 ACCESSORY ENGINE – BRACKET MUFFLER
639A 01 ACCESSORY ENGINE – VENTILATOR
SEC. 02 00 FUEL TANK – MUFFLER – RADIATOR -AIR CLEANER – CHASSIS
1.14.0 01 FUEL TANK & RELATED PARTS
1.15.0 01 MUFFLER & EXTENSIONS
1.15.0 02 MUFFLER & EXTENSIONS
1.17.2 01 EXPANSION TANK
1.19.1 01 AIR CLEANER & HOSES
1.21.5/ 1 01 FRAME (CENTER PIVOT)
175 01 AIR INTAKE CAP & PRE-CLEANER
176 01 AIR INTAKE CAP & PRE-CLEANER
203 01 FRONT WEIGHTS
215 01 FRONT WEIGHTS
636 01 RADIATOR
636 02 RADIATOR
636/ 1 01 RADIATOR
636/ 1 02 RADIATOR
637 01 RADIATOR
637/ 1 01 RADIATOR
637/ 2 01 RADIATOR
637/ 3 01 RADIATOR
638 03 RADIATOR
638/ 1 01 RADIATOR
639 01 RADIATOR
639/ 1 01 RADIATOR
639/2 01 RADIATOR
639/3 01 RADIATOR
SEC. 03 00 TRANSMISSION 1/2
SEC. 03 01 TRANSMISSION 2/2
1.28.0 01 GEARING SPEED GEAR
1.28.0/ B 01 TRANSMISSIONGEARING SPEED GEAR (4WD POWER-SHUTTLE)
1.28.0/ B 02 TRANSMISSIONGEARING SPEED GEAR (4WD POWER-SHUTTLE)
1.28.0/ B 03 TRANSMISSIONGEARING SPEED GEAR (4WD POWER-SHUTTLE)
1.28.0/ B 04 TRANSMISSIONGEARING SPEED GEAR (4WD POWER-SHUTTLE)
1.28.0/ B 04A TRANSMISSIONGEARING SPEED GEAR (4WD POWER-SHUTTLE)
1.28.0/ B 05 TRANSMISSIONGEARING SPEED GEAR (4WD POWER-SHUTTLE)
1.28.0/ B 05A TRANSMISSIONGEARING SPEED GEAR (4WD POWER-SHUTTLE)
1.28.0/ B 06 TRANSMISSIONGEARING SPEED GEAR (4WD POWER-SHUTTLE)
1.28.0/ B 07 TRANSMISSIONGEARING SPEED GEAR (4WD POWER-SHUTTLE)
1.28.0/ B 08 TRANSMISSIONGEARING SPEED GEAR (4WD POWER-SHUTTLE)
1.28.6 01 GEAR FILTER PIPES (POWER-SHUTTLE)
1.29.1 01 TRANSMISSION ESTERNALSHIFTING CONTROLS (POWER-SHUTTLE)
1.38.1 01 FRONT & REAR DRIVESHAFT, POWER-SHUTTLE
1.39.8 01 TRANSMISSION OIL COOLING PIPES (POWER-SHUTTLE)
SEC. 04 01 FRONT AXLE
1.42.0 01 POWER STEERING HYDRAULIC SYSTEM
1.42.0/ A 01 POWER STEERING HYDRAULIC SYSTEM
402 01 4WD FRONT AXLE, 14.308 RATIO, HOUSING, BUSHINGS & SUPPORTS
402 02 4WD FRONT AXLE, 14.308 RATIO, SWIVEL HOUSING & STEERING CYLINDER
402 03 4WD FRONT AXLE, 14.308 RATIO, HUBS
TABLE OF CONTENTS
402 04 4WD FRONT AXLE, 14.308 RATIO, RING GEAR & PINION ASSEMBLY
402 05 4WD FRONT AXLE, 14.308 RATIO, DIFFERENTIAL
402 06 4WD FRONT AXLE, 14.308 RATIO, DRIVE SHAFT
403 01 4WD FRONT AXLE, 13.7 RATIO, HOUSING, BUSHINGS & SUPPORTS (CENTER
PIVOT, POWER SHUTTLE)
403 02 4WD FRONT AXLE, 13.7 RATIO, SWIVEL HOUSING & STEERING CYLINDER
(CENTER PIVOT, POWER SHUTTLE)
403 03 4WD FRONT AXLE, 13.7 RATIO, HUBS (CENTER PIVOT, POWER SHUTTLE)
403 04 4WD FRONT AXLE, 13. 7 RA TIO, RING GEAR & PINION ASSEMBLY (CENTER PIVOT,
POWER SHUTTLE)
403 05 4WD FRONT AXLE, 13.7 RATIO, DIFFERENTIAL (CENTER PIVOT, POWER SHUTTLE)
403 06 4WD FRONT AXLE, 13.7 RATIO, DRIVE SHAFT (CENTER PIVOT, POWER SHUTTLE)
415 01 FRONT AXLE – (4WD) W/GEAR,BEVEL
415 02 FRONT AXLE – (4WD) W/GEAR,BEVEL
415 03 FRONT AXLE – (4WD) W/GEAR,BEVEL
415 04 FRONT AXLE – (4WD) W/GEAR,BEVEL
415 05 FRONT AXLE – (4WD) W/GEAR,BEVEL
415 06 FRONT AXLE – (4WD) W/GEAR,BEVEL
SEC. 05 00 REAR AXLE
1.44.0A 01 REAR AXLE (POWER-SHUTTLE)
1.44.0A 02 REAR AXLE (POWER-SHUTTLE)
1.44.0A 03 REAR AXLE (POWER-SHUTTLE)
1.44.0A 04 REAR AXLE (POWER-SHUTTLE)
400A 19 REAR AXLE, KIT BRAKES
SEC. 06 00 ELECTRICAL
1.75.2 01 CHASSIS HARNESS & GROUND WIRE (POWER SHUTTLE)
1.75.2 02 CHASSIS HARNESS & GROUND WIRE (POWER SHUTTLE)
1.75.2 03 BATTERY LOCK-OUT SWITCH & GROUND WIRE (POWER SHUTTLE)
1.75.2 04 ENGINE HARNESS (POWER SHUTTLE)
1.75.2/ 3 01 CHASSIS HARNESS & GROUND WIRE (POWER SHUTTLE)
1.75.2/ 3 02 BATTERY LOCK-OUT SWITCH & GROUND WIRE (POWER SHUTTLE)
1.75.2/ 3 03 ENGINE HARNESS (POWER SHUTTLE)
131 01 SINGLE BATTERY
321 01 DOUBLE BATTERY
995 01 COLD START
995 02 COLD START
SEC. 07 00 SLIDES VALVES
1.82.0 01 HYDRAULIC OIL RESERVOIR
1.82.3/ 1 01 HYDRAULIC PUMP (40+35-165UMM)
1.82.6 01A HYDRAULIC SYSTEM PIPING (CENTER PIVOT)
1.82.6 01B FRONT HYDRAULIC PUMP INTAKE & OUTLET HOSES (CENTER PIVOT)
1.82.6 02A HYDRAULIC SYSTEM PIPING(CENTER PIVOT)
1.82.6 02B REAR HYDRAULIC PUMP STABILIZER, LOADER & BACKHOE VALVE HOSES
(CENTER PIVOT)
1.82.6 03A HYDRAULIC SYSTEM PIPING(CENTER PIVOT)
1.82.6 03B QUICK RELEASE COUPLERS & HOSES (CENTER PIVOT)
1.82.6 04A RETURN MANIFOLD HOSES (CENTER PIVOT)
1.82.6 04B RETURN MANIFOLD HOSES (CENTER PIVOT)
1.82.6 05 HYDRAULIC SYSTEM PIPING(SIDE SHIFT)
1.82.6 05A HYDRAULIC SYSTEM PIPING(SIDE SHIFT)
1.82.6 05F OIL COOLER & FILTER HOSES (CENTER PIVOT)
TABLE OF CONTENTS
1.82.6 05G HYDRAULIC SYSTEM PIPING (CENTER PIVOT)
1.82.6 06 HYDRAULIC SYSTEM PIPING
1.82.6 06A FILTER ASSEMBLY & HOSE TO RETURN MANIFOLD (CENTER PIVOT)
1.82.6 06B FILTER ASSEMBLY & HOSE TO RETURN MANIFOLD (CENTER PIVOT)
1.82.6 07 HYDRAULIC SYSTEM PIPING
1.82.6 OBA LOADER LIFT CYLINDER HOSES (CENTER PIVOT)
1.82.6 0BC LOADER LIFT CYLINDER HOSES (CENTER PIVOT)
1.82.6 09A LOADER BUCKET CYLINDER HOSES (CENTER PIVOT)
1.82.6 09B LOADER BUCKET CYLINDER HOSES (CENTER PIVOT)
1.82.6 09C BACKHOE SWING CYLINDER HOSES (CENTER PIVOT)
1.82.6 11A BACKHOE CONTROL VALVE HOSES (CENTER PIVOT)
1.82.6 11B HYDRAULIC SYSTEM PIPING(CENTER PIVOT)
1.82.6 12B HYDRAULIC SYSTEM PIPING(CENTER PIVOT)
1.82.6 13A ROTATION PLATE HOSE CLAMPS (CENTER PIVOT)
1.82.6 16 BACKHOE CONTROL VALVE(CENTER PIVOT)
1.82.6 17 DIPPER VALVE SECTION (CENTER PIVOT)
1.82.6 18 BUCKET, SWING, & BOOM VALVE SECTION (CENTER PIVOT)
302 01 TWO-SECTION FOR LOADER CONTROL VALVE
302 02 TWO-SECTION FOR LOADER CONTROL VALVE
302 03 TWO-SECTION FOR LOADER CONTROL VALVE
302 04 TWO-SECTION FOR LOADER CONTROL VALVE
331 01 BACKHOE CONTROL VALVE, 6 SECTIONS (CENTER PIVOT) NORTH AMERICA
331/ 1 02 BACKHOE CONTROL VALVE, INLET SECTION (CENTER PIVOT)
331/A 01 6 SECTION PILOT CONTROL VALVE SUPPORT, COMPLETE
331/A 02 2 SECTION PILOT CONTROL VALVE SUPPORT, COMPLETE
331/B 01 PILOT CONTROL VALVE SUPPORT, COMPLETE
331/C 01 6 SECTION PILOT CONTROL VALVE SUPPORT, COMPLETE
331/C 02 6 SECTION PILOT CONTROL VALVE SUPPORT, COMPLETE
331/C 03 6 SECTION PILOT CONTROL VALVE SUPPORT, COMPLETE
331/C 04 6 SECTION PILOT CONTROL VALVE SUPPORT, COMPLETE
331/C 05 6 SECTION PILOT CONTROL VALVE SUPPORT, COMPLETE
331/C 06 6 SECTION PILOT CONTROL VALVE SUPPORT, COMPLETE (CENTER PIVOT)
331/C 07 VALVE, JOYSTICK PILOT CONTROLS (LEFT HAND)
331/C 08 VALVE, JOYSTICK PILOT CONTROLS (LEFT HAND)
331/D 01 VALVE, JOYSTICK PILOT CONTROLS (RIGTH HAND)- STANDARD VERSION
331/D 02 VALVE, JOYSTICK PILOT CONTROLS (RIGTH HAND)- STANDARD VERSION
331/D 03 VALVE, JOYSTICK PILOT CONTROLS – EXTENDED VERSION -(RIGTH HAND)
331/D 04 VALVE, JOYSTICK PILOT CONTROLS – EXTENDED VERSION -(RIGTH HAND)
333/1 01 ?-SECTIONS EXCAVATOR CONTROL VALVE (CENTER PIVOT) NORTH AMERICA
333/1 02 ?-SECTIONS EXCAVATOR CONTROL VALVE (CENTER PIVOT) NORTH AMERICA
333/1 03 ?-SECTIONS EXCAVATOR CONTROL VALVE (CENTER PIVOT) NORTH AMERICA
333/1 04 ?-SECTIONS EXCAVATOR CONTROL VALVE (CENTER PIVOT) NORTH AMERICA
333/1 05 ?-SECTIONS EXCAVATOR CONTROL VALVE (CENTER PIVOT) NORTH AMERICA
333/1 06 ?-SECTIONS EXCAVATOR CONTROL VALVE (CENTER PIVOT) NORTH AMERICA
333/1 07 ?-SECTIONS EXCAVATOR CONTROL VALVE (CENTER PIVOT) NORTH AMERICA
333/A 01 7 SECTION PILOT CONTROL VALVE SUPPORT, COMPLETE
333/A 02 7 SECTION PILOT CONTROL VALVE SUPPORT, COMPLETE
333/A 03 7 SECTION PILOT CONTROL VALVE SUPPORT, COMPLETE
333/B 01 7 SECTION PILOT CONTROL VALVE SUPPORT, COMPLETE
333/B 02 7 SECTION PILOT CONTROL VALVE SUPPORT, COMPLETE (CENTER PIVOT)
EUROPE
TABLE OF CONTENTS
333/B 03 7 SECTION PILOT CONTROL VALVE SUPPORT, COMPLETE
333/B 04 7 SECTION PILOT CONTROL VALVE SUPPORT, COMPLETE
333/B 05 7 SECTION PILOT CONTROL VALVE SUPPORT, COMPLETE
333/B 06 7 SECTION PILOT CONTROL VALVE SUPPORT, COMPLETE (CENTER PIVOT)
EUROPE
333/B 07 7 SECTION PILOT CONTROL VALVE SUPPORT, COMPLETE (CENTER PIVOT)
EUROPE
333/B 08 7 SECTION PILOT CONTROL VALVE SUPPORT, COMPLETE
333/B 09 7 SECTION PILOT CONTROL VALVE SUPPORT, COMPLETE (CENTER PIVOT)
EUROPE
333/B 10 6 SECTION PILOT CONTROL VALVE SUPPORT.COMPLETE
333/B 11 6 SECTION PILOT CONTROL VALVE SUPPORT,COMPLETE
333/C 01 VALVE, JOYSTICK PILOT CONTROLS (RIGHT HAND)
333/C 02 VALVE, JOYSTICK PILOT CONTROLS (LEFT HAND)
333/C 03 VALVE, JOYSTICK PILOT CONTROLS (LEFT HAND)
333/C 04 VALVE, JOYSTICK PILOT CONTROLS (LEFT HAND)
334 09 ?-SECTIONS EXCAVATOR CONTROL VALVE
334 11 ?-SECTIONS EXCAVATOR CONTROL VALVE
336/ A 01 THREE-SECTION CONTROL VALVE FOR LOADER(CENTER PIVOT)
336/ B 01 THREE-SECTION CONTROL VALVE FOR LOADER(CENTER PIVOT)
336/ 1 01 LOADER CONTROL VALVE, TWO SECTION, LOADER, BUCKET & DUMP VALVES
(CENTER PIVOT)
336/ 1 02 LOADER CONTROL VALVE, TWO SECTION, CAP & UNLOAD VALVE (CENTER
PIVOT)
336/ 1 03 LOADER CONTROL VALVE, TWO SECTION, RELIEF & CHECK VALVES (CENTER
PIVOT)
336/ 1 04 LOADER CONTROL VALVE, TWO SECTION, BY-PASS KIT (CENTER PIVOT)
336/ 1 05 LOADER CONTROL VALVE, TWO SECTION, UNLOAD KIT OR DUMP VALVE
(CENTER PIVOT)
341 01 8-SECTIONS EXCAVATOR CONTROL VALVE(CENTER PIVOT) EUROPE
341 02 EXCAVATOR CONTROL VALVES GROUP 8 SECTIONS – OPTIONAL SECTION
341/A 01 8 SECTION PILOT CONTROL VALVE SUPPORT.COMPLETE
341/A 02 PROPORTIONAL VALVE 4 OPERATIONS
341/B 01 8 SECTION PILOT CONTROL VALVE SUPPORT,COMPLETE
341/B 03 8 SECTION PILOT CONTROL VALVE SUPPORT.COMPLETE
341/B 07 8 SECTION PILOT CONTROL VALVE SUPPORT,COMPLETE(CENTER PIVOT)EUROPE
341/B 08 8 SECTION PILOT CONTROL VALVE SUPPORT.COMPLETE(
341/B– 01 8 SECTION PILOT CONTROL VALVE SUPPORT.COMPLETE
341/C 03 VALVE, JOYSTICK (PILOT CONTROLS) (LEFT – HAND)
341/C 04 VALVE, JOYSTICK (PILOT CONTROLS) (LEFT – HAND)
341/C– 03 VALVE, JOYSTICK (PILOT CONTROLS) (LEFT – HAND)
344 01 STABILIZER CONTROL VALVE, TWO SECTION (CENTER PIVOT)
344/ A 01 STABILIZER CONTROL VALVE, LH & RH SECTION (CENTER PIVOT)
356/ A 01 STABILIZER CONTROL VALVE, THIRD SECTION, HED (CENTER PIVOT)
391 01 LOCK VALVE FOR BUCKET 4X1 / 6X1
391/ 1 01 LOCK VALVE ON LOADER TILTING CYLINDERS
391/ 1 02 LOCK VALVE ON LOADER LIFT CYLINDERS
391/ 1 03 LOCK VALVE ON LOADER LIFT CYLINDERS
392 01 LOCKING VALVE ON BACKHOE LIFT AND DIPP. CYLINDER
392 02 BACKHOE LIFT & DIPPERSTICK CYLINDER LOCK VALVE
TABLE OF CONTENTS
437 01 GLIDE RIDE VALVE.HYDRAULIC SYSTEM FOR MACHINE FRAME LEVELLING &
ON/OFF SWITCH
437 02 GLIDE RIDE VALVE
708 01 THREE-SECTION CONTROL VALVE FOR LOADER
708/ 1 01 KIT OF CONVERSION FROM 2 TO 3 SPOOLS
721 01 TELESCOPIC CONTROL VALVE, 3 SECTIONS(CENTER PIVOT)
721 02 HED TELESCOPIC CONTROL VALVE, SECTION HOSES(CENTER PIVOT)
721 03 HED CYLINDER PISTON END HYDRAULIC LINES(CENTER PIVOT)
721 04 HED CYLINDER ROD END HYDRAULIC LINES(CENTER PIVOT)
721 05 HED FOOT PEDAL, CABLE & DECALS(CENTER PIVOT)
SEC. 08 00 BODY &HOOD
1.83.0 01 HOOD, GRILLE & RELATED PARTS
1.87.2 01 CAB SCREEN
1.87.8 01 CAB FASTENERS
SEC. 09 00 LOADER 1/1
SEC. 09 01 BACKHOE 1/2
SEC. 09 02 BACKHOE 2/2
1.88.01 01 TRANSPORT LOCK” REAR LOCKING” (CENTER PIVOT)
1.88.01 02 TRANSPORT LOCK” REAR LOCKING” (CENTER PIVOT)
1.88.01/ 1 01 TRANSPORT LOCK” REAR LOCKING” (SIDE SHIFT)
1.88.01/ 1 02 TRANSPORT LOCK” REAR LOCKING” (SIDE SHIFT)
1.88.08 01 SWING POST ASSEMBLY, BUSHINGS & PINS
1.88.08 02 SWING POST PINS & TRANSPORT LOCK HOOK
1.88.09 01 DISTRIBUTOR VALVE SUPPORT (CENTER PIVOT)
1.88.11 01 ARMS AND JOINTS
1.88.11/ 1 01 LIFT CYLINDER
1.88.11/ 1 B 01 LIFT CYLINDER
1.88.11/ 2 01 LOADER BUCKET CONTROL CYLINDER
1.88.11/ 2 02 LOADER BUCKET CONTROL CYLINDER
1.88.11/ 2B 01 LOADER BUCKET CONTROL CYLINDER
1.88.11/ 3 01 LIFT CYLINDER AND BUCKET PIPES
1.88.11/ 5 01 SELF-LEVELING LINKAGE, LOADER CONTROLS (CENTER PIVOT)
1.88.11/ 5 02 SELF-LEVELING LINKAGE, LOADER ARM (CENTER PIVOT)
1.88.11/ 6 01 STABILIZER CYLINDERS (CENTER PIVOT)
1.88.11/ 6 02 STABILIZER CYLINDERS (CENTER PIVOT)
1.88.11/7 01 PIPES FOR STABILIZER CYLINDERS (CENTER PIVOT)
1.88.11/ 8 01 RETURN TO DIG SENSOR
1.88.11/ 9 01 CYLINDERS AND ROTATION PLATE (SIDE SHIFT)
1.88.11/ 9 02 CYLINDERS AND ROTATION PLATE (CENTER PIVOT)
1.88.11/ 9A SWING CYLINDERS – BEFORE SN 31053254
1.88.11/ 9B SWING CYLINDERS -AFTER SN 31053255
1.88.12/ 3 01 FRONT CONTROL VALVE SUPPORT AND TRANSMISSIONS (CENTER PIVOT)
200 01 SHOVEL AND REAR LIFTING HOOKS
340/ 1 01 4X1 & 6X1 BUCKET HYDRAULIC LINES (P. SHUTTLE)
416-417 01 SYSTEM HAMMER COMPONENTS (CAB)
469/ A 01 HYDRAULIC CYLINDER (BUCKET 4X1-6X1)
471 01 BUCKET 4X1 (1 M3) WITH BLADE
471 02 BUCKET 4X1 (1 M3) WITH BLADE
471/ 1 01 BUCKET 4X1 (1 M3) WITH BLADE “COMMON GREY”
471/ 2 01 BUCKET 6X1 (1, 15 M3) WITH BLADE “COMMON GREY”
472 01 BUCKET 4X1 (1 M3) WITH TINE
TABLE OF CONTENTS
472 02 BUCKET 4X1 (1 M3) WITH TINE
472/ 1 01 BUCKET 4X1 (1 M3) WITH TINE “COMMON GREY”
472/ 2 01 BUCKET 6X1 (1,15 M3) WITH TINE
473 01 BUCKET 6X1 (1 M3) WITH BLADE
473 02 BUCKET 6X1 (1 M3) WITH BLADE
473/ 1 01 BUCKET 6X1 (1 M3) WITH BLADE “COMMON GREY”
473/ 2 01 BUCKET 6X1 (1,15 M3) WITH BLADE “COMMON GREY”
474 01 BUCKET 6X1 (1 M3) WITH TINE
474 02 BUCKET 6X1 (1 M3) WITH TINE
474/ 1 01 BUCKET 6X1 (1 M3) WITH TINE “COMMON GREY”
474/ 2 01 BUCKET 6X1 (1,15 M3) WITH TINE “COMMON GREY”
514 01 BOOM – DIPPER SHORT
514 02 SHORT DIPPER
514 03 SHORT DIPPER – BUCKET MOTION
514 04 SHORT DIPPER – HYDRAULIC SYSTEM
514 05 SHORT DIPPER – HYDRAULIC SYSTEM
514 06 SHORT DIPPER – HYDRAULIC SYSTEM
514 07 SHORT DIPPER – HYDRAULIC SYSTEM
514 08 SHORT DIPPER – HYDRAULIC SYSTEM
514-A 01 HYDRAULIC LIFTING CYLINDER
514-B 01 HYDRAULIC DITCHING CYLINDER
514-C 01 HYDRAULIC BUCKET CYLINDER
514-D 01 HYDRAULIC DITCHING CYLINDER
514-E 01 HYDRAULIC DITCHING CYLINDER
514-F 01 HYDRAULIC LIFTING CYLINDER
515 01 12″ (305MM) BACKHOE BUCKET WITH PIN TEETH
515 02 12″ (305MM) BACKHOE BUCKET WITH BOLT-ON TEETH
516 01 18″ (457MM) BACKHOE BUCKET WITH PIN TEETH
516 02 18″ (457MM) BACKHOE BUCKET WITH BOLT-ON TEETH
517 01 24″ (610MM) BACKHOE BUCKET WITH PIN TEETH
517 02 24″ (61 0MM) BACKHOE BUCKET WITH BOLT-ON TEETH
518 01 30″ (762MM) BACKHOE BUCKET WITH PIN TEETH
518 02 30″ (762MM) BACKHOE BUCKET WITH BOLT-ON TEETH
519 01 36″ (914MM) BACKHOE BUCKET WITH PIN TEETH
519 02 36″ (914MM) BACKHOE BUCKET WITH BOLT-ON TEETH
520 01 0.88 M3 BUCKET WITHOUT TINES
522-B 01 1 M3 BUCKET
522-C 01 STANDARD 1MC BUCKET WITH FORKS
525 01 ST AND ARD 1 M3 BUCKET WITH FORKS AND EXTRA REVERSIBLE BLADE
525 02 STANDARD 1 M3 BUCKET WITH FORKS AND EXTRA REVERSIBLE BLADE
526 01 BOLT-ON TOOTH KIT, 12″ (305MM) BACKHOE BUCKET
526-1 01 STANDARD 1 M3 BUCKET WITH FORKS AND TINE
527 01 BOLT-ON TOOTH KIT, 18″ (457MM) & 24″ (61 0MM) BACKHOE BUCKETS
527-1 01 0.88 M3 BUCKET AND EXTRA REVERSIBLE BLADE
528 01 BOLT-ON TOOTH KIT, 30″ (762MM) BACKHOE BUCKET
529 01 BOLT-ON TOOTH KIT, 36″ (914MM) BACKHOE BUCKET
530 01 PIN TOOTH KIT, 12″ (305MM) BACKHOE BUCKET
531 01 PIN TOOTH KIT, 18″ (457MM) & 24″ (610MM) BACKHOE BUCKETS
532 01 PIN TOOTH KIT, 30″ (762MM) BACKHOE BUCKET
533 01 PIN TOOTH KIT, 36″ (914MM) BACKHOE BUCKET
533/ 1 01 1.15 M3 BUCKET WITH FORKS AND CUTTER BLADE
TABLE OF CONTENTS
536/ 1 01 STANDARD 1MC BUCKET WITH TINE
537/ 1 01 STANDARD 1MC BUCKET WITH EXTRA REVERSIBLE BLADE
548 01 DITCH CLEANING BUCKET
555 01 FRONT BUCKET TEETH
556 01 LOADER BUCKET REVERSIBLE BLADE
626 01 SCRAB GRAB
648 01 FORK KIT, CONVERTS4X1 BUCKET TO 6X1
699 01 HAND HAMMER SWITCH
700 01 4X1 & 6X1 BUCKET CONTROL LEVER, CABLE & DECALS
700 02 4X1 & 6X1 BUCKET HYDRAULIC LINES
700/ 2 01 4X1 & 6X1 BUCKET HYDRAULIC LINES
700/ 2 02 4X1 & 6X1 BUCKET HYDRAULIC LINES
704 01 MANUAL HAMMER SYSTEM
704 02 MANUAL HAMMER SYSTEM
704/ A 01 MANUAL HAMMER VALVE
724 01 HYDRAULIC SYSTEM FOR HAMMER (CENTER PIVOT)
724 02 HYDRAULIC SYSTEM FOR HAMMER (CENTER PIVOT)
724/ A 01 REAR HAMMER CONTROL VALVE
724/ 3 01 HYDRAULIC SYSTEM FOR HAMMER (CENTER PIVOT)
724/ 3 02 HYDRAULIC SYSTEM FOR HAMMER (CENTER PIVOT)
724/ 4 01 HYDRAULIC SYSTEM FOR BREAKER BACK (USA)
724/ 4 02 HYDRAULIC SYSTEM FOR BREAKER BACK (USA, 4WD, SIDE SHIFT EUROPA)
725 01 HAMMER KIT FROM LIFTING ARM TO DEMOLITION ARM
725/ 1 01 4X1 & 6X1 BUCKET CONTROL LEVER, CABLE & DECALS(CENTER PIVOT)
725/ 1 02 4X1 & 6X1 BUCKET HYDRAULIC LINES(CENTER PIVOT)
732 01 REAR MECHANICAL QUICK-COUPLING
732-A 01 REAR MECHANICAL QUICK-COUPLING
734 01 FRONT MECHANICAL QUICK-COUPLING
741/ 1 01 4X1 & 6X1 BUCKET HYDRAULIC LINES (P. SHUTTLE)
741/ 1 02 4X1 & 6X1 BUCKET HYDRAULIC LINES (P. SHUTTLE)
902 01 BOOM – TELESCOPIC DIPPER SHORT
902 02 TELESCOPIC DIPPER SHORT – HYDRAULIC SYSTEM
902 03 TELESCOPIC DIPPER SHORT – HYDRAULIC SYSTEM
902 04 TELESCOPIC DIPPER SHORT- BUCKET MOTION
902 05 TELESCOPIC DIPPER SHORT – HYDRAULIC SYSTEM
902 06 TELESCOPIC DIPPER SHORT – HYDRAULIC SYSTEM
902 07 TELESCOPIC DIPPER SHORT – HYDRAULIC SYSTEM
902/ A 01 TELESCOPIC DIPPER SHORT
902/ A 02 TELESCOPIC DIPPER SHORT – HYDRAULIC SYSTEMM
902/ B 01 TELESCOPIC DIPPER SHORT – HYDRAULIC SYSTEMM
SEC. 10 00 BODY, HOOD & DRIVER’S POST 1/3
SEC. 10 01 BODY, HOOD & DRIVER’S POST 2/3
SEC. 10 02 BODY, HOOD & DRIVER’S POST 3/3
095 01 STABILIZER CONTROL WITHOUT AUTO-UP (CENTER PIVOT)
096 01 STABILIZER CONTROL WITH AUTO-UP (CENTER PIVOT)
1.91.1 01 CAB / CEILING LIGHT
1.91.1/1 01 SAFETY FRAME- INSTRUMENTS AND GAUGES
1.91.3 01 BACK-UP ALARM
1.91.4 01 IGNITON SWITCH, POWER POINT, FUSE PANEL & SIDE CONSOLE HARNESS
(ROPS CP POWER SHUTTLE)
TABLE OF CONTENTS
1.91.4 02 IGNITON SWITCH, POWER POINT, FUSE PANEL & SIDE CONSOLE HARNESS
(ROPS CP POWER SHUTTLE)
1.91.4 03 IGNITON SWITCH, POWER POINT, FUSE PANEL & SIDE CONSOLE HARNESS
(ROPS CP POWER SHUTTLE)
1.91.4 04 IGNITON SWITCH, POWER POINT, FUSE PANEL & SIDE CONSOLE HARNESS
(ROPS CP POWER SHUTTLE)
1.91.4 05 RH SIDE CONSOLE TRIM, INSTRUMENT CLUSTER & SWITCHES (ROPS CP
POWER SHUTTLE)
1.91.4/ 2 01 IGNITON SWITCH, POWER POINT, FUSE PANEL & SIDE CONSOLE HARNESS (CAB
CP POWER SHUTTLE)
1.91.4/ 2 02 IGNITON SWITCH, POWER POINT, FUSE PANEL & SIDE CONSOLE HARNESS (CAB
CP POWER SHUTTLE)
1.91.4/ 2 03 IGNITON SWITCH, POWER POINT, FUSE PANEL & SIDE CONSOLE HARNESS (CAB
CP POWER SHUTTLE)
1.91.4/ 2 04 IGNITON SWITCH, POWER POINT, FUSE PANEL & SIDE CONSOLE HARNESS (CAB
CP POWER SHUTTLE)
1.91.4/ 2 05 IGNITON SWITCH, POWER POINT, FUSE PANEL & SIDE CONSOLE HARNESS (CAB
CP POWER SHUTTLE)
1.91.5 01 FRONT AND REAR WINDSCREEN WIPERS
1.91.5 02 WINDSCREEN WIPERS RESERVOIR & NOZZLES
1.91.6 01 RADIO ANTENNA & SPEAKER COVER
1.91.7/ 1 01 LAMPS & LIGHTS – CAB (USA)
1.91.7/ 3 01 LAMPS & LIGHTS – ROPS (USA)
1.91.8 01 CAB-SAFETY FRAME/ EXTINGUISHER
1.92.1 01 CAB – FRAME-DOOR
1.92.1/ 1 01 ROPS – SAFETY FRAME
1.92.1/ 2 01 CAB – FRAME-DOOR
1.92.1/ 3 01 ROPS – SAFETY FRAME
1.92.3 01 WINDOWS
1.92.4 01 WINDOWS
1.92.4 02 WINDOWS
1.92.4 03 WINDOWS
1.92.5 01 FENDERS.REAR
1.92.6 01 DOOR COMPONENTS
1.92.6 02 DOOR COMPONENTS
1.92.6 03 DOOR COMPONENTS
1.92.8 01 FIREWALL SEAL, ROPS
1.92.9 01 REAR WINDOWS
1.92.9 02 REAR WINDOWS
1.92.9 03 REAR WINDOWS
1.93.0 01 CAB/ SOFT TRIM
1.93.0 02 CAB/ SOFT TRIM (POWER SHUTTLE)
1.93.0 03 CAB/ SOFT TRIM
1.93.0 04 CAB/ SOFT TRIM
1.93.0/ 2 01 RH & BACKHOE CONSOLE TRIM, ROPS (CENTER PIVOT)
1.93.0/ 3 04 CAB/ SOFT TRIM
1.93.0/ 5 01 RH & BACKHOE CONSOLE TRIM, ROPS (CENTER PIVOT)
1.93.0/ 6 01 ROOF, ROPS
1.93.0/ 6A 01 ROOF, ROPS
1.93.4 01 REAR MIRROR- SUN SCREEN
1.93.5 01 FRONT CONSOLE – ROPS (POWER SHUTTLE)
TABLE OF CONTENTS
1.93.5 02 RH SIDE CONSOLE SEAL & CLIPS – ROPS (POWER SHUTTLE)
1.93.5/ 1 01 CAB / PANEL DASH
1.93.5/ 1 02 CAB / PANEL DASH
1.93.7 01 INTERIOR REAR-VIEW MIRROR (POWER SHUTTLE) – ROPS
1.94.0 01 CAB/CANOPY
1.94.2 01 HEATER HOUSING, COIL, BLOWER & VALVE
1.94.2 02 HEATER ASSEMBLY & FILTERS
1.94.2 03 HEATER WATER HOSES
1.94.2 04 AIR DUCTS & VENTS
1.94.2 05 HEATER CONTROL PANEL
1.94.2/ 1 01 HEATER HOUSING, COIL, BLOWER & VALVE
1.94.2/ 1 03 HEATER WATER HOSES
1.94.2/ 1 04 AIR DUCTS & VENTS
1.95.0 01 CAB-SAFETY FRAME / BRAKE PEDAL
1.95.0 02 CAB-SAFETY FRAME / BRAKE PEDAL
1.95.0 03 CAB-SAFETY FRAME / BRAKE PEDAL
1.95.0/ A 01 CAB-SAFETY FRAME / BRAKE PEDAL
1.95.1 01 CAB-SAFETY FRAME / HAND BRAKE
1.95.2 01 TRANSPORT LOCK CONTROL
1.95.3 01 HAND-OPERATED AND PEDAL-OPERATED ACCELERATOR CONTROL
1.95.5 01 POWER STEERING MOTOR, WHEEL & COLUMN TRIM (POWER-SHUTTLE)
1.95.5 02 POWER STEERING MOTOR HOSES
1.95.5/ A 01 POWER STEERING MOTOR
1.95.5/ B 01 POWER STEERING MOTOR
1.96.0 01 FOWARD/REVERSE & MUL Tl-PURPOSE LEVER (POWER-SHUTTLE – CENTER
PIVOT)
1.96.2 01 STABILIZER CONTROL
1.96.2 02 STABILIZER CONTROL
1.96.2/ 1 01 PILOT CONTROL DIAGNOSTICS
1.96.7 01 CAB PLUGS, FLOOR PLATES & AIR CONVEYER, CENTER PIVOT
1.96.7/ 4 01 ROPS PLUGS & FLOOR PLATE (CENTER PIVOT)
1.96.7/ 6 01 CAB PLUGS, FLOOR PLATES & AIR CONVEYER, CENTER PIVOT
1.96.7/10 01 ROPS PLUGS & FLOOR PLATE (CENTER PIVOT)
1.98.0 01 INFORMATION SYMBOL DECALS – USA (POWER SHUTTLE)
1.98.0 02 CAB WARNING & INFORMATION DECALS (POWER SHUTTLE)
1.98.0 03 BACKHOE, LOADER & ENGINE WARNING DECALS (POWER SHUTTLE)
1.98.0 04 BACKHOE, LOADER & ENGINE WARNING DECALS (POWER SHUTTLE)
1.98.0 05 PLATES (POWER SHUTTLE)
1.98.0 06 PLATES (POWER SHUTTLE)
1.98.1 02 LB90.B MODEL IDENTIFICATION (POWER SHUTTLE)
343 01 LOADER CONTROL VALVE, THREE SECTION, CONTROL LEVER (CENTER PIVOT)
343 02 LOADER CONTROL VALVE, THREE SECTION, CONTROL LEVER CABLE (CENTER
PIVOT)
343/ 1 01 LOADER CONTROL VALVE, CONTROL LEVER & CABLE (SIDE SHIFT & LB115)
346 01 NC HOUSING & FILTERS
346 02 NC BLOWER & COILS
346 03 HEATER COIL HOSES
346 04 NC & HEATER CONTROL PANEL
346 05 NC & HEATER CONSOLE DUCTS
346/1 01 TRANSFORMATION SET FROM HEATING TO AIR CONDITIONING
346/1 02 TRANSFORMATION SET FROM HEATING TO AIR CONDITIONING
TABLE OF CONTENTS
347 01 HOUSING & FILTERS
347 02 HEATER BLOWER & COILS
347 03 HEATER COIL HOSES
347 04 NC & HEATER CONTROL PANEL
347 05 NC & HEATER CONSOLE DUCTS
347 06 CAB HEATING COATING PLUG
350 01 2 LEVER BACKHOE CONTROLS, LEVER, BOOT & DECALS (SIDE SHIFT & LB115)
350 02 2 LEVER BACKHOE CONTROLS, LEVER TIE-ROD ASSEMBLY (SIDE SHIFT & LB115)
351 01 JCB 2 LEVER BACKHOE CONTROLS, LEVERS, BOOT & DECALS (SIDE SHIFT &
LB115)
351 02 JCB 2 LEVER BACKHOE CONTROLS, UPPER TIE-ROD ASSEMBLY (SIDE SHIFT &
LB115)
351 03 JCB 2 LEVER BACKHOE CONTROLS, LOWER TIE-ROD ASSEMBLY (SIDE SHIFT &
LB115)
351 04 CASE 3 LEVER BACKHOE CONTROLS, CONSOLE & LEVERS
351 05 CASE 3 LEVER BACKHOE CONTROLS, BELLCRANK & SUPPORT
351 06 CASE 3 LEVER BACKHOE CONTROLS, BUCKET TIE-ROD ASSEMBLY
351 07 CASE 3 LEVER BACKHOE CONTROLS, UPPER SWING TIE-ROD ASSEMBLY
351 08 CASE 3 LEVER BACKHOE CONTROLS, DIPPER, SWING & BOOM LINKAGE
351 09 CASE 3 LEVER BACKHOE CONTROLS, SWING CONTROL PEDAL
353 01 4 LEVER BACKHOE CONTROLS, CONSOLE, LEVERS & BELLCRANK (SIDE SHIFT &
LB115)
353 02 4 LEVER BACKHOE CONTROLS, UPPER TIE-ROD ASSEMBLY (SIDE SHIFT)
353 03 4 LEVER BACKHOE CONTROLS, LOWER TIE-ROD ASSEMBLY (SIDE SHIFT)
354 01 ISO 2 LEVER BACKHOE CONTROLS, TIE-ROD ASSEMBLY, BOOT & DECALS (SIDE
SHIFT)
390 01 LOADER CONTROL VALVE, TWO SECTION, LEVER & DECAL (CENTER PIVOT)
390/ 1 01 2 LEVER BACKHOE CONTROLS, LEVER, BOOT & DECALS (CENTER PIVOT)
393 01 LOCKING VALVE ON BACKHOE LIFT CYLINDER
394-397 01 ISO 2 LEVER BACKHOE CONTROLS, LEVERS, BOOT & DECALS (CENTER PIVOT)
394-397 02 ISO 2 LEVER BACKHOE CONTROLS, TIE-ROD ASSEMBLY (CENTER PIVOT)
394/ 1 01 4 LEVER BACKHOE CONTROLS, CONSOLE, LEVERS & BELLCRANK (CENTER
PIVOT)
394/ 1 02 4 LEVER BACKHOE CONTROLS, UPPER TIE-ROD ASSEMBLY, CENTER PIVOT
394/ 1 03 4 LEVER BACKHOE CONTROLS, LOWER TIE-ROD ASSEMBLY (CENTER PIVOT)
522-A 01 THREE-SECTION LOADER CONTROL VALVE LEVER, CABLE & DECALS
622 01 INTERNAL FAN
644 01 NC HOUSING & FILTERS
644 02 NC BLOWER & COILS
644 03 HEATER COIL HOSES
644 04 NC & HEATER CONTROL PANEL
644 05 NC & HEATER CONSOLE DUCTS
644 05A NC & HEATER CONSOLE DUCTS
644 06 NC & HEATER CONVEYOR
644 07 NC HOUSING SIDE PANELS
644 08 RH CAB TRIM WITH VENT
644 09 NC & HEATER CAB ROOF DUCTS
646 01 NC DRYER FILTER HOSES
646/1 01 MACHINE PART AIR CONDITIONING SET
646/1 02 NC COMPRESSOR ATTACHING GROUP
646/1 03 NC COMPRESSOR
TABLE OF CONTENTS
646/1 04 A/C FILTER & CONDENSER ATTACHING GROUP
646A 01 A/C COMPRESSOR ATTACHING GROUP
650 01 STEERING COLUMN, FIXED & ADJUSTABLE
705 01 SEAT BEL TS, 2″ & 3″
758 01 ROTATING BEACON
782 01 FRONT CONSOLE WITH SPEEDOMETER, 4WD
787/ 1 01 FRONT CONSOLE WITHOUT SPEEDOMETER (CAB)
787/ 2 01 FRONT CONSOLE WITHOUT SPEEDOMETER (CAB)
788/ 1 01 FRONT CONSOLE WITH SPEEDOMETER, 4WD
788/ 2 01 FRONT CONSOLE WITH SPEEDOMETER, 4WD
789 01 SPEED SENSOR(P.SHUTTLE)
791 01 RH CONSOLE WITH INSTRUMENTS
792 01 RH CONSOLE WITH INSTRUMENTS AND DIAGNOSTICS
795 01 RH CONSOLE WITH INSTRUMENTS AND DIAGNOSTICS
796 01 ANTITHEFT
851 01 CLOTH SEAT & ATTACHING HARDWARE
851/ 1 01 CLOTH SEAT CUSHIONS, ARMRESTS & RELATED PARTS
851/ 1 02 CLOTH SEAT MOUNTING PLATE, ADJUSTING RAILS & SEAT BELT
851/ 1 03 CLOTH SEAT UPPER SUSPENSION PARTS
851/ 1 04 CLOTH SEAT LOWER SUSPENSION PARTS
855 01 AIR RIDE CLOTH SEAT & ATTACHING HARDWARE
855/ 1 01 AIR RIDE CLOTH SEAT CUSHIONS, ARMRESTS & RELATED PARTS
855/ 1 02 AIR RIDE CLOTH SEAT MOUNTING PLATE, ADJUSTING RAILS & SEAT BELT
855/ 1 03 AIR RIDE CLOTH SEAT UPPER SUSPENSION PARTS
855/ 1 04 AIR RIDE CLOTH SEAT LOWER SUSPENSION PARTS
855/ 1 05 AIR RIDE CLOTH SEAT COMPRESSOR & TUBING
856 01 VINYL SEAT CUSHIONS, ARMRESTS & RELATED PARTS (ROPS)
856/ 1 01 VINYL SEAT WITH ARMRESTS & MOUNTING HARDWARE (ROPS)
856/ 1 02 VINYL SEAT MOUNTING PLATE, ADJUSTING RAILS & SEAT BELT (ROPS)
856/ 1 03 VINYL SEAT UPPER SUSPENSION PARTS (ROPS)
856/ 1 04 VINYL SEAT LOWER SUSPENSION PARTS (ROPS)
869 01 NON-SUSPENSION SEAT
869/ 1 01 NON-SUSPENSION SEAT CUSHIONS, RELATED PARTS & 2″ SEAT BELT
869/ 1 02 NON-SUSPENSION SEAT ADJUSTING MECHANISM
869/ 1 03 NON-SUSPENSION SEAT PEDESTAL & BASE
870/ 1 01 NON-SUSPENSION SEAT CUSHIONS, RELATED PARTS & 3″ SEAT BELT
966 01 PLATE SUPPORT
990 01 TOOL KIT
993 01 SAFETY PLATES (POWER SHIFT)- USA
SEC. 11 00 WHEELS
180 01 RIGHT FRONT SPARE WHEEL
82.00 01 DRIVING WHEELS(4WD)
83.00 01 DRIVE WHEELS
SEC. 18 00 VARIATION
535 01 STABILIZER FOOT GROUND (CENTER PIVOT)
535/ 1 01 STABILIZER FOOT STREET PAD (CENTER PIVOT)
536 01 REVERSIBLE STABILIZER FOOT (CENTER PIVOT)
537 01 STABILIZER FOOT STREET PAD (CENTER PIVOT)
628 01 4WD STEERING LOCK
803 01 FENDERS, FRONT
848 01 BATTERY CONNECTION

Contact us: [email protected]

https://vimeo.com/733525036

PLEASE NOTE:

• This is not a physical manual but a digital manual – meaning no physical copy will be couriered to you. The manual can be yours in the next 2 mins as once you make the payment, you will be directed to the download page IMMEDIATELY.
• This is the same manual used by the dealers inorder to diagnose your vehicle of its faults.
• Require some other service manual or have any queries: please WRITE to us at [email protected]

S.V
