New Holland LS140 LS150 Workshop SERVICE Manual 6045607101 – PDF DOWNLOAD

Description

New Holland LS140 LS150 Workshop SERVICE Manual

FILE DETAILS:

New Holland LS140 LS150 Workshop SERVICE Manual

Size: 9.26 MB
Fomat: PDF
Language: English
Brand: Case IH
Type of machine: Tractor
Type of document: Workshop Manual
Model: New Holland LS140_LS150
Part No: 6045607101
Number of page: 681 pages

DESCRIPTION:

New Holland LS140 LS150 Workshop SERVICE Manual

SAMPLE PAGE FROM THE MANUAL:

• level terrain, engine stopped with the wheels blocked or the entire skid steer solidly supported with the wheels off the ground before servicing any component of the drivetrain.  For servicing under the operator’s seat, raise the seat and pan assembly to the raised latched position and securely latch.  Do not operate the skid steer unless the seat is latched in the operate position.
• Do not service the skid steer with a raised boom unless the boom is resting on the boom lock pins.  Do not service the skid steer with the engine running unless the skid steer is properly and securely supported with all four wheels off the ground.
• Use caution when servicing the unit around moving parts. Do not tilt the boom and cab without proper instruction. Do not tilt the boom and cab without using the proper cab tilting tool. 9. Reinstall all shields removed for service.
• Never loosen any hydraulic connections before relieving the pressure in the hydraulic system. 11. Wear eye protection such as goggles, etc.  Wear ear protection such as earplugs, etc. When you feel the noise level is uncomfortable.  If any servicing or adjustments require the battery to be disconnected, disconnect the negative ground cable.
• When servicing electrical components, disconnect the  negative ground cable.  If the electronic instrument cluster (EIC) requires removal from the dash area of the skid steer, disconnect the negative ground battery cable. this will shut off power to the eic and prevent damage to the eic board or blowing the 5-amp fuses if the board is accidentally grounded. 16. If welding is required on the skid steer, disconnect the  negative ground cable.
• Failure to disconnect the battery may result in damage to the EIC (electronic instrument cluster) monitoring system and other electrical components.
• If welding is required on an attachment, remove the attachment from the skid steer. Give complete and undivided attention to the job at hand so that complete control of the skid steer is maintained at all times.
• Drive slowly over rough ground and on slopes; keep alert for holes, ditches and other irregularities that may cause the skid steer to overturn. Avoid steep hillside operation which could cause the skid steer to overturn.  Never transport a loaded bucket at full height.
• Operate the skid steer with the load as low as possible until it becomes necessary to raise the boom to discharge the load into a truck, container, etc.  Reduce speed when turning so there is no danger of the skid steer overturning.
• Never drive up or back up a hill or incline with a raised boom or the skid steer could overturn. 24. Always look behind you before backing up the skid steer. Maintain proper transmission oil level to prevent loss of hydrostatic braking.
• Do not allow passengers to ride on the skid steer at any time.  Do not allow children to operate the skid steer or ride on the skid steer at any time.  Do not allow anyone to operate the skid steer without proper instruction.
• OSHA requires that all operators be instructed on the proper operation of the machine before they operate the unit. 29. Do not operate the skid steer in any position other than while in the operator’s seat with the seat belt securely fastened.

NEW HOLLAND LS140 LS150 WORKSHOP SERVICE MANUAL 6045607101 – PDF DOWNLOAD:

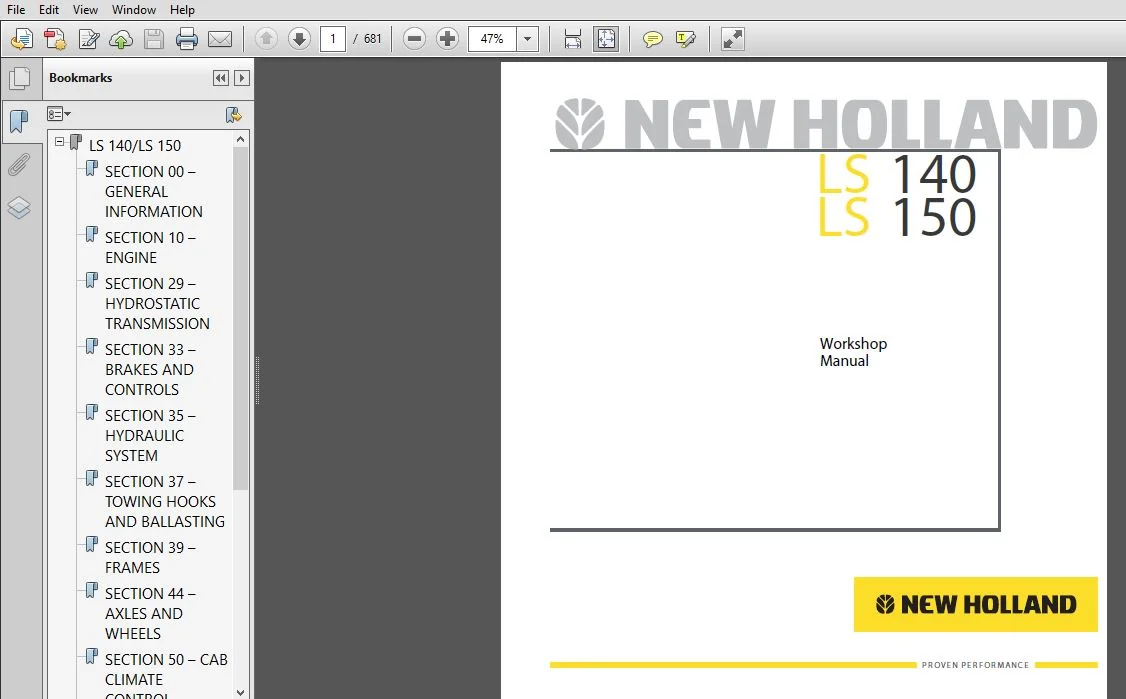

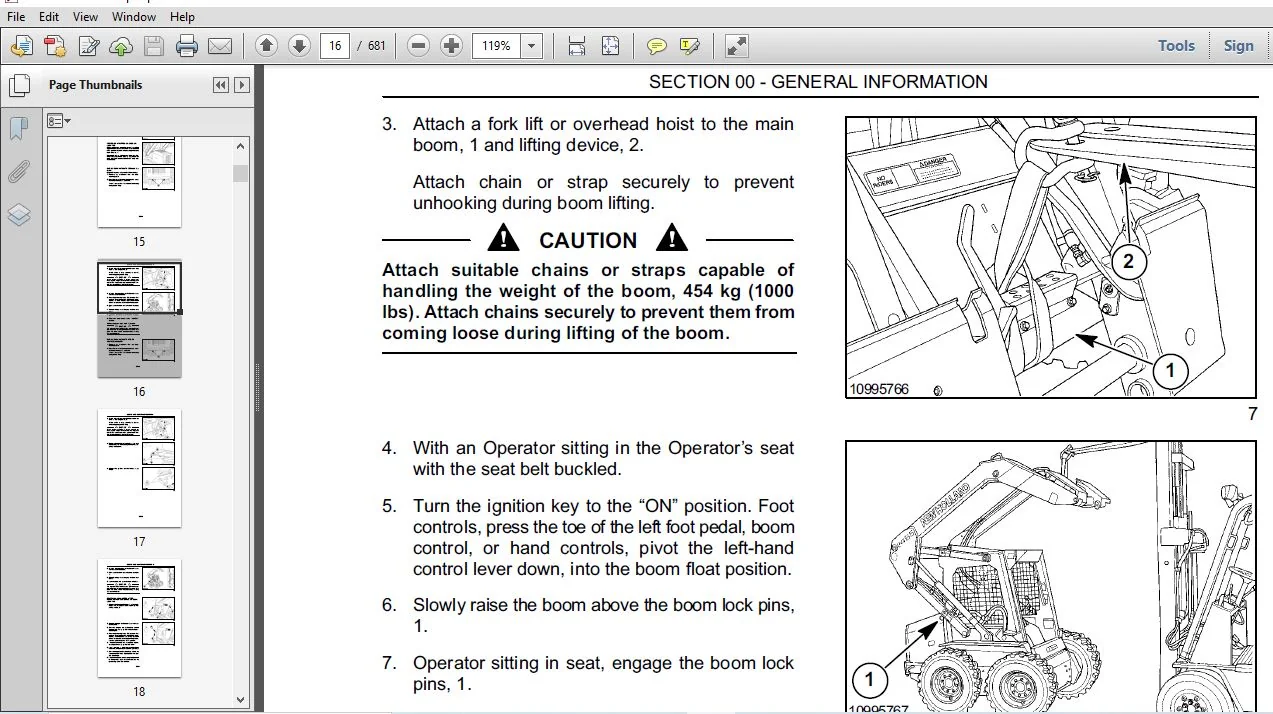

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

New Holland LS140 LS150 Workshop SERVICE Manual

Description Page
Introduction 00-2
About Improvements 00-2
Company Policy 00-3
Parts and Accessories 00-3
Model Codes 00-3
Precautionary Statements 00-4
Safety Precaution Information 00-5
General Safety Information 00-7

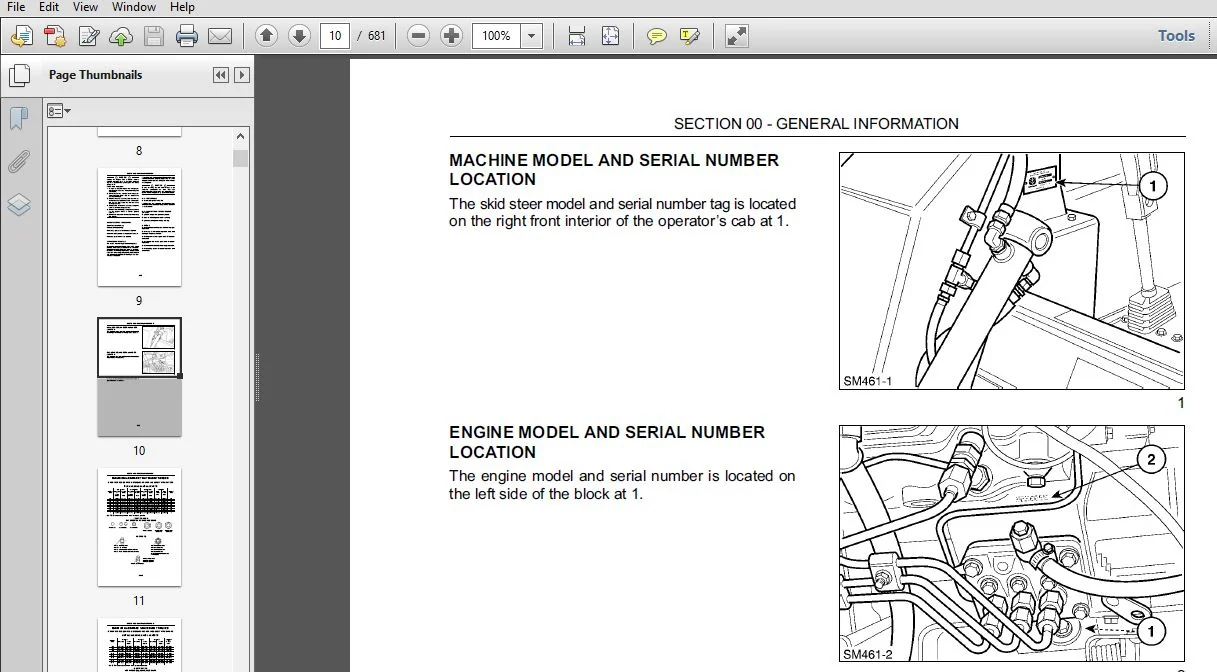

Machine Model and Serial Number Location 00-9
Engine Model and Serial Number Location 00-9
Hardware Torque Specifications 00-10
Installation of Adjustable Fittings in Straight Thread O Ring Bosses 00-12
Standard Torque Data for Hydraulic Tubes and Fittings 00-12
Pipe Thread Fitting Torque 00-13
Lubricants and Coolants 00-13
Sealants 00-13
Properly Support a Raised Machine 00-14
Properly Support Boom on Boom Lock Pins 00-14
Raising Boom Without Hydraulic Oil Flow 00-14
Raising Boom Without Battery Voltage (12V) 00-15
Reattaching Cylinders After Repair with Boom Resting on Boom Lock Pins 00-17
Major Unit Overhaul 00-18
Cab and Boom Tilt Procedure 00-19
Craning the Skid Steer 00-26
Special Tools 00-29
Specifications 00-30
Dimensions
