New Holland LS160 LS170 SERVICE REPAIR MANUAL 6041360701 – PDF DOWNLOAD

Description

New Holland LS160 LS170 SERVICE REPAIR MANUAL

FILE DETAILS:

New Holland LS160 LS170 SERVICE REPAIR MANUAL

Size: 14.2 MB
Format: PDF
Language: English
Number of Pages: 743 pages
Brand: New Holland

DESCRIPTION:

New Holland LS160 LS170 SERVICE REPAIR MANUAL

SAMPLE PAGE FROM THE MANUAL:

• Company policy, which is one of continuous improvement, reserves the right to make changes in design and specifications at any time without notice and without obligation to modify units previously built. All data given in this book is subject to production variations. Dimensions and weights are approximate only and the illustrations do not necessarily show skid steers in standard condition.
•  Genuine NEW HOLLAND parts and accessories have been specifically designed for NEW HOLLAND MACHINES. We would like to point out that “NON-GENUINE” parts and accessories have not been examined and released by NEW HOLLAND.
• The installation and or use of such products could have negative effects upon the design characteristics of your machine and thereby affect its safety. NEW HOLLAND is not liable for any damage caused by the use of “NON-GENUINE” NEW HOLLAND parts and accessories. MODEL CODES The range of Skid Steers described in this manual is identified in the text by the engine horsepower . (PS). The skid steers listed below may not be available in all countries or markets.
• For servicing, the skid steer should be on level terrain, engine stopped with the wheels blocked or the entire skid steer solidly supported with the wheels off the ground before servicing any component of the drivetrain.  For servicing under the operator’s seat, raise the seat and pan assembly up to the raised latched position and securely latch.
• Do not operate the skid steer unless the seat is latched in the operate position. 4. Do not service the skid steer with a raised boom unless the boom is resting on the boom lock pins.  Do not service the skid steer with the engine running unless the skid steer is properly and securely supported with all four wheels off the ground.  Use caution when servicing the unit around moving parts.
• Do not tilt the boom and cab without proper instruction.  Do not tilt the boom and cab without using the proper cab tilting tool.  Reinstall all shields removed for service. 10. Never loosen any hydraulic connections before relieving the pressure in the hydraulic system.
• Wear eye protection such as goggles, etc.  Wear ear protection such as ear plugs, etc. When you feel the noise level is uncomfortable.  If any servicing or adjustments require the battery to be disconnected, disconnect the  negative ground cable.
• When servicing electrical components, disconnect the  negative ground cable.  If the electronic instrument cluster (eic) requires removal from the dash area or the skid steer, disconnect the  negative ground battery cable. This will shut off power to the eic and prevent damage to the eic board or blowing the 5-amp fuses if the board is accidentally grounded.  If welding is required on the skid steer, disconnect the  negative ground cable. failure to disconnect the battery may result in damage to the EIC (Electronic Instrument Cluster) monitoring system and other electrical components.
• If welding is required on an attachment, remove the attachment from the skid steer.  Give complete and undivided attention to the job at hand so that complete control of the skid steer is maintained at all times.  Drive slowly over rough ground and on slopes; keep alert for holes, ditches and other irregularities that may cause the skid steer to overturn.  Avoid steep hillside operation which could cause the skid steer to overturn.
• Never transport a loaded bucket at full height. Operate the skid steer with the load as low as possible until it becomes necessary to raise the boom to discharge the load into a truck, container, etc. 22. Reduce speed when turning so there is no danger of the skid steer overturning.
• Never drive up or back up a hill or incline with a raised boom or the skid steer could over turn. 24. Always look behind you before backing the skid steer.  Maintain proper transmission oil level to prevent loss of hydrostatic braking.  Do not allow passengers to ride on the skid steer at any time.
• Do not allow children to operate the skid steer or ride on the skid steer at any time. Do not allow anyone to operate the skid steer without proper instruction. OSHA requires that all operators be instructed on the proper operation of the machine before they operate the unit. 29. Do not operate the skid steer in any position other than while in the operator’s seat with the seat belt securely fastened.

NEW HOLLAND LS160 LS170 SERVICE REPAIR MANUAL 6041360701 – PDF DOWNLOAD:

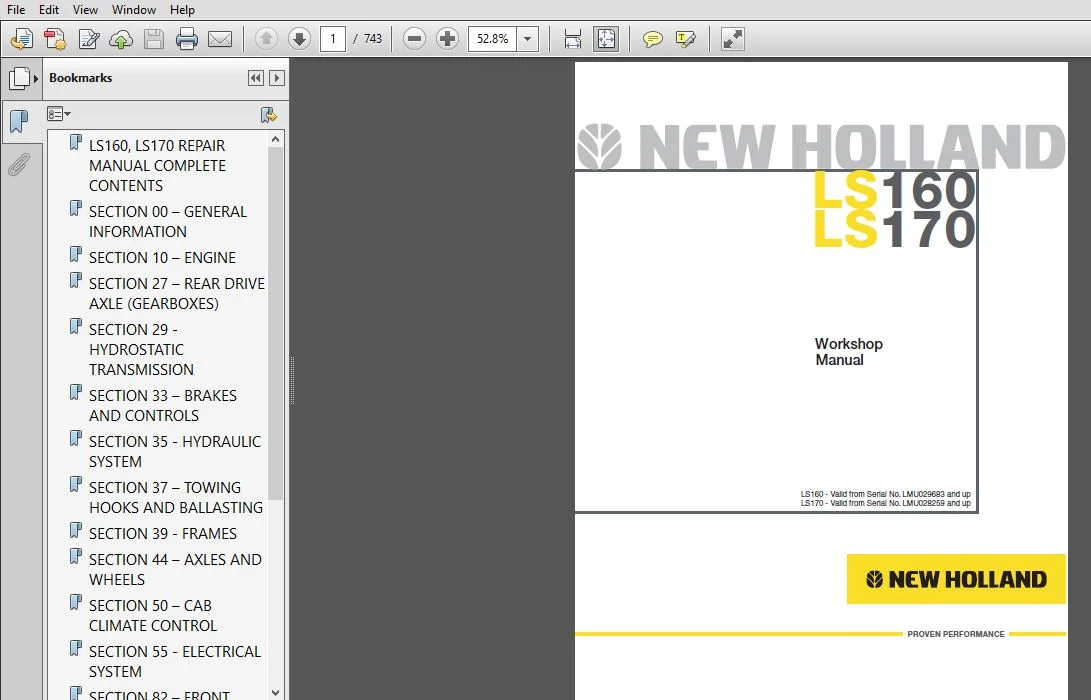

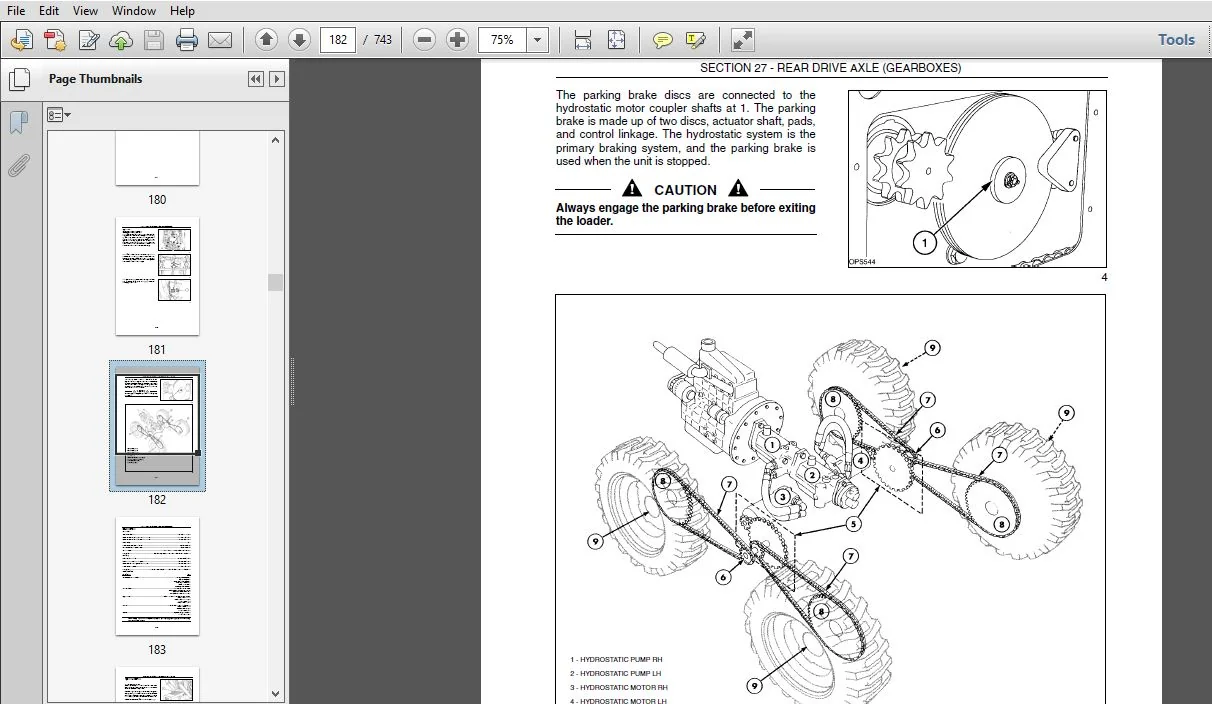

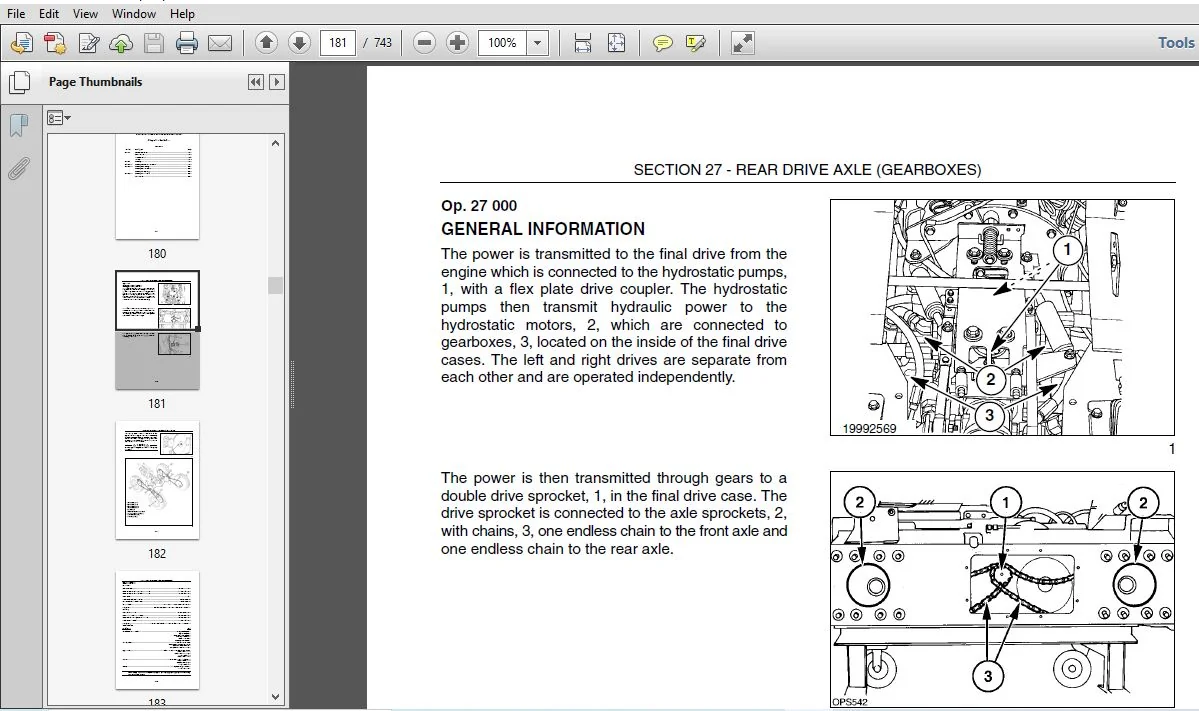

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

New Holland LS160 LS170 SERVICE REPAIR MANUAL

LS160, LS170 REPAIR MANUAL COMPLETE CONTENTS 2
SECTION 00 – GENERAL INFORMATION 20
SECTION 10 – ENGINE 56
SECTION 27 – REAR DRIVE AXLE (GEARBOXES) 180
SECTION 29 – HYDROSTATIC TRANSMISSION 200
SECTION 33 – BRAKES AND CONTROLS 320
SECTION 35 – HYDRAULIC SYSTEM 338
SECTION 37 – TOWING HOOKS AND BALLASTING 448
SECTION 39 – FRAMES 450
SECTION 44 – AXLES AND WHEELS 462
SECTION 50 – CAB CLIMATE CONTROL 486
SECTION 55 – ELECTRICAL SYSTEM 494
SECTION 82 – FRONT LOADER (BOOM AND MOUNTING PLATE) 620
SECTION 88 – ACCESSORIES 662
SECTION 90 – PLATFORM, CAB, BODYWORK, AND DECALS 698
LS160, LS170 REPAIR MANUALCOMPLETE CONTENTS 724
Hydraulic and Electrical Schematic 742
