New Holland MH City to MH 8.6 Tier 3 Electronic Manual – PDF DOWNLOAD

Description

New Holland MH City to MH 8.6 Tier 3 Electronic Manual

FILE DETAILS:

New Holland MH City to MH 8.6 Tier 3 Electronic Manual

Language : English
Pages : 162
Downloadable : YES
Format : PDF
Size : 6.46 MB

DESCRIPTION:

New Holland MH City to MH 8.6 Tier 3 Electronic Manual

SAMPLE PAGES OF THE MANUAL:

The battery voltage is supplied to the ignition key S1 and the two diagnostic sockets. After switching on the ignition by S1 and as long as the key is held in that position, the battery voltage flows from +30 to the terminal +15 and: the central unit A100 (CU) is supplied with voltage via the fuse FA.1, the relay K-EHC pulls in, the power relay K10.1 pulls in and supplies voltage to the relay K100 via its contact, in this way, the CU / A100 is supplied as well and starts booting.

• The green LED on the CU flashes, the EHC is supplied with voltage through the fuse 30A. Additionally the EHC is supplied with voltage via the fuse 2A. After the CU has booted, it delivers an Ub-voltage (15b) via two contacts: through X3A: 8 to the components such as display C4, switch pads C5.1, C5.2, C5.3, two joysticks as well as the travel pedal.
• The travel pedal as master unit supplies the two-way pedal (slave) for the positioning cylinder, respectively, for operating the breaker/shears. through X7:5-6 the PCS / A10-box. Additionally the power relay K10.1 is supplied for catch. The catch is maintained alive for apr. 30 sec after engine stop to let the electronics save the data and to power down the system.

TABLE OF CONTENTS:

New Holland MH City to MH 8.6 Tier 3 Electronic Manual

3a_MH_section_GB.pdf........................... 0
	Error Description of Unit CU A100..........37
	Machine configuration......................69
	Calibrations...............................72
	CLUSTER - NAVIGATION’S MENUS...............78
	CAN BUS.................................... 3
	Power supply............................... 3
	Central Unit CU A100....................... 3
	Power Control System PCS A10............... 7
	EHC A7.3................................... 9
	LCD Display C4/A400........................12
	Switch pads (C5.1 - C5.2 - C5.3)...........12
	Diagnostic sockets A10X4 and A7.3X4........13
	Joysticks and Pedals.......................14
	Pedals.....................................17
	Concept servomotor VDO.....................20
	Gear shift.................................22
	Cold start.................................23
	WARM-UP....................................23
	Auto-idle..................................23
	Temperature error..........................24
	Overheats..................................24
	Power boost................................24
	Magnet.....................................25
	Cooling system.............................25
	Overload indicator.........................27
	PCS, basic principle of pump regulation....29
	PCS values under load......................32
	REAL TIME FAULTS...........................35

NEW HOLLAND MH CITY TO MH 8.6 TIER 3 ELECTRONIC MANUAL – PDF DOWNLOAD:

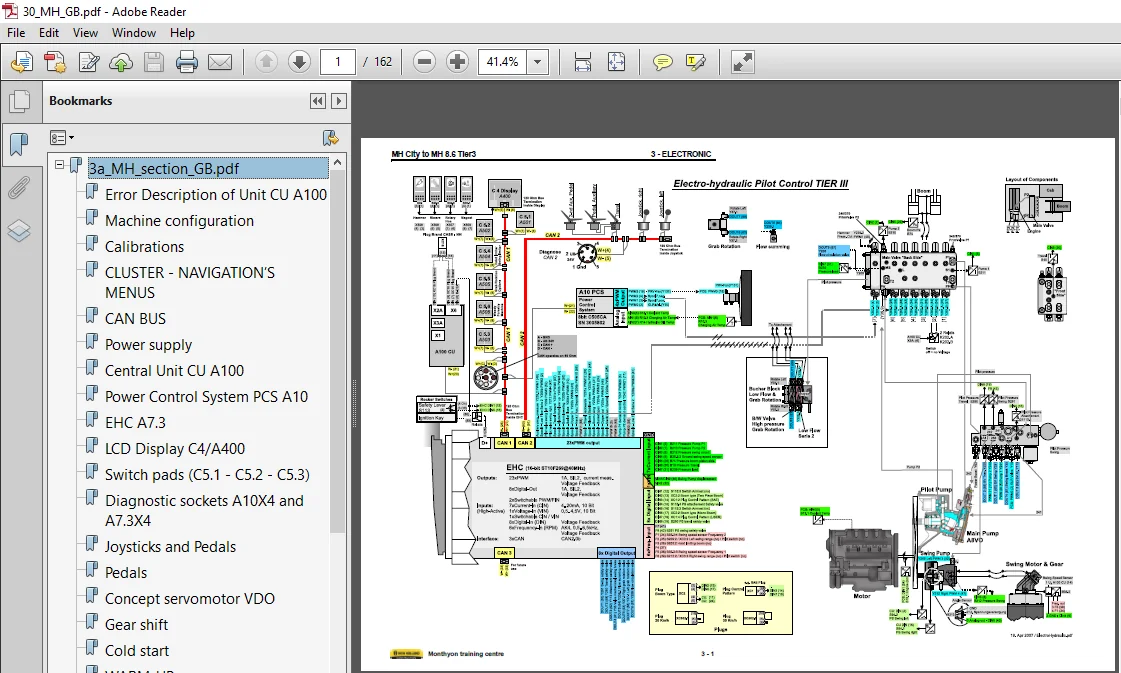

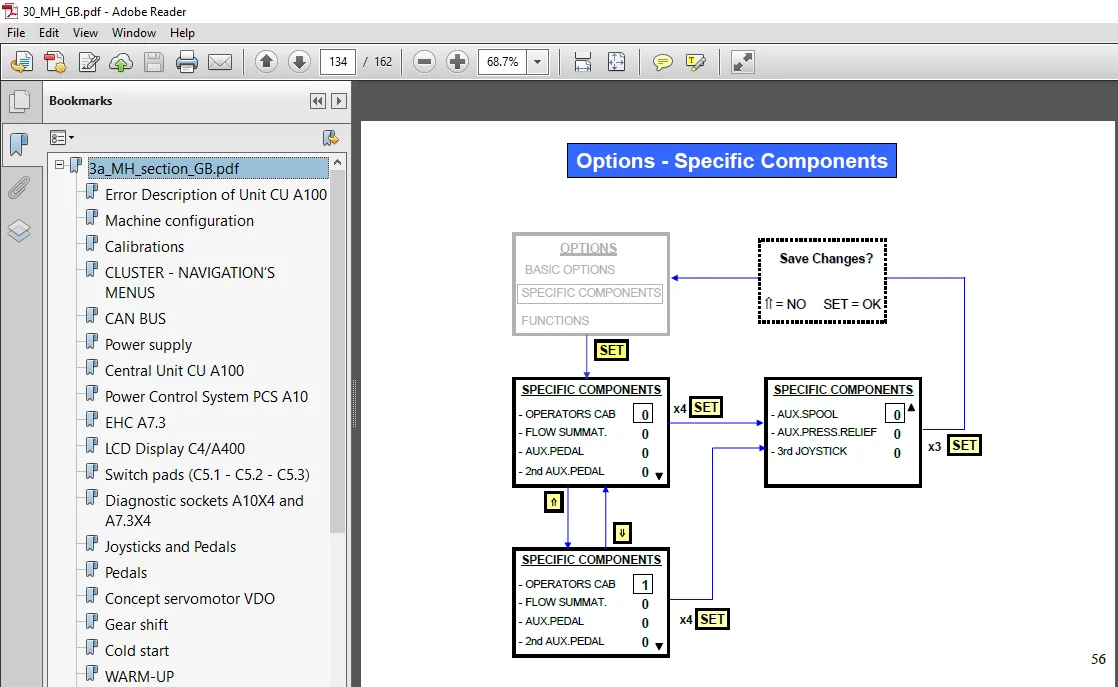

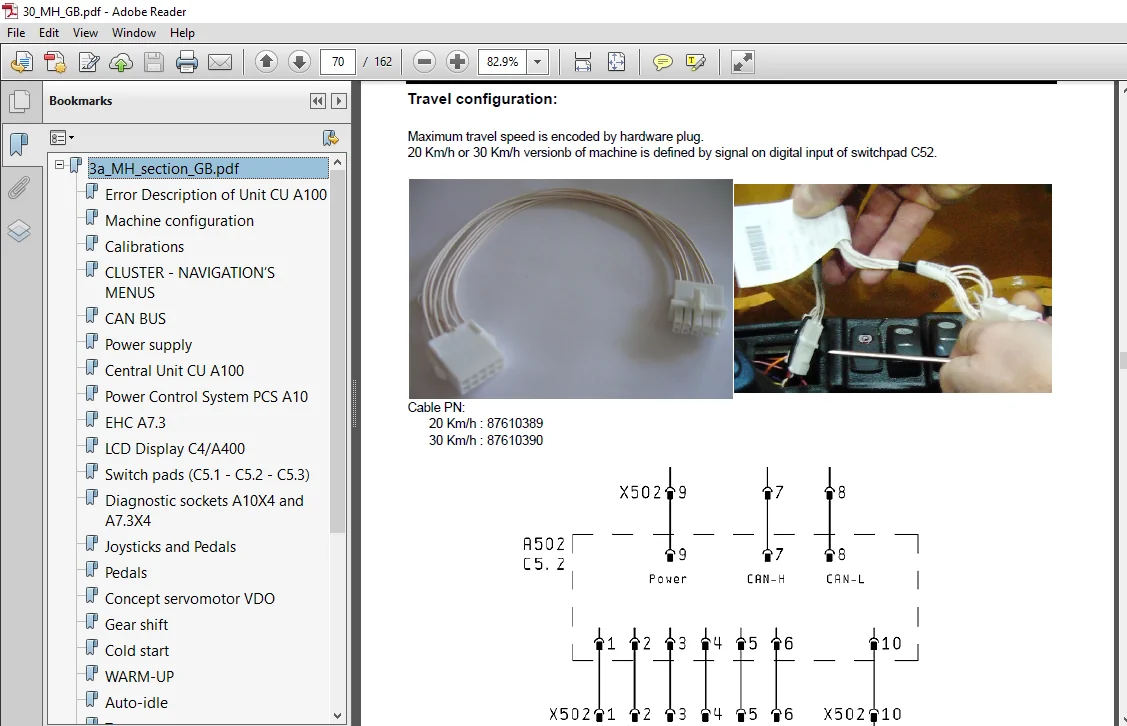

IMAGES PREVIEW OF THE MANUAL:

PLEASE NOTE:

• This is not a physical manual but a digital manual – meaning no physical copy will be couriered to you. The manual can be yours in the next 2 mins as once you make the payment, you will be directed to the download page IMMEDIATELY.
• This is the same manual used by the dealers inorder to diagnose your vehicle of its faults.
• Require some other service manual or have any queries: please WRITE to us at [email protected]
