FOREWORD

• The wheeled excavators MH2.6 – MH3.6 are hydraulic machines. They essentially consist in a wheeled undercarriage on which a slewing bearing is mounted, which is coupled to the upper frame.
• The upper frame supports the front attachment, the engine, the hydraulic components, the cab, the fuel tank and the counterweight. When the operator activates the controls (hydraulic control levers and pedals), the hydraulic pumps rotated
• by the engine suck oil from the tank and convey it to the control valve; the control valve, in turn, sends it to the relevant users. A cooling system keeps the hydraulic fluid at a normal operating temperature.

DESIGNATED USE

The machine has been built in accordance with state-of-the-art standards and the recognized safety rules. The machine must be used in accordance with its designated use, by observing the safety and precautionary rules and by strictly following the operating instructions. Any functional disorders, especially those affecting the safety of the machine, should therefore be rectified immediately. The Excavator is intended to be used in digging and loading operation (with bucket or grab or clamshell bucket), ground levelling (with blade when installed) and use of hydraulic hammer to break concrete or other solid material.

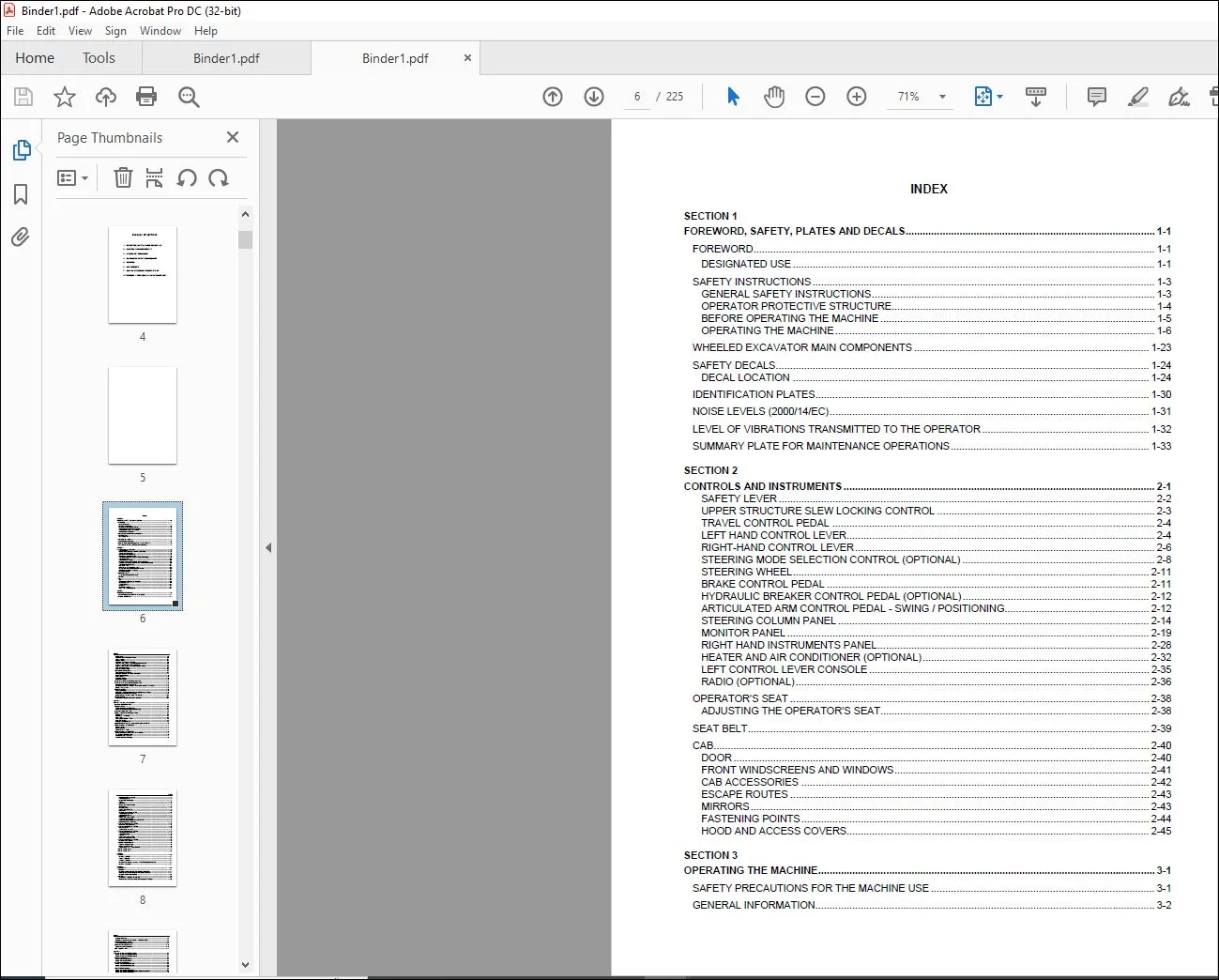

TABLE OF CONTENTS:

New holland MH2.6 MH3.6 Midi Excavators Stage IIIA Operator’s Manual 84295915 – PDF DOWNLOAD

SECTION 1
FOREWORD, SAFETY, PLATES AND DECALS 1-1
FOREWORD 1-1
DESIGNATED USE 1-1
SAFETY INSTRUCTIONS 1-3

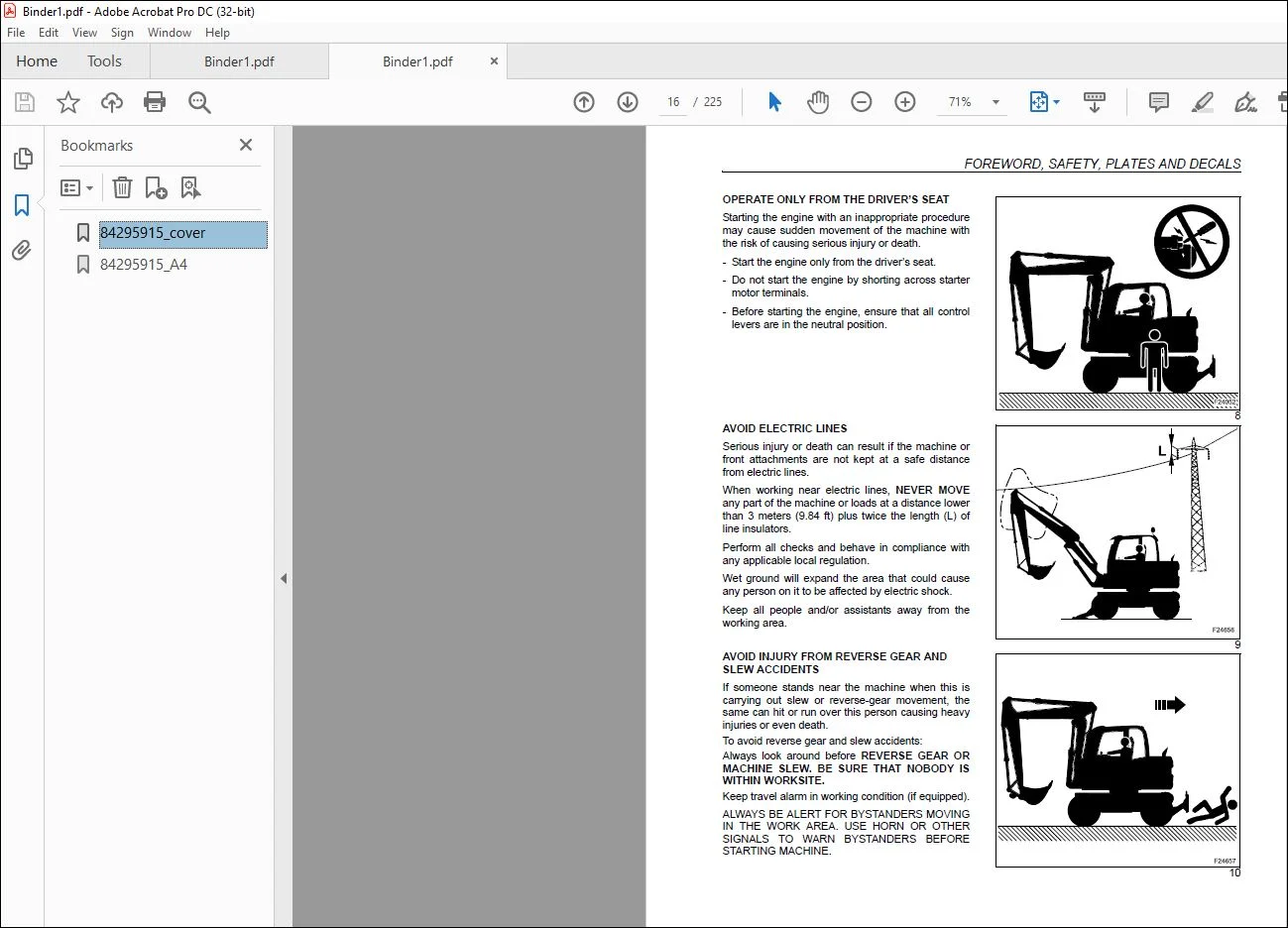

GENERAL SAFETY INSTRUCTIONS 1-3
OPERATOR PROTECTIVE STRUCTURE 1-4
BEFORE OPERATING THE MACHINE 1-5
OPERATING THE MACHINE 1-6
WHEELED EXCAVATOR MAIN COMPONENTS 1-23
SAFETY DECALS 1-24
DECAL LOCATION 1-24
IDENTIFICATION PLATES 1-30
NOISE LEVELS (2000/14/EC) 1-31
LEVEL OF VIBRATIONS TRANSMITTED TO THE OPERATOR 1-32
SUMMARY PLATE FOR MAINTENANCE OPERATIONS 1-33
SECTION 2
CONTROLS AND INSTRUMENTS 2-1
SAFETY LEVER 2-2
UPPER STRUCTURE SLEW LOCKING CONTROL 2-3
TRAVEL CONTROL PEDAL 2-4
LEFT HAND CONTROL LEVER 2-4
RIGHT-HAND CONTROL LEVER 2-6
STEERING MODE SELECTION CONTROL (OPTIONAL) 2-8
STEERING WHEEL 2-11
BRAKE CONTROL PEDAL 2-11
HYDRAULIC BREAKER CONTROL PEDAL (OPTIONAL) 2-12
ARTICULATED ARM CONTROL PEDAL – SWING / POSITIONING 2-12
STEERING COLUMN PANEL 2-14
MONITOR PANEL 2-19
RIGHT HAND INSTRUMENTS PANEL 2-28
HEATER AND AIR CONDITIONER (OPTIONAL) 2-32
LEFT CONTROL LEVER CONSOLE 2-35
RADIO (OPTIONAL) 2-36
OPERATOR’S SEAT 2-38
ADJUSTING THE OPERATOR’S SEAT 2-38
SEAT BELT 2-39
CAB 2-40
DOOR 2-40
FRONT WINDSCREENS AND WINDOWS 2-41
CAB ACCESSORIES 2-42
ESCAPE ROUTES 2-43
MIRRORS 2-43
FASTENING POINTS 2-44
HOOD AND ACCESS COVERS 2-45
SECTION 3
OPERATING THE MACHINE 3-1
SAFETY PRECAUTIONS FOR THE MACHINE USE 3-1
GENERAL INFORMATION 3-2
REFUELLING 3-2
CHECKS BEFORE ENGINE START-UP 3-2
START SWITCH 3-3
ENGINE START 3-3
CHECKS AFTER ENGINE START-UP 3-4
STARTING THE ENGINE AFTER PROLONGED STORAGE 3-4
WARM-UP IN COLD WEATHER CONDITIONS 3-5
STARTING THE ENGINE USING BOOSTER BATTERIES 3-5
STOPPING THE ENGINE 3-7
TRAVEL CONTROL PEDAL 3-8
TRAVELLING INSTRUCTIONS 3-9
TRAVELLING ON THE ROAD 3-9
EMERGENCY BOOM LOWERING PROCEDURE 3-14
EXCAVATOR REMOVAL 3-15
SAFETY LEVER 3-18
CONTROL LEVERS 3-19
MACHINE WARM-UP 3-20
OPERATING THE MACHINE IN COLD WEATHER 3-21
OPERATING THE MACHINE WITH HOT WEATHER 3-22
MANOEUVRING OF HANGING LOADS 3-23
READING KEY FOR THE LIFTABLE LOAD TABLE LOCATED IN THE CAB 3-25
BUCKET INSTALLATION 3-26
ROAD TRANSPORT 3-27
TRANSPORT RULES 3-27
RULES FOR LOADING/UNLOADING THE MACHINE ON A TRAILER 3-28
LOADING THE MACHINE ON A TRAILER 3-29
UNLOADING THE MACHINE FROM THE TRAILER 3-30
SEA TRANSPORT 3-31
CRANING THE MACHINE FOR SEA TRANSPORT 3-31
SECTION 4
SUPPLIES AND MAINTENANCE CHART 4-1
MAINTENANCE PRECAUTIONS 4-1
GENERAL NOTES 4-2
CHECK HOUR METER REGULARLY 4-2
PREPARE THE MACHINE FOR MAINTENANCE 4-3
EXTERNAL VISUAL INSPECTION 4-4
CHECKS BEFORE STARTING DAILY WORK 4-5
ENGINE OIL 4-5
HYDRAULIC SYSTEM OIL 4-7
FUEL TANK 4-8
WINDSCREEN WASHER TANK 4-8
FUEL PRE-FILTER 4-9
ENGINE COOLING SYSTEM 4-9
MACHINE LUBRICATION AND MAINTENANCE GENERAL TABLE 4-10
AFTER 100 HOURS OF OPERATION 4-11
BUCKET LINKS 4-11
BOOM AND ARM 4-12
STABILIZERS OR BLADE 4-12
AFTER 500 HOURS OF OPERATION 4-13
OUTER AND INNER CIRCULATION AIR CLEANERS 4-14
AIR FILTER: OUTER ELEMENT 4-16
SLEW REDUCTION GEAR OIL 4-17
AXLE REDUCTION GEARS OIL 4-18
FRONT AND REAR AXLES OIL 4-18
TRANSMISSION OIL 4-19
HARDWARE TIGHTENING 4-19
TYRES 4-27
FUEL TANK 4-28
HOSES, LINES AND FITTINGS 4-29
FUEL HOSES 4-37
HYDRAULIC TANK 4-38
ENGINE OIL AND FILTER 4-39
FUEL FILTER 4-41
HYDRAULIC SYSTEM OIL FILTER 4-42
SLEWING RING BEARING 4-44
SLEWING RING TEETH 4-45
FRONT AXLE 4-46
ENGINE COOLING SYSTEM 4-46
ACCUMULATOR CHARGE 4-48
BRAKE AND POWER CONTROLS OIL FILTER 4-48
AIR CONDITIONER – OPTIONAL 4-50
AFTER 1000 HOURS OF OPERATION 4-51
AIR FILTER: OUTER ELEMENT 4-51
AFTER 1500 HOURS OF OPERATION 4-52
FUEL PRE-FILTER 4-52
ALTERNATOR – FAN BELT 4-54
AFTER 2000 HOURS OF OPERATION 4-55
SLEW REDUCTION GEAR OIL 4-55
TRANSMISSION OIL 4-57
AXLE OIL 4-57
ENGINE COOLING SYSTEM 4-59
AIR FILTER: INNER ELEMENT 4-61
AFTER 2500 HOURS OF OPERATION 4-62
HYDRAULIC SYSTEM OIL 4-62
ADDITIONAL MAINTENANCE 4-66
BRAKES – AIR BLEEDING 4-66
FUSES – REPLACEMENT 4-66
BUCKET TOOTH TIP – REPLACEMENT 4-69
FILLING CHART – MH26 4-70
FILLING CHART – MH36 4-71
SECTION 5
STORAGE 5-1
MACHINE STORAGE 5-1
ENGINE STORAGE 5-1
BATTERY STORAGE 5-2
RECOMMISSIONING THE MACHINE AFTER PROLONGED STORAGE 5-2
MACHINE DEMOLITION 5-2
SECTION 6
ATTACHMENTS 6-1
BREAKER 6-1
HYDRAULIC BREAKER SELECTION AND INSTALLATION 6-1
PRECAUTIONS WHEN USING THE HYDRAULIC BREAKER 6-1
HYDRAULIC BREAKER CONTROL 6-4
NIBBLER 6-5
CHOICE AND ASSEMBLY OF NIBBLER 6-5
PRECAUTIONS TO BE OBSERVED WHEN USING THE NIBBLER 6-5
NIBBLER CONTROL 6-7
HYDRAULIC OIL AND FILTER ELEMENT SERVICE INTERVAL 6-8
ATTACHMENT SLEW SYSTEM 6-9
ATTACHMENT SLEW CONTROL 6-9
CLAMSHELL BUCKET SYSTEM 6-10
CLAMSHELL BUCKET CONTROL 6-10
FUEL TRANSFER PUMP 6-11
SECTION 7
DATA AND TECHNICAL SPECIFICATIONS 7-1
MH26 – TECHNICAL SPECIFICATIONS 7-1
MH36 – TECHNICAL SPECIFICATIONS 7-3
OPERATING WEIGHTS 7-5
MH26 – OPERATING WEIGHTS 7-5
MH36 – OPERATING WEIGHTS 7-5
DIGGING PERFORMANCE 7-6
MH26 – DIGGING PERFORMANCE 7-6
MH36 – DIGGING PERFORMANCE 7-7
7-7
TRANSPORT DIMENSIONS 7-8
MH26 – TRANSPORT DIMENSIONS 7-8
MH26 – TRANSPORT DIMENSIONS WITH CLAMSHELL BUCKET 7-9
MH36 – TRANSPORT DIMENSIONS 7-10
MH36 – TRANSPORT DIMENSIONS WITH CLAMSHELL BUCKET 7-11
BUCKET USEFULNESS DEPENDING ON ARM 7-12
MH26 – BUCKETS 7-12
MH36 – BUCKETS 7-13
