New Holland MY16 MY17 MY19 Service Repair Manual (87045362) – New Holland MY16 MY17 MY19 – PDF Download

Description

New Holland MY16 MY17 MY19 Service Repair Manual (87045362) – New Holland MY16 MY17 MY19

File Details:

New Holland MY16, MY17, MY19 Repair Manual_87045362
Size: 23.8 MB
Format: PDF
Language: English
Number of Pages: 166 pages
Brand: New Holland
Type of document: Repair Manual
Model: MY16, MY17, MY19
Part No: 87045362

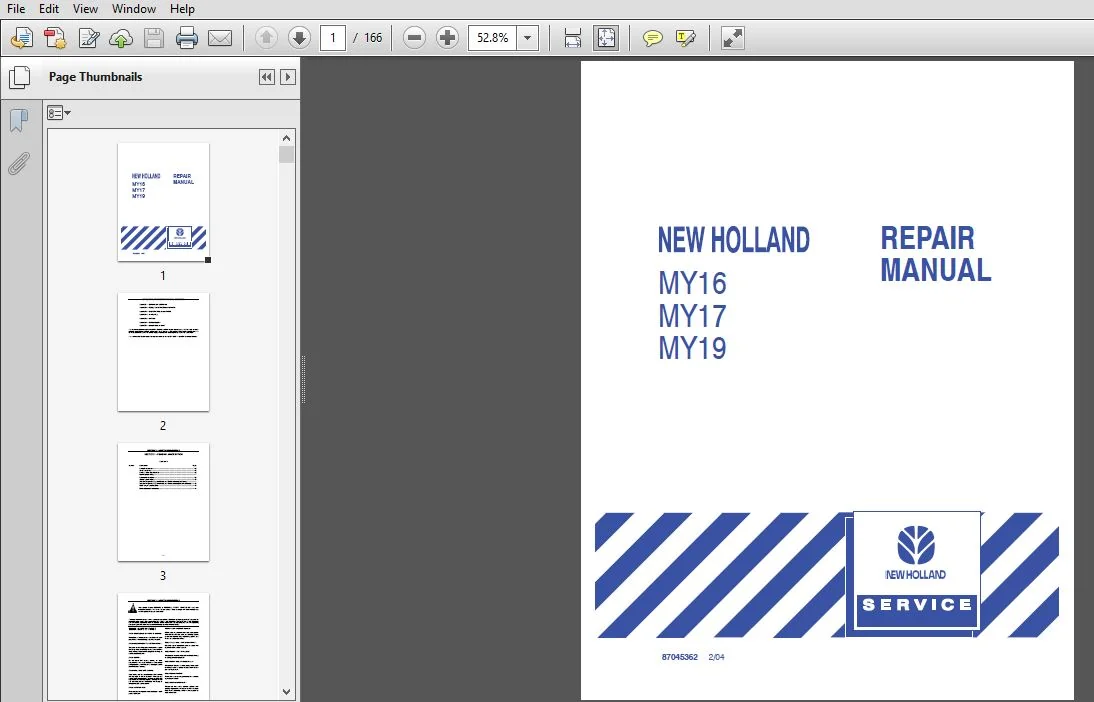

Image Preview:

NEW HOLLAND MY16 MY17 MY19 SERVICE REPAIR MANUAL (87045362) – NEW HOLLAND MY16 MY17 MY19 – PDF DOWNLOAD:

Sample Page from the Manual:

New Holland MY16 MY17 MY19 Service Repair Manual (87045362) – New Holland MY16 MY17 MY19

• The transaxle is a self contained unit designed for the transfer and control of power. It provides an infinitely variable speed range between zero and maximum in both forward and reverse modes of operation.
• This transaxle uses a variable displacement pump with a maximum displacement of 10cc per revolution, and motor with a fixed displacement of 21cc per revolution. The variable displacement pump features a cradle swashplate with a directproportional displacement control. Reversing the direction of the swashplate reverses the flow of oil from the pump and thus reverses the direction of the motor output rotation. The pump and motor are of the axial piston design and utilize spherical nosed pistons which are held against a thrust race by internal compression springs.
• The transaxle has a self contained fluid supply and an internal filter. The fluid is drawn through the internal reservoir and feeds the fixed displacement gerotor charge pump. Excess fluid in the charge circuit is discharged over the charge relief valve and dumps back to case. Charge check valves in the center section are used to control the makeup flow of the fluid to the low pressure side of the loop.
• The transaxle is filled and tested at the factory and should not require fluid or filter changes unless the fluid becomes contaminated.
• A cam style, block lifting bypass is utilized in the transaxle to permit moving the vehicle for a short distance at a maximum of 2 m.p.h. (3.2 km/h) without starting the engine.

Table Of Contents:

New Holland MY16 MY17 MY19 Service Repair Manual (87045362) – New Holland MY16 MY17 MY19

SECTION 1 – GENERAL INFORMATION

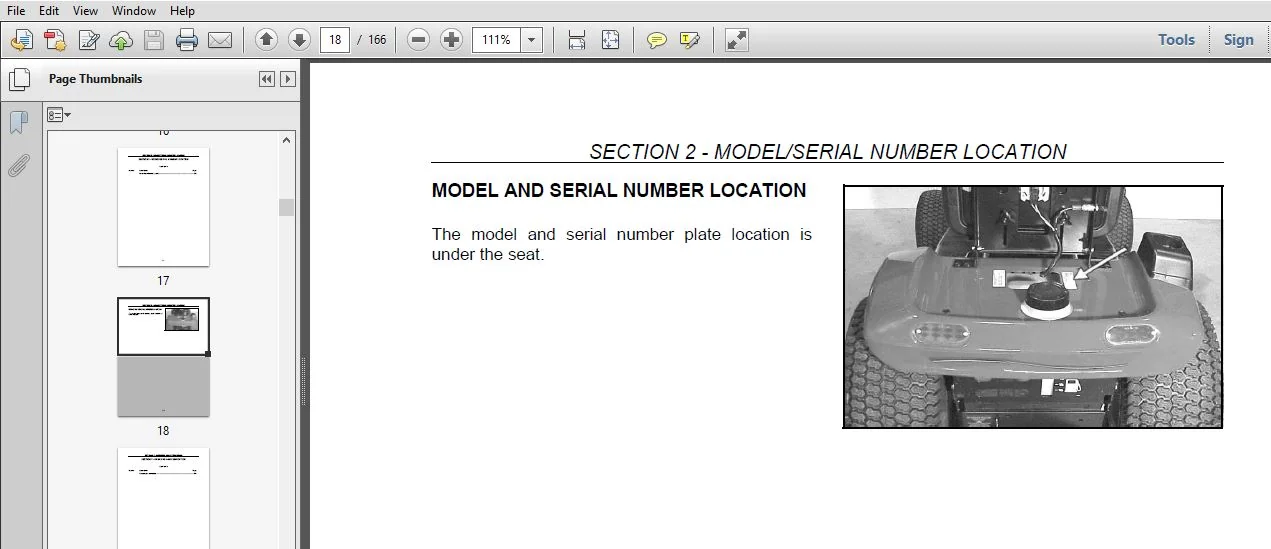

SECTION 2 – MODEL/SERIAL NUMBER LOCATION
SECTION 3 – GREASING AND LUBRICATION

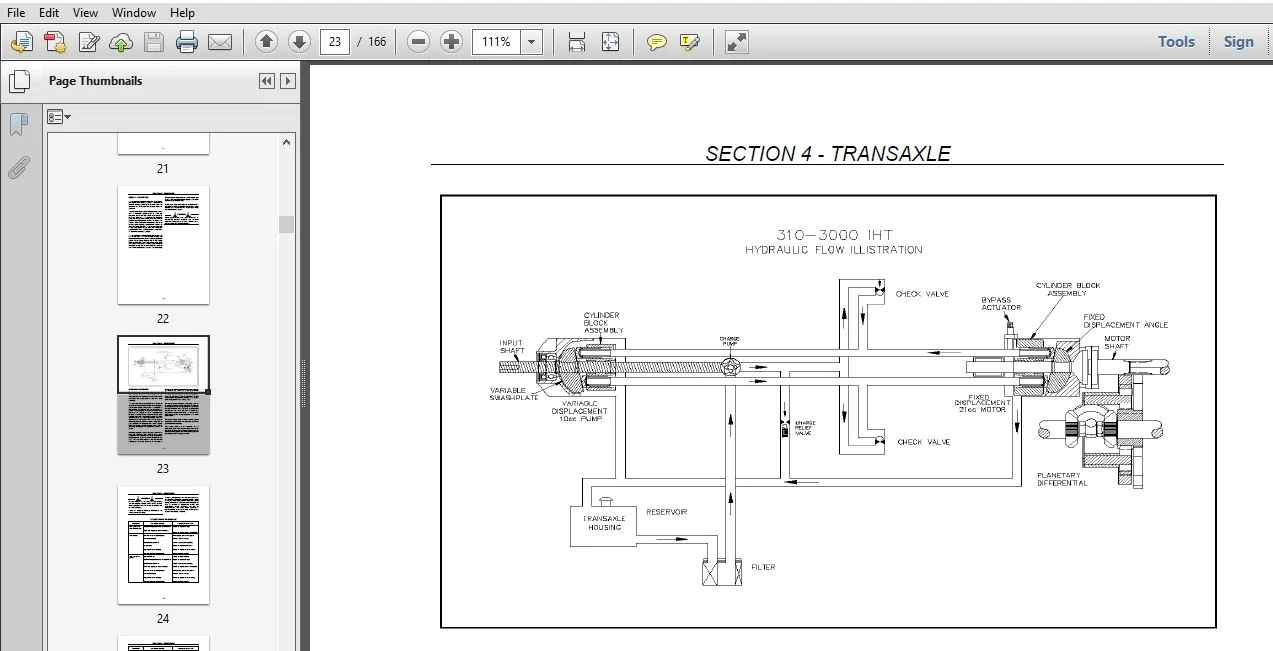

SECTION 4 – TRANSAXLE
SECTION 5 – CHASSIS
SECTION 6 – MOWER DECKS
SECTION 7 – ELECTRICAL SYSTEM

Please Note:

• This is not a physical manual but a digital manual – meaning no physical copy will be couriered to you. The manual can be yours in the next 2 mins as once you make the payment, you will be directed to the download page IMMEDIATELY.
• This is the same manual used by the dealers inorder to diagnose your vehicle of its faults.
• Require some other service manual or have any queries: please WRITE to us at [email protected]
