New Holland RG140.B RG170.B RG200.B Motor Grader Service Repair Manual (48050423) – New Holland – PDF Download

Description

New Holland RG140.B RG170.B RG200.B Motor Grader Service Repair Manual (48050423) – New Holland

File Details :

New Holland RG140.B RG170.B RG200.B Motor Grader Service Repair Manual
Size: 68.5 MB
Format: PDF
Language: English
Number of Pages: 1143 pages
Brand: New Holland
Type of document: Service Manual
Model: RG140.B RG170.B RG200.B
Part No: 48050423

NEW HOLLAND RG140.B RG170.B RG200.B MOTOR GRADER SERVICE REPAIR MANUAL (48050423) – NEW HOLLAND – PDF DOWNLOAD:

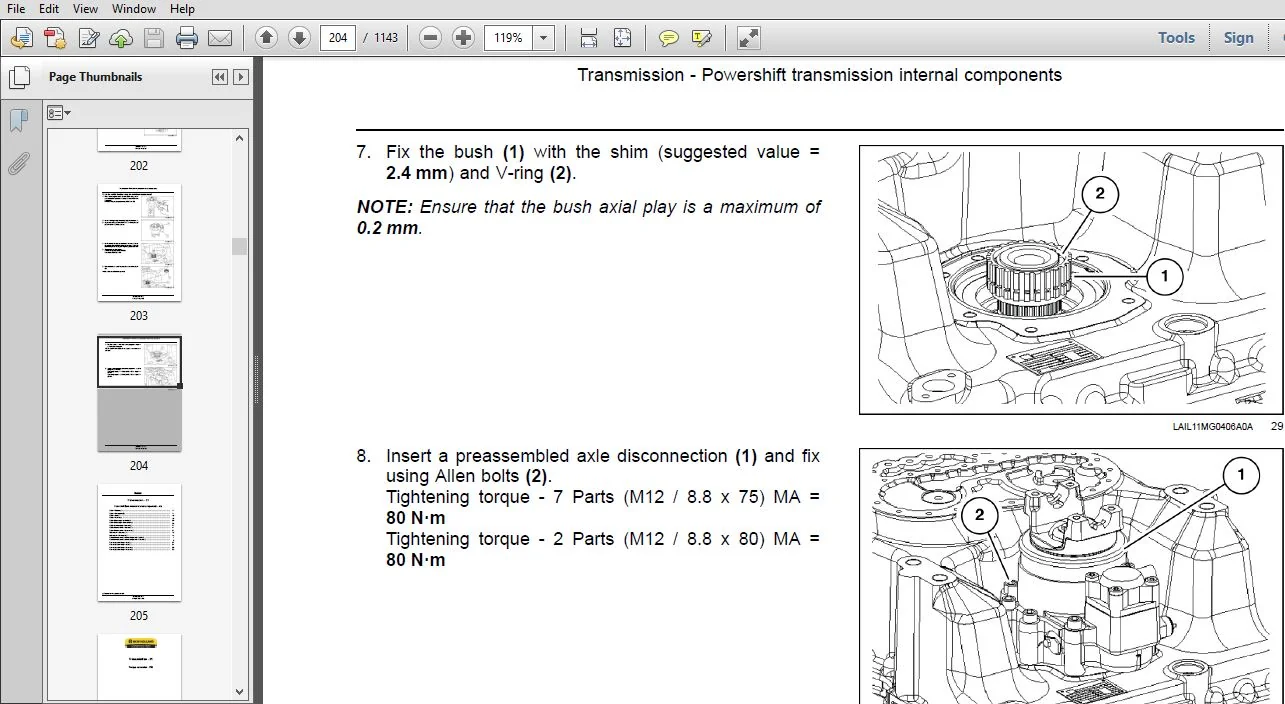

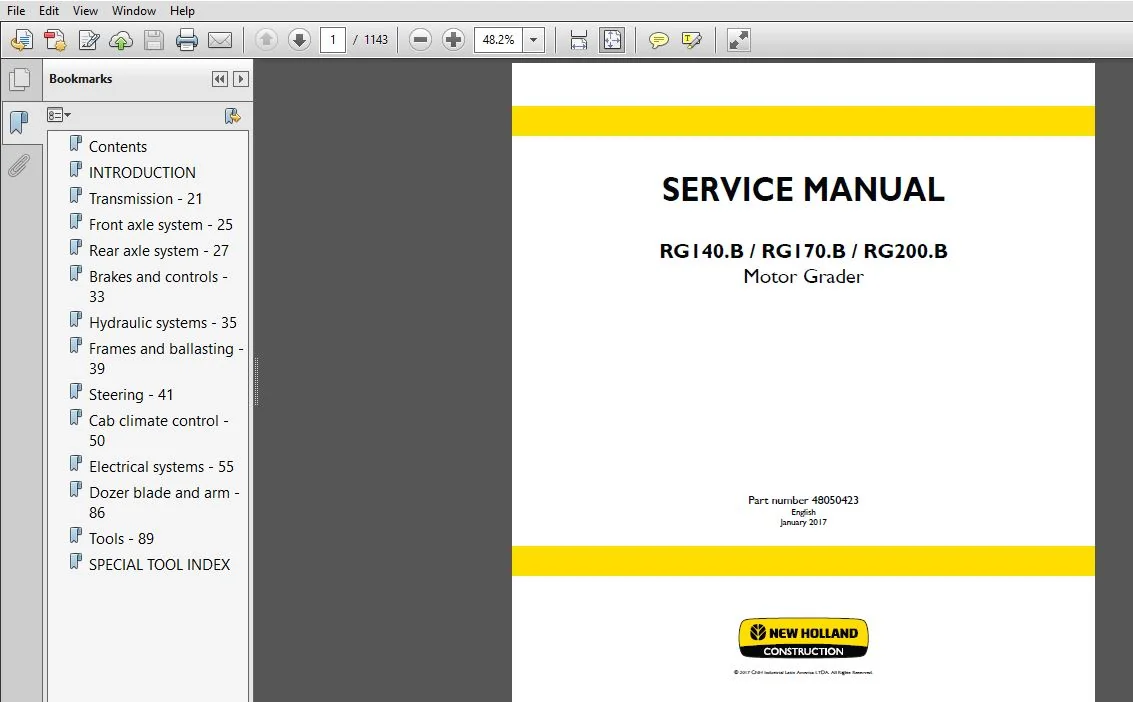

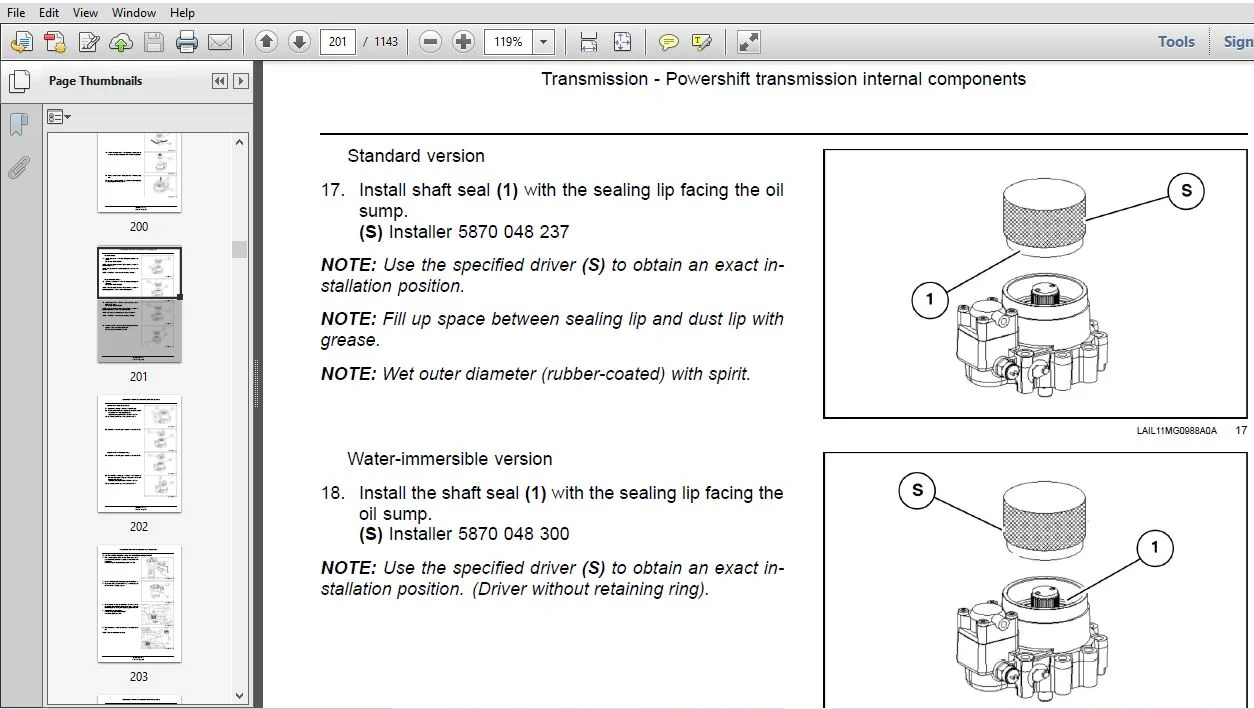

Image Preview:

Sample Page From the Manual:

New Holland RG140.B RG170.B RG200.B Motor Grader Service Repair Manual (48050423) – New Holland

1. Check to insure floating parts move freely and that all other parts are mounted securely. Tighten hardware as required.
2. Check actuator linkage to insure that there is adequate freedom of movement for positive brake operation.
3. Adjustment of pad gap is accomplished by adjusting the actuating cable or linkage. If adjustment is used up, back off cable or linkage. Unbend tab on antirotation clip and loosen screw enough to disengage lever spline. Rotate the lever one tooth, in the direction opposite the actuation direction, and retorque the screw making sure the spline teeth are properly engaged. Bend up a tab that aligns with one of the screw head flats, to prevent screw rotation. Both lever and linkage must be free to return to home position. An external return spring is required.
4. Check – disc surface condition. Replace if it is badly warped, pitted, or below minimum recommended thickness. Check for loose mount bolts. Retighten if necessary.
5. Check that the brake pads are at least 1.0 mm (0.039 in) thick. Replace worn friction pads.
6. Generally, if the disc is still running true and the pad clearance is still adjustable, no other maintenance is required. To check for wear, measure the distance from the carrier side casting face to disc face. If the distance is less than 1.5 mm (0.059 in), replace the brake pads.

Table Of Contents:

New Holland RG140.B RG170.B RG200.B Motor Grader Service Repair Manual (48050423) – New Holland

INTRODUCTION
Transmission 21
[21.113] Powershift transmission 21.1
[21.135] Powershift transmission external controls 21.2
[21.105] Powershift transmission hydraulic components 21.3
[21.155] Powershift transmission internal components 21.4
[21.700] Torque converter 21.5
[21.900] Hydraulic pump drive 21.6
Front axle system 25
[25.400] Non-powered front axle 25.1
Rear axle system 27
[27.100] Powered rear axle 27.1
[27.106] Rear bevel gear set and differential 27.2
[27.120] Planetary and final drives 27.3
Brakes and controls 33
[33.110] Parking brake or parking lock 33.1
Hydraulic systems 35
[35.000] Hydraulic systems 35.1
Frames and ballasting 39
[39.100] Frame 39.1
[39.140] Ballasts and supports 39.2
Steering 41
[41.200] Hydraulic control components 41.1
Cab climate control 50
[50.100] Heating 50.1
[50.104] Ventilation 50.2
[50.200] Air conditioning 50.3
Electrical systems 55
[55.000] Electrical system 55.1
[55.201] Engine starting system 55.2
[55.301] Alternator 55.3
[55.302] Battery 55.4
[55.010] Fuel injection system 55.5
[55.024] Transmission control system 55.6
[55.051] Cab Heating, Ventilation, and Air-Conditioning (HVAC) controls 55.7
[55.050] Heating, Ventilation, and Air-Conditioning (HVAC) control system 55.8
[55.020] Transmission speed sensors 55.9
[55.DTC] FAULT CODES 55.10
Dozer blade and arm 86
[86.110] Dozer blade 86.1
Tools 89
[89.128] Ripper assembly 89.1

Please Note:

• This is not a physical manual but a digital manual – meaning no physical copy will be couriered to you. The manual can be yours in the next 2 mins as once you make the payment, you will be directed to the download page IMMEDIATELY.
• This is the same manual used by the dealers inorder to diagnose your vehicle of its faults.
• Require some other service manual or have any queries: please WRITE to us at [email protected]
