New Holland SB36 SB56 SB58 SB60 SB62 SB64 Grape Harvester Service Manual – PDF

Description

New Holland SB36 SB56 SB58 SB60 SB62 SB64 Grape Harvester Service Manual (6048223100)

FILE DETAILS:

New Holland SB36 SB56 SB58 SB60 SB62 SB64 Grape Harvester Service Manual (6048223100)

• New Holland SB36, SB56, SB58, SB60, SB62, SB64 Grape Harvester Service Manual_6048223100
• Size: 10 MB
• Format: PDF
• Language: English
• Number of Pages: 533 pages
• Brand: New Holland
• Type of document: Service Manual
• Model: SB36, SB56, SB58, SB60, SB62, SB64
• Part No: 6048223100

NEW HOLLAND SB36 SB56 SB58 SB60 SB62 SB64 GRAPE HARVESTER SERVICE MANUAL – PDF:

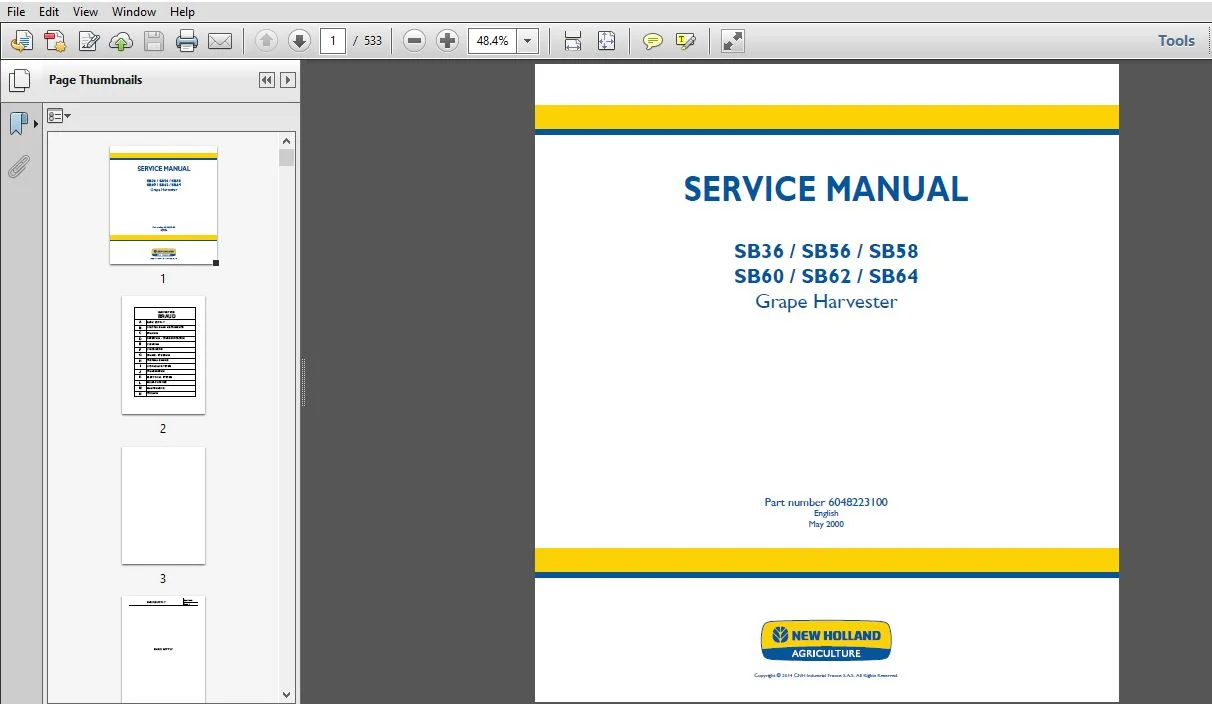

SCREENSHOTS OF THE MANUAL:

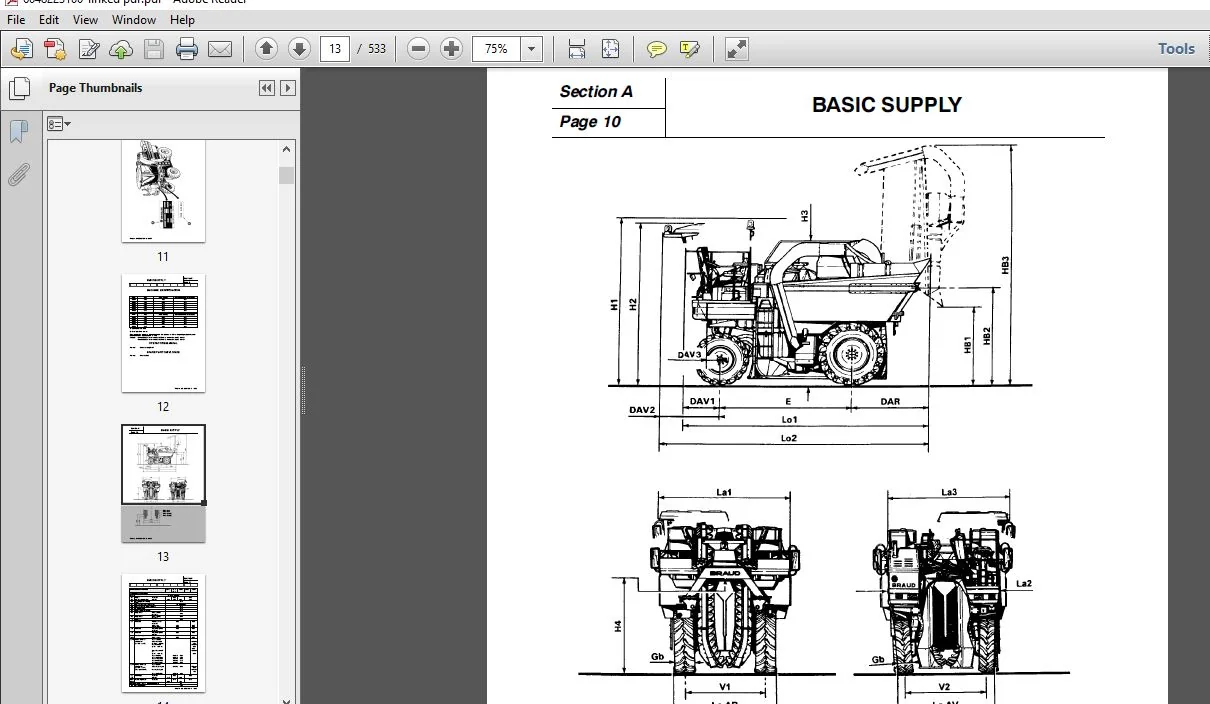

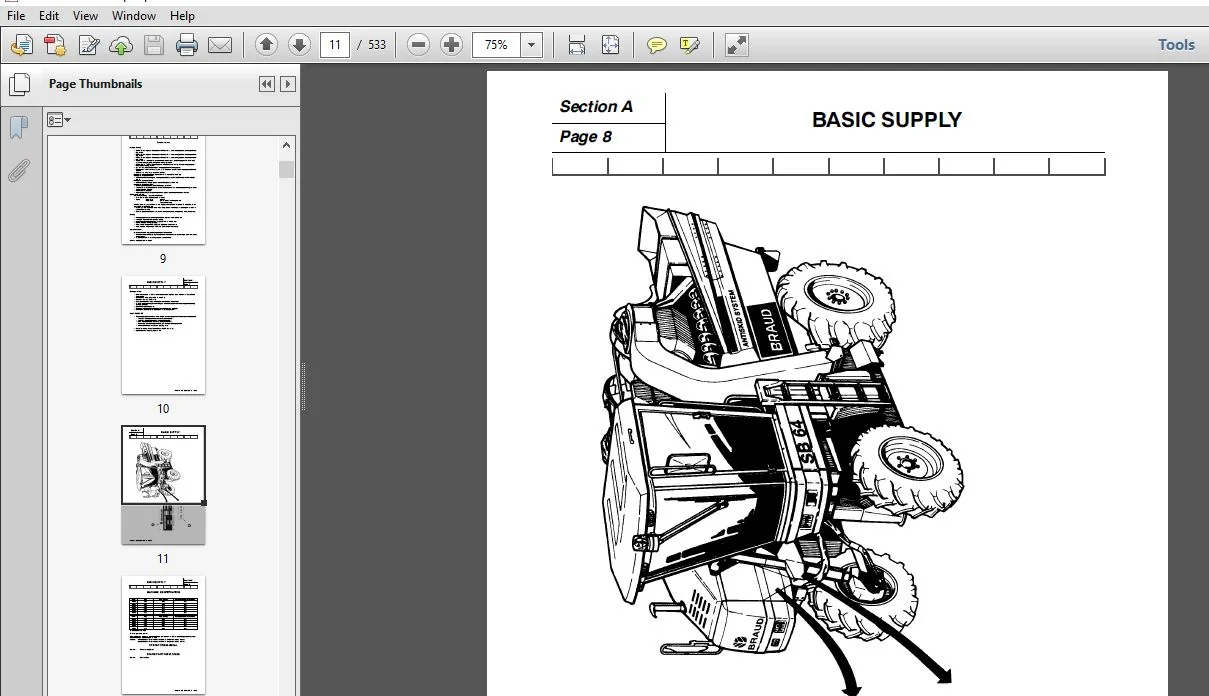

SAMPLE PAGE FROM THE MANUAL:

New Holland SB36 SB56 SB58 SB60 SB62 SB64 Grape Harvester Service Manual (6048223100)

• Disassembling the machine
• The harvester assembly, including the buckets, is mounted on a special frame and fixed in only three points, thus making disassembiy operations very easy. — All hydraulic lines and electric connections between the self—propelled machine and the harvesting group are equipped with fast—couplings.
• Norias motor can be disassembied without touching the flexible lines. Shaking header
• Operation principle: SDC. (Controlled Dynamic System = CDS.)
• Shaking header placed on 4 vibration damping supports.
• The frame is made up of the following welded parts: –
• Front 2 shaker carriers of thick plate, mounted on fight bearings – Rear The shaker rods are fixed to the thick tube channel and allow the shakers to be deformed separ- ately without mutual interference.
• Real height: 1.25 m with 26 holes to fix the shakers at any level. – The shakers are made of very flexible nylon material which has been developed with the help of the Bu- reau d’ Etudes BRAUD (BRAUD Research Department). They have two front holding holes and a rear articulation joint.
• frontfixing: two half flanges – rear fixing: mix with a rod and & connection – shaker diameter: 32 mm – The two front shaker carriers are controlled by two small mds and two side cams with two inertial flywheels.
• Impossible offset
• Easy—to—adjust width (three positions) ‘ Quick adjustable convergence – Shaking frequency control and adjusting from the driver’s seat.
• Permanent displaying of Shaking frequency on the dashboard panel

TABLE OF CONTENTS:

New Holland SB36 SB56 SB58 SB60 SB62 SB64 Grape Harvester Service Manual (6048223100)

SECTION A -BASIC SUPPLY
SECTION B -CONTROLS AND INSTRUMENTS
SECTION C -SHAKING
SECTION D -RECEIVING – TRANSPORTATION
SECTION E -CLEANING
SECTION F -CONTAINERS
SECTION G -FRAME – STEERING
SECTION H -THERMAL ENGINE
SECTION I -HYDRAULIC SYSTEM
SECTION J -TRANSMISSION
SECTION K -ELECTRICAL SYSTEM
SECTION L -MULTI-PURPOSE
SECTION M -MAINTENANCE
SECTION N -TOOLING
