New Holland SD440 Air Drill Service Repair Manual (87012624) New Holland SD440 – PDF Download

Description

New Holland SD440 Air Drill Service Repair Manual (87012624) New Holland SD440

FILE DETAILS:

New Holland SD440 Air Drill Service Repair Manual (87012624) New Holland SD440

• New Holland Tractor SD 440 Air Drill Repair Manual_87012624
• Size: 25 MB
• Format: PDF
• Language: English
• Number of Pages: 194 pages
• Brand: New Holland
• Type of document: Repair Manual
• Model: SD 440
• Part No: 87012624

NEW HOLLAND SD440 AIR DRILL SERVICE REPAIR MANUAL (87012624) NEW HOLLAND SD440 – PDF DOWNLOAD:

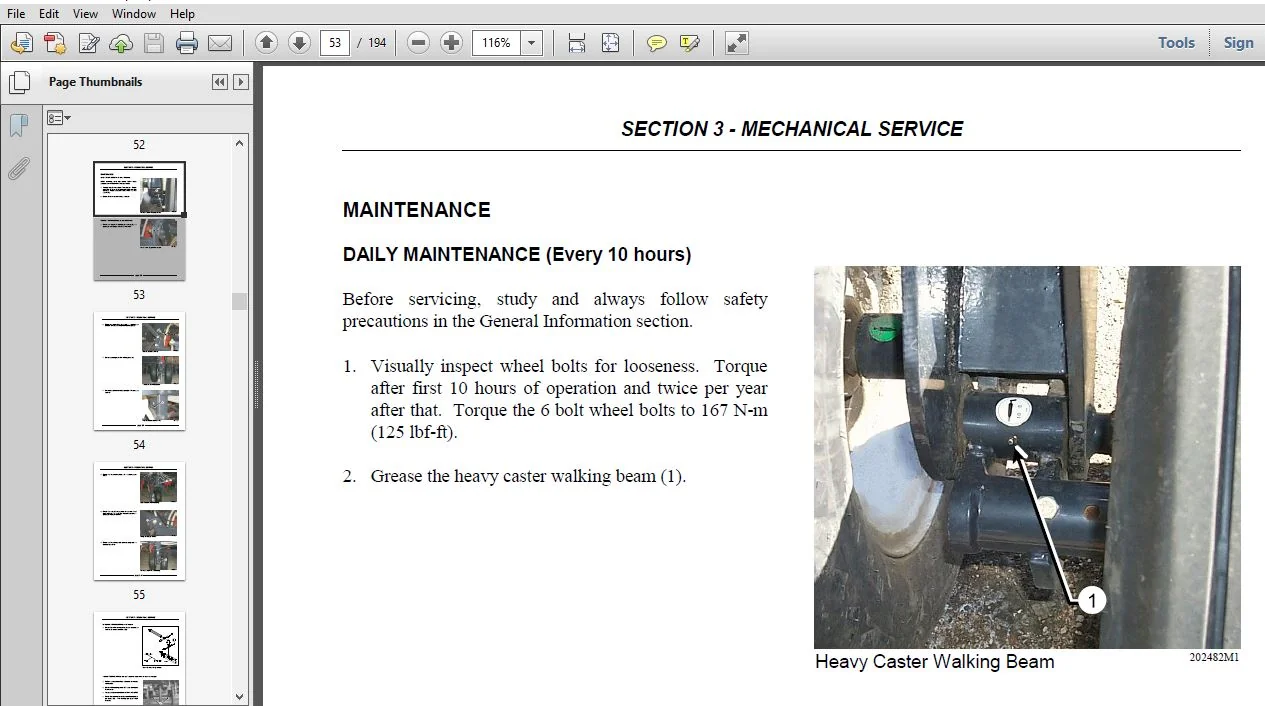

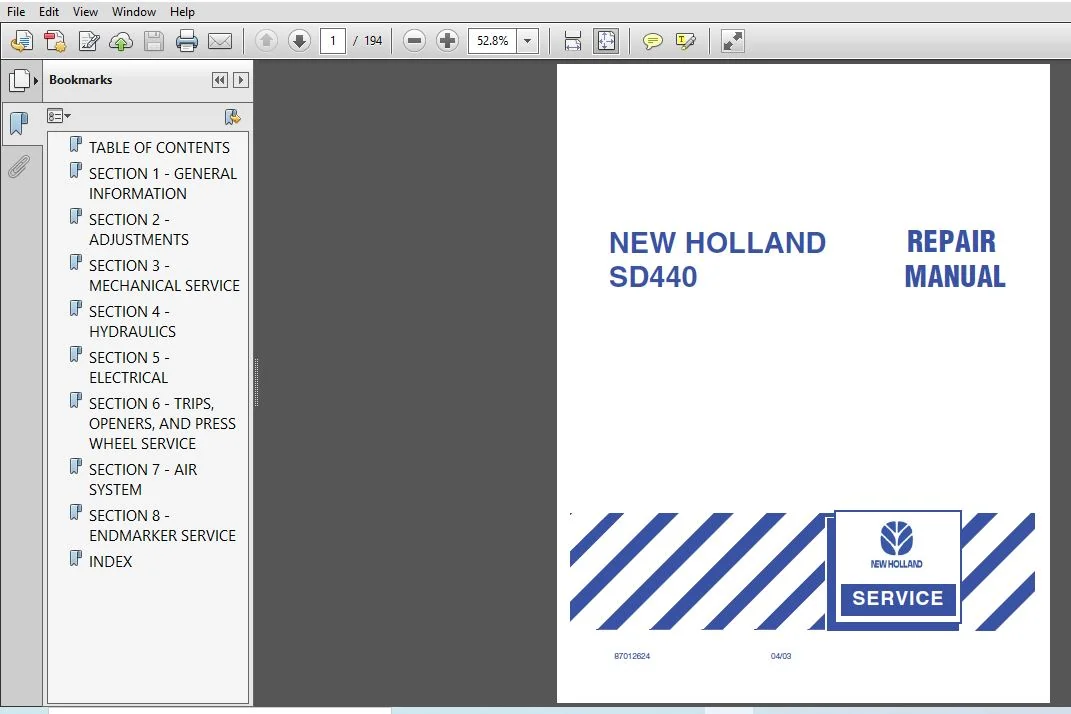

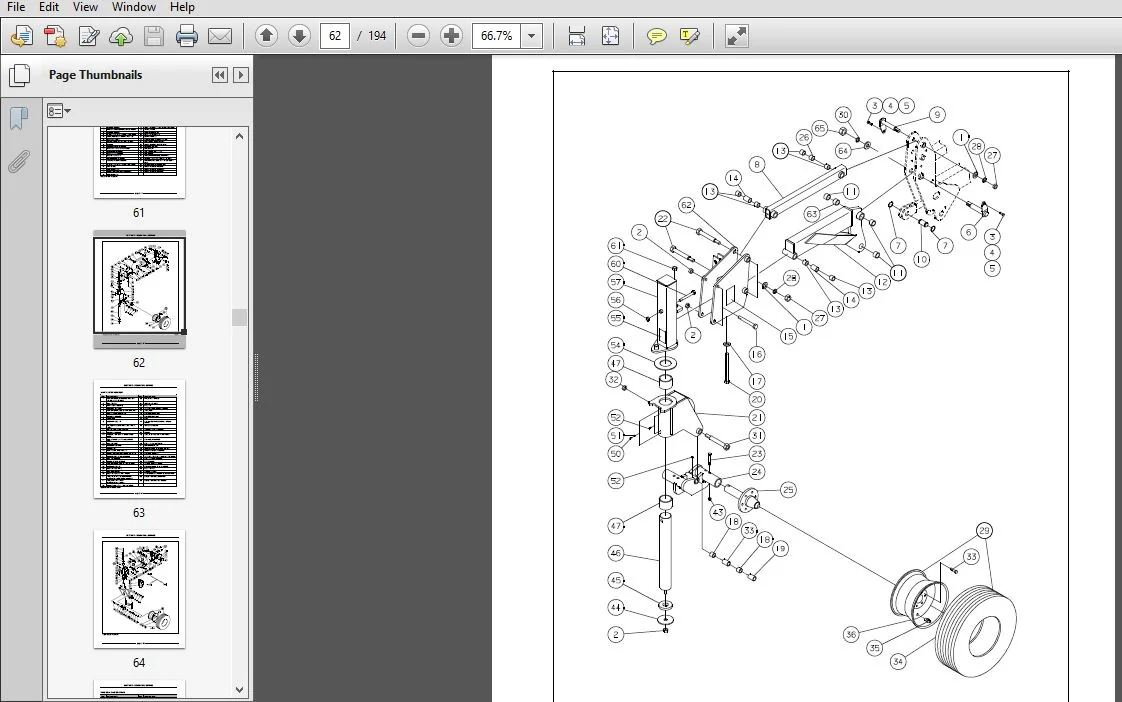

SCREENSHOTS OF THE MANUAL:

DESCRIPTION:

New Holland SD440 Air Drill Service Repair Manual (87012624) New Holland SD440

• IMPORTANT INFORMATION All repair and maintenance work listed in this manual must be carried out only by qualified dealership personnel. Strictly comply with all instructions given.
• Use only the specialized tools required. Anyone who carries out the above operations without complying with the procedures shall be responsible for the subsequent damages. The manufacturer and all the organizations of its distribution chain, including (without limitation) national, regional, or local dealers, reject any responsibility for damages due to the anomalous behavior of parts and/or components not approved by the manufacturer itself.
• This includes those parts and/or components used for the servicing or repair of the product manufactured or marketed by the manufacturer. In any case, no warranty is given or attributed on the product manufactured or marketed by the manufacturer in case of damages due to an anomalous behavior of parts and/or components not approved by the manufacturer. The information in this manual is up to date at the date of the publication.
• It is the policy of the manufacturer to aim for continuous improvement. Some information could not be updated due to modifications of a technical or commercial type, as well as to suit the laws and regulations of different countries. In case of disagreement, refer to your Sales and Service Networks.
• The tractor engine should be stopped and the wheels blocked to prevent any movement during servicing. Always be sure that the depth control safety lock is in place when servicing the air drill. Always be sure the wings are in field position before servicing the air drill. Escaping hydraulic fluid is a serious hazard. Escaping hydraulic fluid that is under pressure can penetrate the skin, causing serious injury.
• Relieve pressure before disconnecting the hydraulic lines. Check/tighten all connections before applying pressure. Never use your hand to search for leaks. Use a piece of cardboard or paper. If any fluid is injected into the skin, seek immediate medical attention.
• Gangrene may result if the wound is not treated within a few hours. Check your hydraulic fluid containers for warnings concerning the hydraulic fluids you use. DO NOT walk within the radius of raised air drill wings.

TABLE OF CONTENTS:

New Holland SD440 Air Drill Service Repair Manual (87012624) New Holland SD440

1 – GENERAL INFORMATION . . . . . . . . . . . . . . 1-1
General Service Information
Important Information
Service Tools
Safety
Units of Measure
Bolt Torque Information
Machine Specifications
Welding Procedures
2 – ADJUSTMENTS . . . . . . . . . . . . . . . . . . . . . . . 2-1
Air Drill Leveling
Floating Hoe/Shank Adjustments
Sweep Pitch Adjustments
3 – MECHANICAL SERVICE . . . . . . . . . . . . . . . . 3-1
Troubleshooting Tables
Servicing Safety Precautions
General Operating Information
Grease Locations
Maintenance
Tire Pressures
Tire Pressures and hub and Spindle Details
Wheel Bolt Torque
Heavy Caster Assembly
Light Caster Assembly
Caster Hub and Spindle Maintenance
Walking Beam Replacement
Wing Dual Caster Option
Auxiliary Tow Hitch
Caster Transport Lock Installation
Pin Guides
Depth Control Service
Walking Beam Carrier Spool Replacement
4 – HYDRAULICS . . . . . . . . . . . . . . . . . . . . . . . . . 4-1
Hydraulics
Replace Seals in Cylinders
Hydraulic Cylinders
Depth Control
Wing Lift Hydraulics
5 – ELECTRICAL . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1
Connector Service Kit
Remote Switch Installation
6 – TRIPS, OPENERS, AND PRESS WHEEL
SERVICE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1
Service of Openers
Service Guide for Offset Shank Locations
Press Wheels and Shanks
Ground Openers and Seed Boots
Troubleshooting Tables
Trip Compressor Tool Kit
Tension Link Kit – 550 Pound Trip
Adjustment of Trip Assemblies
Anti-Skewing Trip Shim Installation
Heavy Duty Bearing Kits
Press Wheel Removal
Packer Wheel Rest Assembly
Shank Spacing and Trip Release Pressure
7 – AIR SYSTEM . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1
Troubleshooting Tables
Hoses
Theory of Operation – Air System
Methods of Determining Adequate Carrying Velocities
Header Assemblies
Hose Holder Brackets and Distribution Clamps
8 – ENDMARKER SERVICE . . . . . . . . . . . . . . . 8-1
Endmarkers
Endmarker Replacement
Endmarker Hydraulics

PLEASE NOTE:

• This is the SAME exact manual used by your dealers to fix your vehicle.
• The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
• Any queries / doubts regarding your purchase, please feel free to contact [email protected]
