New Holland T4020,T4030,T4040,T4050 Deluxe/SuperSteer Service Manual (84158071) – PDF Downlaod

Description

New Holland T4020,T4030,T4040,T4050 Deluxe/SuperSteer Service Manual (84158071)

NEW HOLLAND T4020,T4030,T4040,T4050 DELUXE/SUPERSTEER SERVICE MANUAL (84158071) – PDF DOWNLAOD:

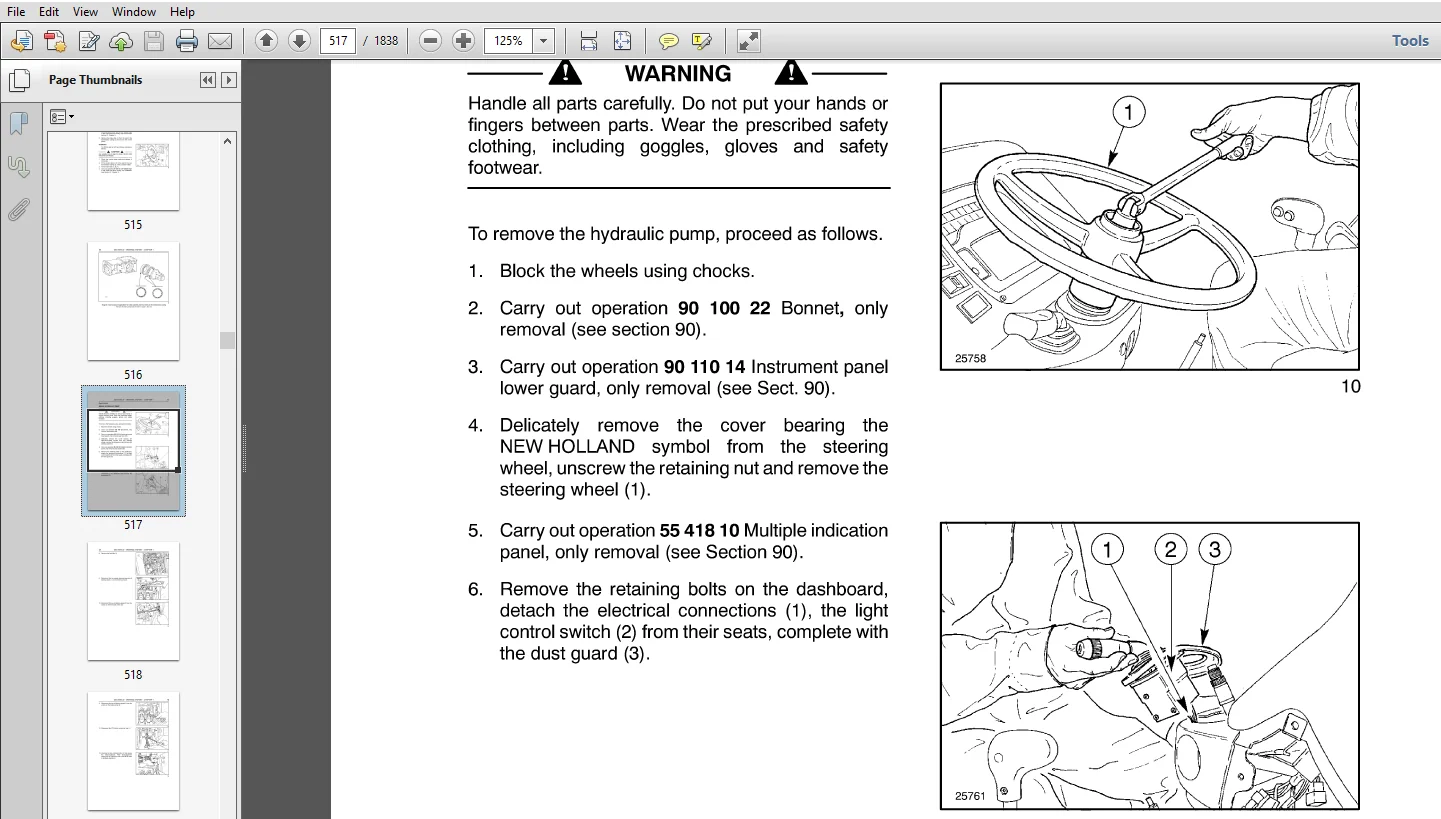

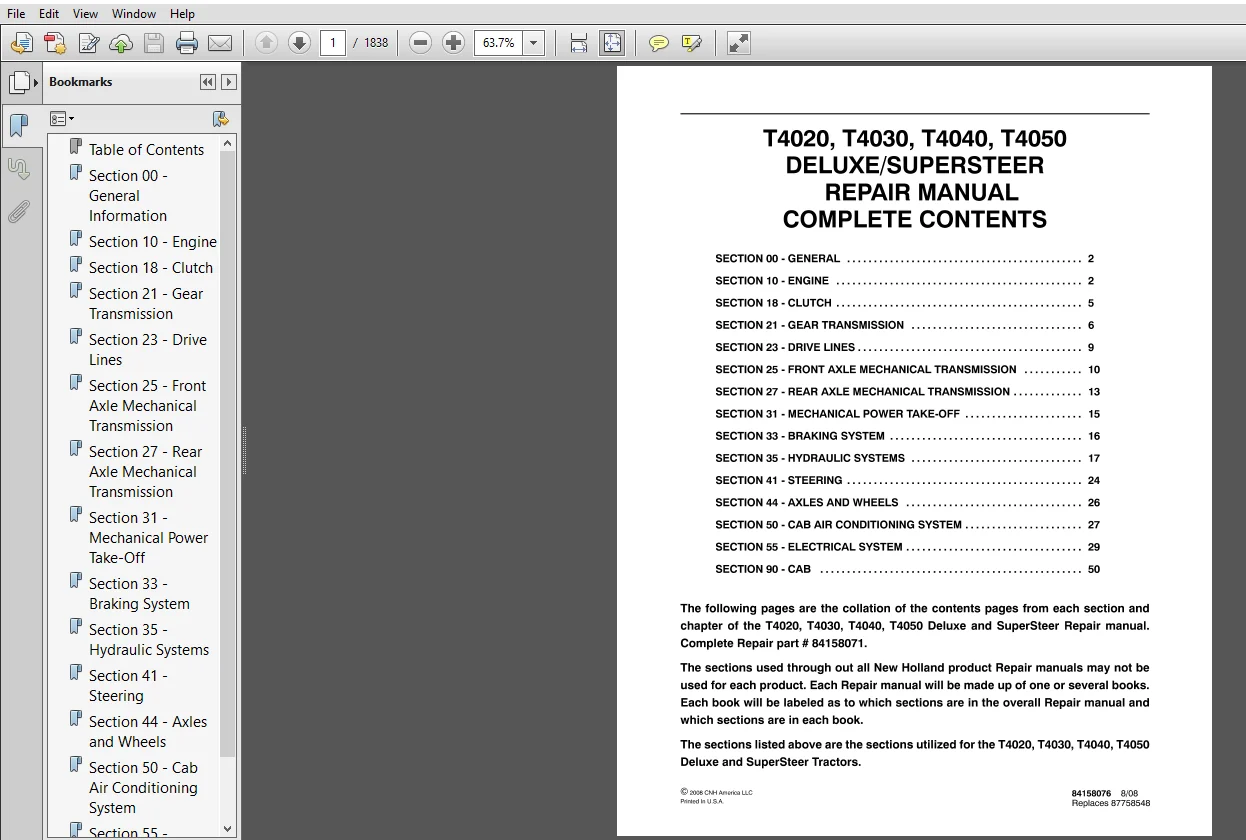

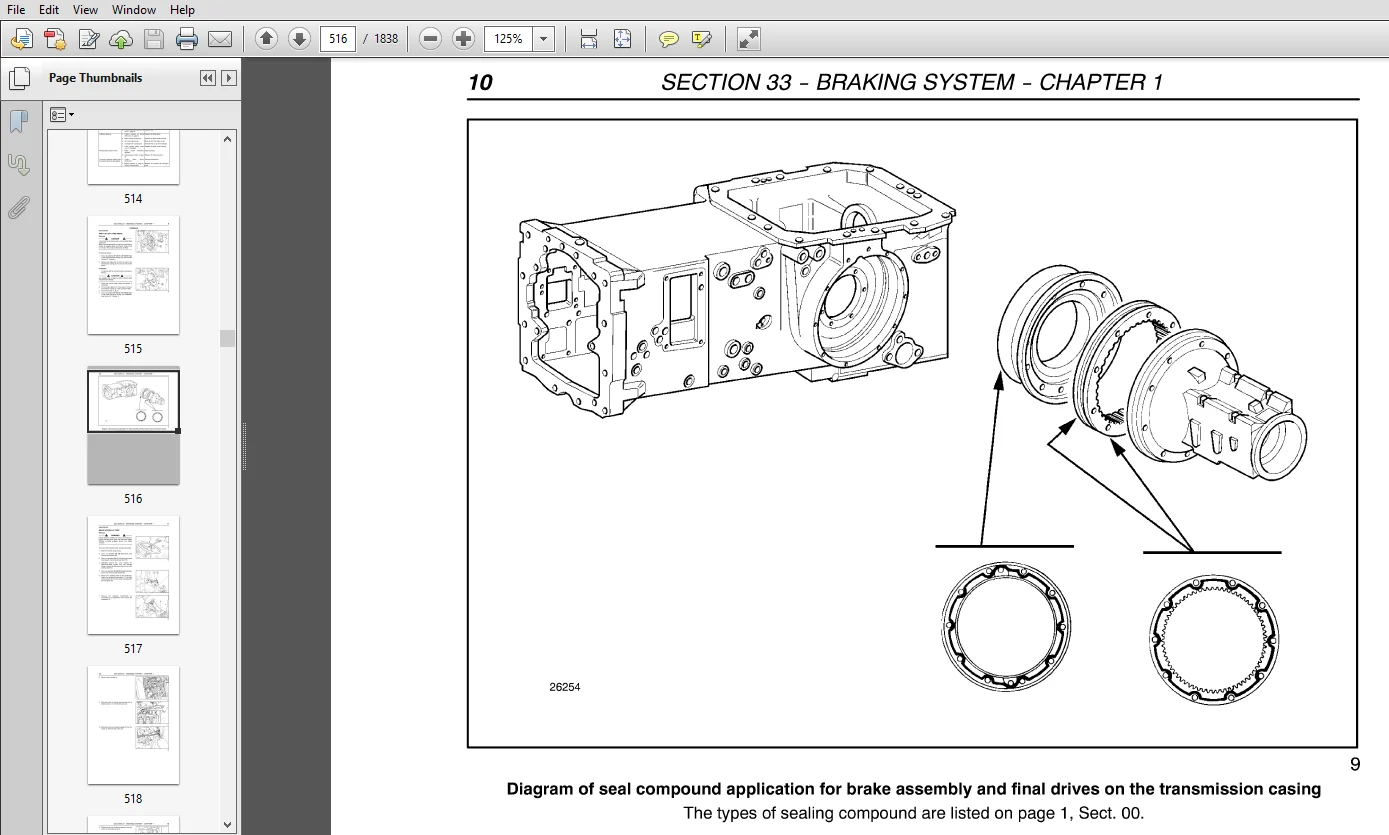

SCREENSHOOTS OF THE MANUAL:

DESCRIPTION:

New Holland T4020,T4030,T4040,T4050 Deluxe/SuperSteer Service Manual (84158071)

• All maintenance and repair operations described in this manual should be carried out exclusively by the authorized workshops.
• All instructions detailed should be carefully observed and special equipment indicated should be used If necessary.
• Everyone who carries out service operations described withorrt carefully observing these direc- lives will be directly responsible for resulting consequences.
• SHIMMING At each adjustment. select adiusting shims. measure them individually using a micrometer and then sum up recorded values. Do not rely on measuring the whole shimming set. which” may be incorrect. or on the rated value indicated for each shim.
• ROTATING SHAFT SEALS To correctly install rotating shaft seals. observe the folloni’ig instructions: – Let the seal soak into the same oil as it will seat for at least half an hour before mounting; – Thoroughly clean the shaft and ensure that the shaft working surface is not damaged; 0 Place the sealing lip towards the fluid. In case of a hydrodynamic lip.
• consider the shaft rotation direction and orient grooves it order that they deviate the fluid towards the inner side of the seal; – Coal the sealing lip with a thin layer of lubricant (oil rather than grease) and till the gap between the sealing lip and the dust lip of double lip seals with grease: – Insert the seal into its seat and press it down using a flat punch.
• Do not tap the seal with a hammer or a drift

TABLE OF CONTENTS:

New Holland T4020,T4030,T4040,T4050 Deluxe/SuperSteer Service Manual (84158071)

SECTIONOO-GENERAL 2
SECTION10-ENGINE 2
SECTION 18-CLUTCH 5
SECTION21-GEARTRANSMISSION 6
SECTION23-DRIVEL|NES 9
SECTION 25 – FRONT AXLE MECHANICAL TRANSMISSION 10
SECTION 27 – REAR AXLE MECHANICAL TRANSMISSION 13
SECTION31-MECHANICALPOWERTAKE-OFF 15
SECTIONSS-BRAKINGSYSTEM 16
SECTIONSS-HYDRAULICSYSTEMS 17
SECTION41-STEERING 24
SECTIONM-AXLESANDWHEELS 26
SECTIONSO-CABAIRCONDITIONINGSYSTEM 27
SECTIONSS-ELECTRICALSYSTEM 29
SECTION90-CAB 50

PLEASE NOTE:

• This is the same manual used by the DEALERSHIPS to SERVICE your vehicle.
• The manual can be all yours – Once payment is complete, you will be taken to the download page from where you can download the manual. All in 2-5 minutes time!!
• Need any other service / repair / parts manual, please feel free to contact us at heydownloadss @gmail.com . We may surprise you with a nice offer
