New Holland T5.95 T5.105 T5.115 Electro Command Tractor Service Manual (47538922) – PDF Download

Description

New Holland T5.95 T5.105 T5.115 Electro Command Tractor Service Manual (47538922)

FILE DETAILS:

New Holland T5.95 T5.105 T5.115 Electro Command Tractor Service Manual (47538922)

• Format: PDF
• Language: English
• Number of Pages : 2105 pages
• Brand: New Holland
• Type of document: Service Manual
• Model: T5.95 Electro Command, T5.105 Electro Command,T5.115 Electro Command Tractor
• Part No: 47538922

NEW HOLLAND T5.95 T5.105 T5.115 ELECTRO COMMAND TRACTOR SERVICE MANUAL (47538922) – PDF DOWNLOAD:

IMAGE PREVIEW:

DESCRIPTION:

New Holland T5.95 T5.105 T5.115 Electro Command Tractor Service Manual (47538922)

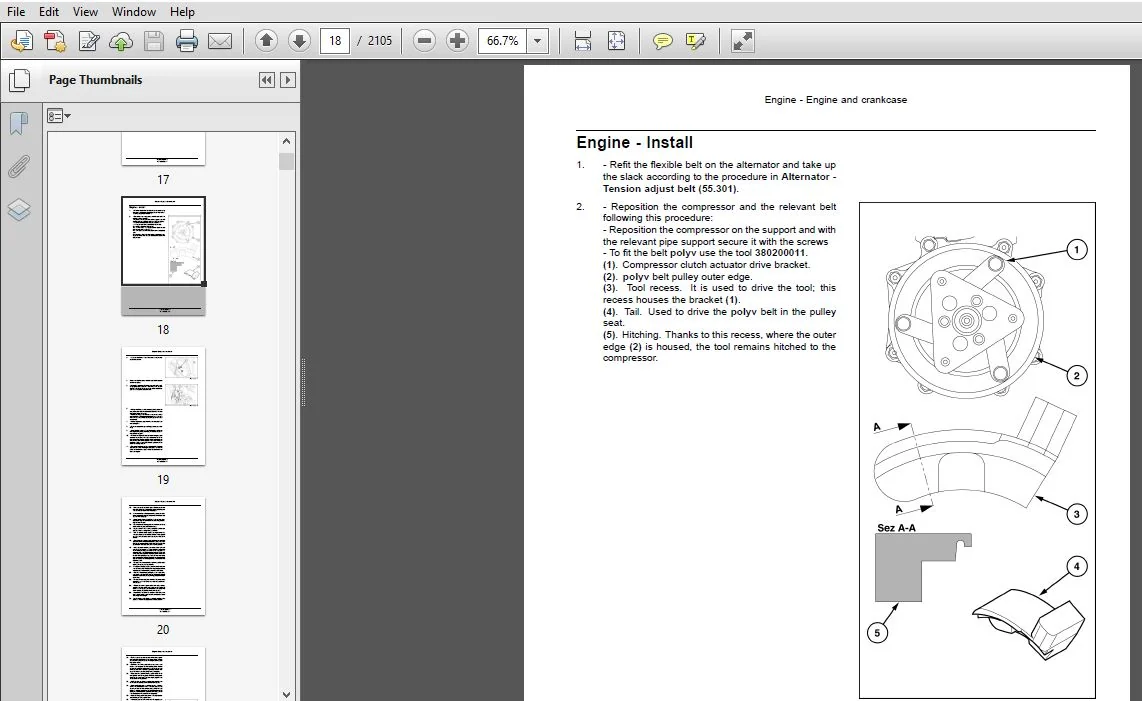

• Engine – Install
• Refit the flexible belt on the alternator and take up the slack according to the procedure in Alternator –
  Tension adjust belt (55.301).
• Reposition the compressor and the relevant belt following this procedure:
• Reposition the compressor on the support and with the relevant pipe support secure it with the screws
• To fit the belt polyv use the tool 380200011.
• (1). Compressor clutch actuator drive bracket.
• (2). polyv belt pulley outer edge.
• (3). Tool recess. It is used to drive the tool; thisrecess houses the bracket (1).
• (4). Tail. Used to drive the polyv belt in the pulleyseat.
• (5). Hitching. Thanks to this recess, where the outeredge (2) is housed, the tool remains hitched to thecompressor.

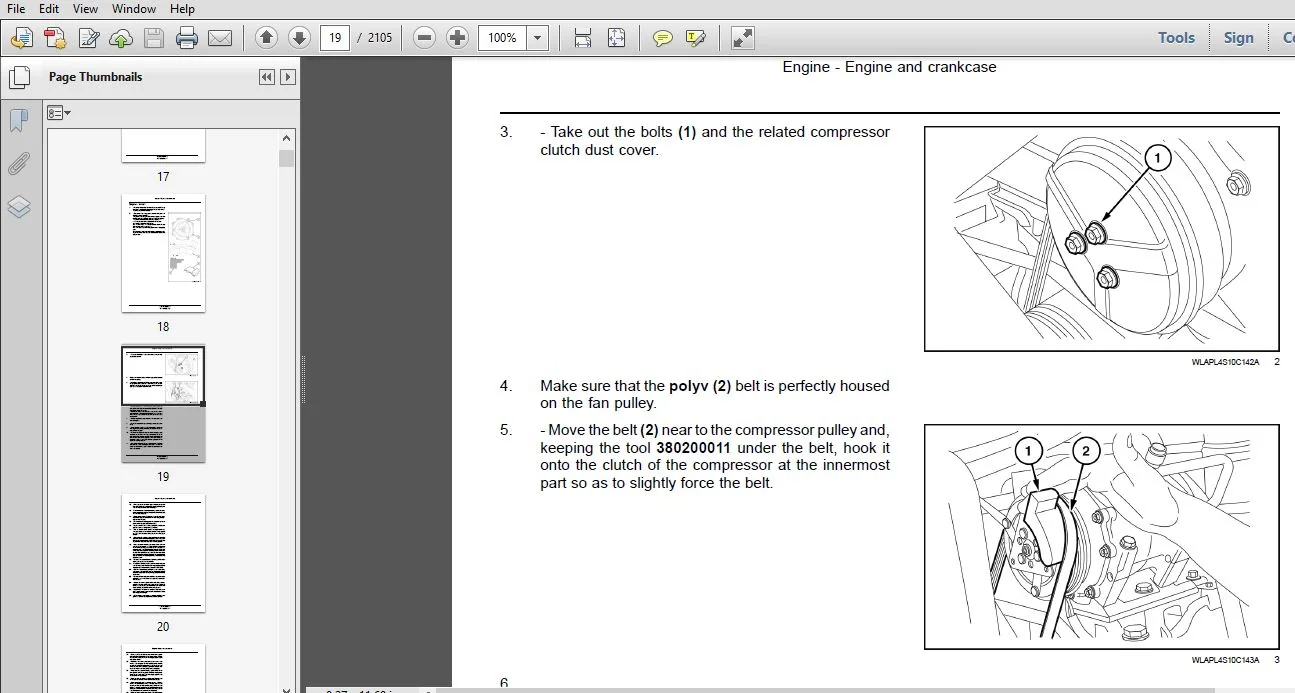

• Take out the bolts (1) and the related compressor clutch dust cover.
• Make sure that the polyv (2) belt is perfectly housed on the fan pulley.
• Move the belt (2) near to the compressor pulley and, keeping the tool 380200011 under the belt, hook it onto the clutch of the compressor at the innermost part so as to slightly force the belt.
• With your left hand on the fan and right hand on the tool, move both clockwise so as to take the belt onto the belt of the compressor.
• Put the dust cup back onto the compressor clutch and tighten the three screws taking care to spread a film of thread lock on the ends so they do not come unscrewed.

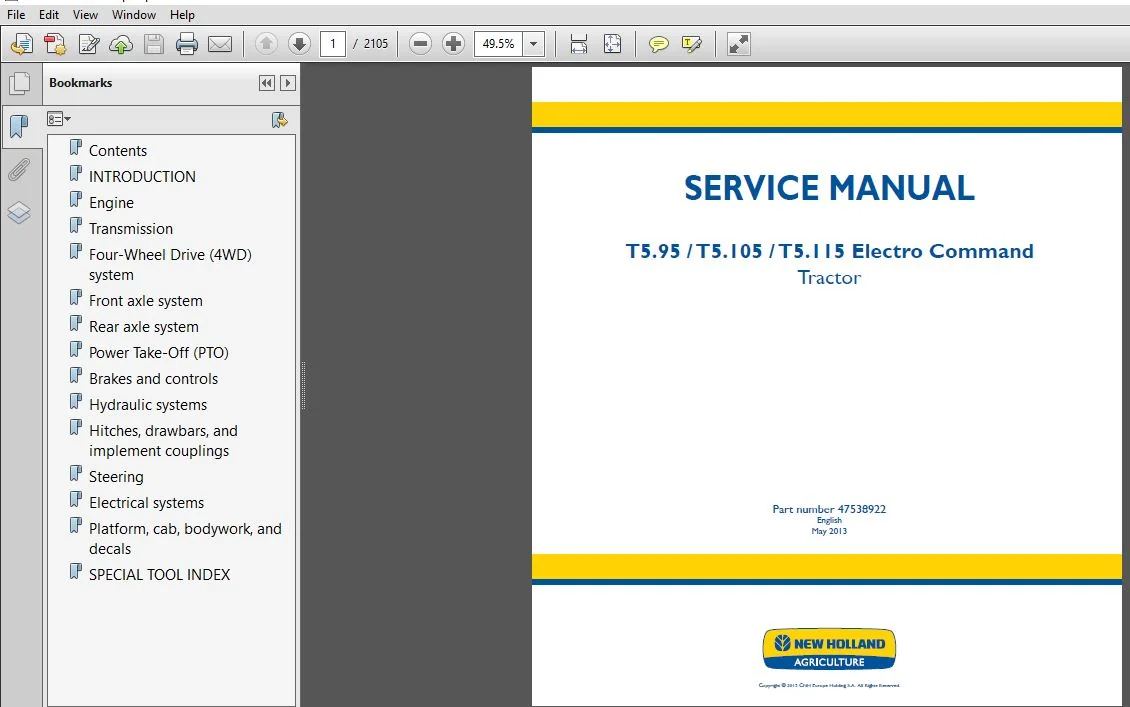

TABLE OF CONTENTS:

New Holland T5.95 T5.105 T5.115 Electro Command Tractor Service Manual (47538922)

INTRODUCTION
Engine…………………………………………………………………………… 10
[10.001] Engine and crankcase . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10.1
[10.216] Fuel tanks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10.2
[10.501] Exhaust Gas Recirculation (EGR) – Diesel Particulate Filter (DPF) exhaust
treatment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10.3
[10.414] Fan and drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10.4
Transmission…………………………………………………………………… 21
[21.111] Semi-Powershift transmission . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21.1
[21.133] Semi-Powershift transmission external controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21.2
[21.152] Semi-Powershift transmission internal components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21.3
[21.118] Transmission/Rear drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21.4
Four-Wheel Drive (4WD) system ………………………………………….. 23
[23.202] Electro-hydraulic control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23.1
[23.314] Drive shaft. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23.2
Front axle system …………………………………………………………….. 25
[25.100] Powered front axle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25.1
[25.102] Front bevel gear set and differential . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25.2
[25.108] Final drive hub, steering knuckles, and shafts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25.3
Rear axle system……………………………………………………………… 27
[27.100] Powered rear axle. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27.1
[27.106] Rear bevel gear set and differential . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27.2
[27.120] Planetary and final drives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27.3
[27.126] Spur gear and final drives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27.4
Power Take-Off (PTO) ……………………………………………………….. 31
[31.104] Rear electro-hydraulic control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31.1
[31.114] Two-speed rear Power Take-Off (PTO) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31.2
[31.116] Three-speed rear Power Take-Off (PTO) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31.3
Brakes and controls ………………………………………………………….. 33
[33.202] Hydraulic service brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33.1
[33.110] Parking brake or parking lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33.2
[33.220] Trailer brake hydraulic control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33.3
Hydraulic systems…………………………………………………………….. 35
[35.000] Hydraulic systems. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35.1
[35.104] Fixed displacement pump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35.2
[35.322] Regulated/Low pressure system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35.3
[35.204] Remote control valves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35.4
[35.114] Three-point hitch control valve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35.5
Hitches, drawbars, and implement couplings……………………………. 37
[37.110] Rear three-point hitch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37.1
Steering…………………………………………………………………………. 41
[41.101] Steering control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41.1
[41.106] Tie rods. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41.2
[41.200] Hydraulic control components. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41.3
[41.216] Cylinders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41.4
Electrical systems …………………………………………………………….. 55
[55.000] Electrical system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55.1
[55.100] Harnesses and connectors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55.2
[55.201] Engine starting system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55.3
[55.301] Alternator. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55.4
[55.302] Battery. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55.5
[55.640] Electronic modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55.6
[55.408] Warning indicators, alarms, and instruments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55.7
[55.DTC] FAULT CODES. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55.8
Platform, cab, bodywork, and decals ……………………………………… 90
[90.150] Cab. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90.1
[90.100] Engine hood and panels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90.2
