New Holland T7030 T7040 T7050 T7060 Tractor Service Manual 87628084BNA – PDF DOWNLOAD

Description

New Holland T7030 T7040 T7050 T7060 Tractor Service Manual

FILE DETAILS:

New Holland T7030 T7040 T7050 T7060 Tractor Service Manual

Format: PDF
Language: English
Pages: 3061
Number: 87628084BNA (December 2010)
Bookmarks: Yes
Searchable: Yes
Wiring Diagrams: Yes
Hydraulic Diagrams: Yes

DESCRIPTION:

New Holland T7030 T7040 T7050 T7060 Tractor Service Manual

INTRODUCTION:

Generalities:

• Carefully follow specified repair and maintenance procedures.
• Do not wear rings, wristwatches, jewels, unbuttoned or flapping clothing such as ties, torn clothes, scarves, open jackets or shirts with open zips which could get caught on moving parts. Use approved safety clothing such as anti-slipping footwear, gloves, safety goggles, helmets, etc.
• Wear safety glasses with side guards when cleaning parts using compressed air.
•  Damaged or frayed wires and chains are unreliable. Do not use them for lifting or towing.
• Wear suitable protection such as approved eye protection, helmets, special clothing, gloves and footwear whenever welding. All persons standing in the vicinity of the welding process should wear approved eye protection. NEVER LOOK AT THE WELDING ARC IF YOUR EYES ARE NOT SUITABLY PROTECTED.
• • Never carry out any repair on the machine if someone is sitting on the operator’s seat, except if they are qualified operators assisting in the operation to be carried out.
• Never operate the machine or use attachments from a place other than sitting at the operator’s seat or at the side of the machine when operating the fender switches.
• Never carry out any operation on the machine when the engine is running, except when specifically indicated. Stop the engine and ensure that all pressure is relieved from hydraulic circuits before removing caps, covers, valves, etc.
• All repair and maintenance operations should be carried out with the greatest care and attention.
• Disconnect the batteries and label all controls to warn that the tractor is being serviced. Block the machine and all equipment which should be raised.
• Never check or fill fuel tanks or batteries, nor use starting liquid if you are smoking or near open flames as such fluids are flammable.
• The fuel filling gun should always remain in contact with the filler neck. Maintain this contact until the fuel stops flowing into the tank to avoid possible sparks due to static electricity build-up.
• To transfer a failed tractor, use a trailer or a low loading platform trolley if available.
• To load and unload the machine from the transportation means, select a flat area providing a firm support to the trailer or truck wheels. Firmly tie the machine to the truck or trailer platform and block wheels as required by the transporter.
• Always use lifting equipment of appropriate capacity to lift or move heavy components.
• Chains should always be safely fastened. Ensure that fastening device is strong enough to hold the load foreseen. No persons should stand near the fastening point.
• The working area should be always kept CLEAN and DRY. Immediately clean any spillage of water or oil.
• Never use gasoline, diesel oil or other flammable liquids as cleaning agents. Use non-flammable non-toxic proprietary solvents.
• Do not pile up grease or oil soaked rags, as they constitute a great fire hazard. Always place them into a metal container.

TABLE OF CONTENTS:

New Holland T7030 T7040 T7050 T7060 Tractor Service Manual

INTRODUCTION
DISTRIBUTION SYSTEMS A
PRIMARY HYDRAULIC POWER SYSTEM A10A
PRIMARY HYDRAULIC POWER SYSTEM Closed center mechanical remote valveA10B
PRIMARY HYDRAULIC POWER SYSTEM Electro-hydraulic remote valveA10C
PRIMARY HYDRAULIC POWER SYSTEM Electro-hydraulic remote valveA10C
SECONDARY HYDRAULIC POWER SYSTEM A12A
HYDRAULIC COMMAND SYSTEMA14A
PNEUMATIC SYSTEM A20A
ELECTRICAL POWER SYSTEM A30A
ELECTRICAL POWER SYSTEM A30A
ELECTRONIC SYSTEM A50A
FAULT CODES A50A
POWER PRODUCTION B
ENGINE B10A
FUEL AND INJECTION SYSTEM B20A
AIR INTAKE SYSTEMB30A
EXHAUST SYSTEM B40A
ENGINE COOLANT SYSTEM B50A
LUBRICATION SYSTEM B60A
STARTING SYSTEM B80A
POWER TRAIN C
TRANSMISSION Powershift C20E
ADDITIONAL REDUCERS Creeper C30C
ADDITIONAL REDUCERS Overdrive C30D
REAR PTO Mechanical C40B
REAR PTO Hydraulic C40C
FRONT PTO Hydraulic C42C
TRAVELLINGD
87628084B 12/06/2009
FRONT AXLE D10A
REAR AXLED12A
2WD-4WD SYSTEM HydraulicD14C
STEERING Hydraulic D20C
STEERING AutoPilot D20E
SERVICE BRAKE Mechanical D30B
SERVICE BRAKE Hydraulic D30C
SERVICE BRAKE Pneumatic D30E
PARKING BRAKE Mechanical D32B
PARKING BRAKE Electronic D32D
BRAKE CONNECTION Hydraulic D34C
SUSPENSION Hydraulic D40C
WHEELS AND TRACKS Wheels D50C
BODY AND STRUCTURE E
FRAME Primary frame E10B
USER PLATFORM E34A
ENVIRONMENT CONTROL Heating, ventilation and air-conditioningE40D
WORKING ARM H
HITCH Front hitch H10B
HITCH Rear hitch H10C
HITCH Electronic draft controlH10D
HITCH Electronic draft controlH10D

NEW HOLLAND T7030 T7040 T7050 T7060 TRACTOR SERVICE MANUAL 87628084BNA – PDF DOWNLOAD:

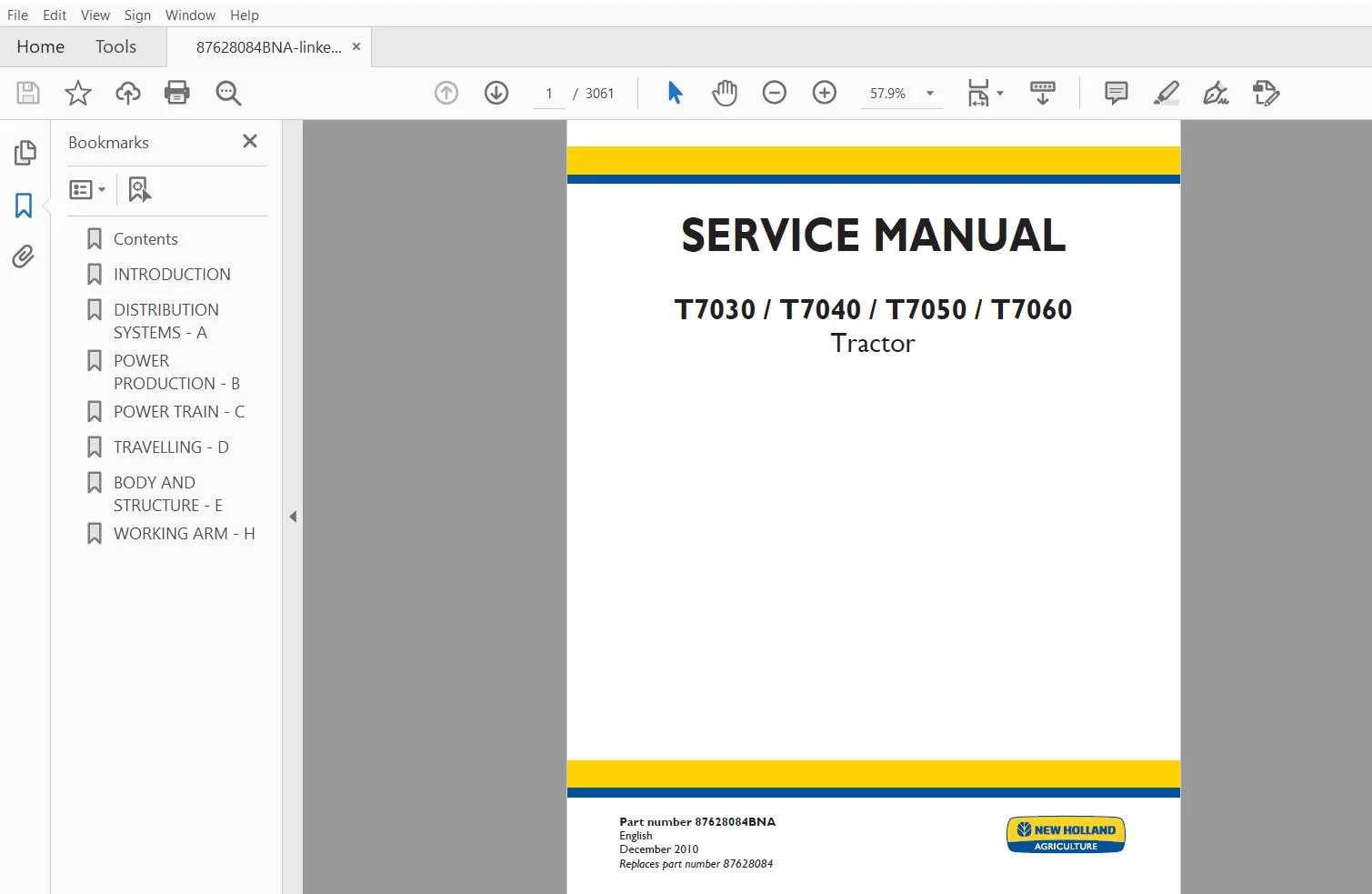

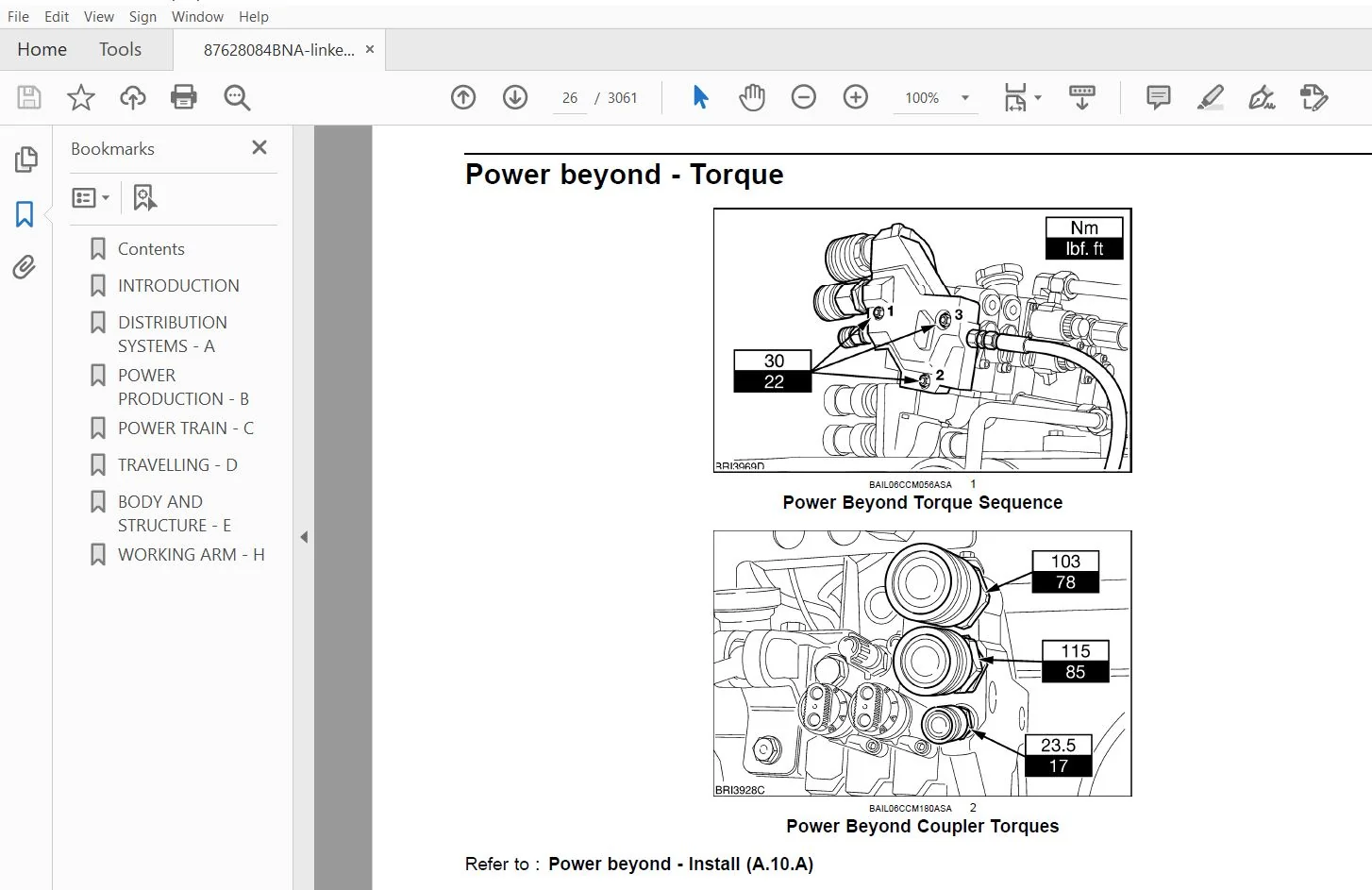

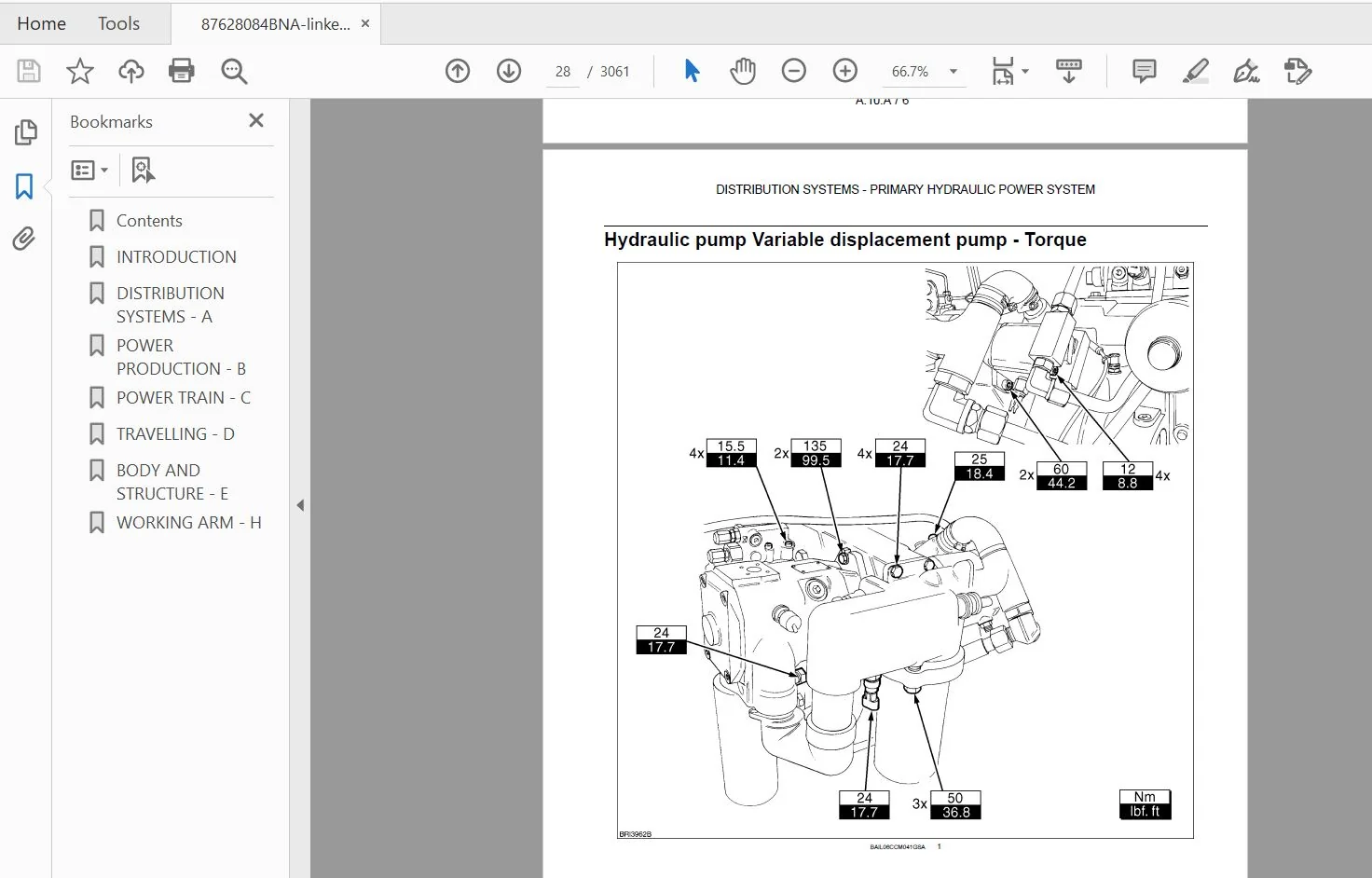

IMAGES PREVIEW OF THE MANUAL:

PLEASE NOTE:

• This is not a physical manual but a digital manual – meaning no physical copy will be couriered to you. The manual can be yours in the next 2 mins as once you make the payment, you will be directed to the download page IMMEDIATELY.
• This is the same manual used by the dealers inorder to diagnose your vehicle of its faults.
• Require some other service manual or have any queries: please WRITE to us at [email protected]
