New Holland T8010 T8020 T8030 T8040 T8050 Tractor Service Repair Manual (84315763) – PDF Download

Description

New Holland T8010 T8020 T8030 T8040 T8050 Tractor Service Repair Manual (84315763)

FILE DETAILS:

New Holland T8010 T8020 T8030 T8040 T8050 Tractor Service Repair Manual (84315763)

• Format: PDF
• Language: English
• Number of Pages: 3362 pages
• Brand: New Holland
• Type of document: Service Manual
• Model: T8010 T8020 T8030 T8040 T8050
• Part No: 84315763

NEW HOLLAND T8010 T8020 T8030 T8040 T8050 TRACTOR SERVICE REPAIR MANUAL (84315763) – PDF DOWNLOAD:

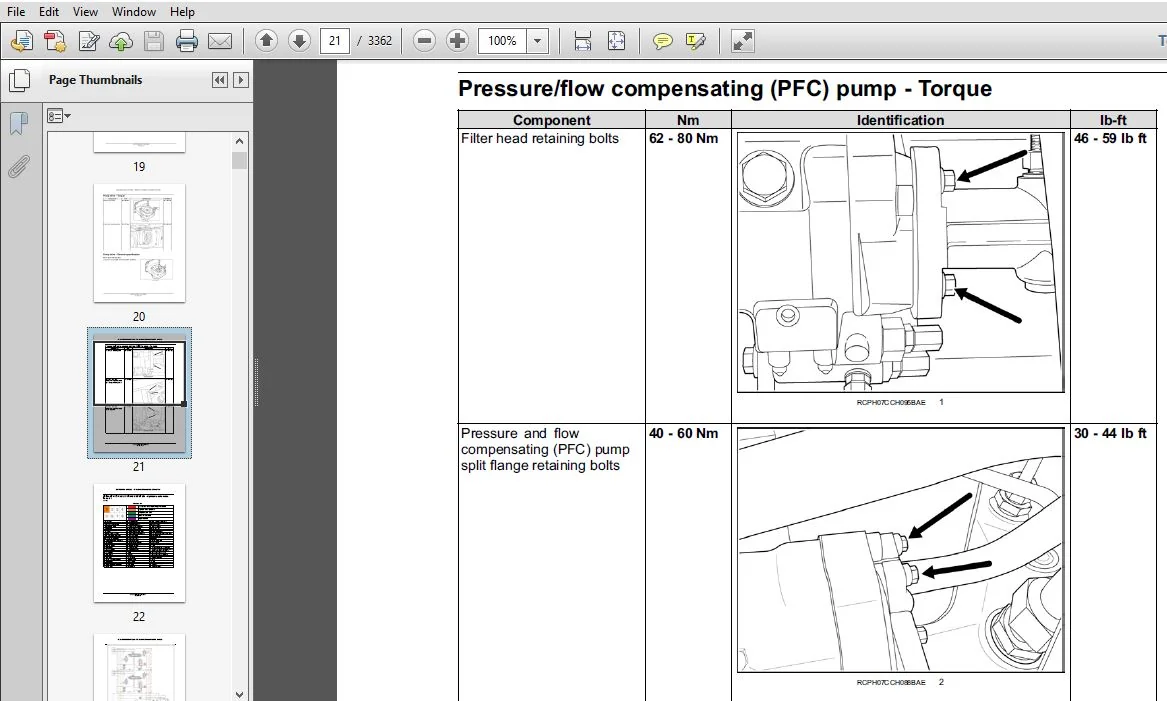

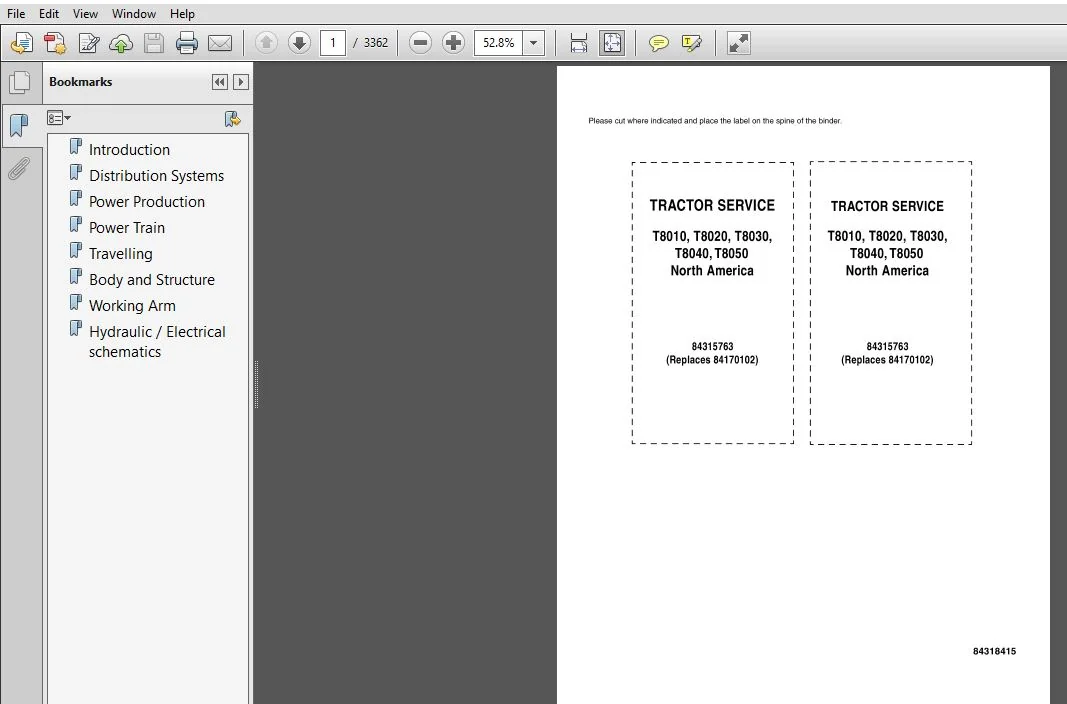

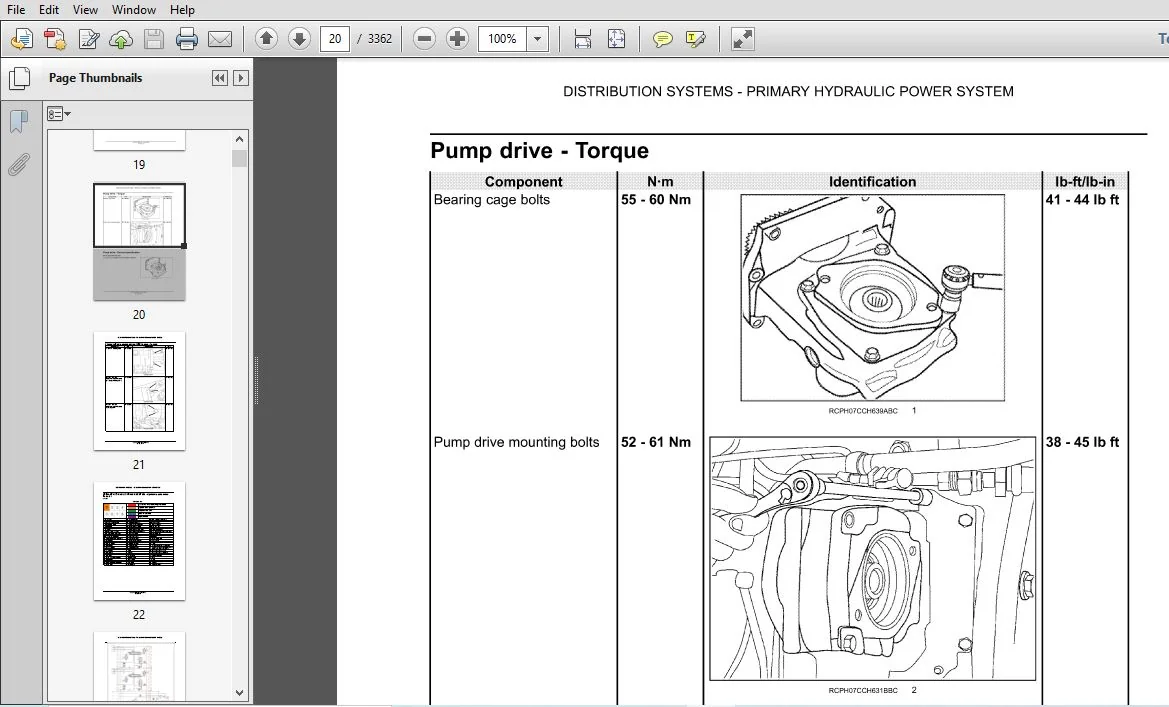

SCREENSHOTS OF THE MANUAL:

DESCRIPTION:

New Holland T8010 T8020 T8030 T8040 T8050 Tractor Service Repair Manual (84315763)

The Manual includes:

• 84176620 – BOOK A.10.A – A.20.A
  Hydraulic System, Pneumatic System
  84176621 – BOOK A.30.A – Connectors
  84176622 – BOOK A.30.A (con’t.) – A.40.A – Schematics, Lighting
  84176623 – BOOK A.50.A – Controller Calibration
  84176624 – BOOK A. 50.A (con’t.) – Fault Codes
  84176625 – BOOK B.10.A – B.80.A – Engine
  84176626 – BOOK C.20.E – Transmission
  84176627 – BOOK C.40.C – C.60.A – PTO and Rear Axle
  84176628 – BOOK D.10.A – Front Axle
  84176629 – BOOK D.14.C – D.50.C – MFD, Steering, Brakes,
  Suspension, Wheels
  84176630 – BOOK E.20.A – E.50.B – Cab and HVAC System
  84176631 – BOOK H.10.C – Rear Hitch
  84142369 – Electrical Schematic, Z8RW06000 and After
  87718855 – Electrical Schematic, Z7RW05000 and After
  87738099 – Hydraulic Schematic
  You can order Service Manual books separately or as a complete
  set (84170102) or on CD (84170102-CD).

Sample Page From the Manual:

• Circuit usage
• There are two ways to setup and utifize the tractor power beyond circuit.
• 1. Load sense controlled mode
• 2. High pressure compensation mode
• In load sense controlled mode. the supplied cicuit must be equipped with a load sense port which generates a load sense slgnal. The port on the supplied circuit must be connected to the load sense (LS) port at the power beyond couplers.
• When there is no demand for flow, the pump remains in low pressure standby mode. As a control valve is shifted and flow is required. the slight pressure drop causes the compensator flow spool to shift. the swash plate angle will Increase and the pump flow will rise to meet the demand. If there is a reduction In flow demand the signal pressure will increase. the no» spool will shit! the opposite direction and destroke the swash plate reducing the flow output. When there is no demand for flow. the PFC pump remains in low pressure standby mode. As a control valve is shifted and flow is required. the slight pressure drop causes the compensator flow spool to shift. the swash plate angle to Increase and pump flow to rise to meet the demand. If there Is a reduction In flow demmd. the load signal pressure will increase, earning the how spool to shit! in the opposite direction and destroite the swash plate. reducing the now from the pump.
• In high pressure compensation mode. an internal plug must be removed from the power beyond valve. See the Illustrations below. When this Internet plug Is removed. pump supply is directly connected to the signal line of the pump compensator. The pump remains on high pressure compensation, maintaining approximately 207 bar (3000 psi). When the supplied circuit requires flow. the pump supplies the maximum flow available.
• lMPORTANT: The internal powerbeyond pi’ug must be reinstalled to use load sense oontrotfed mode.

TABLE OF CONTENTS:

New Holland T8010 T8020 T8030 T8040 T8050 Tractor Service Repair Manual (84315763)

Introduction……………………. 5
Distribution Systems…………….. 13
Power Production…………………1719
Power Train……………………..1829
Travelling………………………2433
Body and Structure……………….3001
Working Arm……………………..3267
Hydraulic / Electrical schematics….3347

PLEASE NOTE:

• This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
• You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
• Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted
