New Holland T8010 T8020 T8030 T8040 T8050 Tractors Service Repair Manual (84318454) – PDF Download

Description

New Holland T8010 T8020 T8030 T8040 T8050 Tractors Service Repair Manual (84318454)

FILE DETAILS:

New Holland T8010 T8020 T8030 T8040 T8050 Tractors Service Repair Manual (84318454)

• Format: PDF
• Language: English
• Number of Pages: 3197 pages
• Brand: New Holland
• Type of document: Service Manual
• Model: T8010, T8020, T8030, T8040, T8050
• Part No: 84318454

NEW HOLLAND T8010 T8020 T8030 T8040 T8050 TRACTORS SERVICE REPAIR MANUAL (84318454) – PDF DOWNLOAD:

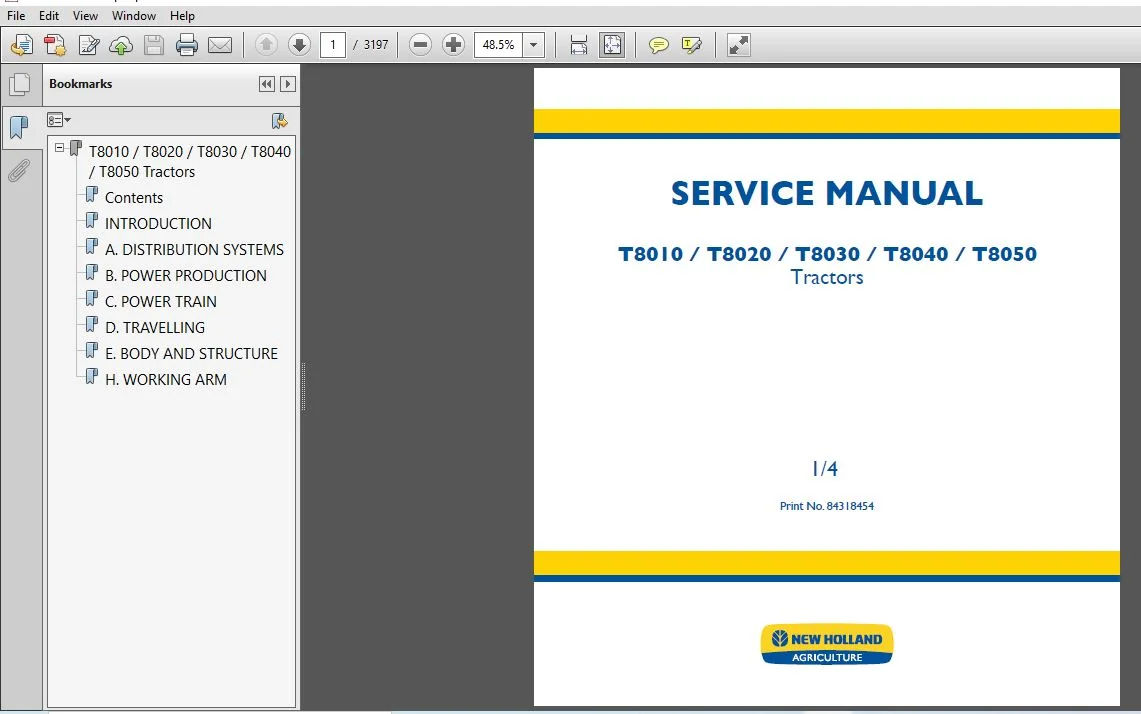

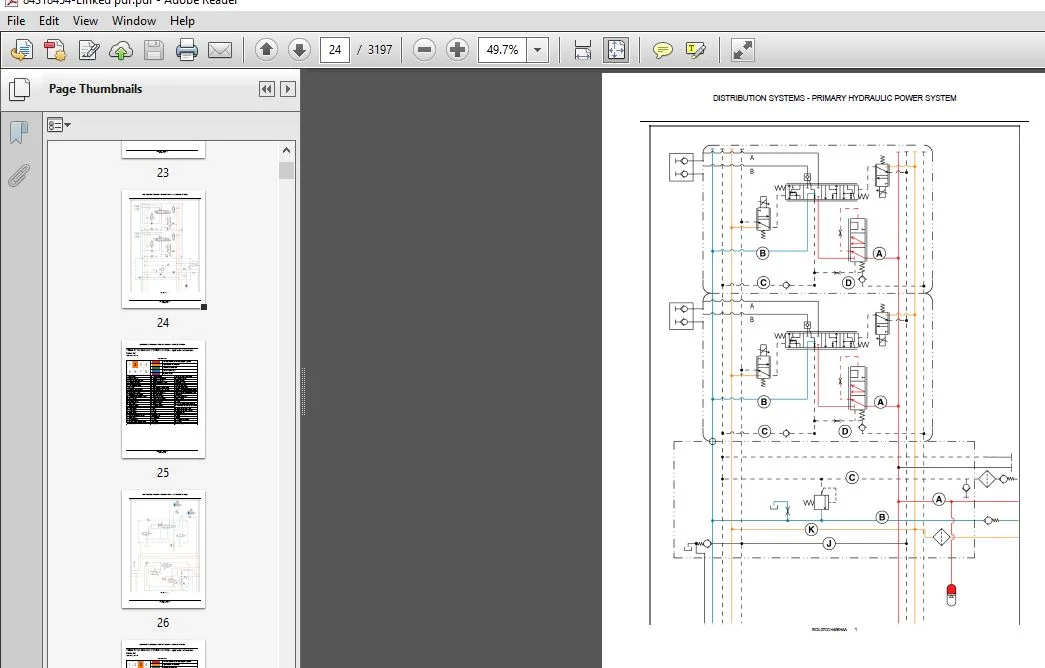

IMAGE PREVIEW:

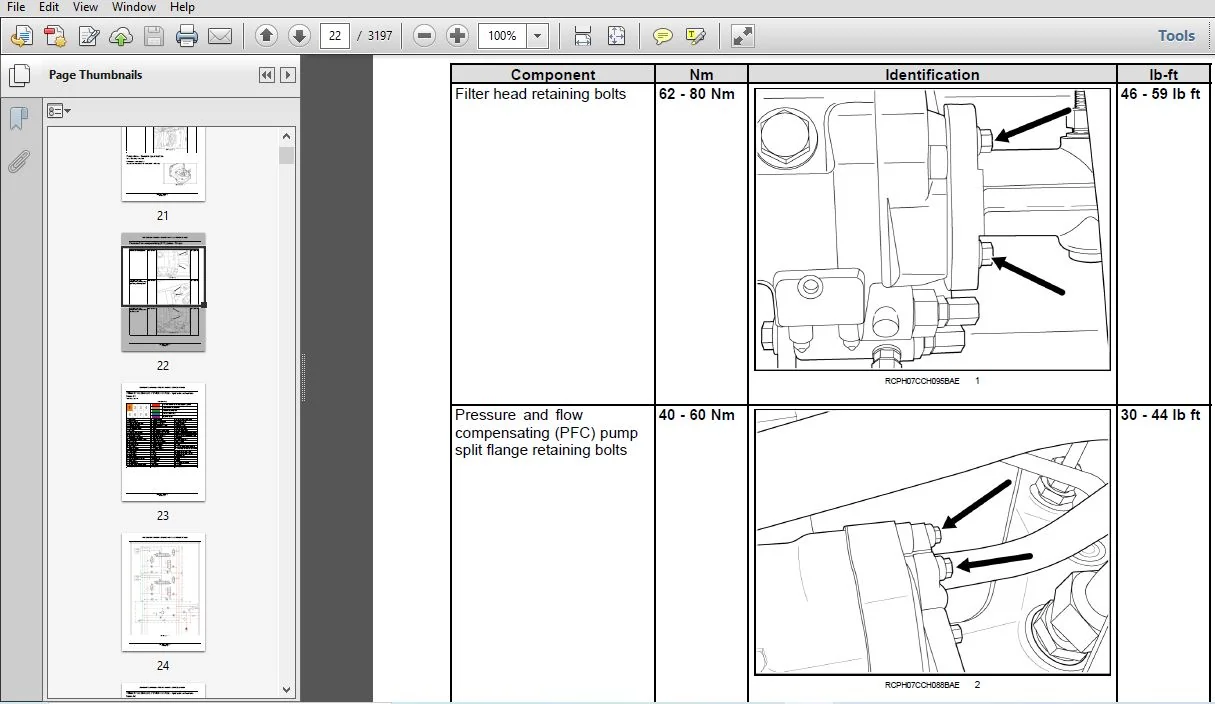

SAMPLE PAGE FROM THE MANUAL :

New Holland T8010 T8020 T8030 T8040 T8050 Tractors Service Repair Manual (84318454)

• Before starting engine, study operator’s manual safety messages. Read all safety signs on machine. Clear the area of other persons. Learn and practice safe use of controls before operating. It is your responsibility to understand and follow manufacturer’s instructions on machine operation, service, and to observe pertinent laws and regulations. Operators and service manuals can be obtained from your equipment dealer.
• If you wear clothing that is too loose or do not use the correct safety equipment for your job, you can be injured. Always wear clothing that will not catch on objects. Extra safety equipment that can be required includes hard hat, safety shoes, ear protection, eye or face protection, heavy gloves and reflector clothing.
• When working in the area of the fan belt with the engine running, avoid loose clothing if possible, and use extreme caution.
• Fluid under pressure can have sufficient force to penetrate the skin, causing serious personal injury.
• Always protect the skin and eyes from escaping fluid under pressure. Before disconnecting lines or fittings, be sure to release all pressure by operating the tractor control valves. Before applying pressure to the system, be sure all connections are tight and that hoses and connections are not damaged.
• If injured by escaping fluid, obtain medical assistance at once. Serious infection or reaction can develop if medical treatment is not administered immediately. Failure to comply could result in death or serious injury.
