New Holland TD5.85 TD5.95 TD5.105 TD5.115 Tractor Service Manual 48013235 – PDF DOWNLOAD

Description

New Holland TD5.85 TD5.95 TD5.105 TD5.115 Tractor Service Manual

FILE DETAILS:

New Holland TD5.85 TD5.95 TD5.105 TD5.115 Tractor Service Manual

Size : 75.8 MB
Format : PDF
Language : English
Number of Pages : 2009 Pages

DESCRIPTION:

New Holland TD5.85 TD5.95 TD5.105 TD5.115 Tractor Service Manual

GENERAL INSTRUCTIONS:

IMPORTANT NOTICE:
All maintenance and repair operations described in this manual should be carried out exclusively by the authorized workshops. All instructions detailed should be carefully observed and special equipment indicated should be used if necessary. Everyone who carries out service operations described without carefully observing these prescriptions will be directly responsible of deriving damages.

SHIMMING:

At each adjustment, select adjusting shims, measure them individually using a micrometer and then sum up recorded values. Do not rely on measuring the whole shimming set, which may be incorrect, or on the rated value indicated for each shim.

ROTATING SHAFT SEALS:
To correctly install rotating shaft seals, observe the following instructions:
• Let the seal soak into the same oil as it will seal for at least half an hour before mounting;
• Thoroughly clean the shaft and ensure that the shaft working surface is not damaged;
• Place the sealing lip towards the fluid. In case of a hydrodynamic lip, consider the shaft rotation direction and orient grooves in order that they deviate the fluid towards the inner side of the seal;
• Coat the sealing lip with a thin layer of lubricant (oil rather than grease) and fill the gap between the sealing lip and the dust lip of double lip seals with grease;
• Insert the seal into its seat and press it down using a flat punch. Do not tap the seal with a hammer or a drift;
• Take care to insert the seal perpendicularly to its seat while you are pressing it. Once the seal is settled, ensure that it contacts the thrust element, if required;
• To prevent damaging the sealing lip against the shaft, place a suitable protection during installation.
O RINGS:
Lubricate the O rings before inserting them into their seats. This will prevent the O rings from roll over and twisting during mounting, which will jeopardize sealing.
SEALERS:
Apply silicone/gasket eliminator over the mating surfaces marked with an X. Before applying the sealer, prepare the surface as follows:
• remove possible scales using a metal brush;
• thoroughly degrease the surfaces using one of the following cleaning agents: trichlorethylene, diesel fuel or a water and soda solution.

TABLE OF CONTENTS:

New Holland TD5.85 TD5.95 TD5.105 TD5.115 Tractor Service Manual

INTRODUCTION
Engine 10
[10 501] Exhaust Gas Recirculation (EGR) exhaust treatment 10 1
Clutch 18
[18 110] Clutch and components 18 1
Transmission 21
[21 114] Mechanical transmission 21 1
[21 140] Mechanical transmission internal components 21 2
[21 112] Power shuttle transmission 21 3
[21 154] Power shuttle transmission internal components 21 4
[21 120] Gearbox 21 5
[21 160] Creeper 21 6
[21 162] Reverser 21 7
Four-Wheel Drive (4WD) system 23
[23 202] Electro-hydraulic control 23 1
Front axle system 25
[25 100] Powered front axle 25 1
[25 102] Front bevel gear set and differential 25 2
[25 108] Final drive hub, steering knuckles, and shafts 25 3
[25 400] Non-powered front axle 25 4
Rear axle system 27
[27 100] Powered rear axle 27 1
[27 106] Rear bevel gear set and differential 27 2
[27 124] Final drive hub, steering knuckles, and shafts 27 3
Power Take-Off (PTO) 31
[31 101] Rear mechanical control 31 1
48013235 19/09/2016
Brakes and controls 33
[33 202] Hydraulic service brakes 33 1
[33 220] Trailer brake hydraulic control 33 2
[33 224] Trailer brake pneumatic control 33 3
Hydraulic systems 35
[35 000] Hydraulic systems 35 1
[35 104] Fixed displacement pump 35 2
[35 525] Auxiliary hydraulic valves and lines 35 3
[35 100] Main lift system 35 4
Steering 41
[41 200] Hydraulic control components 41 1
[41 206] Pump 41 2
[41 216] Cylinders 41 3
Wheels 44
[44 511] Front wheels 44 1
Cab climate control 50
[50 200] Air conditioning 50 1
Electrical systems 55
[55 000] Electrical system 55 1
[55 100] Harnesses and connectors 55 2
[55 525] Cab engine controls 55 3
[55 015] Engine control system 55 4
[55 201] Engine starting system 55 5
[55 301] Alternator 55 6
[55 302] Battery 55 7
[55 202] Cold start aid 55 8
[55 011] Fuel tank system 55 9
[55 010] Fuel injection system 55 10
48013235 19/09/2016
[55 014] Engine intake and exhaust system 55 11
[55 013] Engine oil system 55 12
[55 640] Electronic modules 55 13
[55 024] Transmission control system 55 14
[55 048] Rear Power Take-Off (PTO) control system 55 15
[55 049] Front Power Take-Off (PTO) control system 55 16
[55 512] Cab controls 55 17
[55 130] Rear three-point hitch electronic control system 55 18
[55 408] Warning indicators, alarms, and instruments 55 19
Platform, cab, bodywork, and decals 90
[90 150] Cab 90 1

NEW HOLLAND TD5.85 TD5.95 TD5.105 TD5.115 TRACTOR SERVICE MANUAL 48013235 – PDF DOWNLOAD:

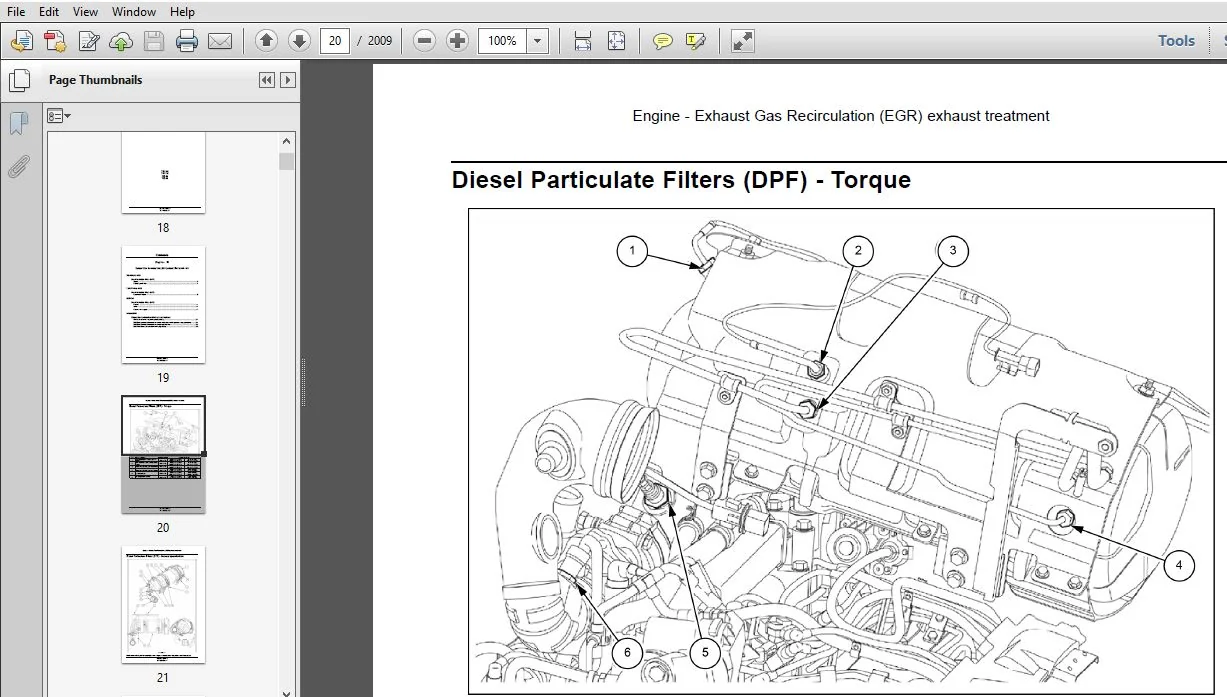

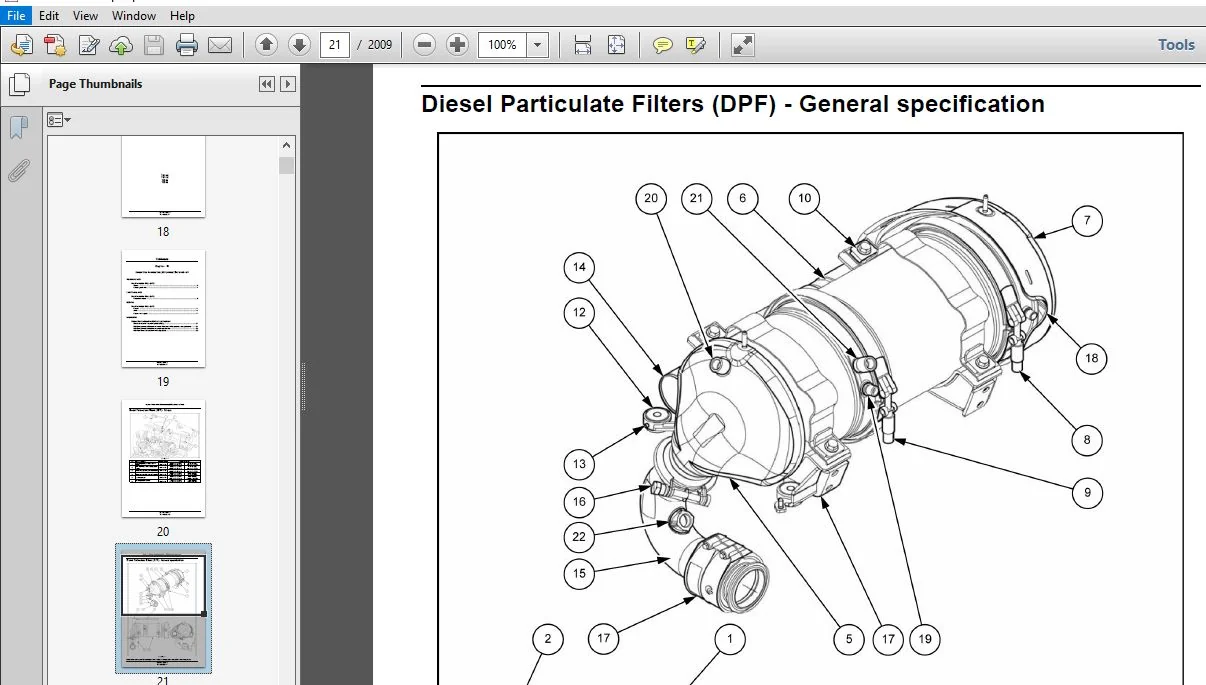

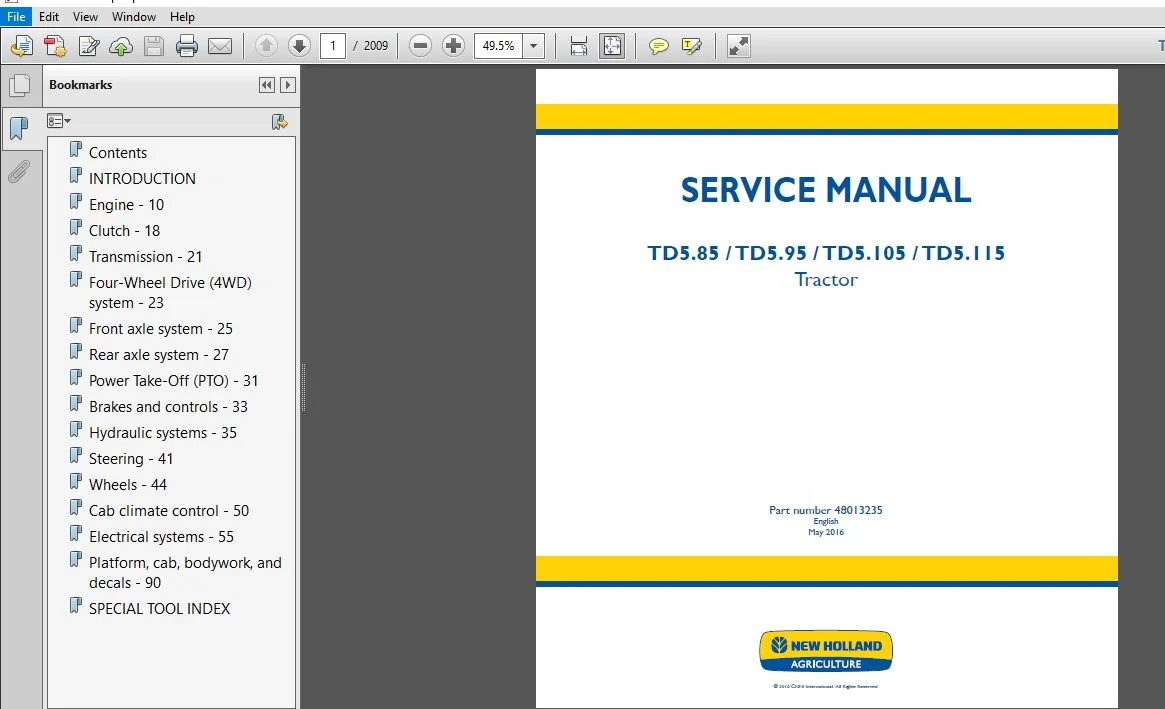

IMAGES PREVIEW OF THE MANUAL:

PLEASE NOTE:

• This is the SAME exact manual used by your dealers to fix your vehicle.
• The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
• Any queries / doubts regarding your purchase, please feel free to contact [email protected]
