New Holland TK65 TK75 TK76 TK85 TK95 Tractors Service Manual 6035438100 – PDF DOWNLOAD

Description

New Holland TK65 TK75 TK76 TK85 TK95 Tractors Service Manual

FILE DETAILS:

New Holland TK65 TK75 TK76 TK85 TK95 Tractors Service Manual

Size : 41.0 MB
Format : PDF
Language : English
Number of Pages : 782 Pages

DESCRIPTION:

New Holland TK65 TK75 TK76 TK85 TK95 Tractors Service Manual

GENERAL INFORMATION:

• All maintenance and repair work described in this manual must be performed exclusively by NEW HOLLAND service technicians, in strict accordance with the instructions given and using any specific tools necessary.
• Anyone performing the operations described herein without strictly following the instructions is personally re- sponsible for any eventual injury or damage to property. BATTERY Before carrying out any kind of service operations, disconnect and isolate the battery negative lead, unless other- wise requested for specific operations (e.g.: operations that require the engine running)
• . Once the specific oper- ation has been completed, disconnect the lead in order to complete the operation. SHIMMING For each adjustment operation, select adjusting shims and measure individually using a micrometer, then add up the recorder values. Do not rely on measuring the entire shimming set, which may be incorrect, or the rated value indicated for each on shim.
• ROTATING SHAFT SEALS For correct rotating shaft seal installation, proceed as follows: before assembly, allow the seal to soak in the oil it will be sealing for at least thirty minutes; thoroughly clean the shaft and check that the working surface on the shaft is not damaged; position the sealing lip facing the fluid; with hydrodynamic lips, take into consideration the shaft rotation direction and position the grooves so that they will deviate the fluid towards the inner side of the seal; coat the sealing lip with a thin layer of lubricant (use oil rather than grease) and fill the gap between the sealing lip and the dust lip on double lip seals with grease; insert the seal in its seat and press down using a flat punch; do not tap the seal with a hammer or mallet;
• Whilst inserting the seal, check that the it is perpendicular to the seat; once settled, make sure that it makes contact with the thrust element, if required; to prevent damaging the seal lip on the shaft, position a protective guard during installation operations. O RING SEALS Lubricate theO RING seals before inserting them in the seats, this will prevent them from overturning and twis ing, which would jeopardise sealing efficiency.
• SEALING COMPOUNDS Apply one of the following sealing compounds on the mating surfaces marked with an X: RTV SILMATE, RHO- DORSIL CAF 1 or LOCTITE 510 or SILASTIC AP black. Before applying the sealing compound, prepare the surfaces as follows: remove any incrustations using a wire brush; thoroughly de grease the surfaces using one of the following cleaning agents: trichlorethylene, petrol or a water and soda solution.
• BEARINGS When installing bearings it is advised to: heat the bearings to 80 to 90 0C (176 to 194 0F) before fitting on the shafts; allow the bearings to cool before installing them from the outside. SPRING PINS When fitting split socket elastic pins, ensure that the pin notch is positioned in the direction of the force required to stress the pin. Spiral spring pins do not require special positioning.

NEW HOLLAND TK65 TK75 TK76 TK85 TK95 TRACTORS SERVICE MANUAL 6035438100 – PDF DOWNLOAD:

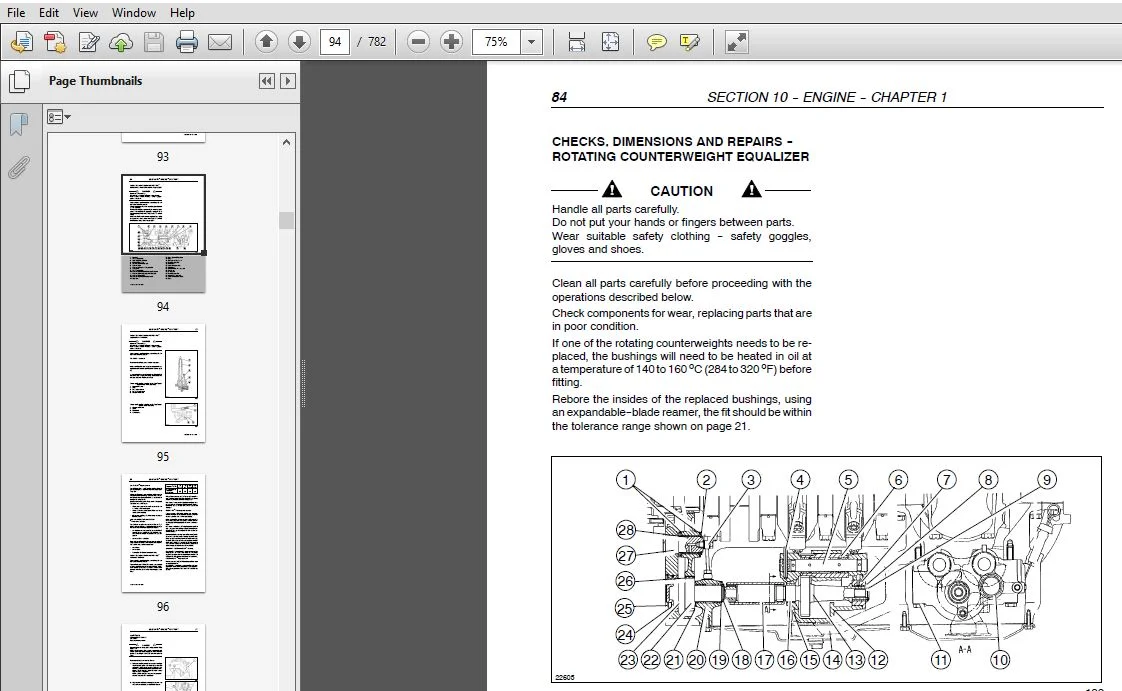

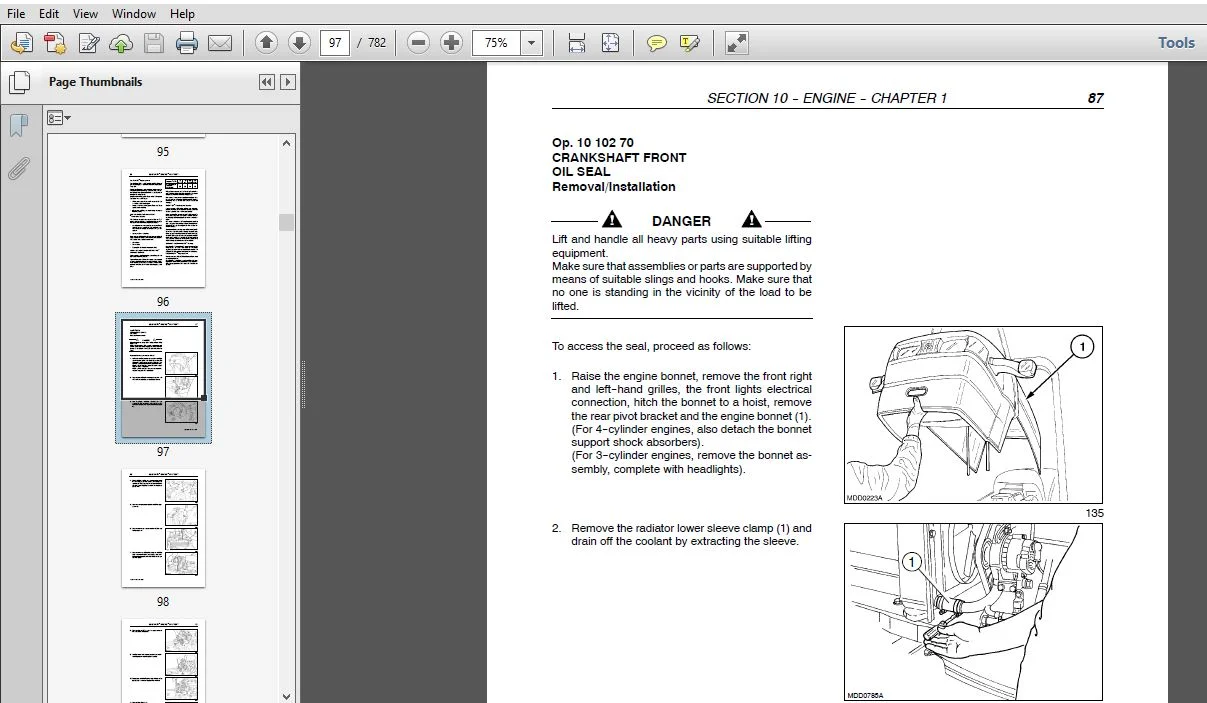

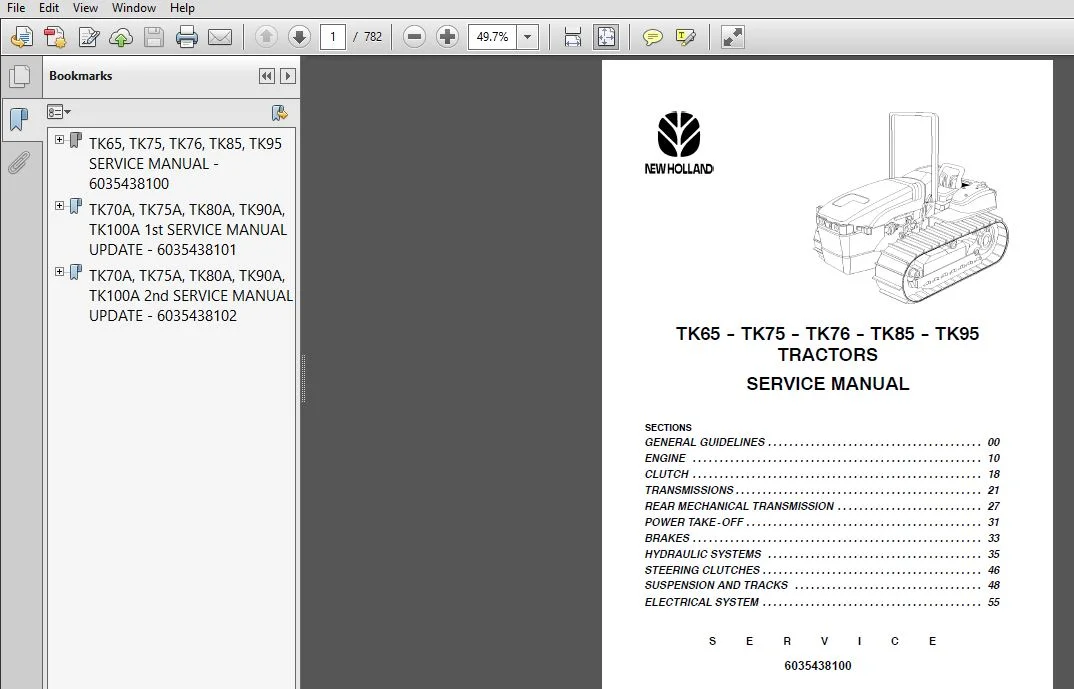

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

New Holland TK65 TK75 TK76 TK85 TK95 Tractors Service Manual

GENERAL GUIDELINES 00
ENGINE 10
CLUTCH 18
TRANSMISSIONS 21
REAR MECHANICAL TRANSMISSION 27
POWER TAKE-OFF 31
BRAKES 33
HYDRAULIC SYSTEMS 35
STEERING CLUTCHES 46
SUSPENSION AND TRACKS 48
ELECTRICAL SYSTEM
