New Holland TL80A TL90A TL100A Tractor Service Manual 87580875 – PDF DOWNLOAD

Description

New Holland TL80A TL90A TL100A Tractor Service Manual

FILE DETAILS:

New Holland TL80A TL90A TL100A Tractor Service Manual

Size: 105 MB
Format: PDF
Language: English
Number of Pages: 1582 pages
Brand: New Holland
Type of document: Service Manual
Model: TL80A TL90A TL100A
Part No: 87580875

DESCRIPTION:

New Holland TL80A TL90A TL100A Tractor Service Manual

GENERAL INSTRUCTIONS:

IMPORTANT NOTICE:

All maintenance and repair operations described in this manual should be carried out exclusively by the authorized workshops. All instructions detailed should be carefully observed and special equipment indicated should be used if necessary. Everyone who carries out service operations described without carefully observing these prescriptions will be directly responsible of deriving damages.
SHIMMING:
At each adjustment, select adjusting shims, measure them individually using a micrometer and then sum up recorded values. Do not rely on measuring the whole shimming set, which may be incorrect, or on the rated value indicated for each shim.
ROTATING SHAFT SEALS:
To correctly install rotating shaft seals, observe the following instructions:
• Let the seal soak into the same oil as it will seal for at least half an hour before mounting;
• Thoroughly clean the shaft and ensure that the shaft working surface is not damaged;
• Place the sealing lip towards the fluid. In case of a hydrodynamic lip, consider the shaft rotation direction and orient grooves in order that they deviate the fluid towards the inner side of the seal;
• Coat the sealing lip with a thin layer of lubricant (oil rather than grease) and fill the gap between the sealing lip and the dust lip of double lip seals with grease;
• Insert the seal into its seat and press it down using a flat punch. Do not tap the seal with a hammer or a drift;
• Take care to insert the seal perpendicularly to its seat while you are pressing it. Once the seal is settled, ensure that it contacts the thrust element, if required;
• To prevent damaging the sealing lip against the shaft, place a suitable protection during installation.

O RINGS:
Lubricate the O rings before inserting them into their seats. This will prevent the O rings from roll over and twisting during mounting, which will jeopardize sealing.
SEALERS:
Apply silicone/gasket eliminator over the mating surfaces marked with an X. Before applying the sealer, prepare the surface as follows:
• remove possible scales using a metal brush;
• thoroughly degrease the surfaces using one of the following cleaning agents: trichlorethylene, diesel fuel or a water and soda solution.

TABLE OF CONTENTS:

New Holland TL80A TL90A TL100A Tractor Service Manual

• SECTION 00 – GENERAL
• SECTION 10 – ENGINE
• SECTION 18 – CLUTCH
• SECTION 21 — TRANSMISSIONS
• SECTION 23 – FWD TRANSFER BOX
• SECTION 25 – FRONT AXLE MECHANICAL TRANSMISSION
• SECTION 27 – REAR AXLE MECHANICAL TRANSMISSION
• SECTION 31 – POWER TAKE-OFF
• SECTION 33 – BRAKES
• SECTION 35 – HYDRAULIC SYSTEMS
• SECTION 41 – STEERING
• SECTION 44 – AXLES AND WHEELS
• SECTION 50 – AUXILIARY UNITS
• SECTION 55 – ELECTRICAL SYSTEMS
• SECTION 90 – CAB, PLATFORM, AND BODYWORK

NEW HOLLAND TL80A TL90A TL100A TRACTOR SERVICE MANUAL 87580875 – PDF DOWNLOAD:

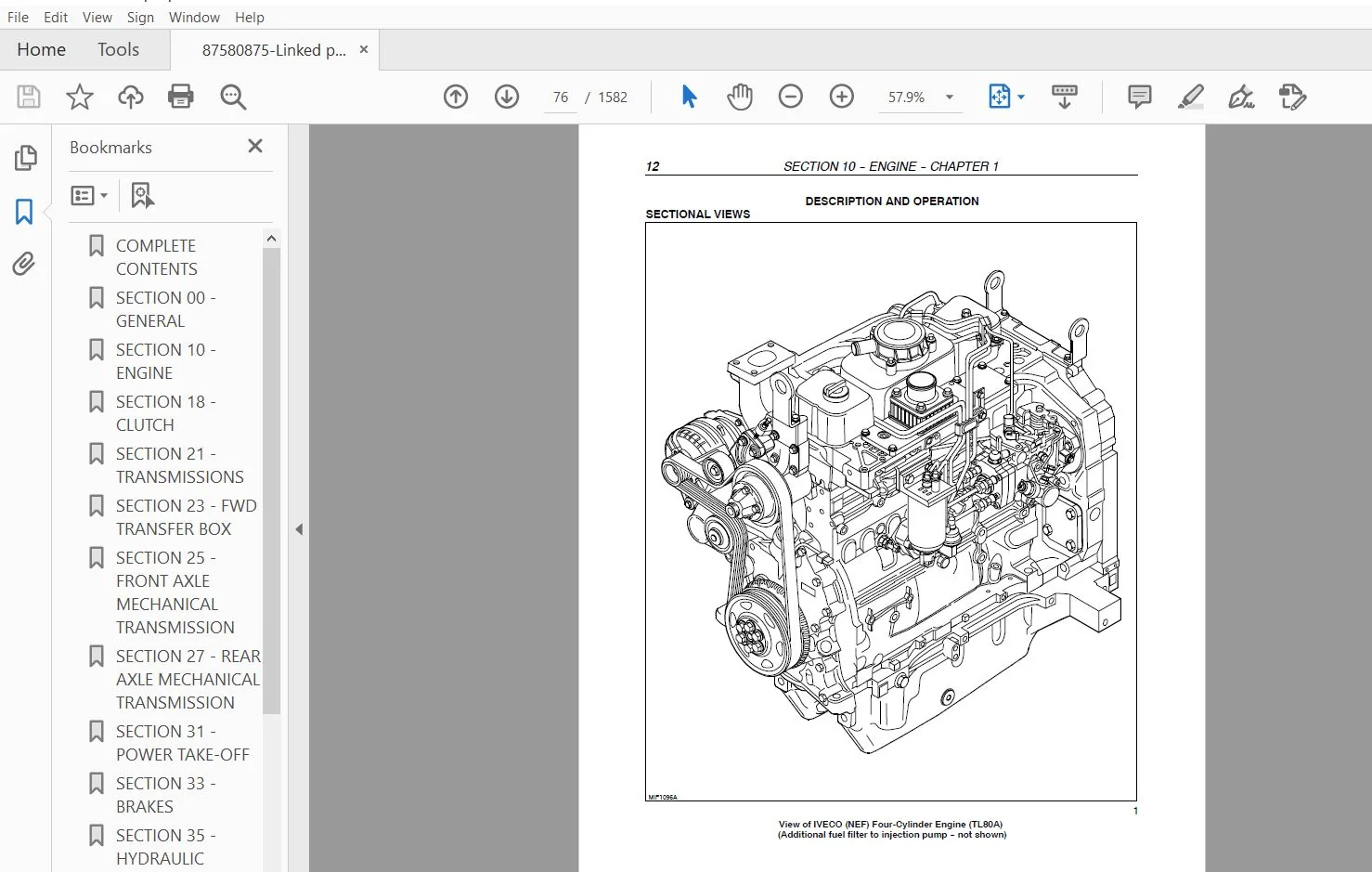

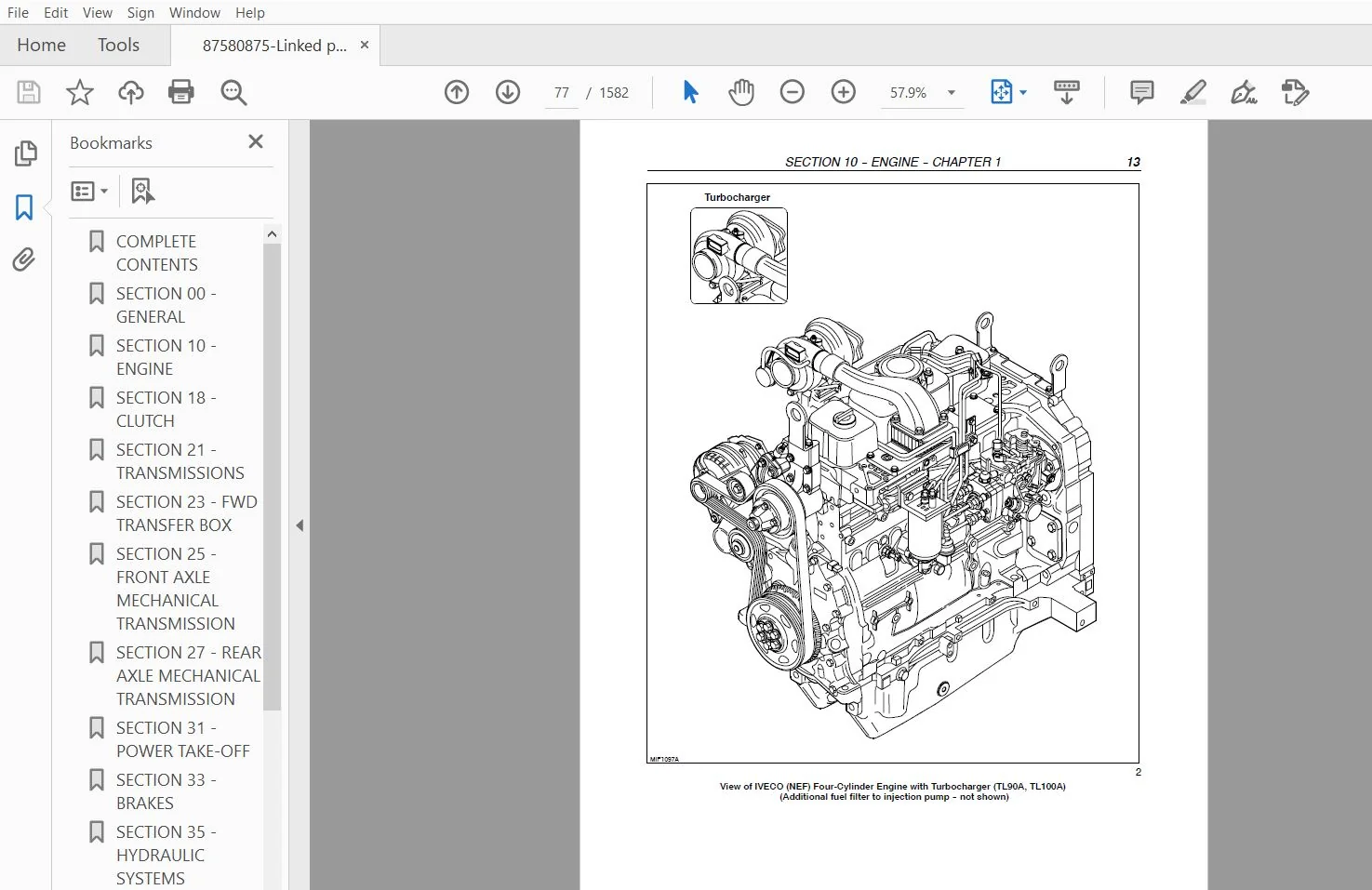

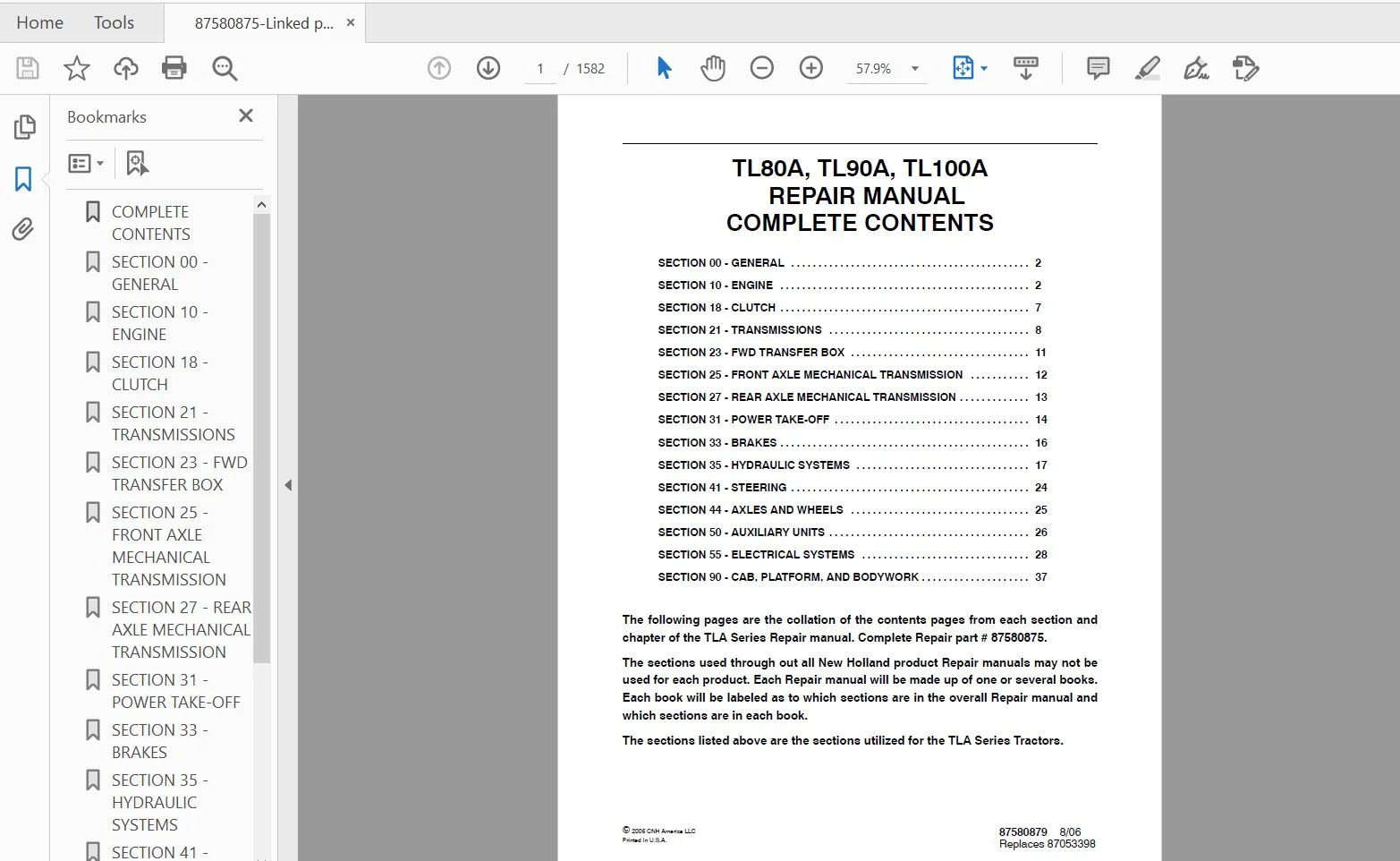

IMAGES PREVIEW OF THE MANUAL:

PLEASE NOTE:

• This is not a physical manual but a digital manual – meaning no physical copy will be couriered to you. The manual can be yours in the next 2 mins as once you make the payment, you will be directed to the download page IMMEDIATELY.
• This is the same manual used by the dealers inorder to diagnose your vehicle of its faults.
• Require some other service manual or have any queries: please WRITE to us at [email protected]
