New Holland Tractor 615 616 617 Service Repair Manual (86578412) – New Holland Tractor 615 616 617 – PDF Download

Description

New Holland Tractor 615 616 617 Service Repair Manual (86578412) – New Holland Tractor 615 616 617

File Details:

New Holland 615, 616, 617 Disc Mower Repair Manual_86578412
Size: 10.5 MB
Format: PDF
Language: English
Number of Pages: 134 pages
Brand: New Holland
Type of document: Repair Manual
Model: 615, 616, 617 Disc Mower
Part No: 86578412

NEW HOLLAND TRACTOR 615 616 617 SERVICE REPAIR MANUAL (86578412) – NEW HOLLAND TRACTOR 615 616 617 – PDF DOWNLOAD:

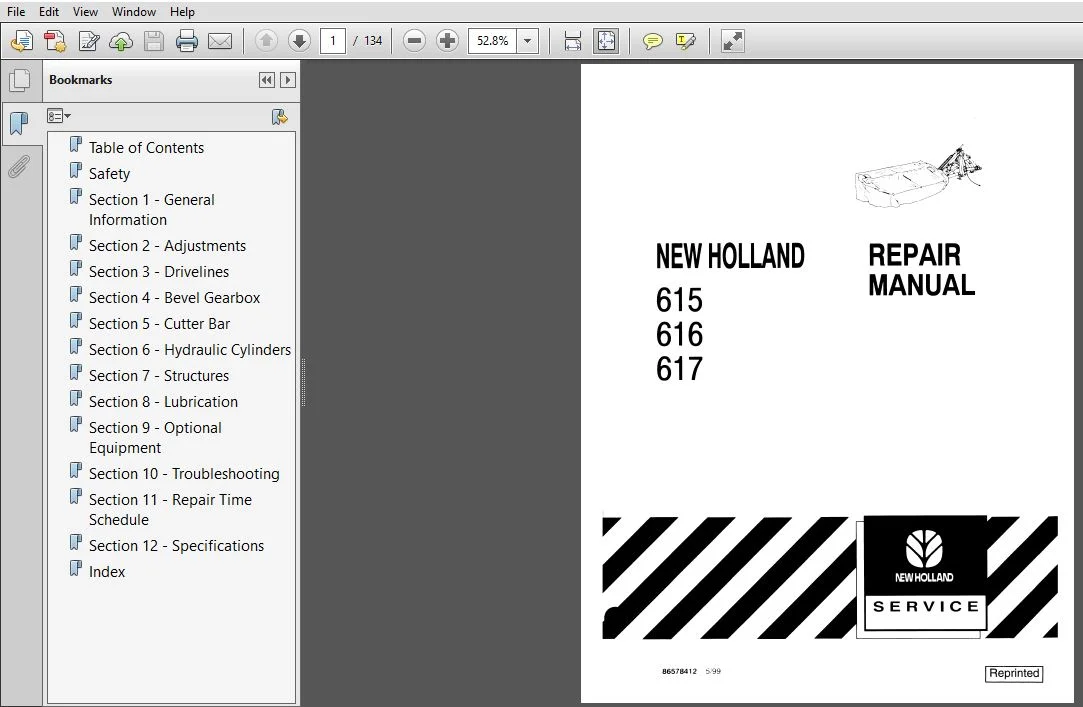

Image Preview:

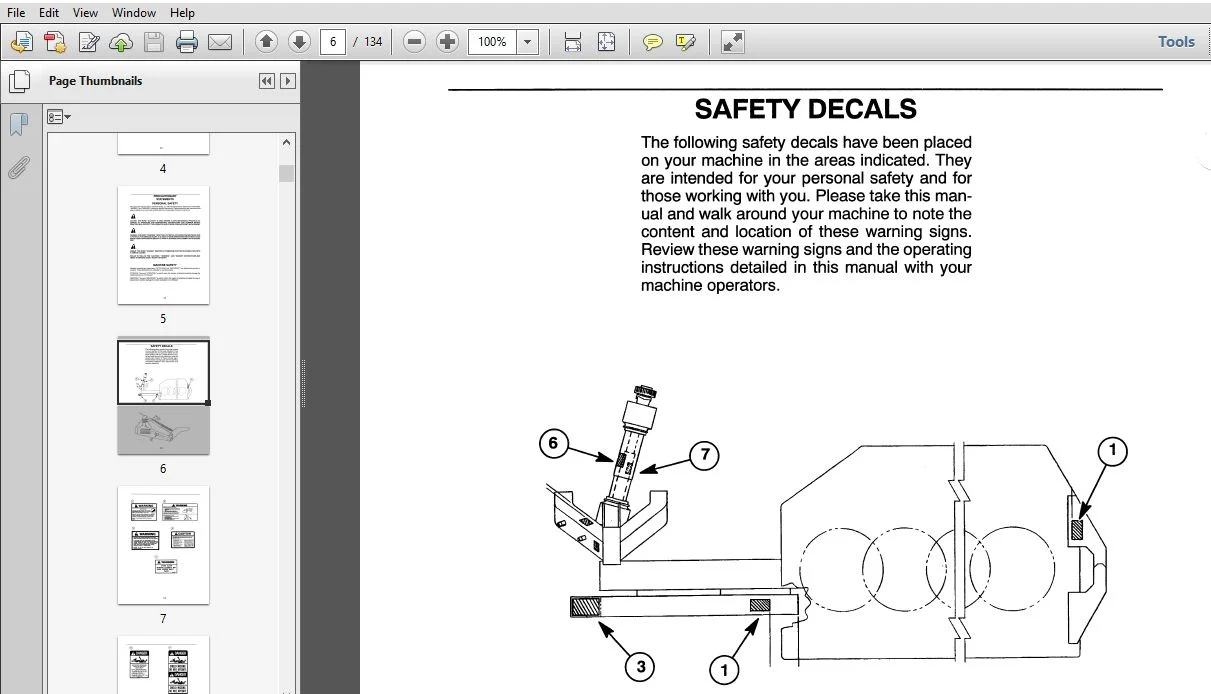

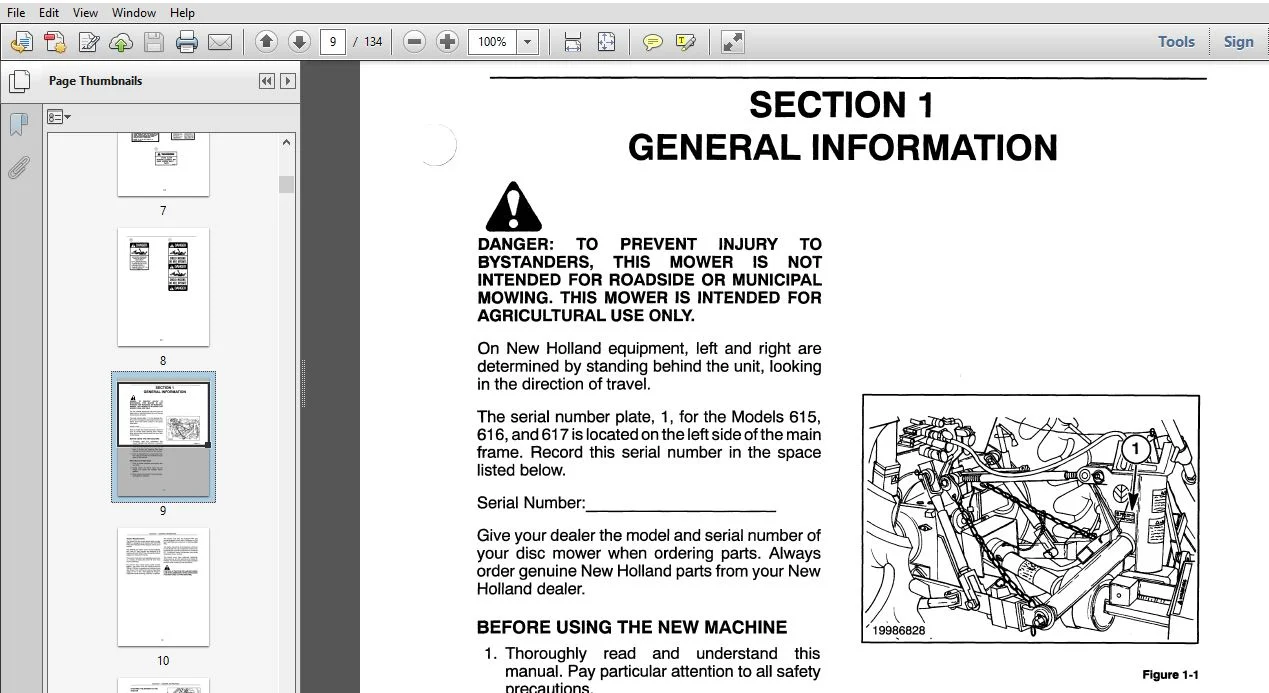

Sample Page From The Manual:

New Holland Tractor 615 616 617 Service Repair Manual (86578412) – New Holland Tractor 615 616 617

• The Model 615 disc mower above serial number 628301 is designed to fit tractors with 540 RPM PTOs with standard ASAE Category I three—point hitches.
• The Models 615 below serial number 628300, 616, and 617 disc mowers are designed to fit tractors with 540 RPM PTOS with standard ASAE category Il three—point hitches.
• The tractor must also have adjustable sway bars or a means of looking the lower lift arms from moving sideways.
• For the 615 disc mower above serial number 628301, the tractor front axis weight should be 782 kg (1725 lbs.) or greater priorto attaching the disc mower. This is for tractors with a wheel base range of 78″ to 84″. Add additional weight if required to achieve 782 kg (1725 lbs.) or greater.
• The tractor must also be equipped with one remote hydraulic circuit with a minimum of 104 bar (1500 PS!) and a maximum of 193 bar (2800 PSI).
• The tractor should be 45-horsepower minimum for the Model 615, 55-horsepower minimum for the Model 616, and 60-horsepower for the Model 617. lnsufficient tractor horsepower may cause stripping and poor cutting.
• The tractor must have adequate ballasting, wheel spacing, and tire spacing to be stable en hillsides. Too small a tractor may create a stability concern when mowing in hilly conditions.

Table of Contents:

New Holland Tractor 615 616 617 Service Repair Manual (86578412) – New Holland Tractor 615 616 617

Table of Contents  ...................  3
Safety ...............................  5
Section 1 - General Information  .....  9
Section 2 - Adjustments .............. 25
Section 3 - Drivelines ............... 37
Section 4 - Bevel Gearbox ............ 53
Section 5 - Cutter Bar ............... 71
Section 6 - Hydraulic Cylinders ......105
Section 7 - Structures ...............109
Section 8 - Lubrication ..............117
Section 9 - Optional Equipment .......123
Section 10 - Troubleshooting .........127
Section 11 - Repair Time Schedule ....129
Section 12 - Specifications ..........131
Index ................................132
