Description

New Holland Tractor Boomer 3040 3045 3050 CVT Service Repair Manual (84126849) – NH 3040 3045 3050

File Details:

New Holland Tractor Boomer 3040,3045,3050 CVT Service Manual_84126849
Size: 79.1 MB
Format: PDF
Language: English
Number of Pages: 1228 pages
Brand: New Holland
Type of document: Service Manual
Model: Boomer 3040,3045,3050
Part No: 84126849

NEW HOLLAND TRACTOR BOOMER 3040 3045 3050 CVT SERVICE REPAIR MANUAL (84126849) – NH 3040 3045 3050 – PDF DOWNLOAD:

Image Preview:

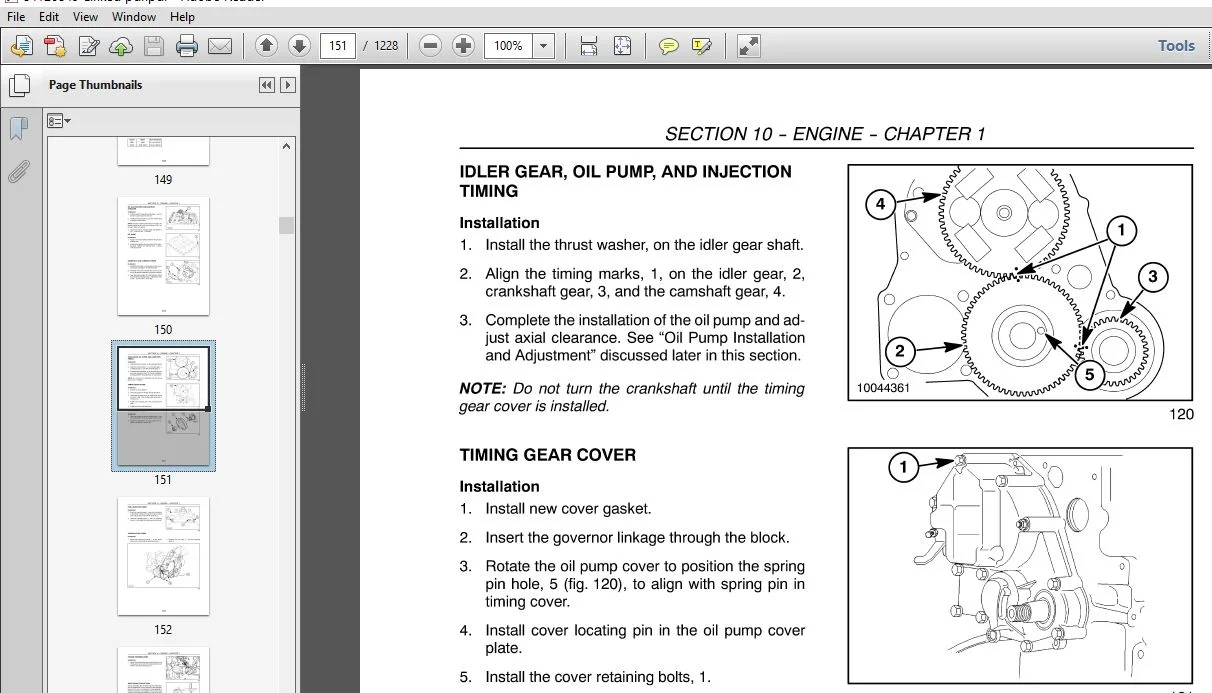

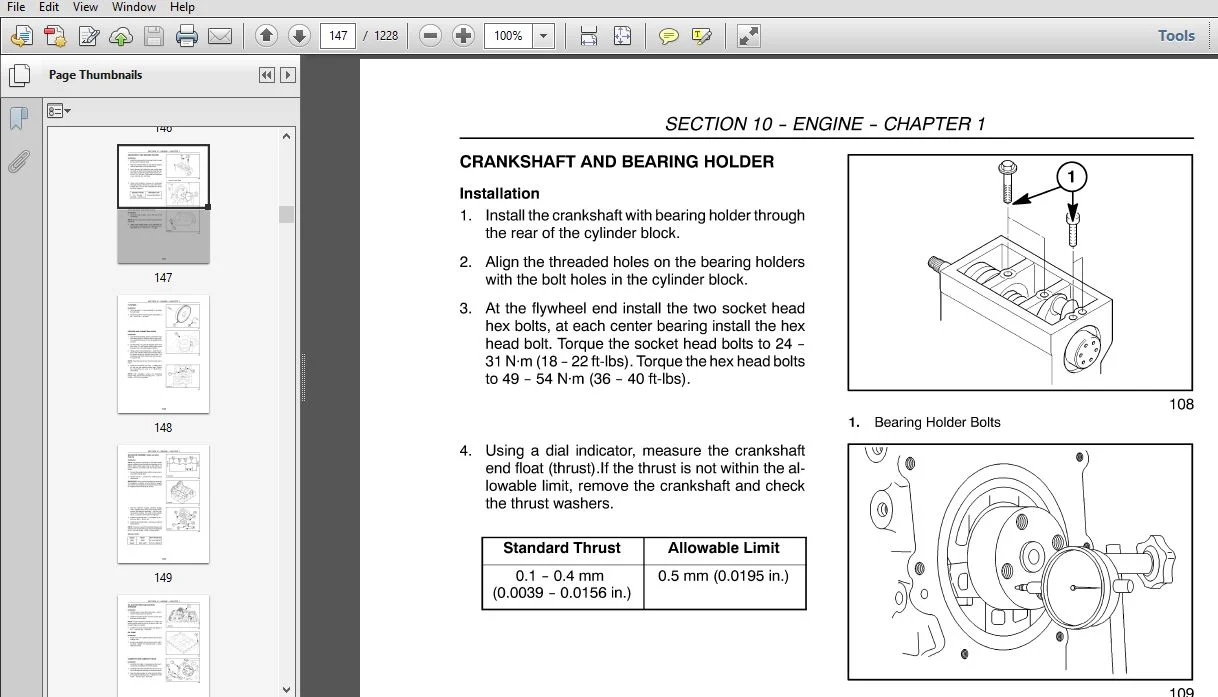

Description:

New Holland Tractor Boomer 3040 3045 3050 CVT Service Repair Manual (84126849) – NH 3040 3045 3050

GENERAL
The Boomer 3040, 3045, and 3050 series tractors have been built using metrlc hardware.
NOTE: Be sure to use the hardware specified when using tapped holes, as trying to install a metric boit in an inch thread, or an inch boit in a metric thread, will damage the thread.
Certain hardware must be tightened to specific torque specifications. If specific torque specifications are not noted. tighten the hardware to the standard torque chart specification listed in this manual.
PLATING
Hardware used on New Holland tractors is plated with zinc chromate (gold color). Gold colored hardware has different torquing requirements from unplated or zinc plated (silver color) hardware because of the difference in the coefficient of friction of the plating material. The torque charts in this manual list the correct specifications for gold. silver. and unplated bolts.
NUT TIGHTENING
Whenever possible, the nut should be tightened, not the head of the boit. When tightening using the boit head, the clamp load can be lost because some of the torque applied twists the boit instead of tensioning (stretching) it. The tension on the boit is what holds the joint together.
Approximater 90% of the torque applied during assembly goes to overcoming friction between the parts. The other 10% is used to tension (stretch) the boit. After assembly, the frictional forces disappear, which is the basis for the saying “If it does not fail during assembly, it will not fait in service.” The boit may later fail due to other factors, but not from being over tightened.
LOCKNUTS
Most locknuts are coated with a special lubricant that is dry to the touch. Anytime a locknut is used. a lower than normal torque is required. Refer to the torque charts in this manual for specific values.
JAM NUTS
When using a jam nut to lock a regular nut, the jam nut should be installed first and tightened to one half the recommended torque, then held in place while installing a regular nut to the recommended torque.
THREAD LUBRICATION
The addition of antiseize compound, Molykote, oil, graphite, or any other lubricant to a boit decreases the friction between it and a nut. This makes it necessary to reduce the recommended torque to prevent over tensioning of the boit. When using the torque charts in this manual, decrease the value by 20% whenever a lubricant is used.

Table of Contents:

New Holland Tractor Boomer 3040 3045 3050 CVT Service Repair Manual (84126849) – NH 3040 3045 3050

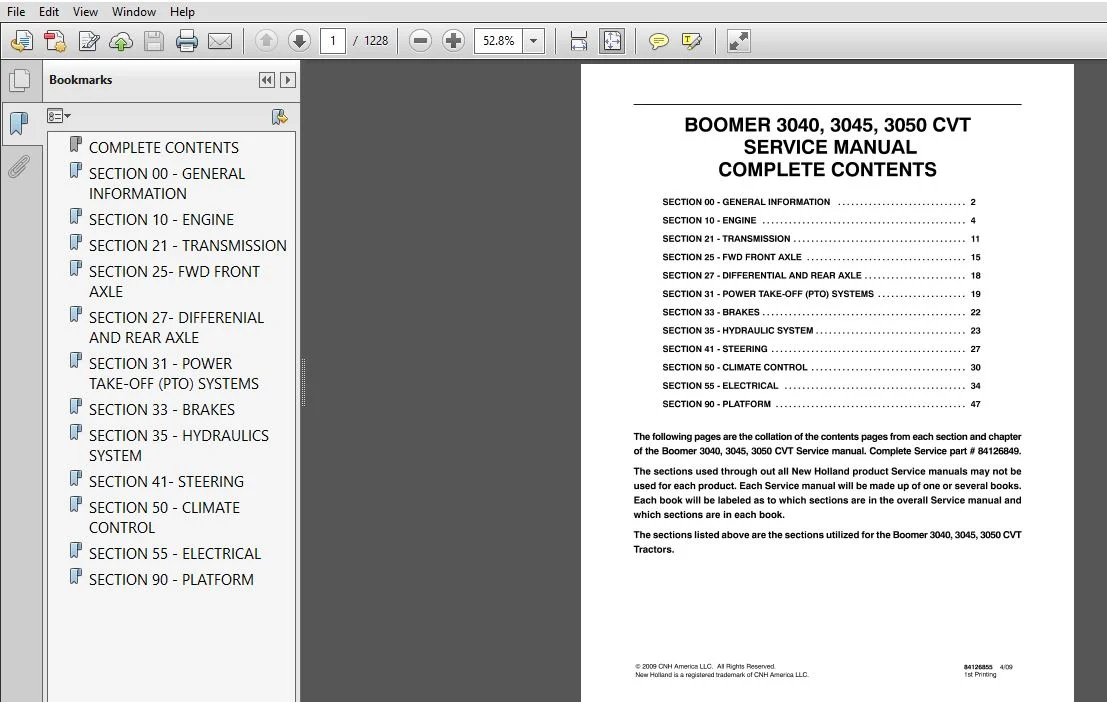

COMPLETE CONTENTS............................   1
SECTION 00 - GENERAL INFORMATION.............  49
SECTION 10 - ENGINE..........................  81
SECTION 21 - TRANSMISSION.................... 217
SECTION 25- FWD FRONT AXLE................... 297
SECTION 27- DIFFERENIAL AND REAR AXLE........ 355
SECTION 31 - POWER TAKE-OFF (PTO) SYSTEMS.... 405
SECTION 33 - BRAKES.......................... 463
SECTION 35 - HYDRAULICS SYSTEM............... 481
SECTION 41- STEERING......................... 585
SECTION 50 - CLIMATE CONTROL................. 659
SECTION 55 - ELECTRICAL...................... 735
SECTION 90 - PLATFORM........................1171
