New Holland Tractor SD 440 Air Drill Repair Manual 87545777 – PDF DOWNLOAD

Description

New Holland Tractor SD 440 Air Drill Repair Manual

FILE DETAILS:

New Holland Tractor SD 440 Air Drill Repair Manual

Size: 25.8 MB
Format: PDF
Language: English
Number of Pages: 204 pages
Brand: New Holland
Type of document: Repair Manual
Model: SD 440
Part No: 87545777

DESCRIPTION:

New Holland Tractor SD 440 Air Drill Repair Manual

SAMPLE PAGE FROM THE MANUAL:

• All repair and maintenance work listed in this manual must be carried out only by qualified dealership personnel. Strictly comply with all instructions given.
• Use only the specialized tools required. Anyone who carries out the above operations without complying with the procedures shall be responsible for the subsequent damages. The manufacturer and all the organizations of its distribution chain, including (without limitation) national, regional, or local dealers, reject any responsibility for damages due to the anomalous behavior of parts and/or components not approved by the manufacturer itself.
• This includes those parts and/or components used for the servicing or repair of the product manufactured or marketed by the manufacturer. In any case, no warranty is given or attributed on the product manufactured or marketed by the manufacturer in case of damages due to an anomalous behavior of parts and/or components not approved by the manufacturer.
• The information in this manual is up to date at the date of the publication. It is the policy of the manufacturer to aim for continuous improvement. Some information could not be updated due to modifications of a technical or commercial type, as well as to suit the laws and regulations of different countries. In case of disagreement, refer to your Sales and Service Networks.
• Tighten the press wheel assemblies as required. Press wheel wrenches are available from the parts department. To tighten the caster wheel bearings, loosen the jam nut and adjust the regular nut to tighten or loosen the wheel bearing (the wheel should turn freely after adjusting). Re-tighten the jam nut and lock the mounting bolts.
• To tighten the walking beam wheel bearings, remove the cap on the wheel hub, remove the cotterpin from the spindle, tighten the slotted nut and put back the cotterpin. The wheel should turn freely after adjusting.
• Grease the trip assemblies. There is one grease location on each trip. Inspect the implement to be sure all components are ready for the field. Check the frame for signs of structural problems. When placing the air drill in storage for more than one month, coat all exposed ram surfaces with a thick oil to protect them from the elements.

NEW HOLLAND TRACTOR SD 440 AIR DRILL REPAIR MANUAL 87545777 – PDF DOWNLOAD:

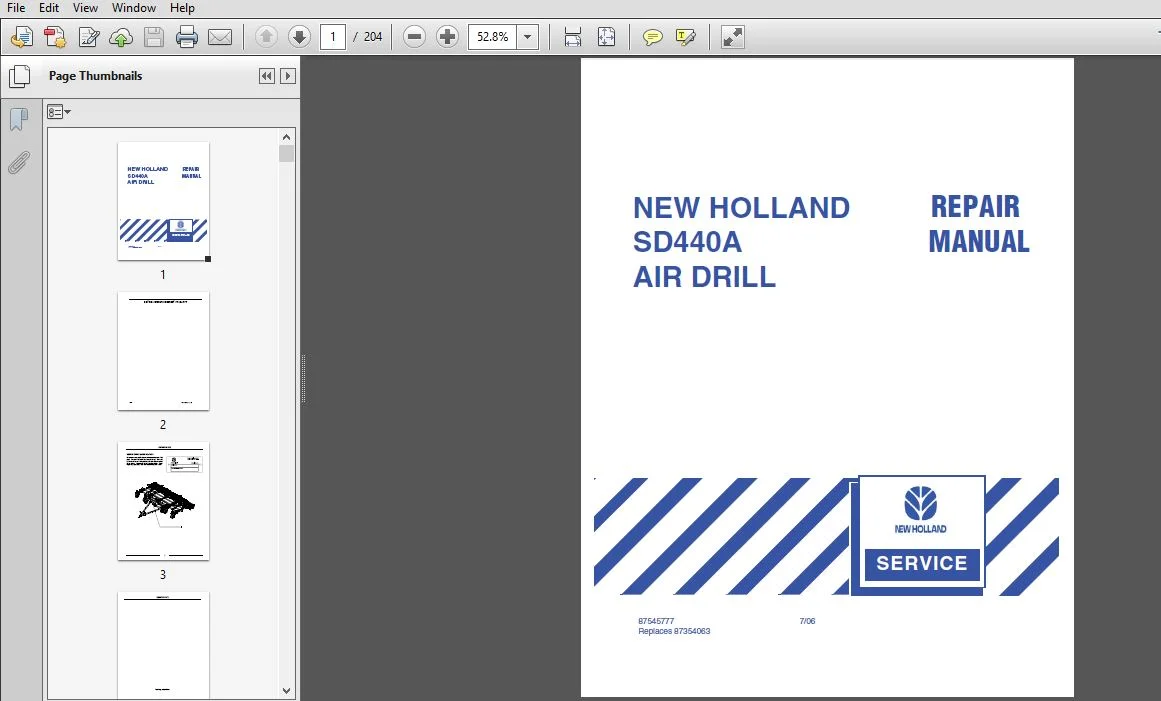

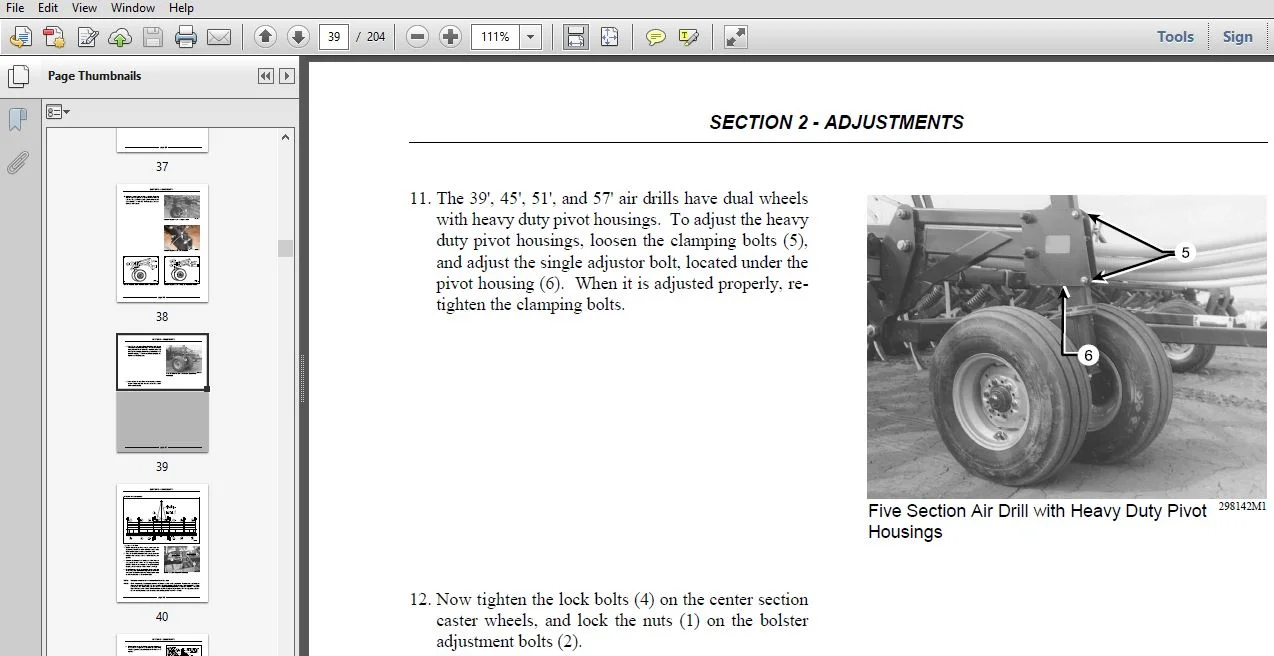

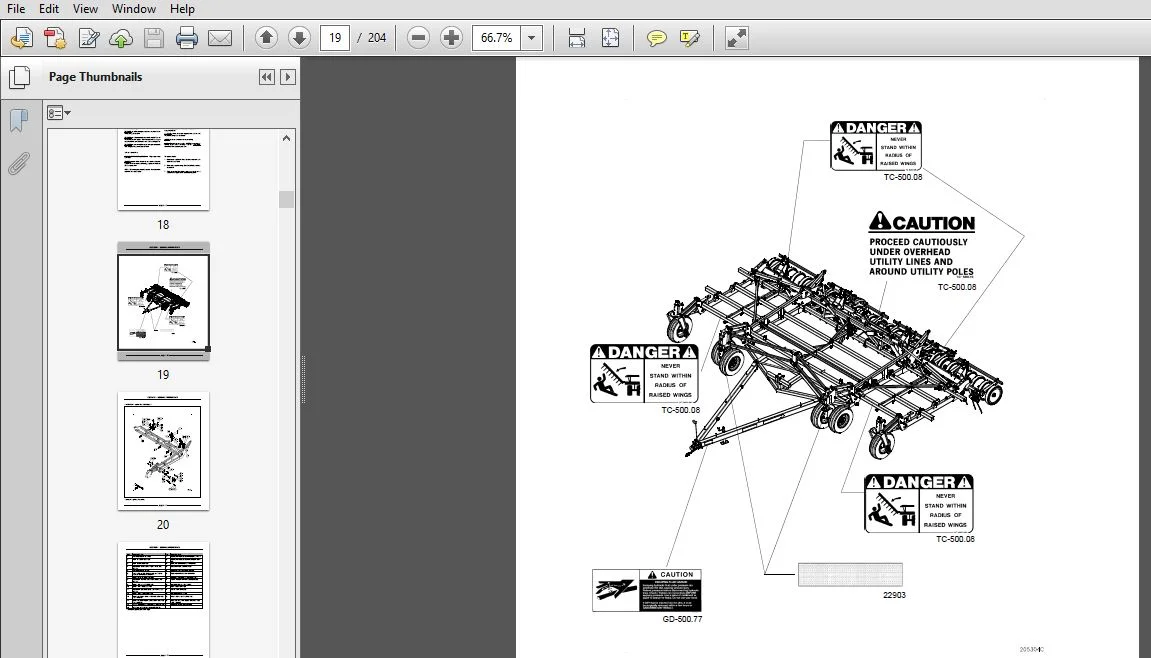

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

New Holland Tractor SD 440 Air Drill Repair Manual

TABLE OF CONTENTS 5
GENERAL INFORMATION 7
ADJUSTMENTS 33
MECHANICAL SERVICE 51
HYDRAULICS 99
ELECTRICAL 121
TRIPS, OPENERS, AND PRESS WHEEL SERVICE 143
AIR SYSTEM 165
ENDMARKER SERVICE 179

PLEASE NOTE:

⦁ This is the same manual used by the DEALERSHIPS to SERVICE your vehicle.
⦁ The manual can be all yours – Once payment is complete, you will be taken to the download page from where you can download the manual. All in 2-5 minutes time!!
⦁ Need any other service / repair / parts manual, please feel free to contact us at heydownloadss @gmail.com . We may surprise you with a nice offer
