New Holland Tractor T3.50F T3.55F T3.65F T3.75F Service Manual 47763567 – PDF DOWNLOAD

Description

New Holland Tractor T3.50F T3.55F T3.65F T3.75F Service Manual

FILE DETAILS:

New Holland Tractor T3.50F T3.55F T3.65F T3.75F Service Manual

Size: 16 MB
Format: PDF
Language: English
Number of Pages: 407 pages
Brand: New Holland
Type of document: Service Manual
Model: T3.50F, T3.55F, T3.65F, T3.75F
Part No: 47763567

DESCRIPTION:

New Holland Tractor T3.50F T3.55F T3.65F T3.75F Service Manual

GENERAL INFORMATION:

• All maintenance and repair work described in this manual must be performed exclusively by  service technicians, in strict accordance with the instructions given and using any specific tools necessary. Anyone performing the operations described herein without strictly following the instructions is personally responsible for any eventual injury or damage to property.
• BATTERY Before carrying out any kind of service operation disconnect and isolate the battery negative lead, unless otherwise requested for specific operations (e.g.: operations requiring the engine to be running), after which it is necessary to disconnect the above mentioned lead to complete the work.
• For each adjustment operation, select adjusting shims and measure individually using a micrometer, then add up the recorded values. Do not rely on measuring the entire shimming set, which may be incorrect, or the rated value indicated for each shim.
• For correct rotating shaft seal installation, proceed as follows: before assembly, allow the seal to soak in the oil it will be sealing for at least thirty minutes; thoroughly clean the shaft and check that the working surface on the shaft is not damaged;
• position the sealing lip facing the fluid; with hydrodynamic lips, take into consideration the shaft rotation direction and position the grooves so that they will deviate the fluid towards the inner side of the seal; smear the sealing lip with a thin layer of lubricant (use oil rather than grease) and fill the gap between the sealing lip and the dust lip on double lip seals with grease;
• insert the seal in its seat and press down using a flat punch, do not tap the seal with a hammer or mallet; whilst inserting the seal, check that the it is perpendicular to the seat; once settled, make sure that it makes contact with the thrust element, if required; to prevent damaging the seal lip on the shaft, position a protective guard during installation operations.
• Before applying the sealing compound, prepare the surfaces as follows: remove any incrustations using a wire brush; thoroughly degrease the surfaces using one of the following cleaning agent: trichlorethylene, petrolor awater and soda solution.
•  When installing bearings it is advised to: heat the bearings to 80 – 90 ºC before fitting on the shafts; allow the bearings to cool before installing them from the outside.

NEW HOLLAND TRACTOR T3.50F T3.55F T3.65F T3.75F SERVICE MANUAL 47763567 – PDF DOWNLOAD:

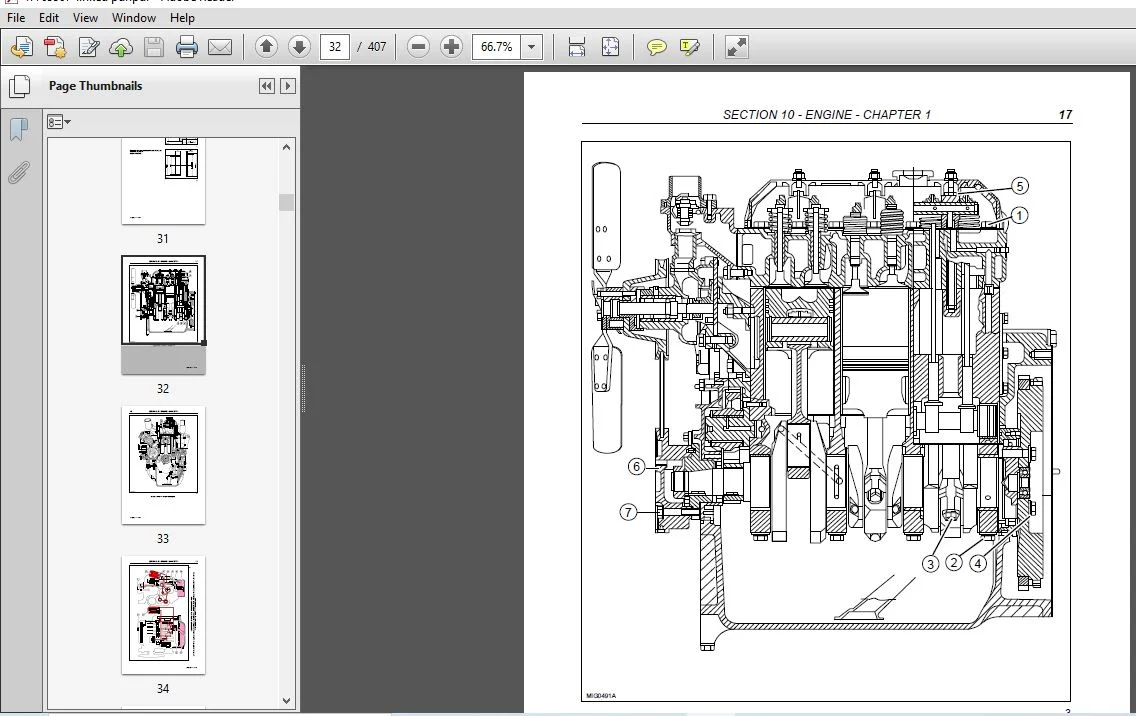

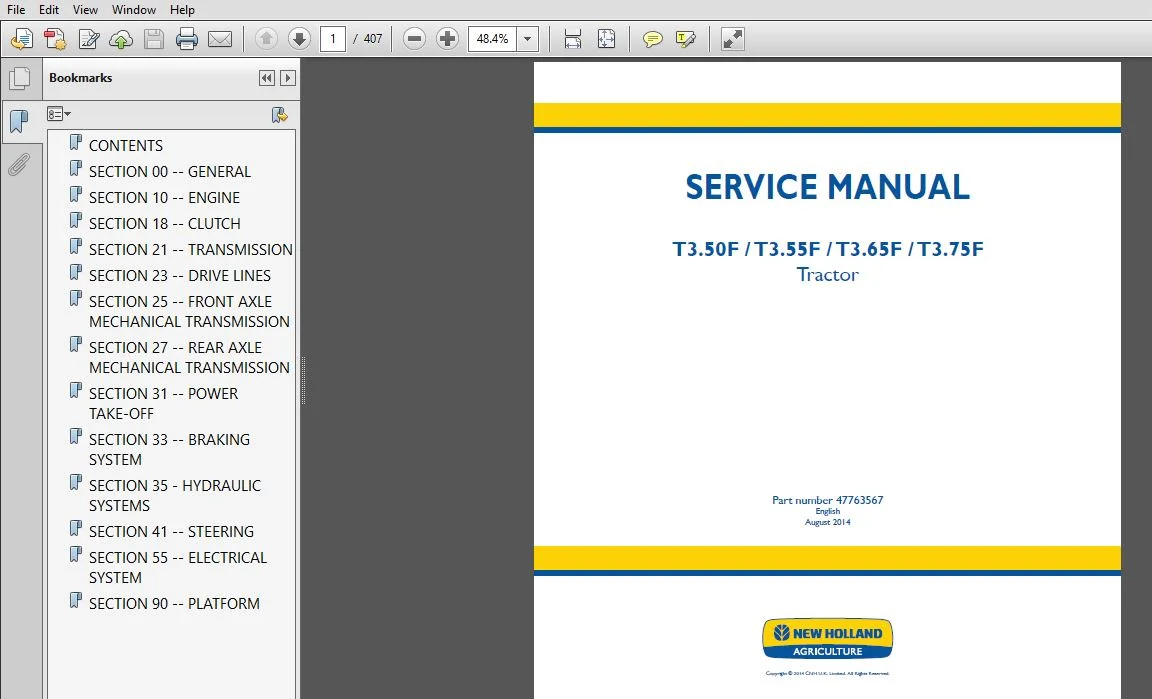

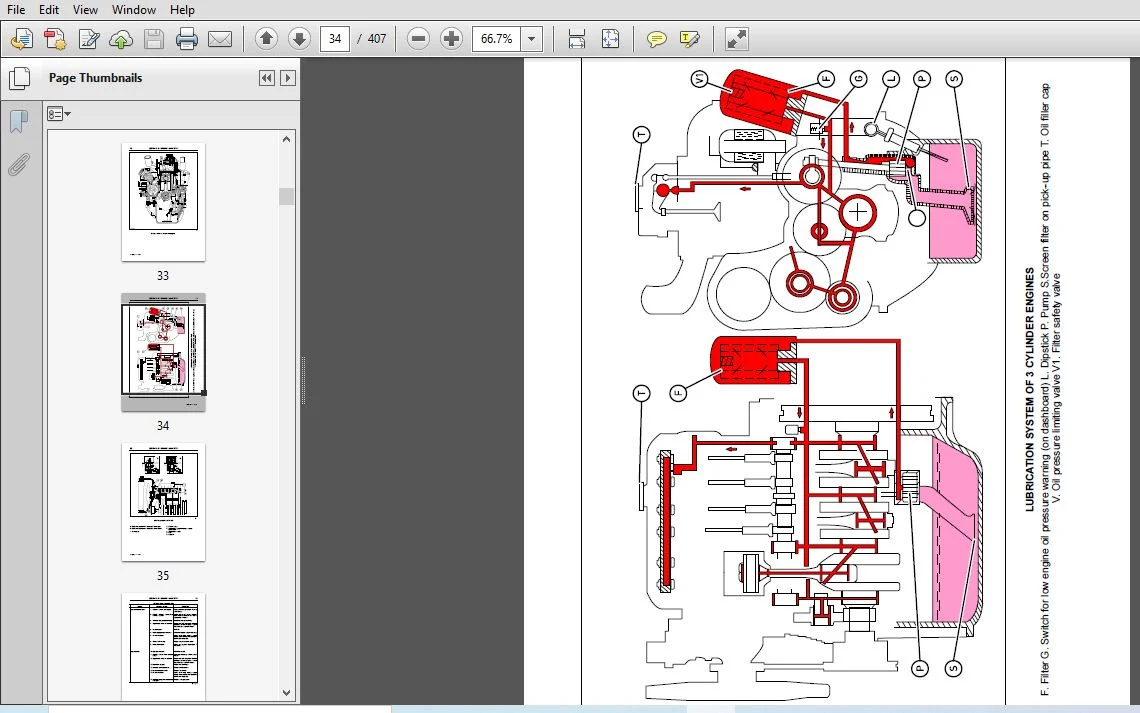

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

New Holland Tractor T3.50F T3.55F T3.65F T3.75F Service Manual

SECTIONS
GENERAL 00
ENGINE 10
CLUTCH 18
TRANSMISSION 21
DRIVE LINES 23
FRONT AXLE MECHANICAL TRANSMISSION 25
REAR AXLE MECHANICAL TRANSMISSION 27
POWER TAKE-OFF 31
BRAKES 33
HYDRAULIC SYSTEMS 35
STEERING 41
AXLE AND WHEELS 44
CAB AIR CONDITIONING SYSTEM 50
ELECTRICAL SYSTEM 55
PLATFORM, CAB, BODYWORK
