New Holland Tractor T4 75 PowerStar Tier 4B final Service Manual 47711469 – PDF DOWNLOAD

Description

New Holland Tractor T4 75 PowerStar Tier 4B final Service Manual

FILE DETAILS:

New Holland Tractor T4 75 PowerStar Tier 4B final Service Manual

Size: 95.1 MB
Format: PDF
Language: English
Number of Pages: 1938 pages
Brand: New Holland
Type of document: Service Manual
Model: T4_75 PowerStar Tier 4B
Part No: 47711469

DESCRIPTION:

New Holland Tractor T4 75 PowerStar Tier 4B final Service Manual

SAMPLE PAGE FROM THE MANUAL:

• Most accidents or injuries that occur in workshops are the result of non–observance of simple and fundamental safety regulations. For this reason, IN MOST CASES  by foreseeing possible causes and consequently acting with the necessary caution and care. Accidents may occur with all types of vehicle, regardless of how well it was designed and built.
• A careful and judicious service technician is the best guarantee against accidents. Precise observance of the most basic safety rule is normally sufficient to avoid many serious accidents.  Never carry out any cleaning, lubrication or maintenance operations when the engine is running.
• Carefully follow specified repair and maintenance procedures. Do not wear rings, wristwatches, jewellery, unbuttoned or loose articles of clothing such as: ties, torn clothing, scarves, open jackets or shirts with open zips that may remain entangled in moving parts. It is advised to wear approved safety clothing, e.g: non–slip footwear, gloves, safety goggles, helmets, etc. Do not carry out repair operations with someone sitting in the driver’s seat, unless the person is a trained technician who is assisting with the operation in question. Operate the vehicle and use the implements exclusively from the driver’s seat.
• Do not carry out operations on the vehicle with the engine running, unless specifically indicated. Stop the engine and ensure that all pressure is relieved from hydraulic circuits before removing caps, covers, valves, etc. All repair and maintenance operations must be carried out using extreme care and attention. Service steps and platforms used in a workshop or in the field should be built in compliance with the safety rules in force.
• Disconnect the batteries and label all controls to indicate that the vehicle is being serviced. Block the machine and all equipment which should be raised. Do not check or fill fuel tanks, accumulator batteries, nor use starting liquid when smoking or near naked flames, as these fluids are inflammable. Brakes are inoperative if manually released for repair or maintenance purposes
• In such cases, the machine should be kept constantly under control using blocks or similar devices. The fuel nozzle should always be in contact with the filling aperture. Maintain this position until filling operations are completed in order to avoid possible sparks caused by the accumulation of static electricity. Only use specified towing points for towing the tractor, connect parts carefully.Make sure that all pins and/or locks are secured in position before applying traction.
• Never remain near the towing bars, cables or chains that are operating under load Transport vehicles that cannot be driven using a trailer or a low–loading platform trolley, if available. When loading or unloading the vehicle from the trailer (or other means of transport), select a flat area capable of sustaining the trailer or truck wheels, firmly secure the tractor to the truck or trailer and lock the wheels in the position.
• Electric heaters, battery–chargers and similar equipment must only be powered by auxiliary power supplies with efficient ground insulation to avoid electrical shock hazards. Always use suitable hoisting or lifting devices when raising or moving heavy parts. Take extra care if bystanders are present.
• Never pour gasoline or diesel oil into open, wide and low containers. Never use gasoline, diesel oil or other inflammable liquids as cleaning agents. Use non-flammable non-toxic proprietary solvents. Wear safety goggles with side guards when cleaning parts with compressed air.
• Limit the air pressure to a maximum of 2.1 bar (30.5 psi), according to local regulations. Some fluid slowly coming out from a very small port can be almost invisible and be strong enough to penetrate the skin. Check for leaks using a piece of cardboard,  If any liquid penetrates skin tissue, call for medical aid immediately Serious skin infections may result if medical attention is not given.
• Use the specific tools when checking pressure values on the hydraulic system.  Check that the tyres are correctly inflated at the pressure specified by the manufacturer. Periodically check possible damages to the rims and tyres. Stand away from (at the side of) the tire when checking inflation pressure. Only check pressure when the vehicle is unloaded and the tires are cold, to avoid incorrect readings as a result of over–pressure. Do not re–use parts of recovered wheels as incorrect welding or brazing may heat the material, causing it to weaken and eventually damage or break the wheel.
• Never cut, nor weld a rim with the inflated tyre assembled. When removing the wheels, lock both the front and rear vehicle wheels. Always position support stands when raising the vehicle, in order to conform to current safety regulations. Deflate the tyre before removing any object caught into the tyre tread. Never inflate tires using inflammable gases; this could cause an explosion and put operator safety at risk.

NEW HOLLAND TRACTOR T4 75 POWERSTAR TIER 4B FINAL SERVICE MANUAL 47711469 – PDF DOWNLOAD:

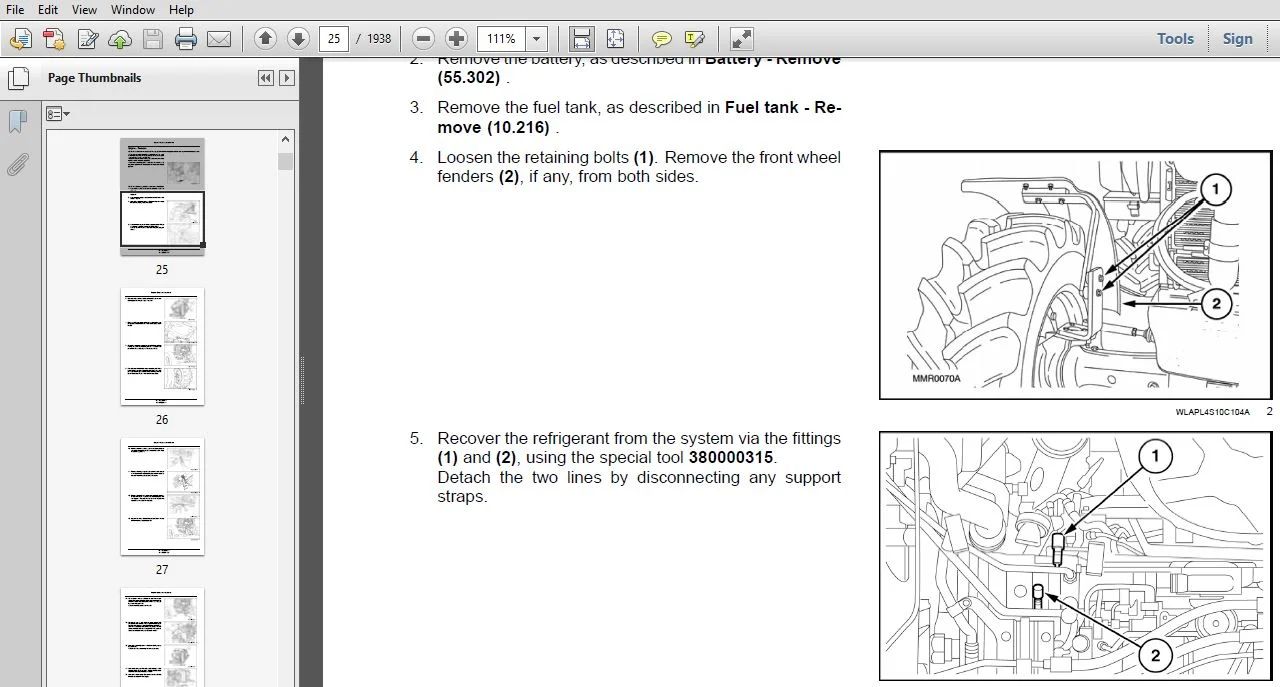

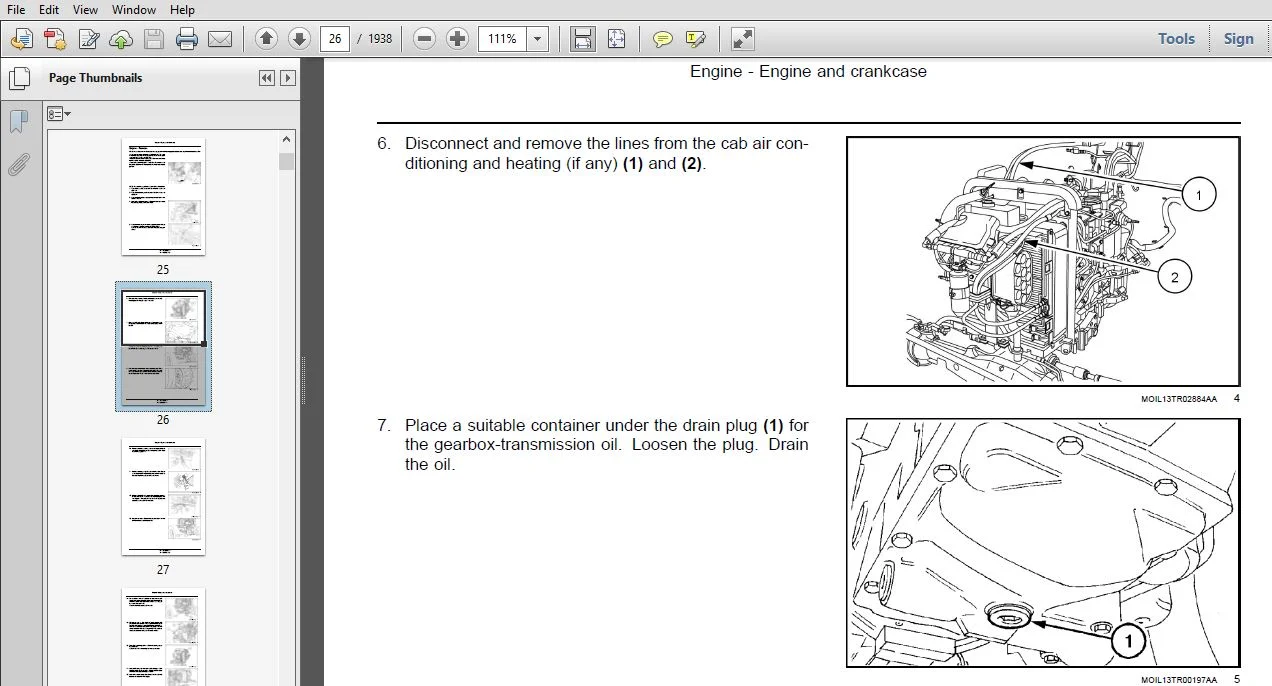

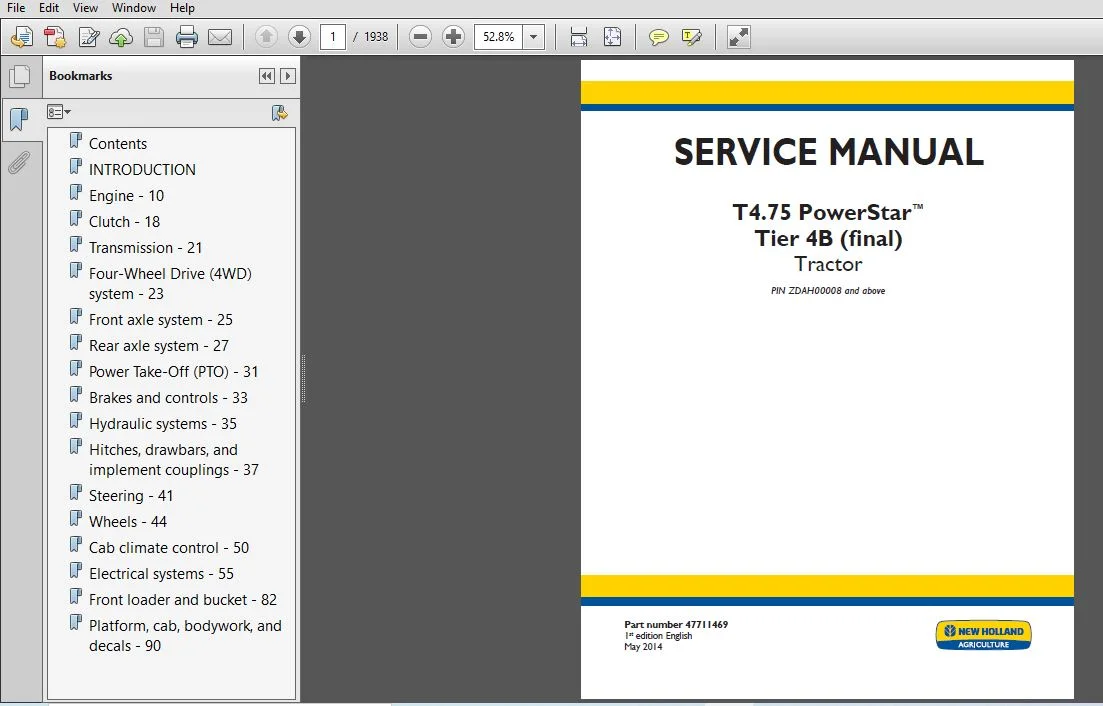

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

New Holland Tractor T4 75 PowerStar Tier 4B final Service Manual

INTRODUCTION
Engine 10
[10 001] Engine and crankcase 10 1
[10 216] Fuel tanks 10 2
[10 501] Exhaust Gas Recirculation (EGR) – Diesel Particulate Filter (DPF) exhaust
treatment 10 3
[10 414] Fan and drive 10 4
Clutch 18
[18 100] Clutch mechanical release control 18 1
[18 104] Clutch hydraulic release control 18 2
[18 110] Clutch and components 18 3
Transmission 21
[21 114] Mechanical transmission 21 1
[21 140] Mechanical transmission internal components 21 2
[21 112] Power shuttle transmission 21 3
[21 134] Power shuttle transmission external controls 21 4
[21 104] Power shuttle transmission lubrication system 21 5
[21 154] Power shuttle transmission internal components 21 6
[21 160] Creeper 21 7
[21 162] Reverser 21 8
[21 109] Transmission cooler and lines 21 9
Four-Wheel Drive (4WD) system 23
[23 101] Mechanical control 23 1
[23 202] Electro-hydraulic control 23 2
Front axle system 25
[25 100] Powered front axle 25 1
[25 102] Front bevel gear set and differential 25 2
47711469 30/05/2014
[25 108] Final drive hub, steering knuckles, and shafts 25 3
[25 400] Non-powered front axle 25 4
Rear axle system 27
[27 100] Powered rear axle 27 1
[27 106] Rear bevel gear set and differential 27 2
[27 120] Planetary and final drives 27 3
Power Take-Off (PTO) 31
[31 101] Rear mechanical control 31 1
[31 104] Rear electro-hydraulic control 31 2
[31 110] One-speed rear Power Take-Off (PTO) 31 3
[31 114] Two-speed rear Power Take-Off (PTO) 31 4
Brakes and controls 33
[33 202] Hydraulic service brakes 33 1
[33 110] Parking brake or parking lock 33 2
Hydraulic systems 35
[35 104] Fixed displacement pump 35 1
[35 204] Remote control valves 35 2
[35 114] Three-point hitch control valve 35 3
[35 723] Front loader bucket hydraulic system 35 4
Hitches, drawbars, and implement couplings 37
[37 100] Drawbars and towing hitches 37 1
[37 110] Rear three-point hitch 37 2
Steering 41
[41 106] Tie rods 41 1
[41 206] Pump 41 2
[41 101] Steering control 41 3
[41 200] Hydraulic control components 41 4
47711469 30/05/2014
[41 216] Cylinders 41 5
Wheels 44
[44 511] Front wheels 44 1
[44 520] Rear wheels 44 2
Cab climate control 50
[50 100] Heating 50 1
[50 104] Ventilation 50 2
[50 200] Air conditioning 50 3
Electrical systems 55
[55 100] Harnesses and connectors 55 1
[55 201] Engine starting system 55 2
[55 301] Alternator 55 3
[55 302] Battery 55 4
[55 640] Electronic modules 55 5
[55 048] Rear Power Take-Off (PTO) control system 55 6
[55 408] Warning indicators, alarms, and instruments 55 7
[55 DTC] FAULT CODES 55 8
Front loader and bucket 82
[82 300] Bucket 82 1
Platform, cab, bodywork, and decals 90
[90 150] Cab 90 1
[90 151] Cab interior 90 2
[90 160] Cab interior trim and panels 90 3
[90 154] Cab doors and hatches 90 4
[90 110] Operator platform less cab 90 5
[90 100] Engine hood and panels

PLEASE NOTE:

⦁ This is the same manual used by the DEALERSHIPS to SERVICE your vehicle.
⦁ The manual can be all yours – Once payment is complete, you will be taken to the download page from where you can download the manual. All in 2-5 minutes time!!
⦁ Need any other service / repair / parts manual, please feel free to contact us at heydownloadss @gmail.com . We may surprise you with a nice offer
