New Holland Tractor T4.75V, T4.85V, T4.95V T4.105V Service Manual 47888374 – PDF DOWNLOAD

Description

New Holland Tractor T4.75V, T4.85V, T4.95V T4.105V Service Manual

FILE DETAILS:

New Holland Tractor T4.75V, T4.85V, T4.95V T4.105V Service Manual

Size: 116 MB
Format: PDF
Language: English
Number of Pages: 1943 pages
Brand: New Holland
Type of document: Service Manual
Model: T4.105V, T4.75V, T4.85V, T4.95V
Part No: 47888374

NEW HOLLAND TRACTOR T4.75V, T4.85V, T4.95V T4.105V SERVICE MANUAL 47888374 – PDF DOWNLOAD:

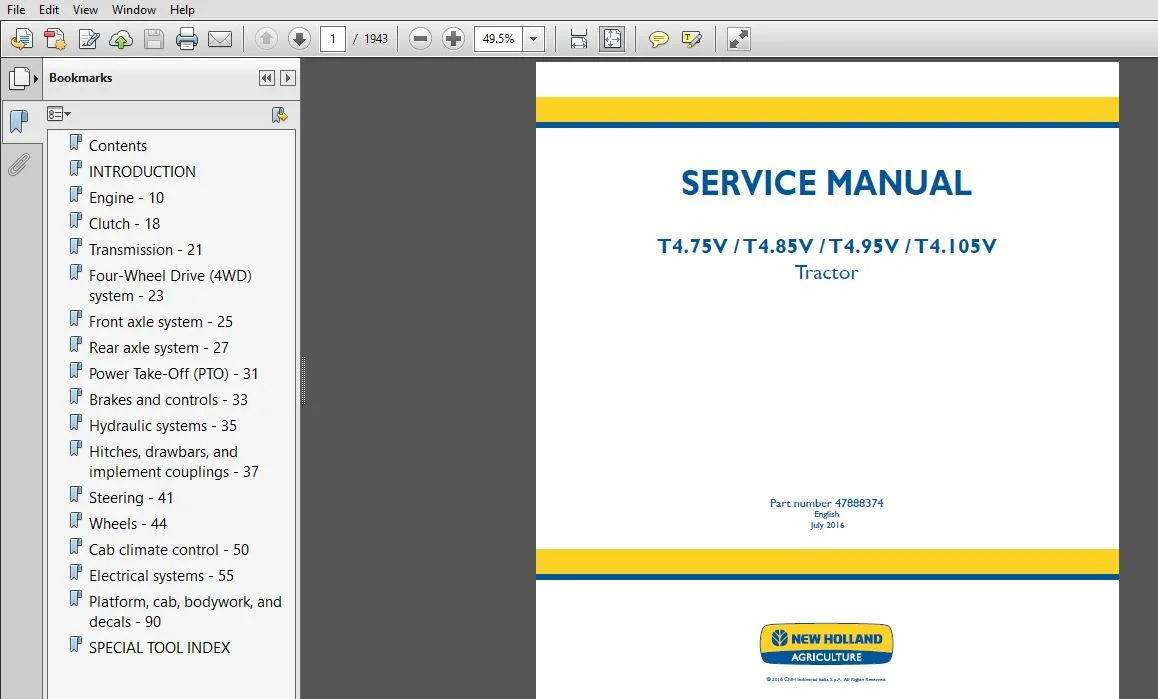

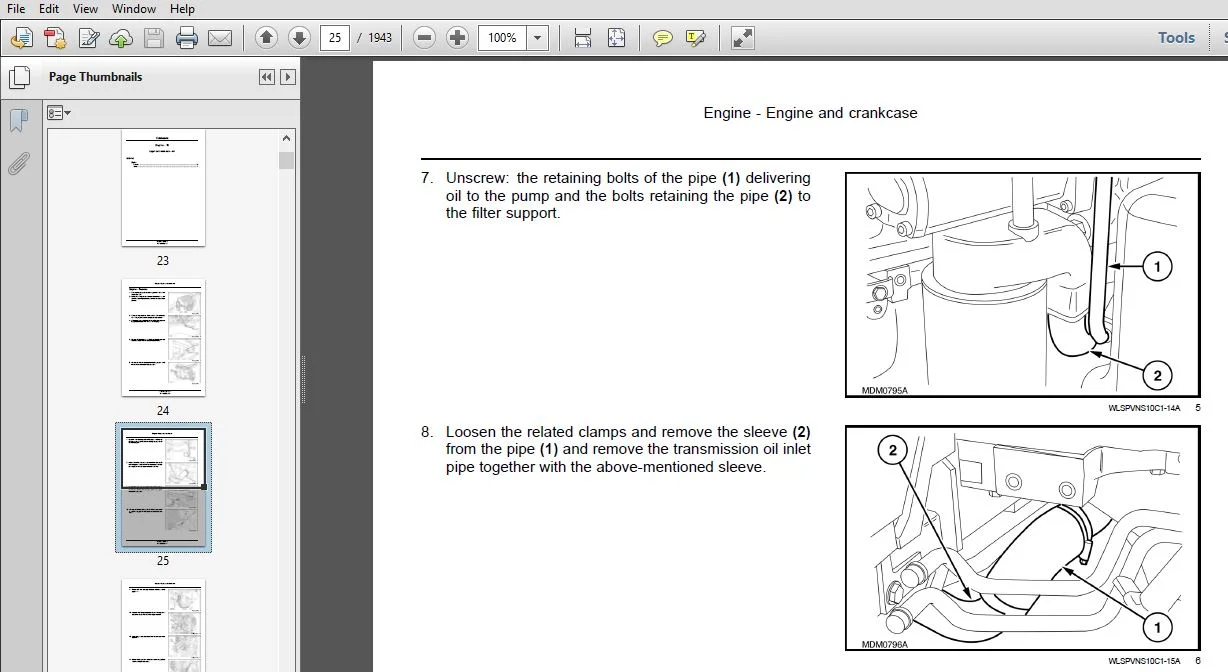

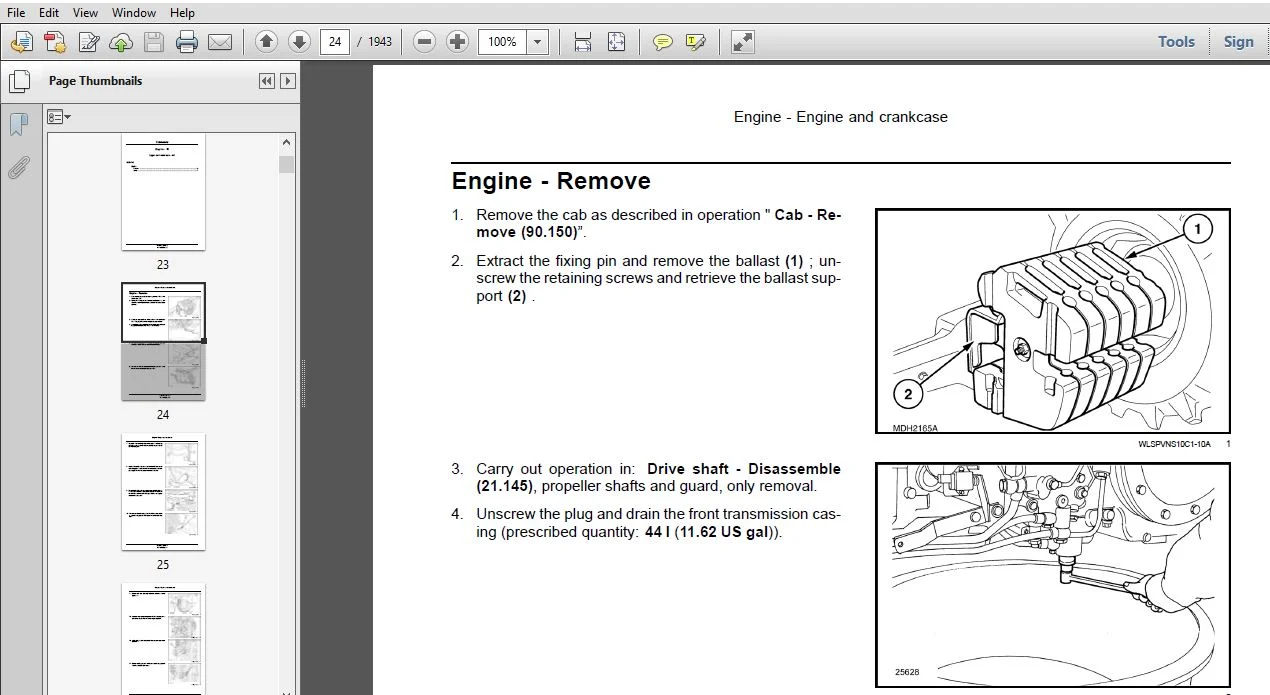

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

New Holland Tractor T4.75V, T4.85V, T4.95V T4.105V Service Manual

Safety rules SAFETY REGULATIONS:
TO PREVENT ACCIDENTS:

Most accidents or injuries that occur in workshops are the result of non–observance of simple and fundamental safety regulations. For this reason, IN MOST CASES THESE ACCIDENTS CAN BE AVOIDED: by foreseeing possible causes and consequently acting with the necessary caution and care. Accidents may occur with all types of vehicle, regardless of how well it was designed and built. A careful and judicious service technician is the best guarantee against accidents. Precise observance of the most basic safety rule is normally sufficient to avoid many serious accidents.

GENERAL:
• Carefully follow specified repair and maintenance procedures.
• Do not wear rings, wristwatches, jewellery, unbuttoned or loose articles of clothing such as: ties, torn clothing scarves, open jackets or shirts with open zips that may remain entangled in moving parts. It is advised to wear approved safety clothing, e.g: non–slip footwear, gloves, safety goggles, helmets, etc.
• Do not carry out repair operations with someone sitting in the driver’s seat, unless the person is a trained technician who is assisting with the operation in question.
• Operate the vehicle and use the implements exclusively from the driver’s seat.
• Do not carry out operations on the vehicle with the engine running, unless specifically indicated.
• Stop the engine and ensure that all pressure is relieved from hydraulic circuits before removing caps, covers, valves, etc.
• All repair and maintenance operations must be carried out using extreme care and attention.
• Service steps and platforms used in a workshop or in the field should be built in compliance with the safety rules in force.
• Disconnect the batteries and label all controls to indicate that the vehicle is being serviced. Block the machine and all equipment which should be raised.
• Do not check or fill fuel tanks, accumulator batteries, nor use starting liquid when smoking or near naked flames, as these fluids are inflammable.
• Brakes are inoperative if manually released for repair or maintenance purposes. In such cases, the machine should be kept constantly under control using blocks or similar devices.
• The fuel nozzle should always be in contact with the filling aperture. Maintain this position until filling operations are completed in order to avoid possible sparks caused by the accumulation of static electricity.
• Only use specified towing points for towing the tractor, connect parts carefully.Make sure that all pins and/or locks are secured in position before applying traction. Never remain near the towing bars, cables or chains that are operating under load
• Transport vehicles that cannot be driven using a trailer or a low–loading platform trolley, if available.
• When loading or unloading the vehicle from the trailer (or other means of transport), select a flat area capable of sustaining the trailer or truck wheels, firmly secure the tractor to the truck or trailer and lock the wheels in the position.
• Electric heaters, battery–chargers and similar equipment must only be powered by auxiliary power supplies with efficient ground insulation to avoid electrical shock hazards.
• Always use suitable hoisting or lifting devices when raising or moving heavy parts.
• Take extra care if bystanders are present.
• Never pour gasoline or diesel oil into open, wide and low containers.
• Never use gasoline, diesel oil or other inflammable liquids as cleaning agents. Use non-flammable non-toxic proprietary solvents.
• Wear safety goggles with side guards when cleaning parts with compressed air.
• Limit the air pressure to a maximum of 2.1 bar (30.5 psi), according to local regulations.

TABLE OF CONTENTS:

New Holland Tractor T4.75V, T4.85V, T4.95V T4.105V Service Manual

INTRODUCTION
Engine 10
[10001] Engine and crankcase 101
Clutch 18
[18100] Clutch mechanical release control 181
[18104] Clutch hydraulic release control182
[18110] Clutch and components 183
Transmission 21
[21114] Mechanical transmission211
[21130] Mechanical transmission external controls 212
[21140] Mechanical transmission internal components 213
[21112] Power shuttle transmission 214
[21134] Power shuttle transmission external controls 215
[21154] Power shuttle transmission internal components 216
[21145] Gearbox internal components 217
[21160] Creeper 218
[21162] Reverser219
[21168] Hi-Lo unit 2110
[21182] Differential2111
Four-Wheel Drive (4WD) system 23
[23304] Four-Wheel Drive (4WD) gearbox 231
[23314] Drive shaft 232
Front axle system 25
[25100] Powered front axle 251
[25102] Front bevel gear set and differential252
[25108] Final drive hub, steering knuckles, and shafts 253
47888374 18/07/2016
[25122] Axle suspension control 254
[25310] Final drives 255
[25400] Non-powered front axle 256
Rear axle system 27
[27100] Powered rear axle 271
[27106] Rear bevel gear set and differential 272
[27120] Planetary and final drives 273
[27126] Spur gear and final drives 274
Power Take-Off (PTO) 31
[31101] Rear mechanical control311
Brakes and controls 33
[33202] Hydraulic service brakes331
[33110] Parking brake or parking lock 332
[33220] Trailer brake hydraulic control 333
Hydraulic systems 35
[35000] Hydraulic systems 351
[35300] Reservoir, cooler, and filters352
[35104] Fixed displacement pump 353
[35204] Remote control valves 354
[35600] High flow hydraulics 355
[35100] Main lift system 356
[35114] Three-point hitch control valve 357
[35116] Three-point hitch cylinder 358
Hitches, drawbars, and implement couplings 37
[37110] Rear three-point hitch 371
[37108] Rear three-point hitch external controls 372
[37162] Front hitch 373
Steering 41
47888374 18/07/2016
[41101] Steering control 411
[41200] Hydraulic control components 412
Wheels 44
[44511] Front wheels441
Cab climate control 50
[50100] Heating 501
[50104] Ventilation 502
[50200] Air conditioning 503
Electrical systems 55
[55000] Electrical system551
[55100] Harnesses and connectors 552
[55201] Engine starting system 553
[55301] Alternator 554
[55302] Battery 555
[55202] Cold start aid556
[55640] Electronic modules 557
[55051] Cab Heating, Ventilation, and Air-Conditioning (HVAC) controls 558
[55050] Heating, Ventilation, and Air-Conditioning (HVAC) control system 559
[55047] Steering control system 5510
[55523] Cab hitch controls 5511
[55130] Rear three-point hitch electronic control system 5512
[55404] External lighting 5513
[55514] Cab lighting 5514
[55511] Light harnesses 5515
[55408] Warning indicators, alarms, and instruments 5516
[55DTC] FAULT CODES 5517
Platform, cab, bodywork, and decals 90
[90110] Operator platform less cab 901
47888374 18/07/2016
[90114] Operator protections902
[90150] Cab 903
[90151] Cab interior 904
[90154] Cab doors and hatches 905
[90100] Engine hood and panels906
[90102] Engine shields, hood latches, and trims907
[90160] Cab interior trim and panels908

PLEASE NOTE:

• This is the SAME manual used by the dealers to troubleshoot any faults in your vehicle. This can be yours in 2 minutes after the payment is made.
• Contact us at [email protected] should you have any queries before your purchase or that you need any other service / repair / parts operators manual.
