New Holland Tractor TD4.70F, TD4.80F, TD4.90F Service Manual 47913129 – PDF DOWNLOAD

Description

New Holland Tractor TD4.70F, TD4.80F, TD4.90F Service Manual

FILE DETAILS:

New Holland Tractor TD4.70F, TD4.80F, TD4.90F Service Manual

Size: 67.2 MB
Format: PDF
Language: English
Number of Pages : 623 pages
Brand: New Holland
Type of document: Service Manual
Model: TD4.70F, TD4.80F, TD4.90F
Part No: 47913129

DESCRIPTION:

New Holland Tractor TD4.70F, TD4.80F, TD4.90F Service Manual

TO PREVENT ACCIDENTS:

Most accidents and personal injuries taking place in workshops are due from non-observance of some essential rules and safety precautions. The possibility that an accident might occur with any type of machines should not be disregarded, no matter how well the machine in question was designed and built. A wise and careful service technician is the best precautions against accidents. Careful observance of this basic precaution would be enough to avoid many severe accidents.

SAFETY RULES:
Generalities
• Carefully follow specified repair and maintenance procedures.
• Do not wear rings, wristwatches, jewels, unbuttoned or flapping clothing such as ties, torn clothes, scarves, open jackets or shirts with open zips which could get caught on moving parts. Use approved safety clothing such as anti-slipping footwear, gloves, safety goggles, helmets, etc.
• Wear safety glasses with side guards when cleaning parts using compressed air.
• Damaged or frayed wires and chains are unreliable. Do not use them for lifting or towing.
• Wear suitable protection such as approved eye protection, helmets, special clothing, gloves and footwear whenever welding. All persons standing in the vicinity of the welding process should wear approved eye protection. NEVER LOOK AT THE WELDING ARC IF YOUR EYES ARE NOT SUITABLY PROTECTED.
• Never carry out any repair on the machine if someone is sitting on the operator’s seat, except if they are qualified operators assisting in the operation to be carried out.
• Never operate the machine or use attachments from a place other than sitting at the operator’s seat or at the side of the machine when operating the fender switches.
• Never carry out any operation on the machine when the engine is running, except when specifically indicated. Stop the engine and ensure that all pressure is relieved from hydraulic circuits before removing caps, covers, valves, etc.
• All repair and maintenance operations should be carried out with the greatest care and attention.
• Disconnect the batteries and label all controls to warn that the tractor is being serviced. Block the machine and all equipment which should be raised.
• Never check or fill fuel tanks or batteries, nor use starting liquid if you are smoking or near open flames as such fluids are flammable.
• The fuel filling gun should always remain in contact with the filler neck. Maintain this contact until the fuel stops flowing into the tank to avoid possible sparks due to static electricity build-up.
• To transfer a failed tractor, use a trailer or a low loading platform trolley if available.
• To load and unload the machine from the transportation means, select a flat area providing a firm support to the trailer or truck wheels. Firmly tie the machine to the truck or trailer platform and block wheels as required by the transporter.
• Always use lifting equipment of appropriate capacity to lift or move heavy components.
• Chains should always be safely fastened. Ensure that fastening device is strong enough to hold the load foreseen. No persons should stand near the fastening point.
• The working area should be always kept CLEAN and DRY. Immediately clean any spillage of water or oil.
• Never use gasoline, diesel oil or other flammable liquids as cleaning agents. Use non-flammable non-toxic proprietary solvents.
• Do not pile up grease or oil soaked rags, as they constitute a great fire hazard. Always place them into a metal container.

TABLE OF CONTENTS:

New Holland Tractor TD4.70F, TD4.80F, TD4.90F Service Manual

INTRODUCTION
Engine 10
[10001] Engine and crankcase 101
Clutch 18
[18100] Clutch mechanical release control181
[18110] Clutch and components 182
Transmission 21
[21114] Mechanical transmission211
[21160] Creeper 212
[21162] Reverser 213
[21182] Differential 214
Four-Wheel Drive (4WD) system 23
[23202] Electro-hydraulic control231
[23304] Four-Wheel Drive (4WD) gearbox232
Front axle system 25
[25100] Powered front axle 251
[25102] Front bevel gear set and differential 252
[25108] Final drive hub, steering knuckles, and shafts 253
[25310] Final drives 254
Rear axle system 27
[27100] Powered rear axle 271
[27106] Rear bevel gear set and differential 272
Power Take-Off (PTO) 31
[31101] Rear mechanical control311
Brakes and controls 33
[33220] Trailer brake hydraulic control 331
47913129 19/12/2016
[33202] Hydraulic service brakes332
[33110] Parking brake or parking lock333
Hydraulic systems 35
[35204] Remote control valves 351
[35114] Three-point hitch control valve 352
[35322] Regulated/Low pressure system 353
Hitches, drawbars, and implement couplings 37
[37110] Rear three-point hitch 371
Steering 41
[41206] Pump411
[41216] Cylinders 412
[41200] Hydraulic control components 413
Electrical systems 55
[55518] Wiper and washer system 551
[55301] Alternator552
[55201] Engine starting system 553
[55051] Cab Heating, Ventilation, and Air-Conditioning (HVAC) controls 554
[55523] Cab hitch controls 555
[55408] Warning indicators, alarms, and instruments 556
[55302] Battery 557
[55100] Harnesses and connectors 558
Platform, cab, bodywork, and decals 90
[90154] Cab doors and hatches 901
[90151] Cab interior 902

NEW HOLLAND TRACTOR TD4.70F, TD4.80F, TD4.90F SERVICE MANUAL 47913129 – PDF DOWNLOAD:

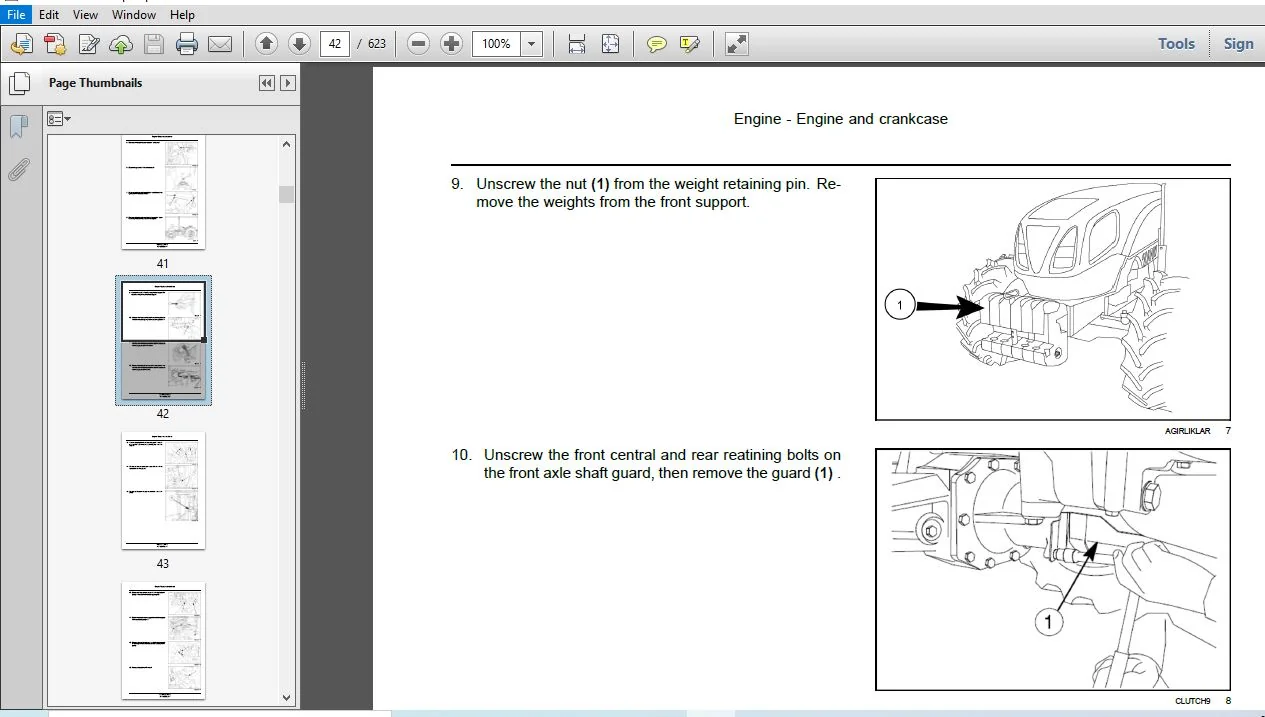

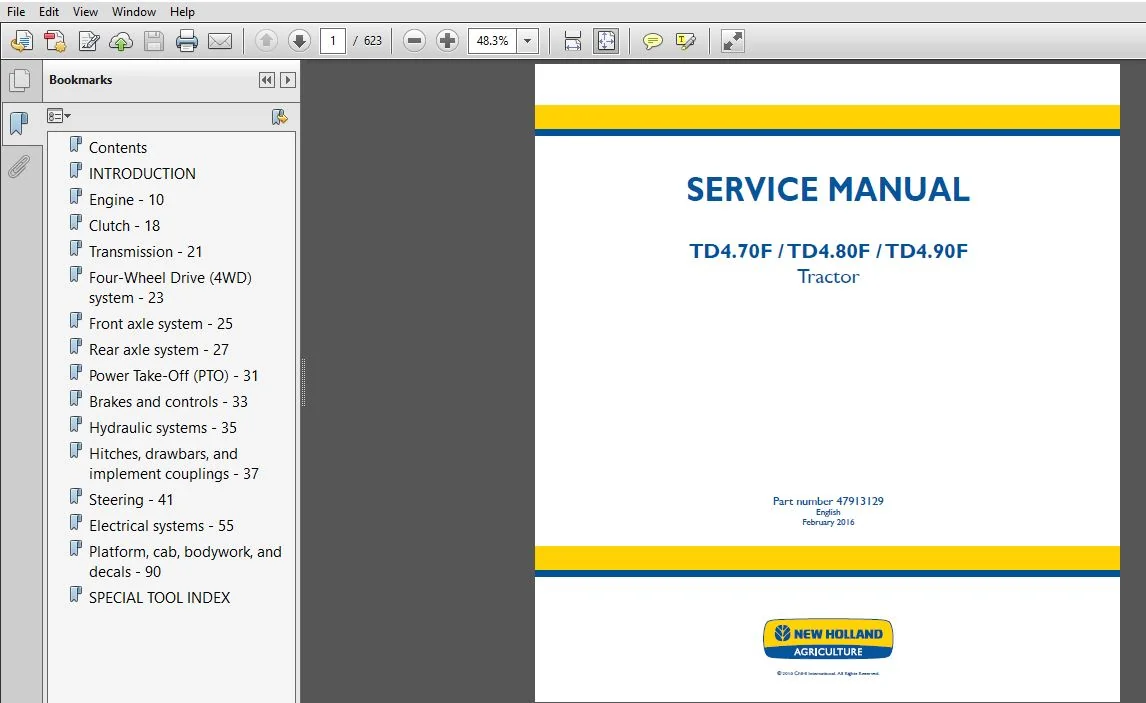

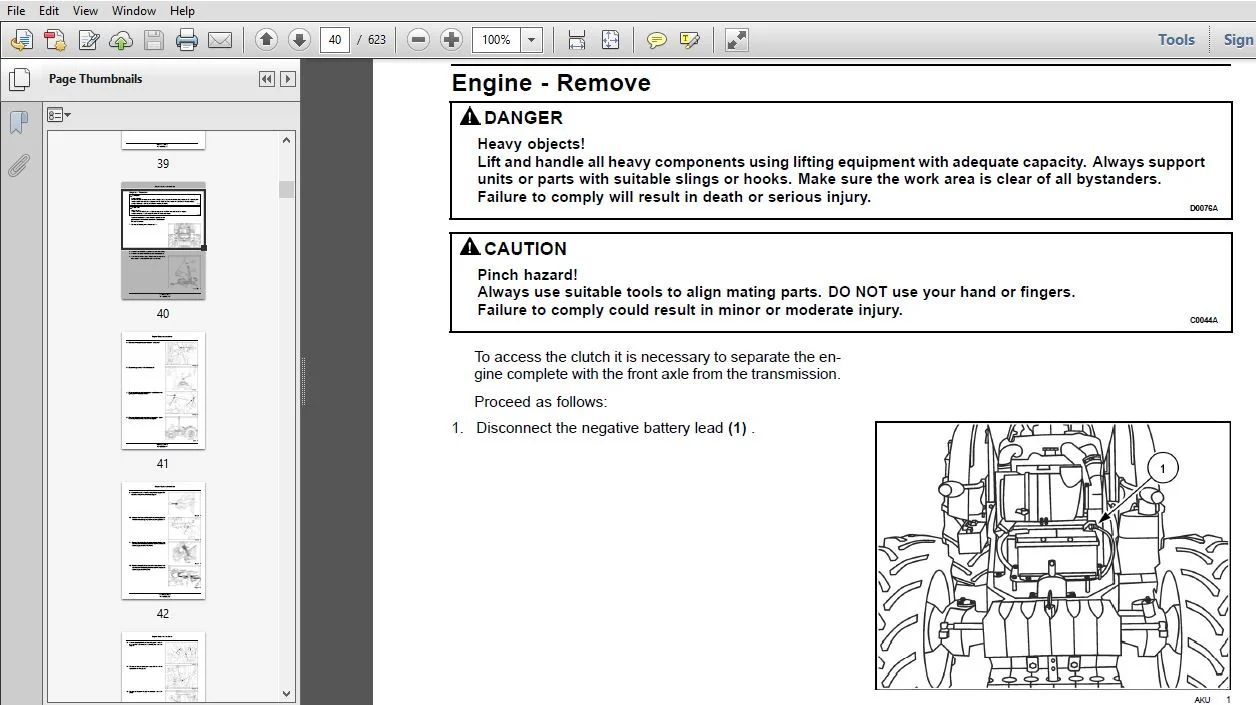

IMAGES PREVIEW OF THE MANUAL:

PLEASE NOTE:

• This is the SAME exact manual used by your dealers to fix your vehicle.
• The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
• Any queries / doubts regarding your purchase, please feel free to contact [email protected]
