New Holland Tractor TD5030, TD5040, TD5050 Service Manual 84221704 – PDF DOWNLOAD

Description

New Holland Tractor TD5030, TD5040, TD5050 Service Manual

FILE DETAILS:

New Holland Tractor TD5030, TD5040, TD5050 Service Manual

Size: 51.4 MB
Format: PDF
Language: English
Number of Pages: 774 pages
Brand: New Holland
Type of document: Service Manual
Model: TD5030, TD5050
Part No: 84221704

DESCRIPTION:

New Holland Tractor TD5030, TD5040, TD5050 Service Manual

GENERAL INSTRUCTIONS:

All maintenance and repair operations described in this manual should be carried out exclusively by the authorized workshops. All instructions detailed should be carefully observed and special equipment indicated should be used if necessary. Everyone who carries out service operations described without carefully observing these prescriptions will be directly responsible of deriving damages.
SHIMMING:
At each adjustment, select adjusting shims, measure them individually using a micrometer and then sum up recorded values. Do not rely on measuring the whole shimming set, which may be incorrect, or on the rated value indicated for each shim.
ROTATING SHAFT SEALS:
To correctly install rotating shaft seals, observe the following instructions:
• Let the seal soak into the same oil as it will seal for at least half an hour before mounting;
• Thoroughly clean the shaft and ensure that the shaft working surface is not damaged;
• Place the sealing lip towards the fluid. In case of a hydrodynamic lip, consider the shaft rotation direction and orient grooves in order that they deviate the fluid towards the inner side of the seal;
• Coat the sealing lip with a thin layer of lubricant (oil rather than grease) and fill the gap between the sealing lip and the dust lip of double lip seals with grease;
• Insert the seal into its seat and press it down using a flat punch. Do not tap the seal with a hammer or a drift;
• Take care to insert the seal perpendicularly to its seat while you are pressing it. Once the seal is settled, ensure that it contacts the thrust element, if required;
• To prevent damaging the sealing lip against the shaft, place a suitable protection during installation.

TABLE OF CONTENTS:

New Holland Tractor TD5030, TD5040, TD5050 Service Manual

• Section 00 – General
• Section 10 – Engine
• Section 18 – Clutch
• Section 21 – Transmissions
• Section 23 – Drive Lines
• Section 25 – Front Axle Mechanical Transmission
• Section 27 – Rear Axle Mechanical Transmission
• Section 31 – Power Take-Off
• Section 33 – Brakes
• Section 35 – Hydraulic System
• Section 41 – Steering
• Section 44 – Front Axle and Wheels (2WD)
• Section 50 – Cab Air Conditioning System
• Section 55 – Electrical System
• Section 90 – Platform, Cab, BodyWork and Decals

NEW HOLLAND TRACTOR TD5030, TD5040, TD5050 SERVICE MANUAL 84221704 – PDF DOWNLOAD:

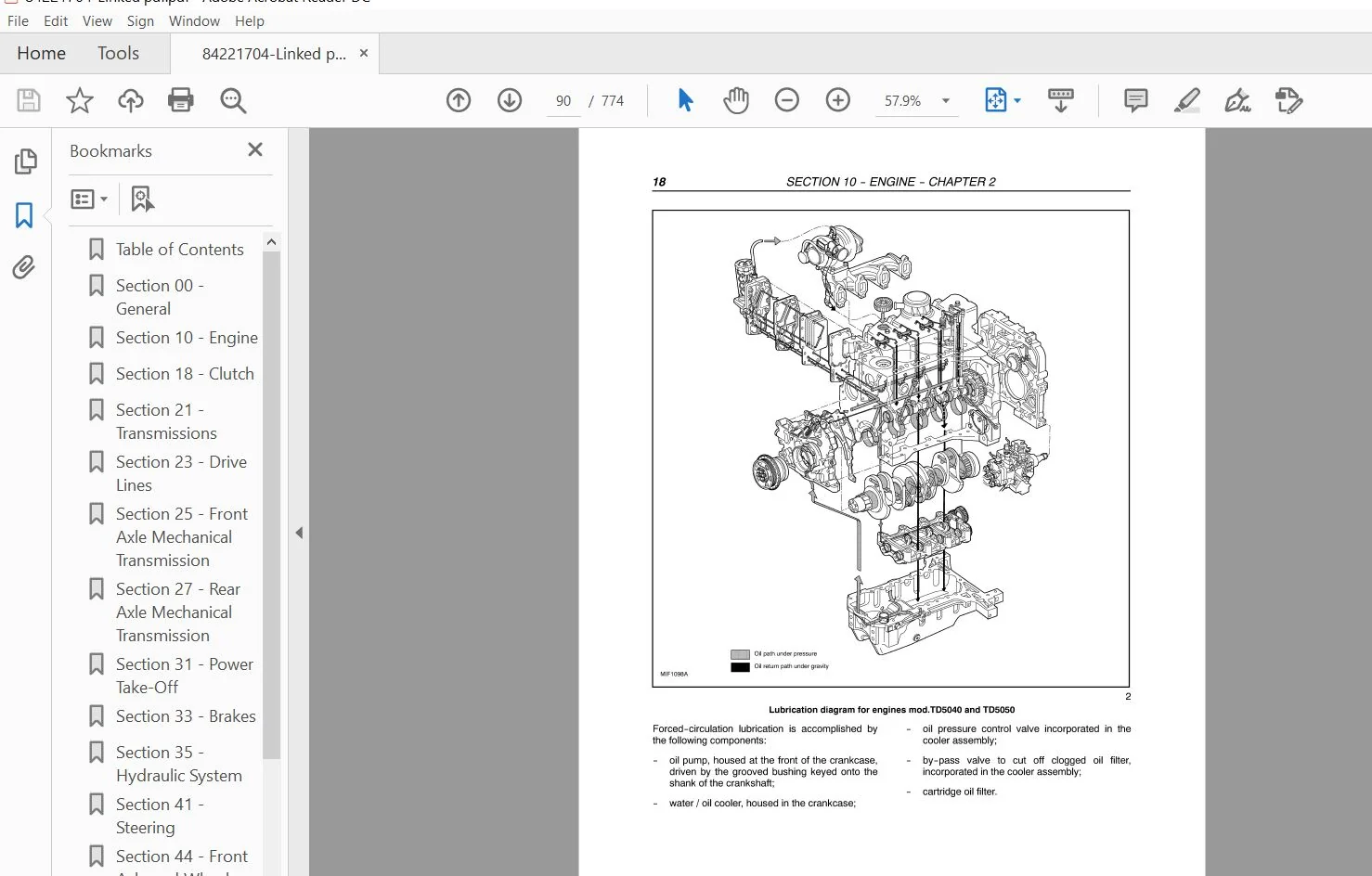

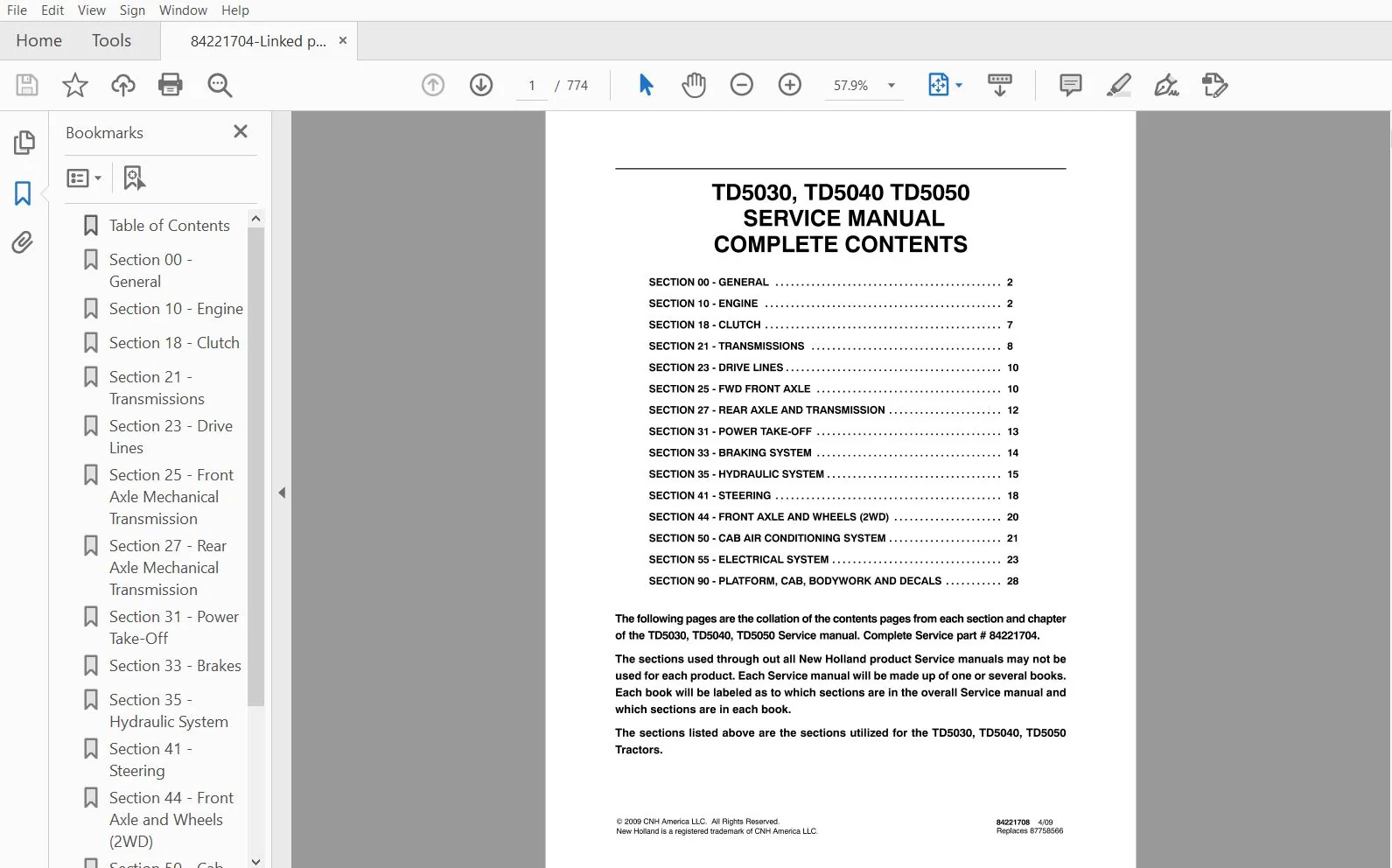

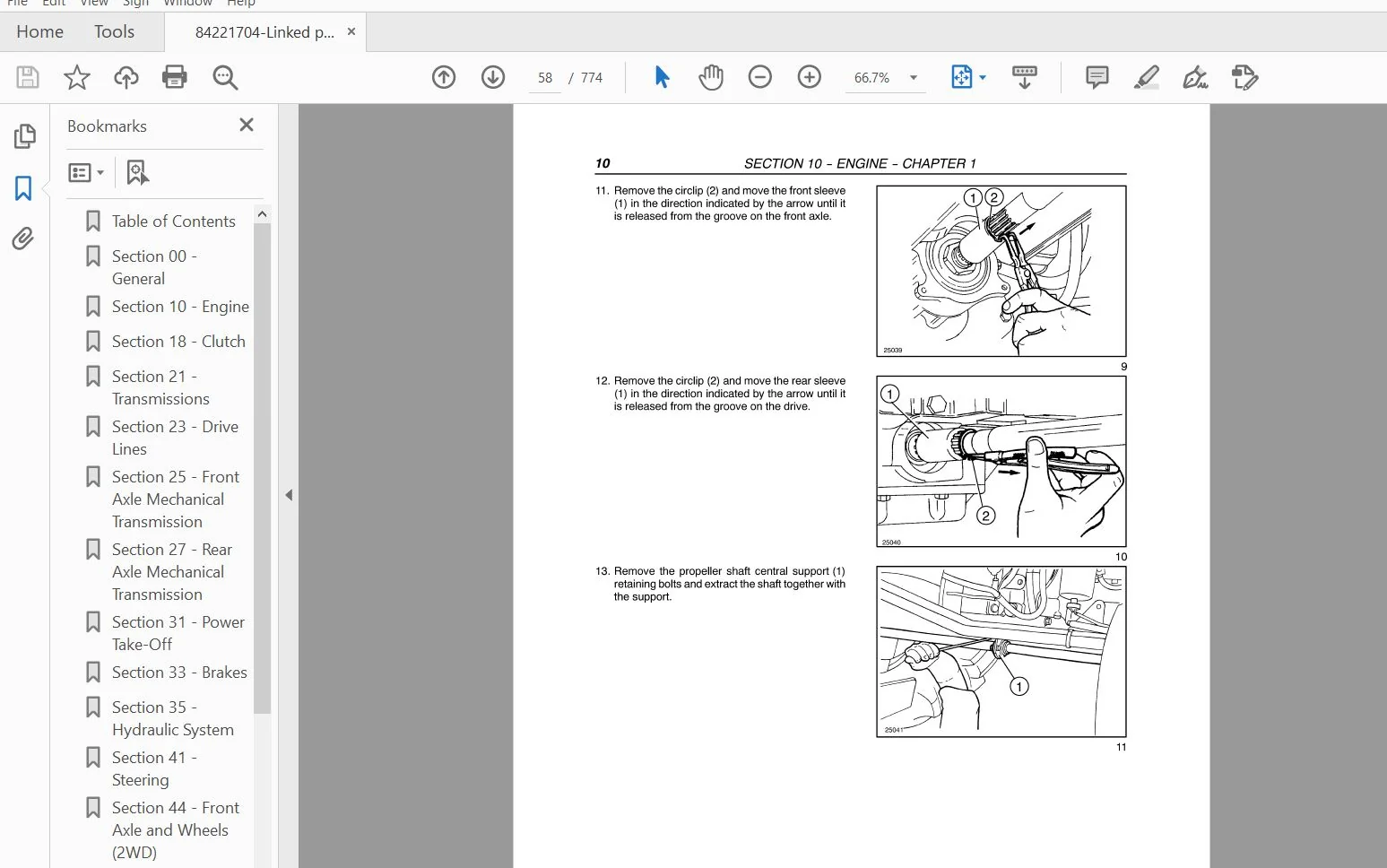

IMAGES PREVIEW OF THE MANUAL:

PLEASE NOTE:

• This is the SAME exact manual used by your dealers to fix your vehicle.
• The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
• Any queries / doubts regarding your purchase, please feel free to contact [email protected]
