New Holland Tractor TD60 TD70 TD80 TD90 TD95 Service Repair Manual 6035447100 – PDF DOWNLOAD

Description

New Holland Tractor TD60 TD70 TD80 TD90 TD95 Service Repair Manual

FILE DETAILS:

New Holland Tractor TD60 TD70 TD80 TD90 TD95 Service Repair Manual

Size: 20.3 MB
Format: PDF
Language: English
Number of Pages : 610 pages
Brand: New Holland
Type of document: Service Manual
Model: TD60 TD70 TD80 TD90 TD95
Part No: 6035447100

DESCRIPTION:

New Holland Tractor TD60 TD70 TD80 TD90 TD95 Service Repair Manual

GENERAL INFORMATION:

• IMPORTANT NOTICE All maintenance and repair operations described in this manual should be carried out exclusively by the NEW HOLLAND authorised workshops. All instructions detailed should be carefully observed and special equipment indicated should be used if necessary. Everyone who carries out service operations described without carefully observing these prescriptions will be directly responsible of deriving damages.
• SHIMMING At each adjustment, select adjusting shims, measure them individually using a micrometer and then sum up recorded values. Do not rely on measuring the whole shimming set, which may be incorrect, or on rated value indicated for each shim.
• ROTATING SHAFT SEALS To correctly install rotating shaft seals, observe the following instructions: − Let the seal soak into the same oil as it will seal for at least half an hour before mounting; − Thoroughly clean the shaft and ensure that the shaft working surface is not damaged; − Place the sealing lip towards the fluid. In case of a hydrodynamic lip, consider the shaft rotation direction and orient grooves in order that they deviate the fluid towards the inner side of the seal; − Coat the sealing lip with a thin layer of lubricant (oil rather than grease) and fill with grease the gap between the sealing lip and the dust lip of double lip seals; − Insert the seal into its seat and press it down using a flat punch. Do no tap the seal with a hammer or a drift; − Take care to insert the seal perpendicularly to its seat while you are pressing it. Once the seal is settled, ensure that it contacts the thrust element if required.; − To prevent damaging the sealing lip against the shaft, place a suitable protection during installation.
• O RINGS Lubricate the O rings before inserting them into their seats. This will prevent the O rings from rolling over and twine during mounting which will jeopardise sealing.
• SEALERS Apply one of the following sealers: RTV SILMATE, RHODORSIL CAF 1, or LOCTITE PLASTIC GASKET over the mating surfaces marked with an X. Before applying the sealer, prepare the surface as follows: − remove possible scales using a metal brush; − thoroughly degrease the surfaces using one of the following cleaning agent: trichlorethylene, petrol or a water and soda solution.
• BEARINGS It is advisable to heat the bearings to 80 to 90°C before mounting them on their shafts and cool them down before inserting them into their seats with external tapping.
• ROLL PINS When fitting straight roll pins, ensure that the pin notch is oriented in the direction of the effort to stress the pin. Coil roll pins can be installed in any position

NEW HOLLAND TRACTOR TD60 TD70 TD80 TD90 TD95 SERVICE REPAIR MANUAL 6035447100 – PDF DOWNLOAD:

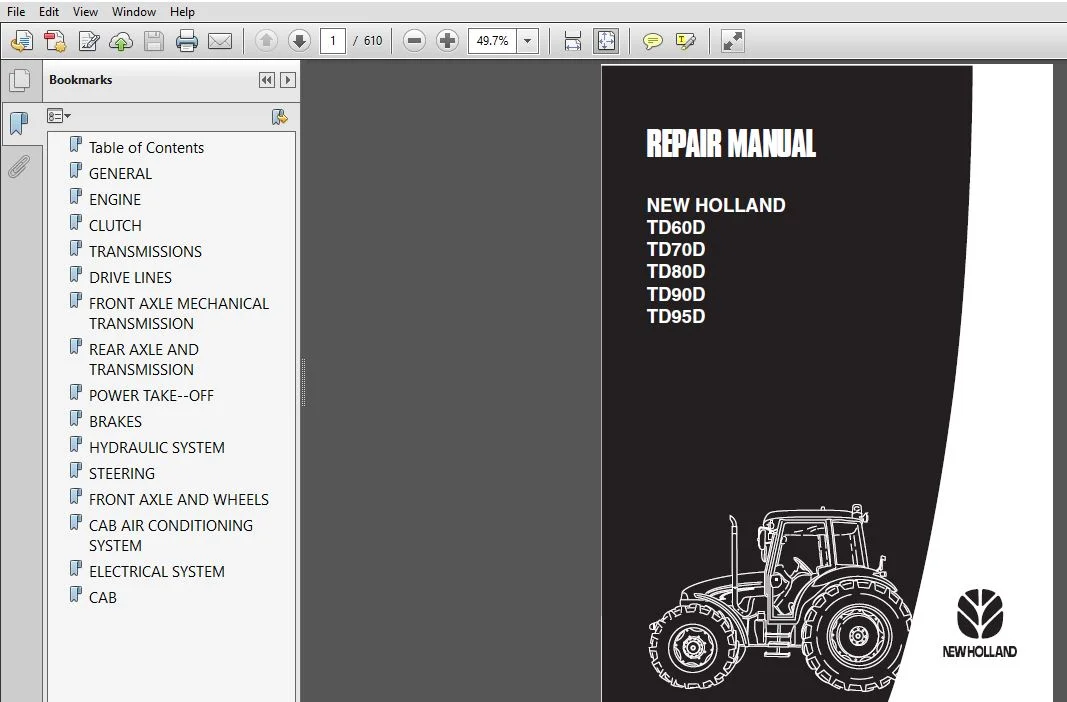

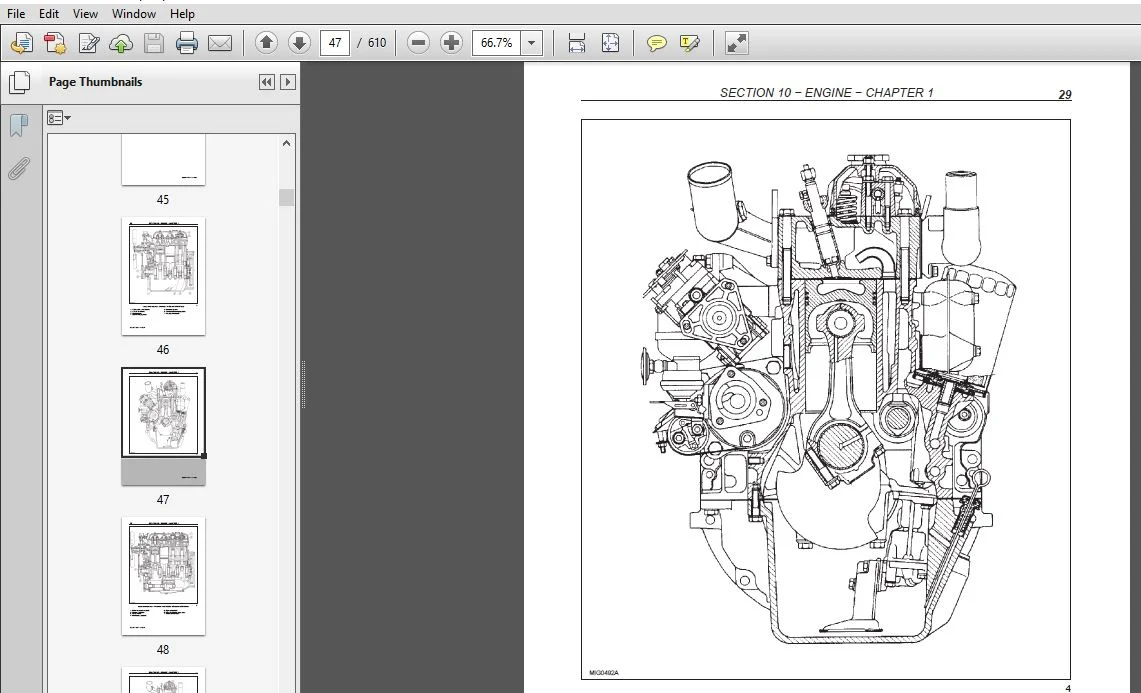

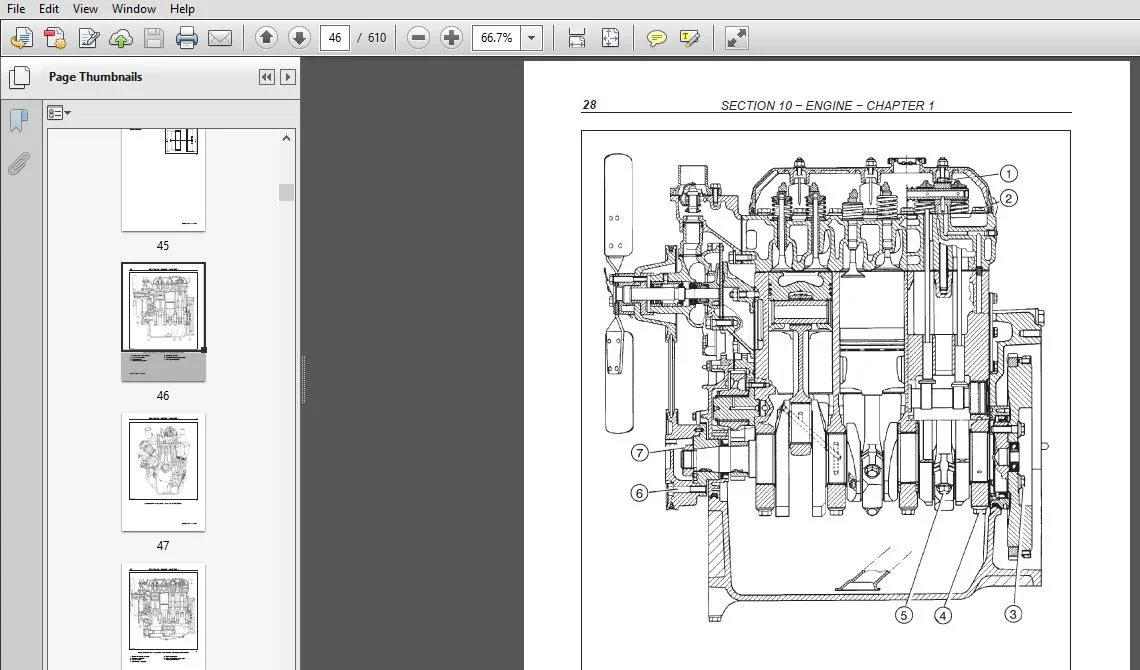

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

New Holland Tractor TD60 TD70 TD80 TD90 TD95 Service Repair Manual

Table of Contents 5
GENERAL 13
ENGINE 19
CLUTCH 149
TRANSMISSIONS 171
DRIVE LINES 201
FRONT AXLE MECHANICAL TRANSMISSION 209
REAR AXLE AND TRANSMISSION 251
POWER TAKE–OFF 299
BRAKES 321
HYDRAULIC SYSTEM 341
STEERING 401
FRONT AXLE AND WHEELS 435
CAB AIR CONDITIONING SYSTEM 451
ELECTRICAL SYSTEM 493
CAB 595
