New Holland Tractor TD80D, TD95D Repair Manual 87658943 – PDF DOWNLOAD

Description

New Holland Tractor TD80D, TD95D Repair Manual

FILE DETAILS:

New Holland Tractor TD80D, TD95D Repair Manual

Size: 32.3 MB
Format: PDF
Language: English
Number of Pages: 702
Brand: New Holland
Type of Machine: Tractor
Type of document: Repair Manual
Model: TD80D, TD95D

NEW HOLLAND TRACTOR TD80D, TD95D REPAIR MANUAL 87658943 – PDF DOWNLOAD:

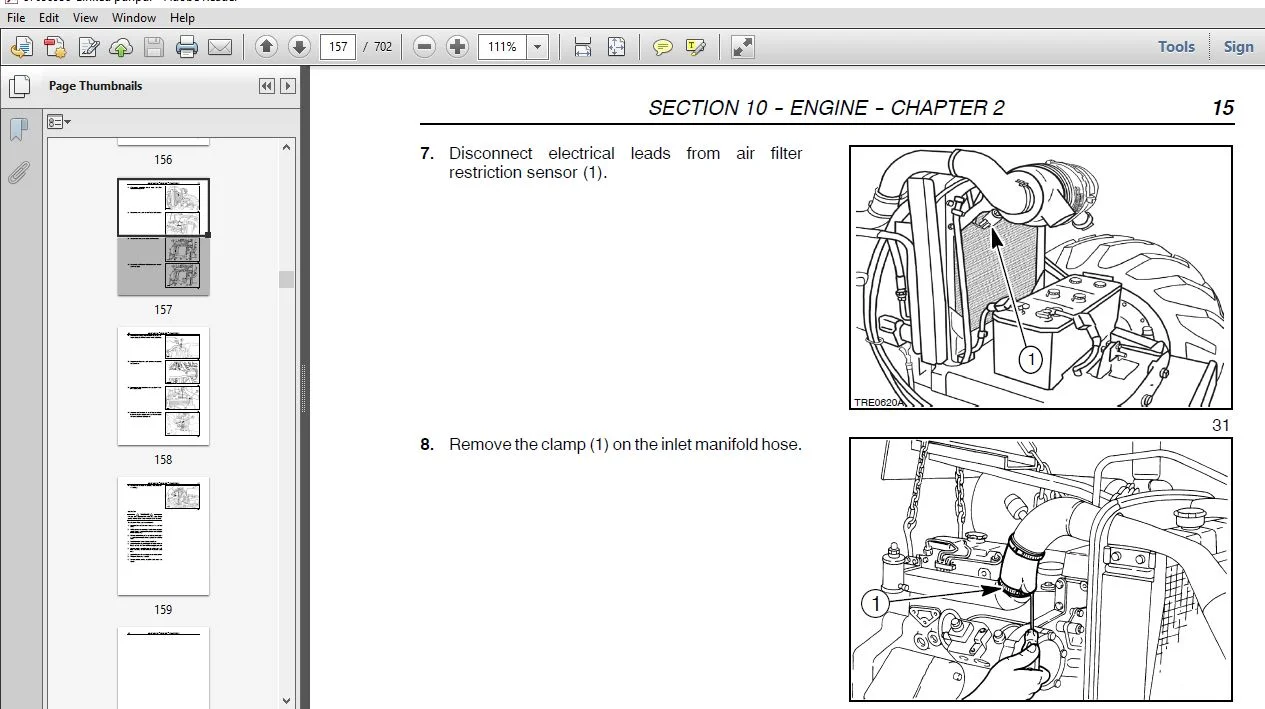

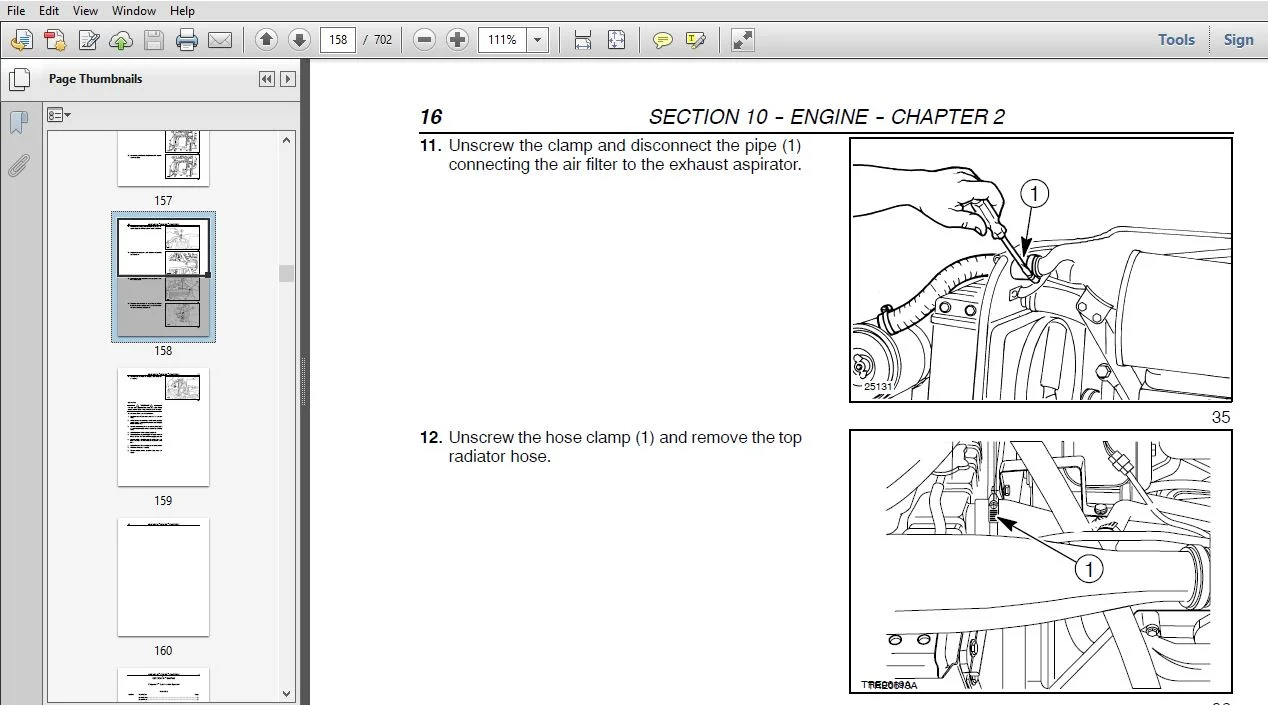

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

New Holland Tractor TD80D, TD95D Repair Manual

GENERAL INSTRUCTION:

IMPORTANT NOTICE:

All maintenance and repair operations described in this manual should be carried out exclusively by the authorized workshops. All instructions detailed should be carefully observed and special equipment indicated should be used if necessary. Everyone who carries out service operations described without carefully observing these directives will be directly responsible for resulting consequences.

SHIMMING:

At each adjustment, select adjusting shims, measure them individually using a micrometer and then sum up recorded values. Do not rely on measuring the whole shimming set, which may be incorrect, or on the rated value indicated for each shim.

ROTATING SHAFT SEALS:

To correctly install rotating shaft seals, observe the following instructions:
• Let the seal soak into the same oil as it will seal for at least half an hour before mounting;
• Thoroughly clean the shaft and ensure that the shaft working surface is not damaged;
• Place the sealing lip towards the fluid. In case of a hydrodynamic lip, consider the shaft rotation direction and orient grooves in order that they
deviate the fluid towards the inner side of the seal;
• Coat the sealing lip with a thin layer of lubricant (oil rather than grease) and fill the gap between the sealing lip and the dust lip of double lip seals
with grease;
• Insert the seal into its seat and press it down using a flat punch. Do not tap the seal with a hammer or a drift;

TABLE OF CONTENTS:

New Holland Tractor TD80D, TD95D Repair Manual

SECTION 00 – GENERAL 2
SECTION 10 – ENGINE 2
SECTION 18 – CLUTCH 7
SECTION 21 – FRONT TRANSMISSION 8
SECTION 23 – FWD TRANSFER BOX 10
SECTION 25 – MFD AXLE 11
SECTION 27 – REAR TRANSMISSION 12
SECTION 31 – POWER TAKE-OFF 13
SECTION 33 – BRAKES 14
SECTION 35 – HYDRAULIC SYSTEMS 15
SECTION 41 – STEERING 18
SECTION 44 – FRONT AXLE AND WHEELS (2WD) 19
SECTION 55 – ELECTRICAL SYSTEM 19
SECTION 90 – PLATFORM, CAB, BODYWORK AND DECALS 25
