New Holland Tractor TD95D HC Service Manual 48013264 – PDF DOWNLOAD

Description

New Holland Tractor TD95D HC Service Manual

FILE DETAILS:

New Holland Tractor TD95D HC Service Manual

Size: 58.6 MB
Format: PDF
Language: English
Number of Pages : 759 pages
Brand: New Holland
Type of document: Service Manual
Model: TD95D HC Tractor
Part No: 48013264

DESCRIPTION:

New Holland Tractor TD95D HC Service Manual

Note to the Owner:
General instructions
Important notice
All maintenance and repair operations described in this manual should be carried out exclusively by the NEW HOLLAND authorised workshops. All instructions detailed should be carefully observed and special equipment indicated should be used if necessary. Everyone who carries out service operations described without carefully observing these prescriptions will be directly responsible of deriving damages.
Shimming:
At each adjustment, select adjusting shims, measure them individually using a micrometer and then sum up recorded values. Do not rely on measuring the whole shimming set, which may be incorrect, or on rated value indicated for each shim.
Rotating shaft seals:
To correctly install rotating shaft seals, observe the following instructions:
• Let the seal soak into the same oil as it will seal for at least half an hour before mounting.
• Thoroughly clean the shaft and ensure that the shaft working surface is not damaged.
• Place the sealing lip towards the fluid. In case of a hydrodynamic lip, consider the shaft rotation direction and orient grooves in order that they deviate the fluid towards the inner side of the seal.
• Coat the sealing lip with a thin layer of lubricant (oil rather than grease) and fill with grease the gap between the sealing lip and the dust lip of double lip seals.
• Insert the seal into its seat and press it down using a flat punch. Do no tap the seal with a hammer or a drift.
• Take care to insert the seal perpendicularly to its seat while you are pressing it. Once the seal is settled, ensure that it contacts the thrust element if required.
• To prevent damaging the sealing lip against the shaft, place a suitable protection during installation.
O-rings:
Lubricate the O-rings before inserting them into their seats. This will prevent the O-rings from rolling over and twine during mounting which will jeopardise sealing.
Sealers:
Apply one of the following sealers: RTV SILMATE, RHODORSIL CAF 1, or LOCTITE® PIASTIC GASKET over the mating surfaces marked with an X.
Before applying the sealer, prepare the surface as follows:
• Remove possible scales using a metal brush.
• Thoroughly degrease the surfaces using one of the following cleaning agent: trichlorethylene, petrol or a water and soda solution.

TABLE OF CONTENTS:

New Holland Tractor TD95D HC Service Manual

INTRODUCTION
Engine 10
[10001] Engine and crankcase 101
Clutch 18
[18110] Clutch and components 181
Transmission 21
[21114] Mechanical transmission211
[21140] Mechanical transmission internal components 212
[21120] Gearbox 213
[21160] Creeper 214
[21162] Reverser215
Four-Wheel Drive (4WD) system 23
[23304] Four-Wheel Drive (4WD) gearbox 231
Front axle system 25
[25100] Powered front axle 251
[25102] Front bevel gear set and differential252
[25108] Final drive hub, steering knuckles, and shafts 253
Rear axle system 27
[27100] Powered rear axle 271
[27106] Rear bevel gear set and differential 272
[27124] Final drive hub, steering knuckles, and shafts 273
Power Take-Off (PTO) 31
[31101] Rear mechanical control311
Brakes and controls 33
[33AAA] Brakes and controls generic sub-group331
[33202] Hydraulic service brakes332
48013264 19/11/2016
[33110] Parking brake or parking lock 333
[33220] Trailer brake hydraulic control 334
Hydraulic systems 35
[35000] Hydraulic systems 351
[35350] Safety and main relief valves 352
[35525] Auxiliary hydraulic valves and lines 353
Steering 41
[41200] Hydraulic control components 411
[41206] Pump412
[41216] Cylinders413
Wheels 44
[44511] Front wheels441
Cab climate control 50
[50100] Heating 501
[50200] Air conditioning 502
Electrical systems 55
[55000] Electrical system551
[55100] Harnesses and connectors 552
[55201] Engine starting system 553
[55301] Alternator 554
[55302] Battery 555
[55512] Cab controls556
[55518] Wiper and washer system 557
[55408] Warning indicators, alarms, and instruments 558
Platform, cab, bodywork, and decals 90
[90150] Cab 901
[90154] Cab doors and hatches 902
[90105] Machine shields and guards903

NEW HOLLAND TRACTOR TD95D HC SERVICE MANUAL 48013264 – PDF DOWNLOAD:

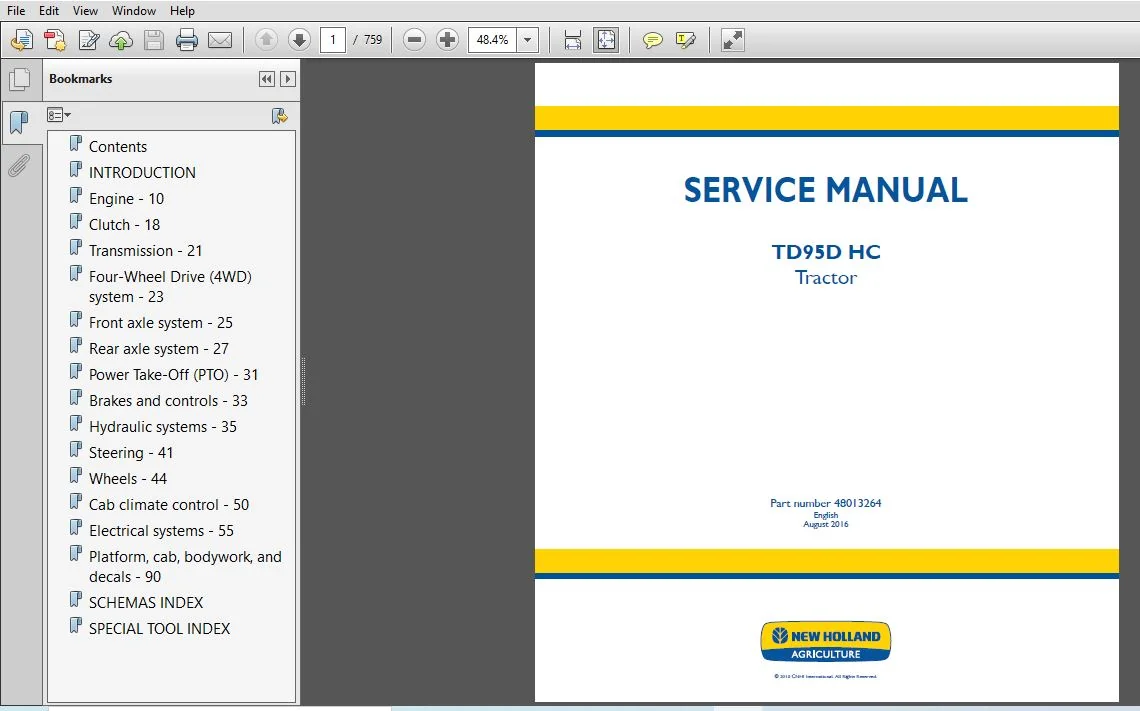

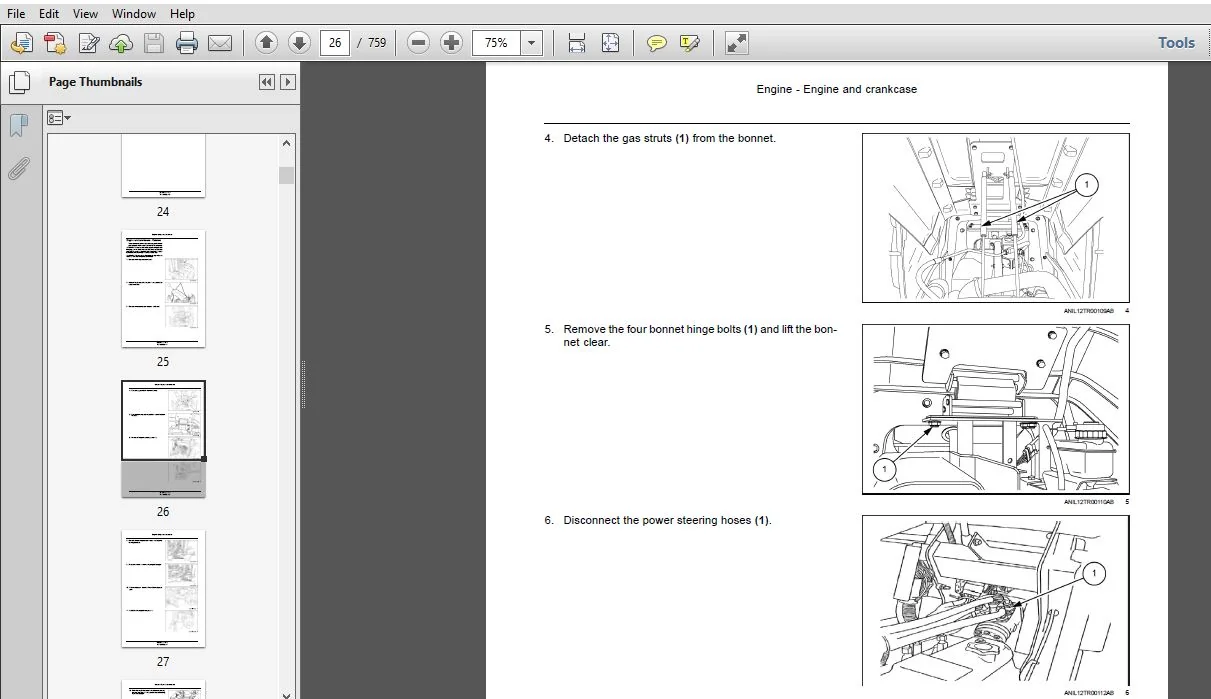

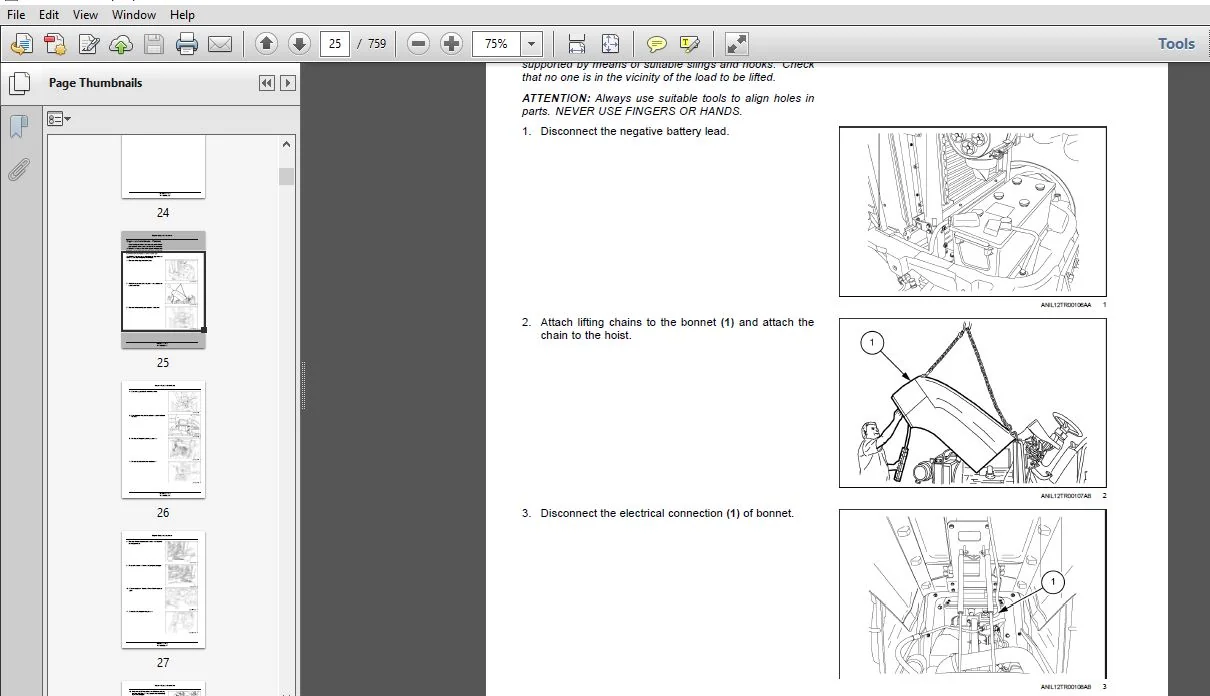

IMAGES PREVIEW OF THE MANUAL:
