New Holland Tractor TK4030V, TK4050, TK4050M, TK4060 Service Manual 47830956 – PDF DOWNLOAD

Description

New Holland Tractor TK4030V, TK4050, TK4050M, TK4060 Service Manual

FILE DETAILS:

New Holland Tractor TK4030V, TK4050, TK4050M, TK4060 Service Manual

Size: 56.3 MB
Format: PDF
Language: English
Number of Pages : 915 pages
Brand: New Holland
Type of document: Service Manual
Model: TK4030V, TK4050, TK4050M, TK4060
Part No: 47830956

DESCRIPTION:

New Holland Tractor TK4030V, TK4050, TK4050M, TK4060 Service Manual

To prevent accidents:

Most accidents or injuries that occur in workshops are the result of non-observance of simple and fundamental safety regulations. For this reason, in most cases these accidents can be avoided: by foreseeing possible causes and consequently acting with the necessary caution and care. Accidents may occur with all types of vehicle, regardless of how well it was designed and built. A careful and judicious service technician is the best guarantee against accidents. Precise observance of the most basic safety rule is normally sufficient to avoid many serious accidents. “DANGER” – Never carry out any cleaning, lubrication or maintenance operations when the engine is running.

GENERAL:

Carefully follow specified repair and maintenance procedures.
• Do not wear rings, wrist watches, jewelry, unbuttoned or loose articles of clothing such as: ties, torn clothing, scarves, open jackets or shirts with open zips which may remain entangled in moving parts. We advise to use approved safety clothing such as anti-slipping footwear, gloves, safety goggles, helmets, etc.
• Never carry out any repair on the machine if someone is sitting on the operator’s seat, except if they are certified
operators to assist in the operation to be carried out.
• Never operate the machine or use attachments from a place other than sitting at the operator’s seat.
• Never carry out any operation on the machine when the engine is running, except when specifically indicated.
• Stop the engine and ensure that all pressure is relieved from hydraulic circuits before removing caps, covers, valves, etc.
• All repair and maintenance operations must be carried out using extreme care and attention.
• Service steps and platforms used in a workshop or in the field should be built in compliance with the safety rules in force.
• Disconnect the batteries and label all controls to indicate that the vehicle is being serviced. Block the machine and all equipment which should be raised.
• Never check or fill fuel tanks or batteries, nor use starting liquid if you are smoking or near open flames as such fluids are flammable.
• Brakes are inoperative when they are manually released for maintenance purposes. In such cases, the machine should be kept constantly under control using blocks or similar devices.
• The fuel filling gun should always remain in contact with the filler neck. Maintain this contact until the fuel stops flowing into the tank to avoid possible sparks due to static electricity build-up.
• Use exclusively specified towing points for towing the tractor. Connect parts carefully. Ensure that foreseen pins and/or locks are steadily fixed before applying traction. Do not stop near towing bars, cables or chains working under load.
• To transfer a failed tractor, use a trailer or a low loading platform trolley if available.
• To load and unload the machine from the transportation means, select a flat area providing a firm support to the trailer or truck wheels. Firmly tie the machine to the truck or trailer platform and block wheels as required by the forwarder.
• For electrical heaters, battery-chargers and similar equipment use exclusive auxiliary power supplies with a efficient ground to avoid electrical shock hazard.
• Always use lifting equipment of appropriate capacity to lift or move heavy components.
• Pay special attention to bystanders.
• Never pour gasoline or diesel oil into open, wide and low containers.
• Never use petrol, diesel oil or other inflammable liquids as cleaning agents. Use non-flammable non-toxic proprietary solvents.
• Wear safety glasses with side guards when cleaning parts using compressed air.
• Do not exceed a pressure of 2.1 bar, in accordance with local regulations.
• Do not run the engine in a closed building without proper ventilation.
• Do not smoke, use naked flames, or cause sparks in the area when fuel filling or handling highly inflammable liquids.
• Do not use flames as light sources when working on a machine or checking for leaks.
• Move with caution when working under a tractor, and also on or near a tractor. Wear proper safety accessories:
helmets, goggles and special footwear.
• During checks which should be carried out with the engine running, ask an assistant to seat at the operator’s seat
and keep the service technician under visual control at any moment.
• In case of operations outside the workshop, drive the tractor to a flat area and block it. If working on an incline cannot be avoided, first block the tractor carefully. Move it to a flat area as soon as possible with a certain extent of safety.
• Ruined or plied cables and chains are unreliable. Do not use them for lifting or trailing. Always handle them wearing gloves of proper thickness.
• Chains should always be safely fastened. Ensure that fastening device is strong enough to hold the load foreseen. No persons should stop near the fastening point, trailing chains or cables.
• The working area should be always kept CLEAN and DRY. Immediately clean any spillage of water or oil.
• Do not pile up grease or oil soaked rags, as they constitute a great fire hazard. Always place them into a metal container. Before starting the tractor or its attachments, check, adjust and block the operator’s seat. Also ensure that there are no persons within the tractor or attachment operating range.
• Do not keep in your pockets any object which might fall unobserved into the tractor’s inner compartments.
• Whenever there is the possibility of being reached by ejected metal parts or similar, use protection eye mask or goggles with side guards, helmets, special footwear and heavy gloves.
• Wear suitable protection such as tinted eye protection, helmets, special clothing, gloves and footwear whenever it is necessary to carry out welding procedures. All persons standing in the vicinity of the welding process should wear tinted eye protection. NEVER LOOK AT THE WELDING ARC IF YOUR EYES ARE NOT SUITABLY PROTECTED.
• Metal cables with the use get frayed. Always wear adequate protections (heavy gloves, eye protection, etc.)
• Handle all parts with the greatest caution. Keep your hands and fingers far from gaps, moving gears and similar. Always use approved protective equipment, such as eye protection, heavy gloves and protective footwear.

Start up:
• Never run the engine in confined spaces that are not equipped with adequate ventilation for exhaust gas extraction.
• Never place the head, body, limbs, feet, hands or fingers near fans or rotating belts.

Engine:
• Always loosen the radiator cap very slowly before removing it to allow pressure in the system to dissipate. Coolant should be topped up only when the engine is stopped or idle if hot.
• Do not fill up fuel tank when the engine is running, mainly if it is hot, to avoid ignition of fires in case of fuel spilling.
• Never check or adjust fan belt tension when the engine is running. Never adjust the fuel injection pump when the tractor is moving.
• Never lubricate the tractor when the engine is running.

TABLE OF CONTENTS:

New Holland Tractor TK4030V, TK4050, TK4050M, TK4060 Service Manual

INTRODUCTION
Engine 10
[10001] Engine and crankcase 101
[10216] Fuel tanks 102
[10400] Engine cooling system 103
Clutch 18
[18104] Clutch hydraulic release control181
[18100] Clutch mechanical release control 182
[18110] Clutch and components 183
Transmission 21
[21114] Mechanical transmission211
[21118] Transmission/Rear drive212
[21140] Mechanical transmission internal components 213
[21148] Transmission/Rear drive internal components 214
[21160] Creeper 215
[21162] Reverser216
Rear axle system 27
[27100] Powered rear axle 271
[27126] Spur gear and final drives 272
Power Take-Off (PTO) 31
[31114] Two-speed rear Power Take-Off (PTO) 311
Brakes and controls 33
[33120] Mechanical service brakes 331
[33202] Hydraulic service brakes332
Hydraulic systems 35
[35114] Three-point hitch control valve 351
47830956 26/03/2015
[35322] Regulated/Low pressure system352
[35204] Remote control valves 353
Steering clutches 46
[46110] Steering clutch 461
Tracks and track suspension 48
[48130] Track frame and driving wheels 481
[48100] Tracks 482
[48110] Front suspension483
[48114] Rear suspension484
[48134] Track tension units 485
[48138] Track rollers 486
Electrical systems 55
[55100] Harnesses and connectors 551
[55201] Engine starting system 552
[55301] Alternator 553
[55302] Battery 554
[55640] Electronic modules 555
[55404] External lighting 556
[55408] Warning indicators, alarms, and instruments 557
[55DTC] FAULT CODES558
Platform, cab, bodywork, and decals 90
[90150] Cab 901

NEW HOLLAND TRACTOR TK4030V, TK4050, TK4050M, TK4060 SERVICE MANUAL 47830956 – PDF DOWNLOAD:

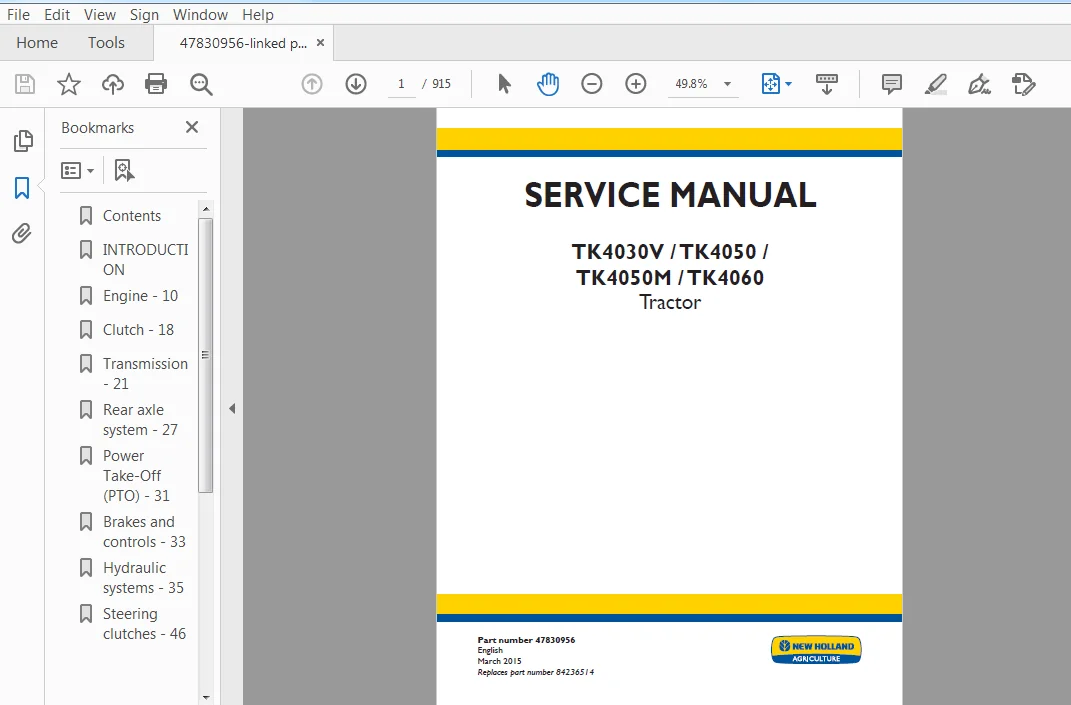

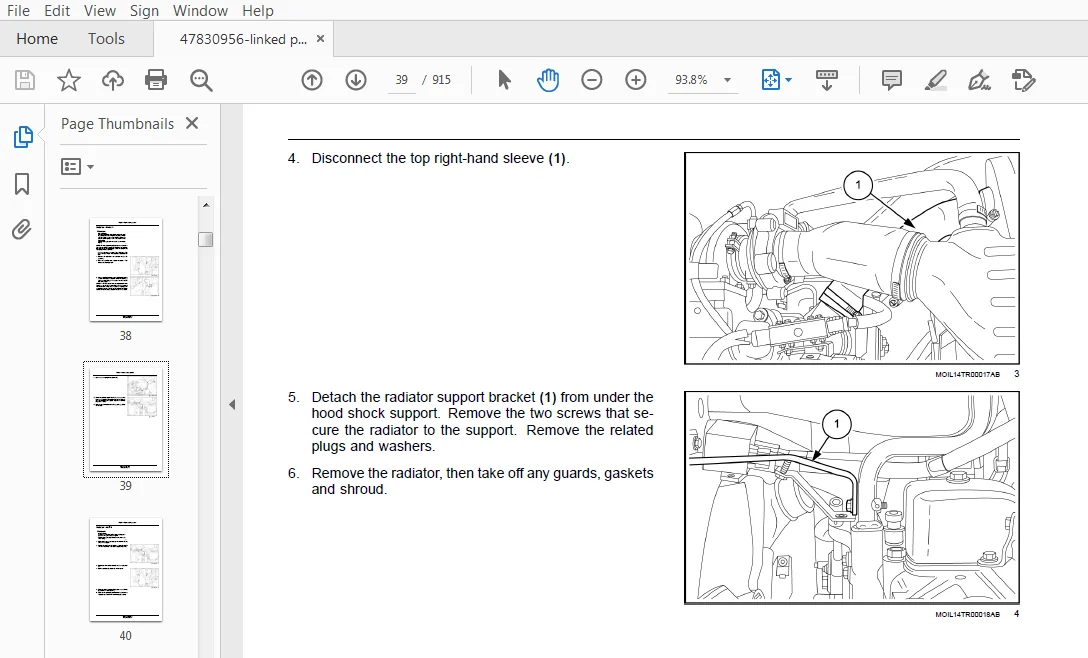

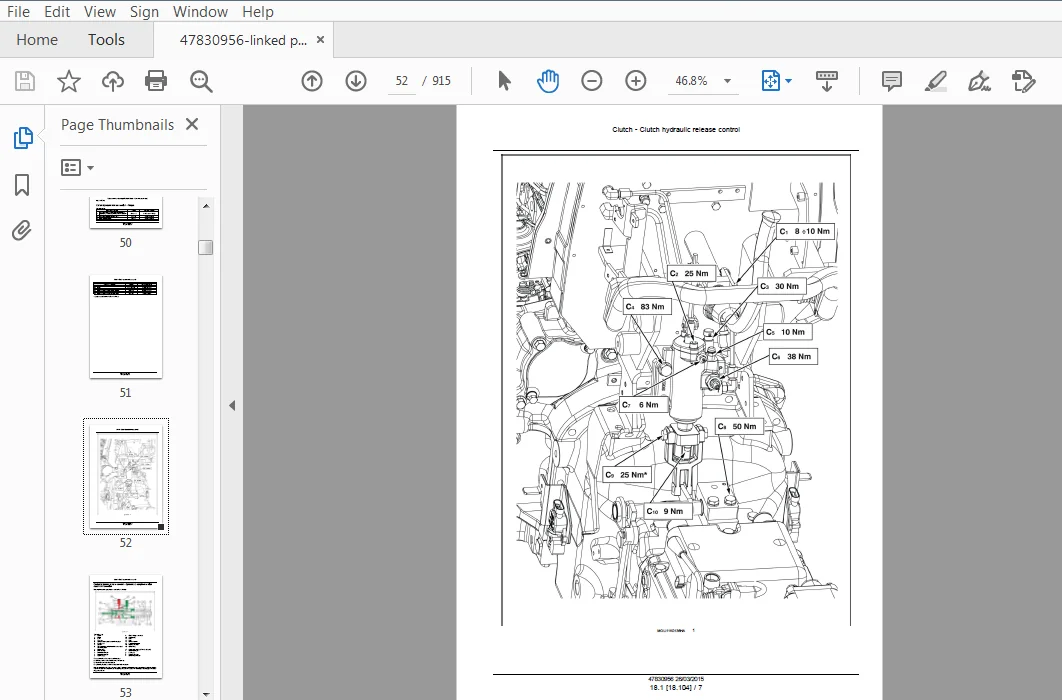

IMAGES PREVIEW OF THE MANUAL:

PLEASE NOTE:

• This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
• You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
• Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted
