New Holland Tractor TL70 TL80 TL90 TL100 Service Repair Manual (87043516) – NH TL70 TL80 TL90 TL100 – PDF Download

Description

New Holland Tractor TL70 TL80 TL90 TL100 Service Repair Manual (87043516) – NH TL70 TL80 TL90 TL100

File Details:

New Holland Tractor TL100, TL70, TL80, TL90 Repair Manual_87043516
Size: 74.6 MB
Format: PDF
Language: English
Number of Pages: 1686 pages
Brand: New Holland
Type of machine: Tractor
Type of document: Repair Manual
Model: TL100, TL70, TL80, TL90
Part No: 87043516

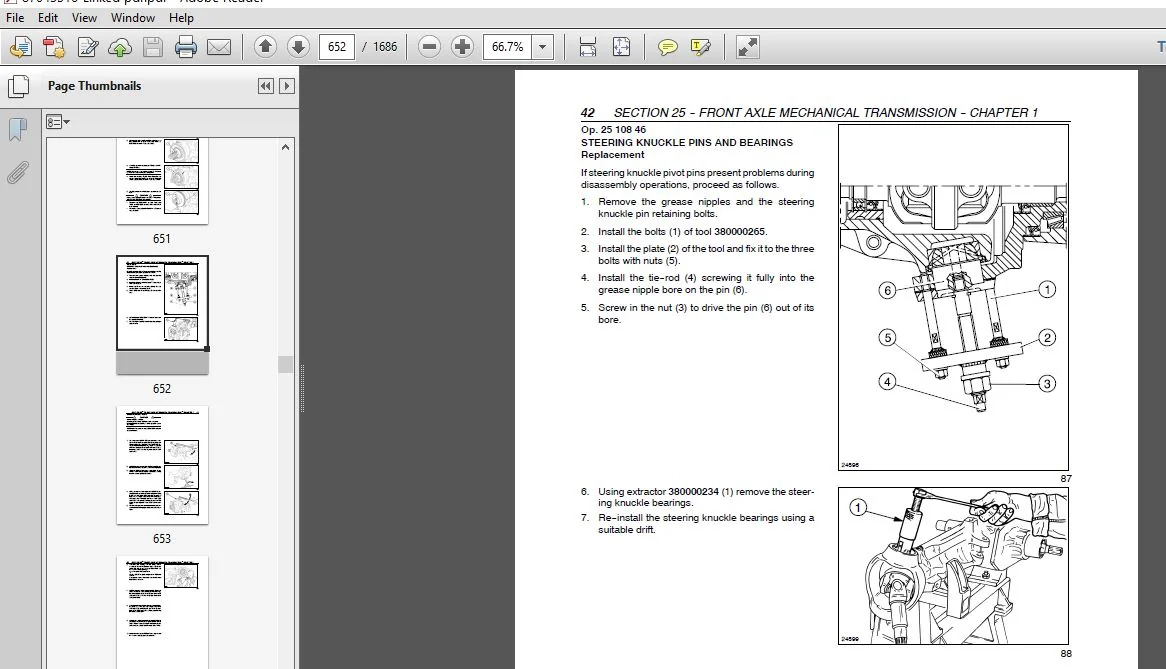

Image Preview:

NEW HOLLAND TRACTOR TL70 TL80 TL90 TL100 SERVICE REPAIR MANUAL (87043516) – NH TL70 TL80 TL90 TL100 – PDF DOWNLOAD:

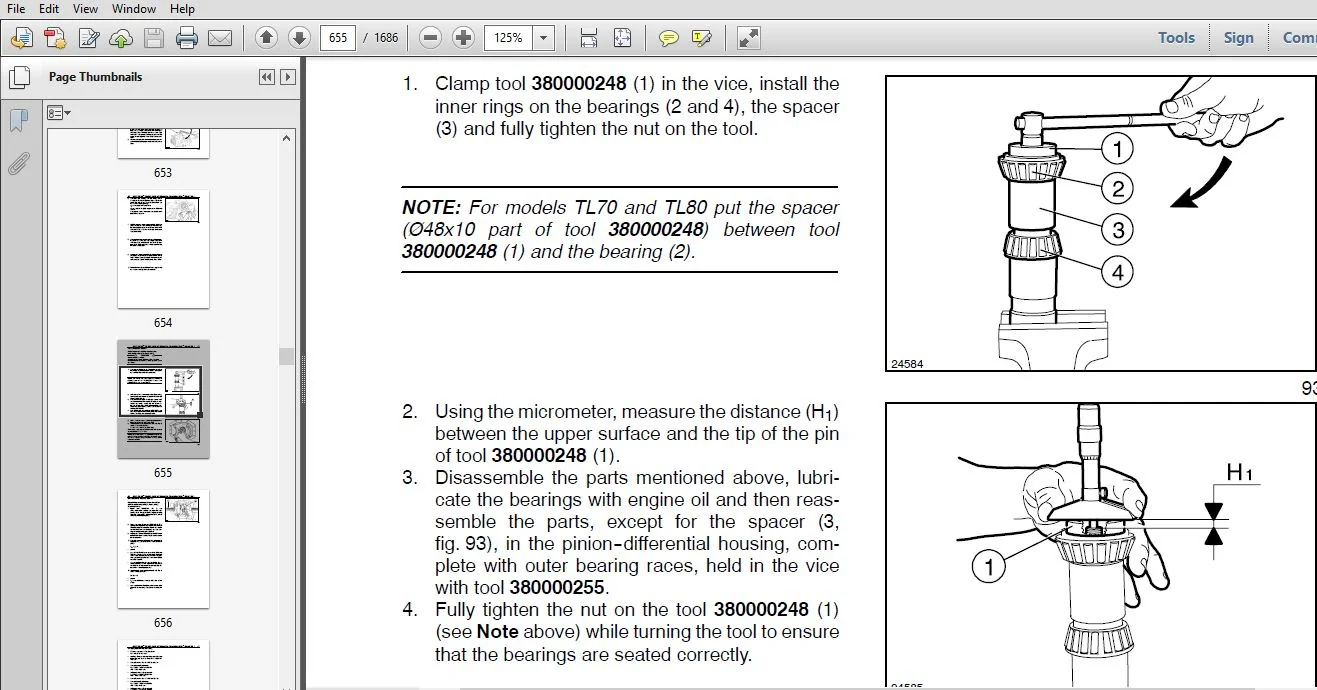

Sample Page From the Manual:

New Holland Tractor TL70 TL80 TL90 TL100 Service Repair Manual (87043516) – NH TL70 TL80 TL90 TL100

— Carefully follow specified repair and maintenance procedures.
— Do not wear rings, wristwatches, jewellery, unbuttoned or loose articles of clothing such as: ties, torn clothing, scarves, open jackets or shirts with open zips that may remain entangled in moving parts. It is advised to wear approved safety clothing, e.g.: non–slip footwear, gloves, safety goggles, helmets, etc.
— Do not carry out repair operations with someone sitting in the driver’s seat, unless the person is a trained technician who is assisting with the operation in question.
— Operate the vehicle and use the implements exclusively from the driver’s seat.
— Do not carry out operations on the vehicle with the engine running, unless specifically indicated.
— Stop the engine and check that the hydraulic circuits are pressure–free before removing caps, covers, valves, etc.
— All repair and maintenance operations must be carried out using extreme care and attention.
— Service steps and platforms used in a workshop or in the field should be built in compliance with the safety rules in force.
— Disconnect the batteries and label all controls to indicate that the vehicle is being serviced. Any parts that are to be raisedmust be locked in position.
— Do not check or fill fuel tanks, accumulator batteries, nor use starting liquid when smoking or near naked flames, as these fluids are inflammable.
— Brakes are inoperative if manually released for repair or maintenance purposes. Use blocks or similar devices to secure the machine in these conditions.
— The fuel nozzle should always be in contact with the filling aperture. Maintain this position until filling operations are completed in order to avoid possible sparks caused by the accumulation of static electricity.

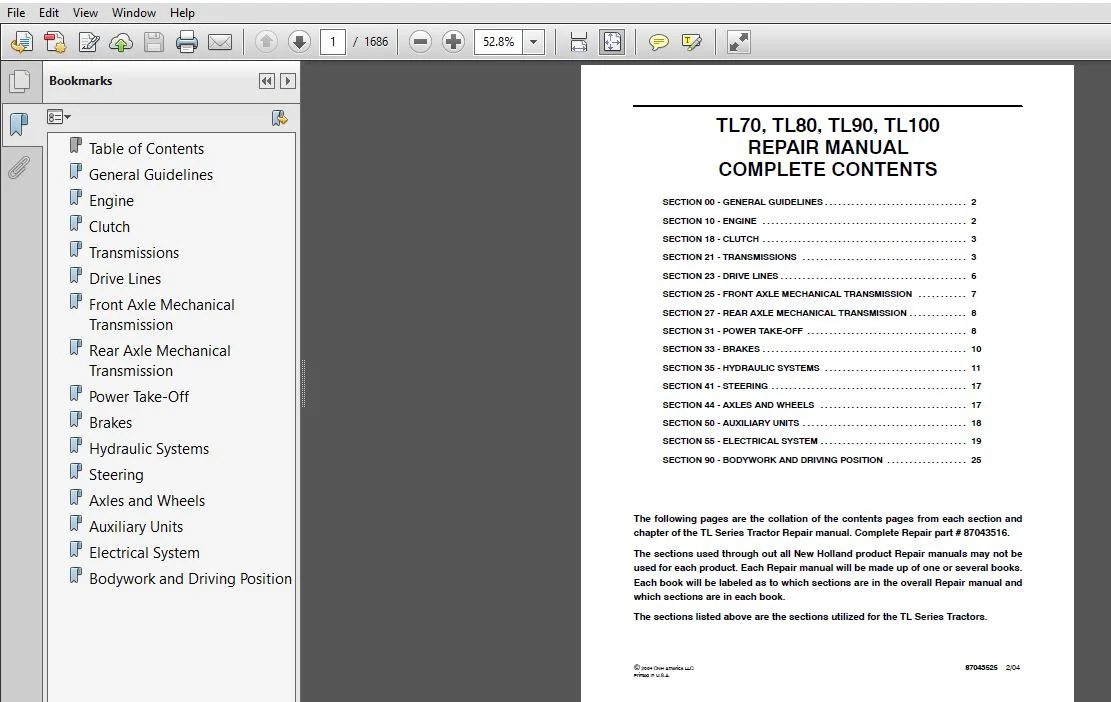

Table Of Contents:

New Holland Tractor TL70 TL80 TL90 TL100 Service Repair Manual (87043516) – NH TL70 TL80 TL90 TL100

SECTION 00 – GENERAL GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
SECTION 10 – ENGINE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
SECTION 18 – CLUTCH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
SECTION 21 – TRANSMISSIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
SECTION 23 – DRIVE LINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
SECTION 25 – FRONT AXLE MECHANICAL TRANSMISSION . . . . . . . . . . . 7
SECTION 27 – REAR AXLE MECHANICAL TRANSMISSION . . . . . . . . . . . . . 8
SECTION 31 – POWER TAKE-OFF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
SECTION 33 – BRAKES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
SECTION 35 – HYDRAULIC SYSTEMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
SECTION 41 – STEERING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
SECTION 44 – AXLES AND WHEELS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
SECTION 50 – AUXILIARY UNITS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
SECTION 55 – ELECTRICAL SYSTEM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
SECTION 90 – BODYWORK AND DRIVING POSITION . . . . . . . . . . . . . . . . . . 25

Please Note:

• This is not a physical manual but a digital manual – meaning no physical copy will be couriered to you. The manual can be yours in the next 2 mins as once you make the payment, you will be directed to the download page IMMEDIATELY.
• This is the same manual used by the dealers inorder to diagnose your vehicle of its faults.
• Require some other service manual or have any queries: please WRITE to us at [email protected]
