New Holland Tractor TL70A TL80A TL90A TL100A Service Manual 6035451100 – PDF DOWNLOAD

Description

New Holland Tractor TL70A TL80A TL90A TL100A Service Manual

FILE DETAILS:

New Holland Tractor TL70A TL80A TL90A TL100A Service Manual

Size: 122 MB
Format: PDF
Language: English
Number of Pages : 2080 pages
Brand: New Holland
Type of document: Service Manual
Model: TL70A-TL80A-TL90A-TL100A
Part No: 6035451100

DESCRIPTION:

New Holland Tractor TL70A TL80A TL90A TL100A Service Manual

SAMPLE PAGE FROM THE MANUAL:

• This manual is divided into sections identified by two–figure numbers and each section has independent page numbering. For easy reference, these sections have the same numbers and names as the Repairs Rate Book sections. The different sections can easily be found by consulting the table of contents on the following pages. The document number of the manual and the edition/update dates are given at the bottom of each page.
• Pages updated in the future will be identified by the same document number followed by a two–figure update number (e.g., 1st Update 603.54.511.01; 2nd Update 603.54.511.02; etc.) and by the corresponding issue date. These pages will be supplemented by a reprint of the updated contents page.
• The information contained in this manual was current on the date printed on each section. AsNEWHOLLAND constantly improves its product range, some information may be out of date subsequent to modifications im- plemented for technical or commercial reasons, or to meet legal requirements in different countries.
• In the event of conflicting information, consult the NEW HOLLAND Sales and Service Departments. Allmaintenance and repair work described in this manual must be performed exclusively by NEWHOLLAND service technicians, in strict accordance with the instructions given and using any specific tools necessary.
• Anyone performing the operations described herein without strictly following the instructions is personally re- sponsible for any eventual injury or damage to property. The Manufacturer and all organisations belonging to the Manufacturer distribution network, including but not restricted to national, regional or local distributors, will accept no responsibility for personal injury or dam- age to property caused by abnormal function of parts and/or components not approved by the Manufacturer, including those used for maintenance and/or repair of the productmanufactured ormarketed by the Manufac- turer.
• In any case, the product manufactured or marketed by the Manufacturer is covered by no guarantee of any kind against personal injury or damage to property caused by abnormal function of parts and/or components not approved by the Manufacturer.
• ACCIDENT PREVENTION Most accidents or injuries that occur inworkshops are the result of non observance of simple and funda mental safety regulations. For this reason, IN MOST CASES THESE ACCI DENTS CAN BE AVOIDED by foreseeing possible causes and consequently acting with the necessary caution and care. Accidentsmay occur with all types of vehicle, regard less of how well it was designed and built. A careful and judicious service technician is the best guarantee against accidents. Precise observance of the most basic safety rule is normally sufficient to avoid many serious accidents. DANGER. Never carry out any cleaning, lubrication or maintenance operations when the engine is run ning.
• Carefully follow specified repair andmaintenance procedures. Do not wear rings,wristwatches, jewellery, unbut toned or loose articles of clothing such as: ties, torn clothing, scarves, open jackets or shirts with open zips that may remain entangled in moving parts. It is advised to wear approved safety clothing, e.g.: non slip footwear, gloves, safety goggles, helmets, etc. Do not carry out repair operations with someone sitting in the driver’s seat, unless the person is a trained technician who is assisting with the oper ation in question.
• Operate the vehicle and use the implements ex clusively from the driver’s seat. Do not carry out operations on the vehicle withthe engine running, unless specifically indicated. Stop the engine and check that the hydraulic cir cuits are pressure free before removing caps, covers, valves, etc. All repair and maintenance operations must be carried out using extreme care and attention.
• Service steps and platforms used in a workshop or in the field should be built in compliance with the safety rules in force. Disconnect the batteries and label all controls to indicate that the vehicle is being serviced. Any parts that are to be raisedmust be locked in posi tion. Do not check or fill fuel tanks, accumulator bat teries, nor use starting liquid when smoking or near naked flames, as these fluids are inflam mable.
• Brakes are inoperative if manually released for repair or maintenance purposes. Use blocks or similar devices to secure the ma chine in these conditions. The fuel nozzle should always be in contact with the filling aperture. Maintain this position until fill ing operations are completed in order to avoid possible sparks caused by the accumulation of static electricity.

NEW HOLLAND TRACTOR TL70A TL80A TL90A TL100A SERVICE MANUAL 6035451100 – PDF DOWNLOAD:

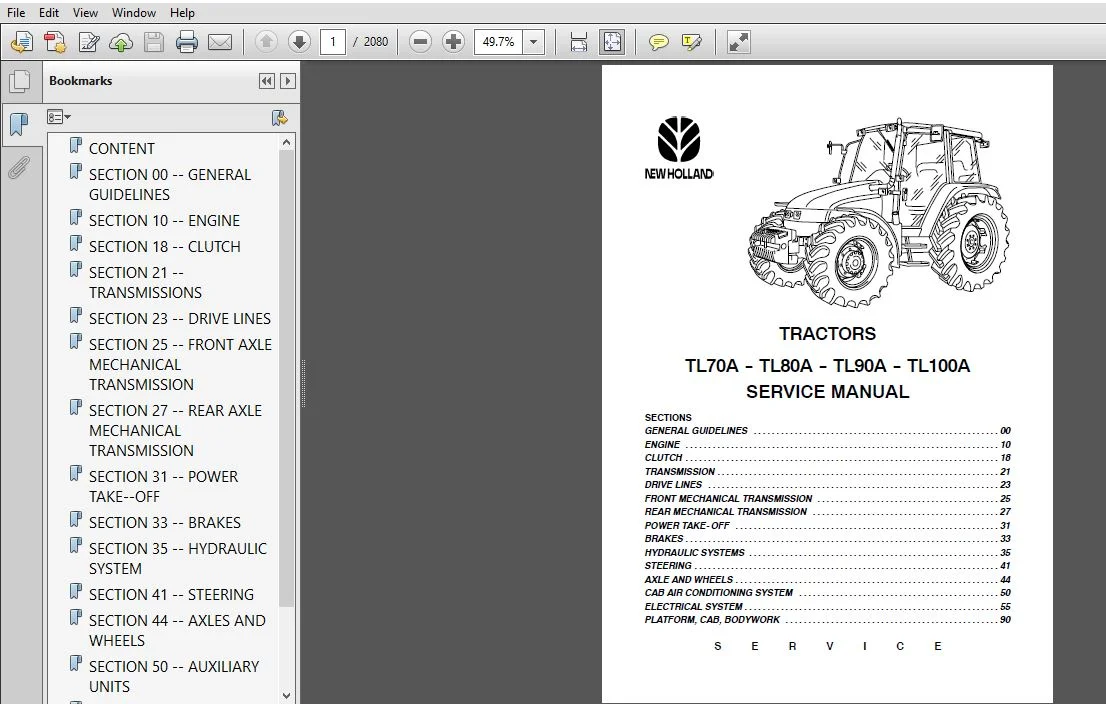

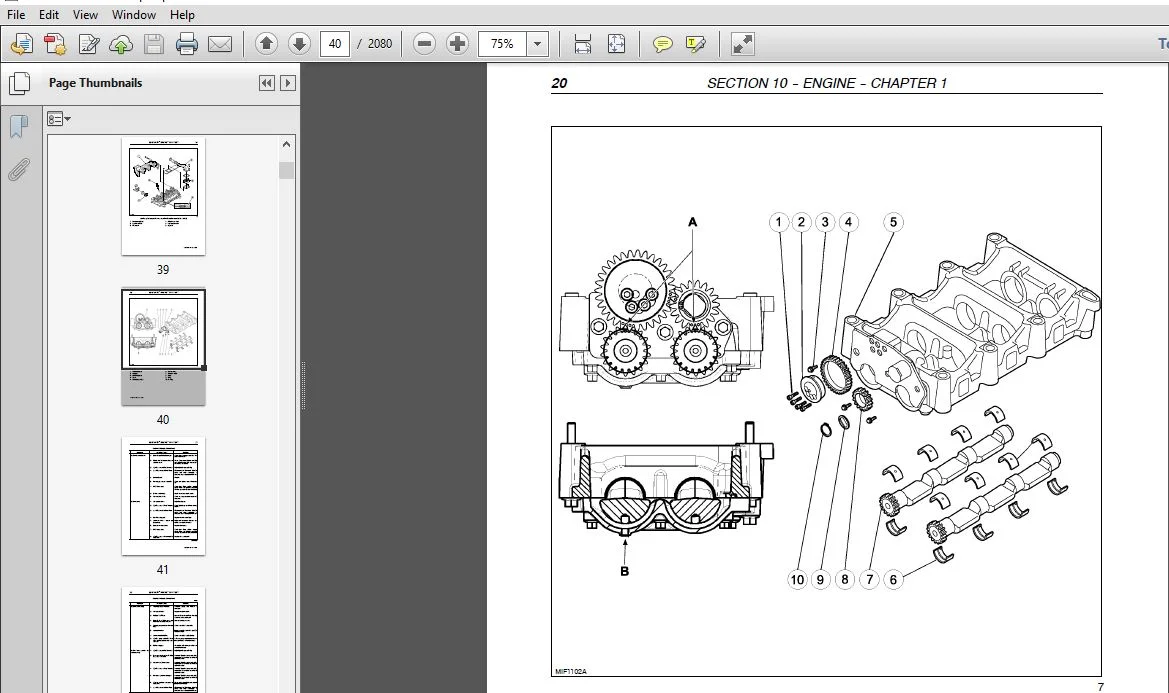

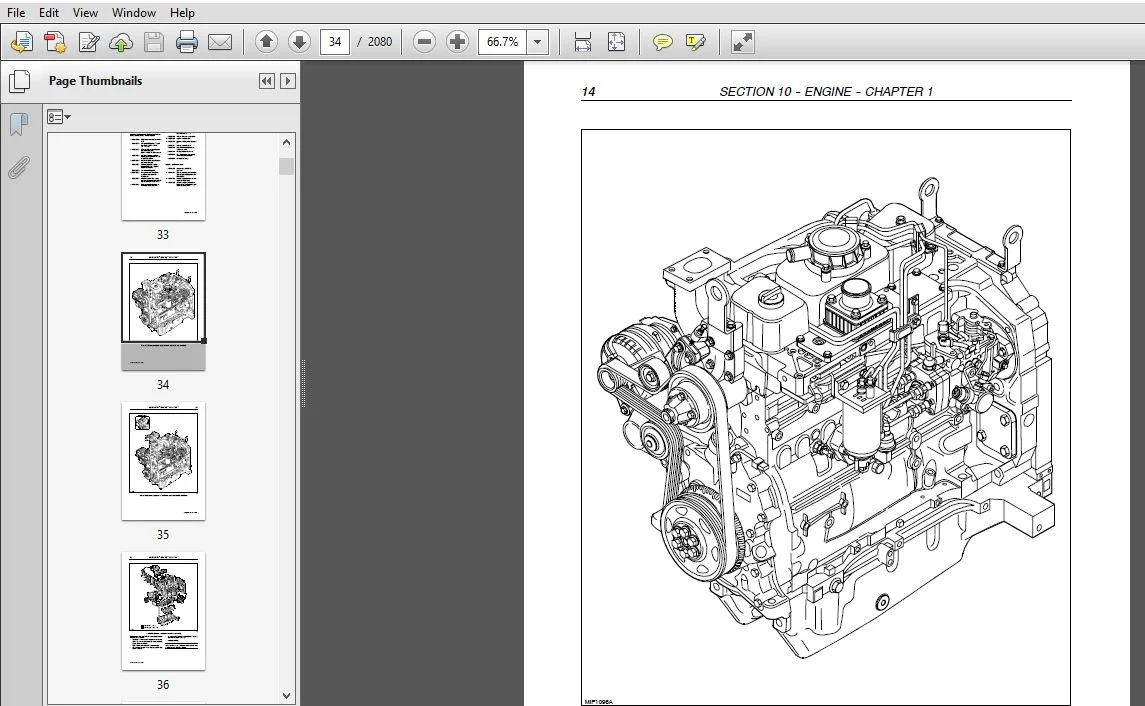

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

New Holland Tractor TL70A TL80A TL90A TL100A Service Manual

CONTENT 3
SECTION 00 — GENERAL GUIDELINES 15
SECTION 10 — ENGINE 21
SECTION 18 — CLUTCH 151
SECTION 21 — TRANSMISSIONS 167
SECTION 23 — DRIVE LINES 293
SECTION 25 — FRONT AXLE MECHANICAL TRANSMISSION 313
SECTION 27 — REAR AXLE MECHANICAL TRANSMISSION 365
SECTION 31 — POWER TAKE–OFF 423
SECTION 33 — BRAKES 479
SECTION 35 — HYDRAULIC SYSTEM 519
SECTION 41 — STEERING 815
SECTION 44 — AXLES AND WHEELS 853
SECTION 50 — AUXILIARY UNITS 869
SECTION 55 — ELECTRICAL SYSTEM 917
SECTION 90 — BODYWORK AND DRIVING POSITION 2037
