New Holland Tractor TM115 TM125 TM135 TM150 TM165 Repair Manual 6045506100 – PDF DOWNLOAD

Description

New Holland Tractor TM115 TM125 TM135 TM150 TM165 Repair Manual

FILE DETAILS:

New Holland Tractor TM115 TM125 TM135 TM150 TM165 Repair Manual

Size: 60.2 MB
Format: PDF
Language: English
Number of Pages : 1856 pages
Brand: New Holland
Type of document: Repair Manual
Model: TM115, TM125, TM135, TM150, TM165
Part No: 6045506100

DESCRIPTION:

New Holland Tractor TM115 TM125 TM135 TM150 TM165 Repair Manual

GENERAL INFORMATION:

• All maintenance and repair operations described in this manual should be carried out exclusively by New Holland authorised workshops. All instructions should be carefully observed and special equipment where indicated should be used. Anyone who carries out service operations described without carefully observing these prescriptions will be directly responsible for any damage caused.
• Equipment which NEW HOLLAND proposes and shows in this manual is: – studied and designed expressly for use on NEW HOLLAND tractors; – necessary to make a reliable repair; – accurately built and strictly tested to offer efficient and long–lasting working life. NOTICES The words “front”, “rear”, “right hand”, and “left hand” refer to the different parts as seen from the operator’s seat oriented to the normal direction of movement of the tractor.
• This warning symbol points out important messages involving personal safety. Carefully read the safety rules contained herein and follow advised precautions to avoid potential hazards and safeguard your safety. In this manual you will find this symbol together with the following key–words: WARNING – it gives warning about improper repair operations and potential consequences affecting the service technician’s personal safety.
• It gives specific warning about potential dangers for personal safety of the operator or other persons directly or indirectly involved in the operation.
• Carefully follow specified repair and maintenance procedures Do not wear rings, wristwatches, jewels, unbuttoned or flapping clothing such as ties, torn clothes, scarves, open jackets or shirts with open zips which could get caught on moving parts Use approved safety clothing such as anti–slipping footwear, gloves, safety goggles, helmets, etc • Wear safety glasses with side guards when cleaning parts using compressed air
•  Damaged or frayed wires and chains are unreliable Do not use them for lifting or towing • Wear suitable protection such as approved eye protection, helmets, special clothing, gloves and footwear whenever welding All persons standing in the vacinity of the welding process should wear approved eye protection
• Never carry out any repair on the machine if someone is sitting on the operator’s seat, except if they are qualified operators assisting in the operation to be carried out • Never operate the machine or use attachments from a place other than sitting at the operator’s seat or at the side of the machine when operating the fender switches
• Never carry out any operation on the machine when the engine is running, except when specifically indicated Stop the engine and ensure that all pressure is relieved from hydraulic circuits before removing caps, covers, valves, etc  All repair and maintenance operations should be carried out with the greatest care and attention • Disconnect the batteries and label all controls to warn that the tractor is being serviced Block the machine and all equipment which should be raised
• Never check or fill fuel tanks or batteries, nor use starting liquid if you are smoking or near open flames as such fluids are flammable The fuel filling gun should always remain in contact with the filler neck Maintain this contact until the fuel stops flowing into the tank to avoid possible sparks due to static electricity build–up  To transfer a failed tractor, use a trailer or a low loading platform trolley if available • To load and unload the machine from the transportation means, select a flat area providing a firm support to the trailer or truck wheels Firmly tie the machine to the truck or trailer platform and block wheels as required by the transporter
• Always use lifting equipment of appropriate capacity to lift or move heavy components  Chains should always be safely fastened Ensure that fastening device is strong enough to hold the load foreseen No persons should stand near the fastening point  The working area should be always kept CLEAN and DRY Immediately clean any spillage of water or oil  Never use gasoline, diesel oil or other flammable liquids as cleaning agents Use non–flammable non–toxic proprietary solvents Do not pile up grease or oil soaked rags, as they constitute a great fire hazard Always place them into a metal container

NEW HOLLAND TRACTOR TM115 TM125 TM135 TM150 TM165 REPAIR MANUAL 6045506100 – PDF DOWNLOAD:

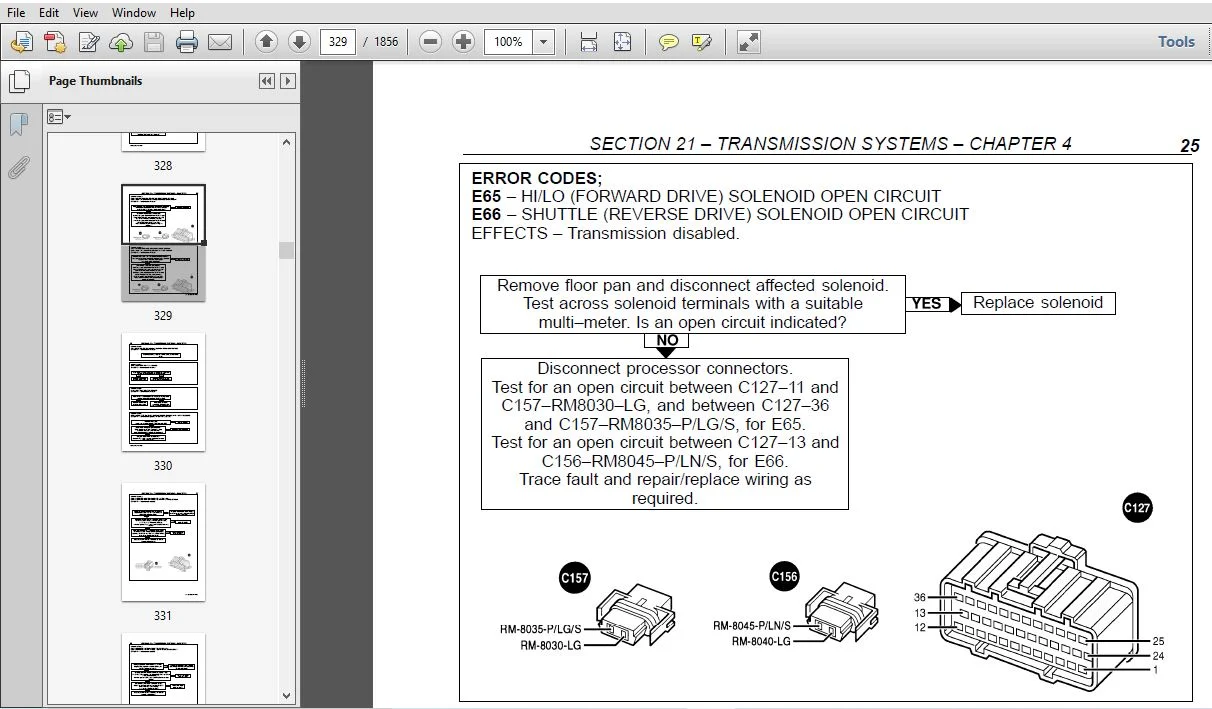

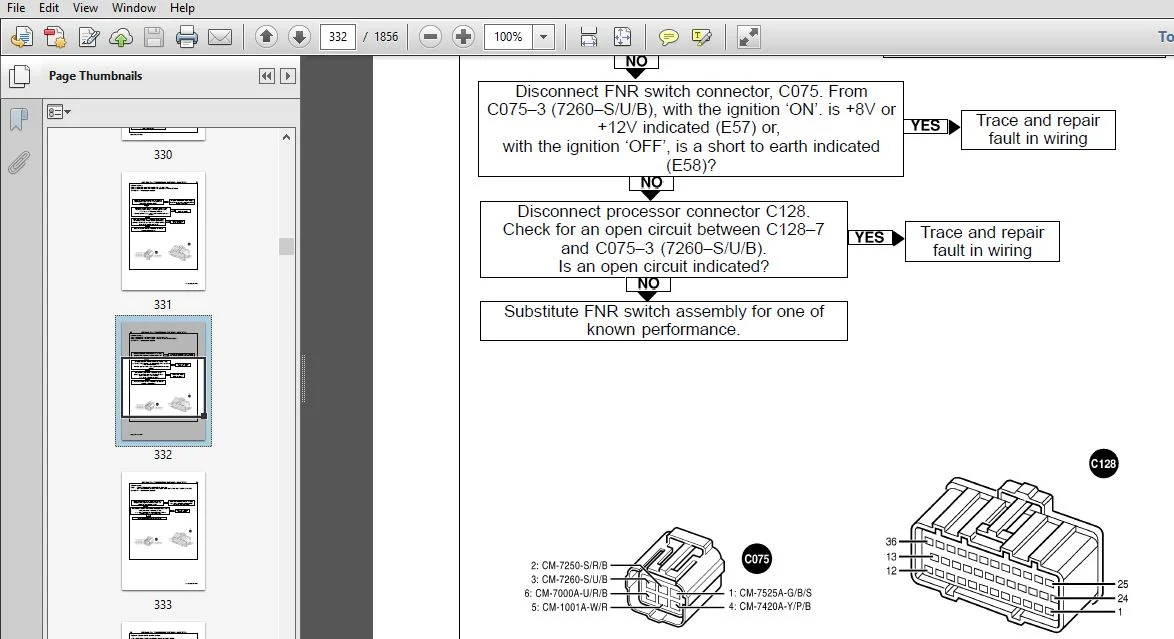

IMAGES PREVIEW OF THE MANUAL:

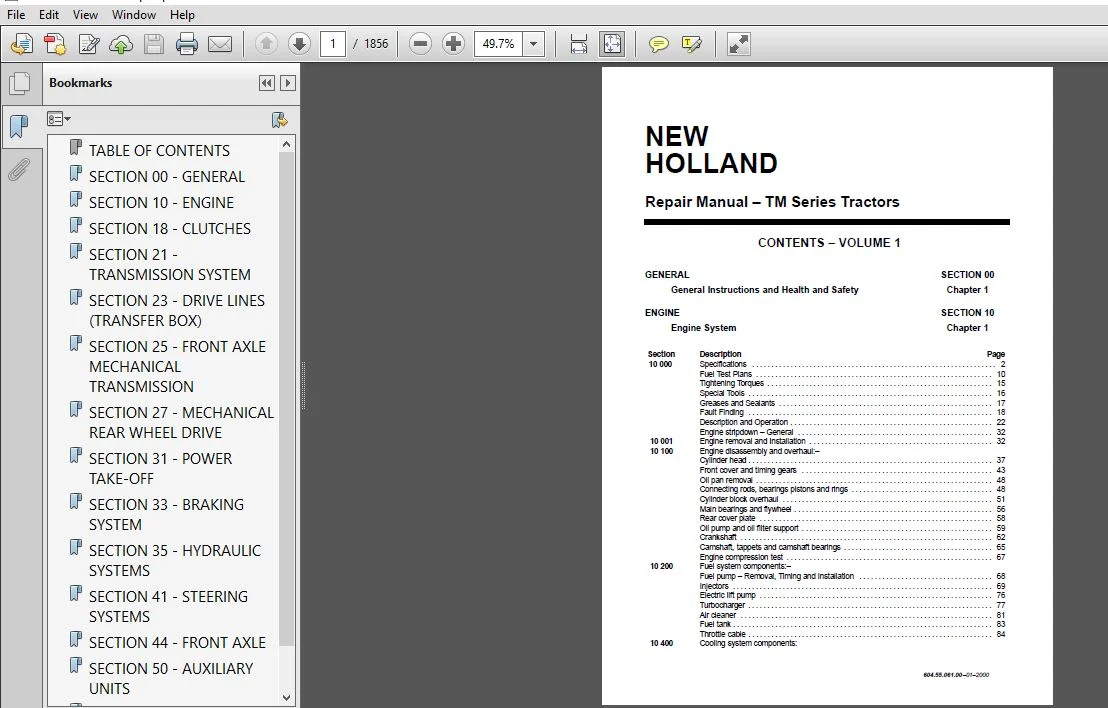

TABLE OF CONTENTS:

New Holland Tractor TM115 TM125 TM135 TM150 TM165 Repair Manual

SECTION 00 – GENERAL
SECTION 10 – ENGINE
SECTION 18 – CLUTCHES
SECTION 21 – TRANSMISSION SYSTEM
SECTION 23 – DRIVE LINES (TRANSFER BOX)
SECTION 25 – FRONT AXLE MECHANICAL TRANSMISSION 543
SECTION 27 – MECHANICAL REAR WHEEL DRIVE
SECTION 31 – POWER TAKE-OFF 749
SECTION 33 – BRAKING SYSTEM 805
SECTION 35 – HYDRAULIC SYSTEMS
SECTION 41 – STEERING SYSTEMS 1267
SECTION 44 – FRONT AXLE
SECTION 50 – AUXILIARY UNITS SECTION 55 – ELECTRICAL SYSTEM

PLEASE NOTE:

⦁ This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
⦁ You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
⦁ Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted
