New Holland Tractor TN55D TN55S TN65D TN6S5 TN70D TN70S TN75D TN75S Service Manual 6035435101 – PDF DOWNLOAD

Description

New Holland Tractor TN55D TN55S TN65D TN6S5 TN70D TN70S TN75D TN75S Service Manual

FILE DETAILS:

New Holland Tractor TN55D TN55S TN65D TN6S5 TN70D TN70S TN75D TN75S Service Manual

Size: 25.4 MB
Format: PDF
Language: English
Number of Pages : 734 pages
Brand: New Holland
Type of document: Service Manual
Model: TN55D, TN55S, TN65D, TN6S5, TN70D, TN70S, TN75D,TN75S
Part No: 6035435101

DESCRIPTION:

New Holland Tractor TN55D TN55S TN65D TN6S5 TN70D TN70S TN75D TN75S Service Manual

SAMPLE PAGE FROM THE MANUAL:

• This manual is divided into sections identified by two–figure numbers and each section has independent page numbering. For easy reference, these sections have the same numbers and names as the Repairs Rate Book sections.
• The different sections can easily be found by consulting the table of contents on the following pages. The document number of the manual and the edition/update dates are given at the bottom of each page.
• Pages updated in the future will be identified by the same document number followed by a two–figure update number (e.g.: 1st Update 603.54.350.01; 2nd Update 603.54.350.02; etc.) and by the corresponding issue date.
• These pages will be supplemented by a reprint of the updated contents page. The information contained in this manual was current on the date printed on each section.
• As NEW HOL- LAND constantly improves its product range, some information may be out of date subsequent to modifica- tions implemented for technical or commercial reasons, or to meet legal requirements in different countries.
• In the event of conflicting information, consult the NEW HOLLAND Sales and Service Departments. IMPORTANT WARNINGS Allmaintenance and repair work described in this manual must be performed exclusively by NEWHOLLAND service technicians, in strict accordance with the instructions given and using any specific tools necessary.
• Anyone performing the operations described herein without strictly following the instructions is personally responsible for any eventual injury or damage to property. The Manufacturer and all organisations belonging to the Manufacturers distribution network, including but not restricted to national, regional or local distributors,
• Will accept no responsibility for personal injury or dam- age to property caused by abnormal function of parts and/or components not approved by theManufacturer, including those used for maintenance and/or repair of the product manufactured or marketed by the Manu- facturer.
• In any case, the product manufactured or marketed by the Manufacturer is covered by no guarantee of any kind against personal injury or damage to property caused by abnormal function of parts and/or components not approved by the Manufacturer.
• Never run the engine in confined spaces that are not equipped with adequate ventilation for ex- haust gas extraction. Never place the head, body, limbs, feet, hands or fingers near fans or rotating belts. ENGINE Always loosen the radiator cap slowly before re- moving it to allow any remaining pressure in the system to be discharged. Filling up with coolant should only be carried out with the engine stopped or idling (if hot).
• Never fill up with fuel when the engine is running, especially if hot, in order to prevent the outbreak of fire as a result of fuel spillage. Never check or adjust fan belt tension when the engine is running. Never adjust the fuel injectionpumpwhen the ve- hicle is moving.
• Never lubricate the vehicle when the engine is running.

NEW HOLLAND TRACTOR TN55D TN55S TN65D TN6S5 TN70D TN70S TN75D TN75S SERVICE MANUAL 6035435101 – PDF DOWNLOAD:

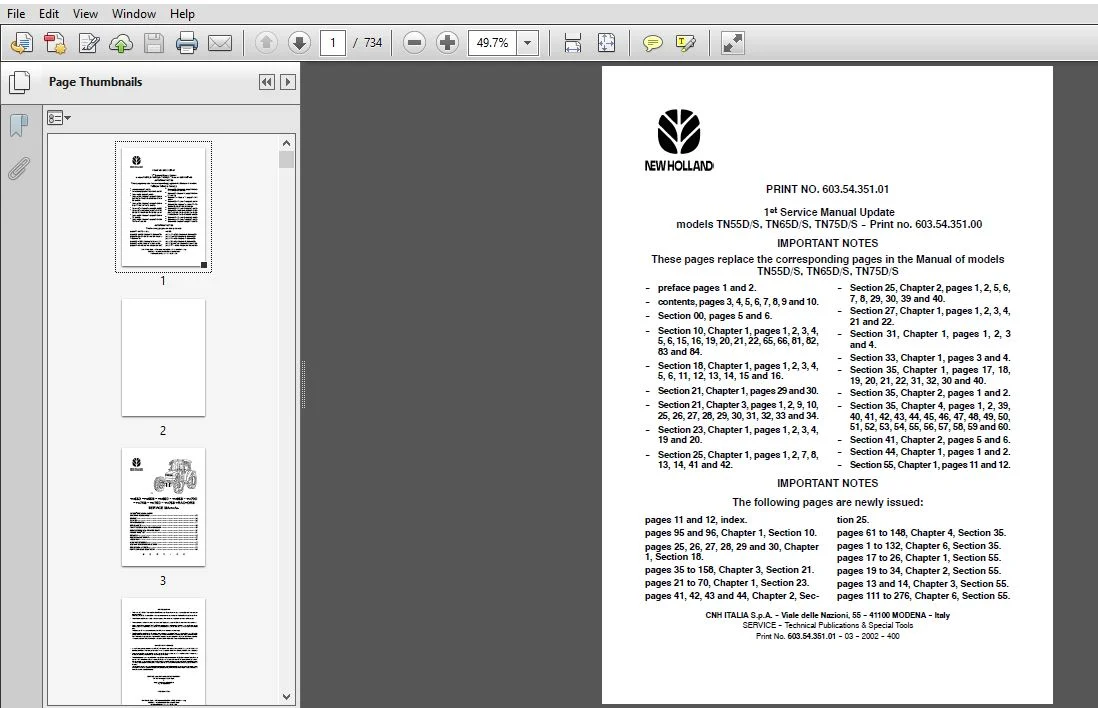

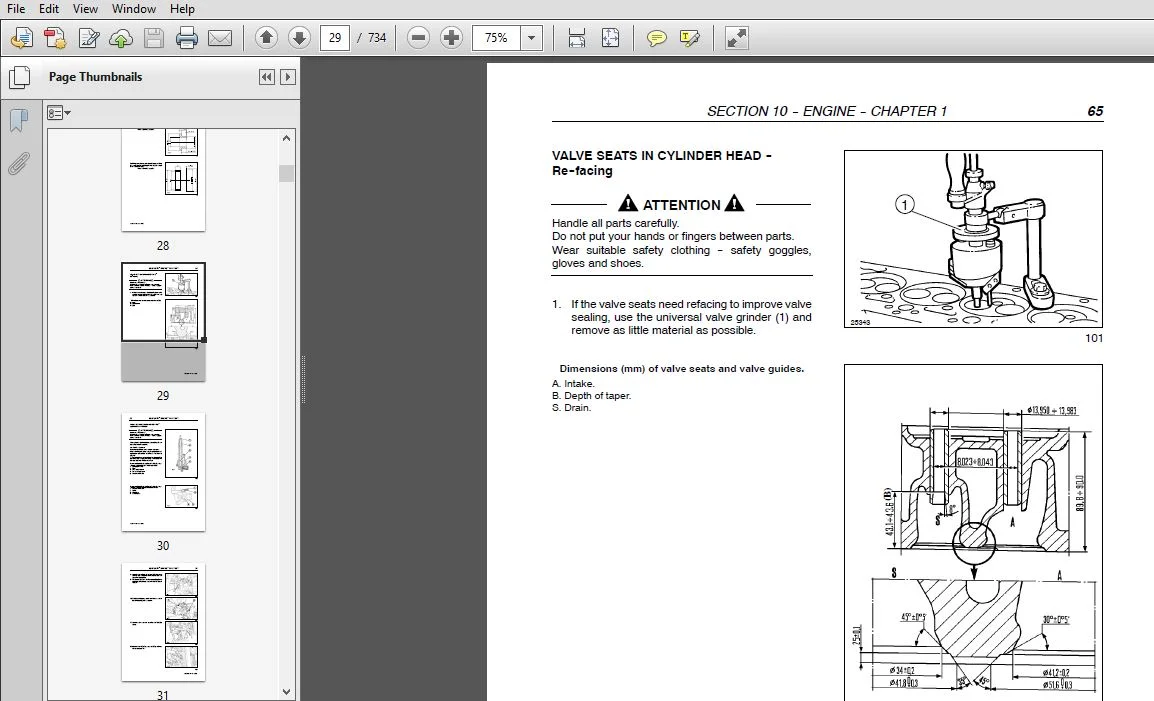

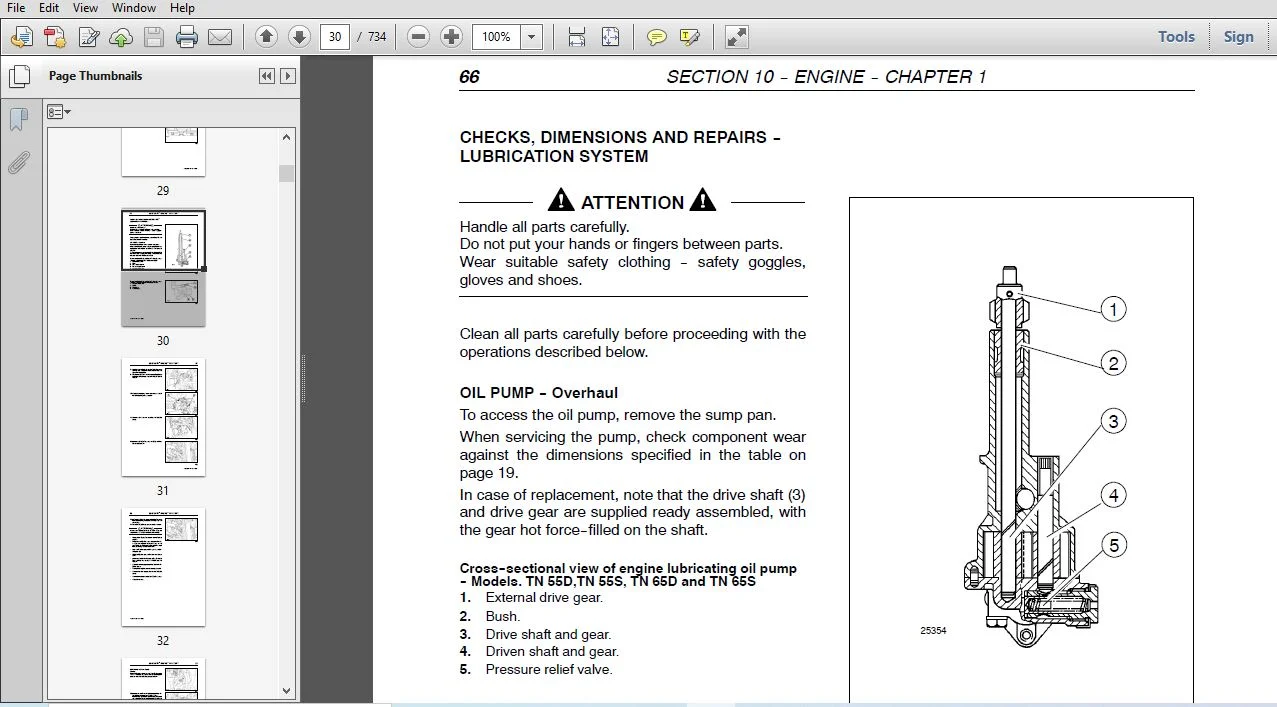

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

New Holland Tractor TN55D TN55S TN65D TN6S5 TN70D TN70S TN75D TN75S Service Manual

GENERAL GUIDELINES 00
ENGINE 10
CLUTCH 18
TRANSMISSIONS 21
DRIVE LINES 23
FRONT MECHANICAL TRANSMISSION 25
REAR MECHANICAL TRANSMISSION 27
POWER TAKE-OFF 31
BRAKES 33
HYDRAULIC SYSTEMS 35
STEERING 41
AXLE AND WHEELS 44
CAB AIR CONDITIONING SYSTEM 50
ELECTRICAL SYSTEM 55
PLATFORM, CAB, BODYWORK
