New Holland TT45A, TT50A Tractors Service Repair Manual

FILE DETAILS:

New Holland TT45A, TT50A Tractors Service Repair Manual

Language : English
Pages : 682
Downloadable : Yes
Format: PDF
Part No : 87655297

DESCRIPTION:

New Holland TT45A, TT50A Tractors Service Repair Manual

IMPORTANT NOTICE:

All maintenance and repair operations described in this manual should be carried out exclusively by the authorized workshops. All instructions detailed should be carefully observed and special equipment indicated should be used if necessary. Everyone who carries out service operations described without carefully observing these prescriptions will be directly responsible of deriving damages.

SHIMMING :

At each adjustment, select adjusting shims, measure them individually using a micrometer and then sum up recorded values. Do not rely on measuring the whole shimming set, which may be incorrect, or on the rated value indicated for each shim.

ROTATING SHAFT SEALS :

To correctly install rotating shaft seals, observe the following instructions:

• Let the seal soak into the same oil as it will seal for at least half an hour before mounting;
•  Thoroughly clean the shaft and ensure that the shaft working surface is not damaged;
• Place the sealing lip towards the fluid. In case of a hydrodynamic lip, consider the shaft rotation direction and orient grooves in order that they deviate the fluid towards the inner side of the seal;
• Coat the sealing lip with a thin layer of lubricant (oil rather than grease) and fill the gap between the sealing lip and the dust lip of double lip seals with grease;
• Insert the seal into its seat and press it down using a flat punch. Do not tap the seal with a hammer or a drift;
• Take care to insert the seal perpendicularly to its seat while you are pressing it. Once the seal is settled, ensure that it contacts the thrust element, if required;
• To prevent damaging the sealing lip against the shaft, place a suitable protection during installation.

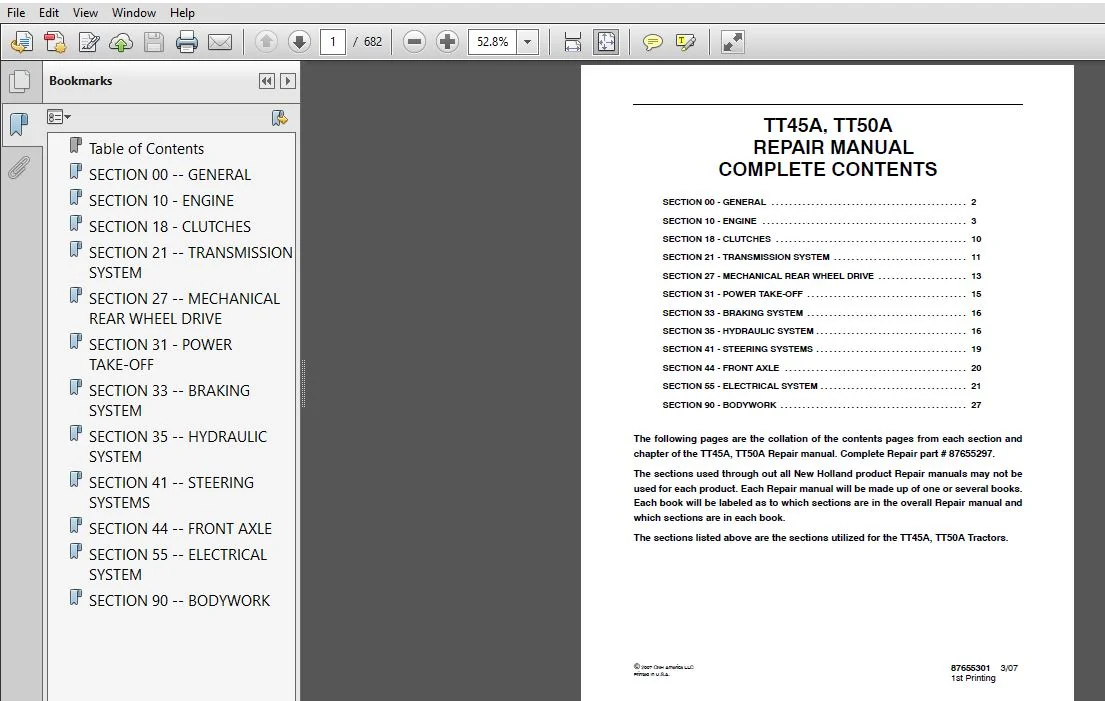

TABLE OF CONTENTS:

New Holland TT45A, TT50A Tractors Service Repair Manual

SECTION 00 – GENERAL2
SECTION 10 – ENGINE 3
SECTION 18 – CLUTCHES 10
SECTION 21 – TRANSMISSION SYSTEM 11
SECTION 27 – MECHANICAL REAR WHEEL DRIVE 13
SECTION 31 – POWER TAKE-OFF 15
SECTION 33 – BRAKING SYSTEM 16
SECTION 35 – HYDRAULIC SYSTEM16
SECTION 41 – STEERING SYSTEMS19
SECTION 44 – FRONT AXLE 20
SECTION 55 – ELECTRICAL SYSTEM 21
SECTION 90 – BODYWORK 27
