New Holland TX60 Series Service Repair Manual (84019441) New Holland TX60 – PDF Download

Description

New Holland TX60 Series Service Repair Manual (84019441) New Holland TX60

FILE DETAILS:

New Holland TX60 Series Service Repair Manual (84019441) New Holland TX60

• Format: PDF
• Language: English
• Number of Pages: 1050 pages
• Brand: New Holland
• Type of document: Repair Manual
• Model: TX60 Series
• Part No: 84019441

NEW HOLLAND TX60 SERIES SERVICE REPAIR MANUAL (84019441) NEW HOLLAND TX60 – PDF DOWNLOAD:

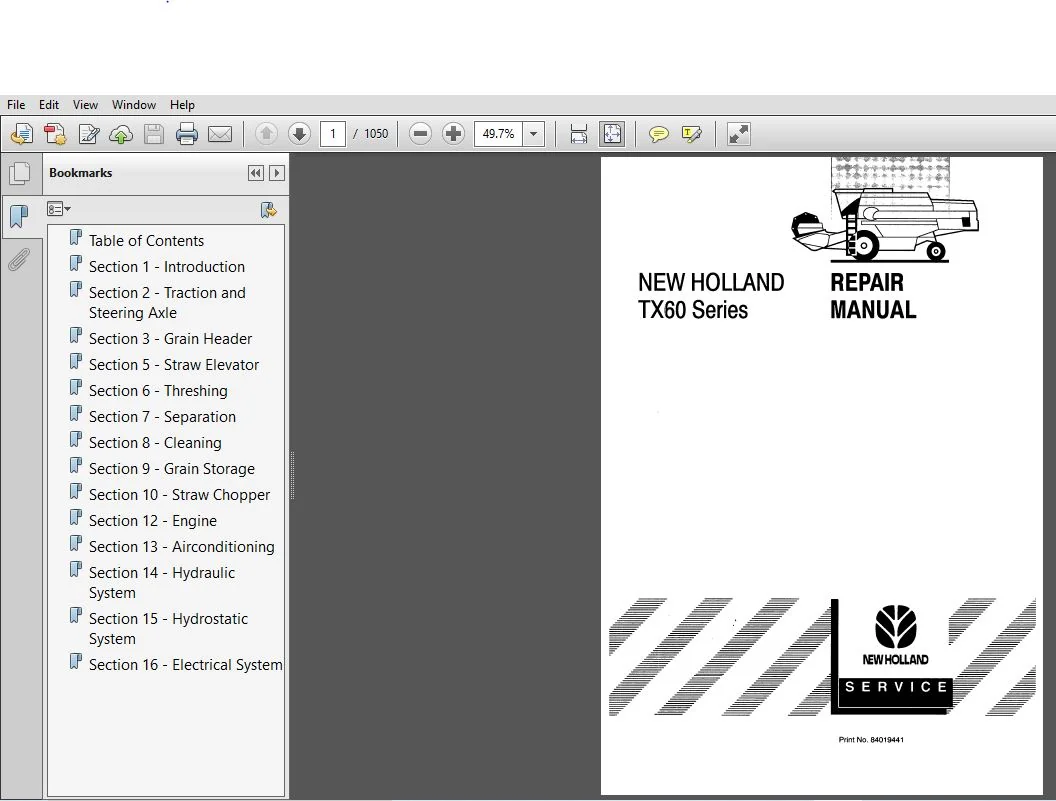

IMAGE PRVIEW:

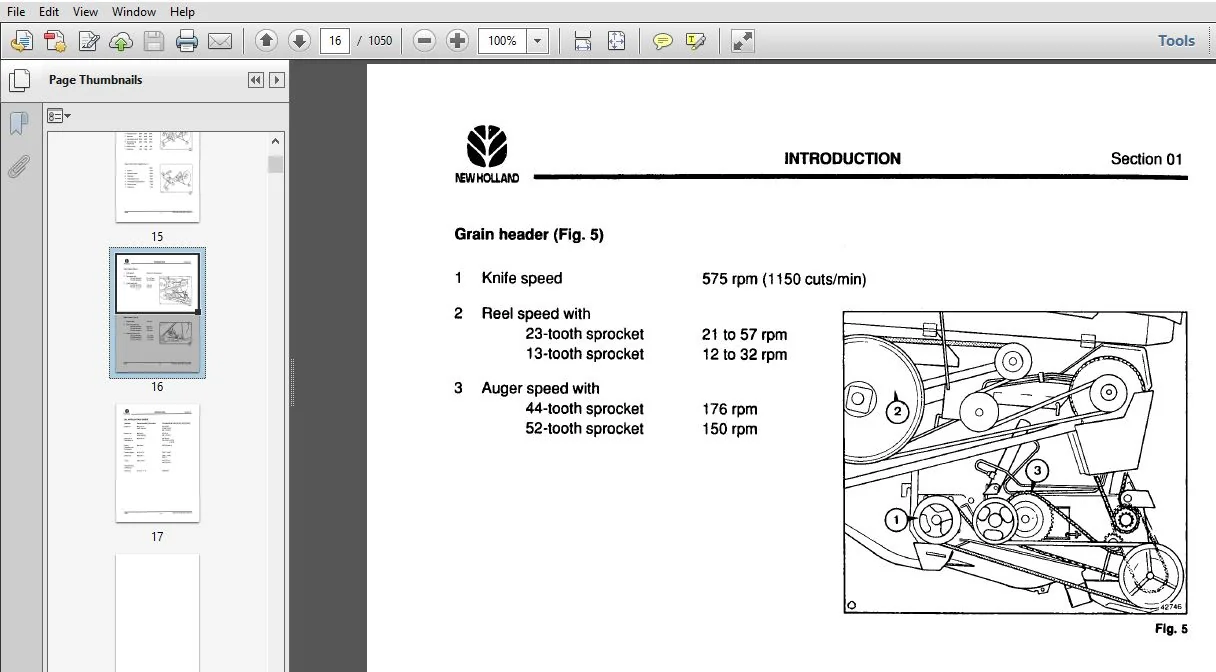

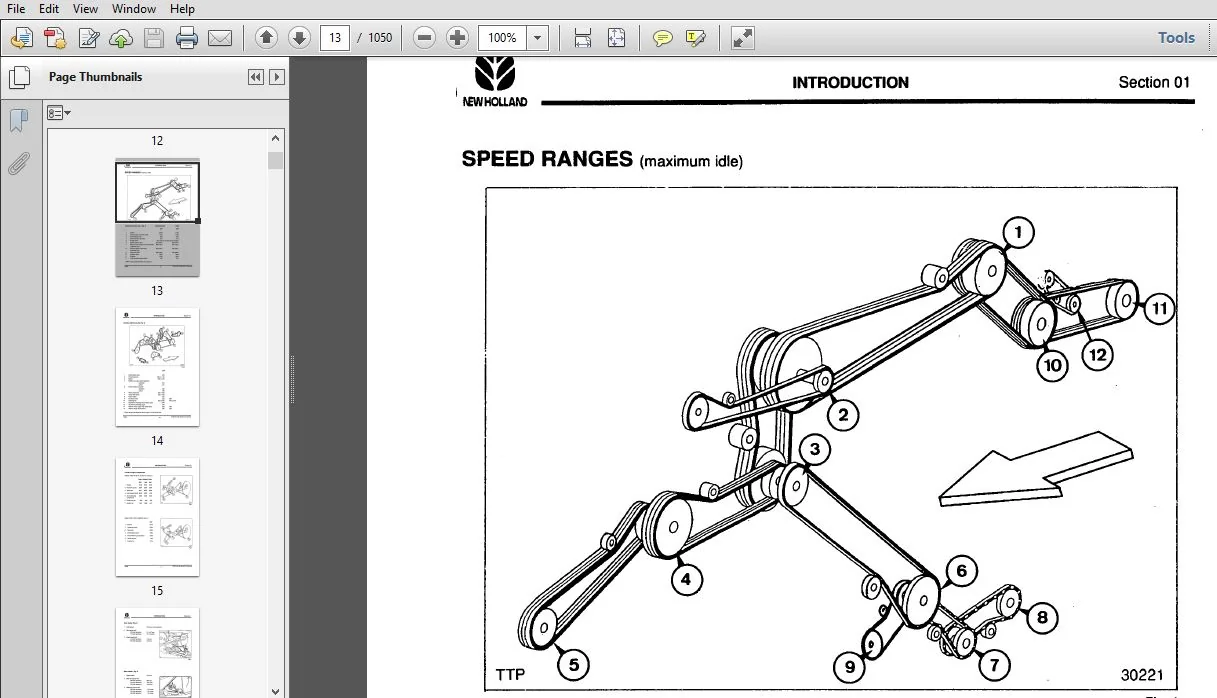

SAMPLE PAGE FROM THE MANUAL:

New Holland TX60 Series Service Repair Manual (84019441) New Holland TX60

1. Position shaft 36 in its aperture in the gearbox and install from the left-hand side in following sequence:
sleeve 34, needle bearing 32, gear 33, shifting gear 30, shifter ring 31.
needle bearing 28, gear 29, sleeve 27, ring 26, ring 25, needle bearing 23, gear 24, shifting gear 21, shifter ring 22 and clrclip 20. ring 19, needle bearing 17, gear 18 and ring 16.
2. Install special tool 2 (80434446) (Fig. 25).
3. Install bearing R1 on the left-hand side of the shaft and drive it further with the shaft in the gear-box .
4. Install special tool Y (80434450) (Fig. 25).
5. Install bearing R on the right-hand side (Fig. 25) and bearing housing P (Fig. 26). Drive bearing housing P to the left-hand side and tighten it with nuts 0 (Fig. 26).
6. Remove special tools 2 and Y.
7. Drive the shaft and bearing R1 to the right-handside.
8. install lock washer 2 and slotted nut 1 (Fig. 18).Tighten nut 1 with a torque of 130 Nm.
