Description

New Holland U80 Loader Landscaper Service Repair Manual (6-81730) – New Holland U80 Loader

File Details:

New Holland U80 Loader Landscaper Service Repair Manual
Size: 340 MB
Format: PDF
Language: English
Number of Pages: 1168 pages
Brand: New Holland
Type of document: Service Manual
Model: U80 Loader
Part No:6-81730NA

NEW HOLLAND U80 LOADER LANDSCAPER SERVICE REPAIR MANUAL (6-81730) – NEW HOLLAND U80 LOADER – PDF DOWNLOAD:

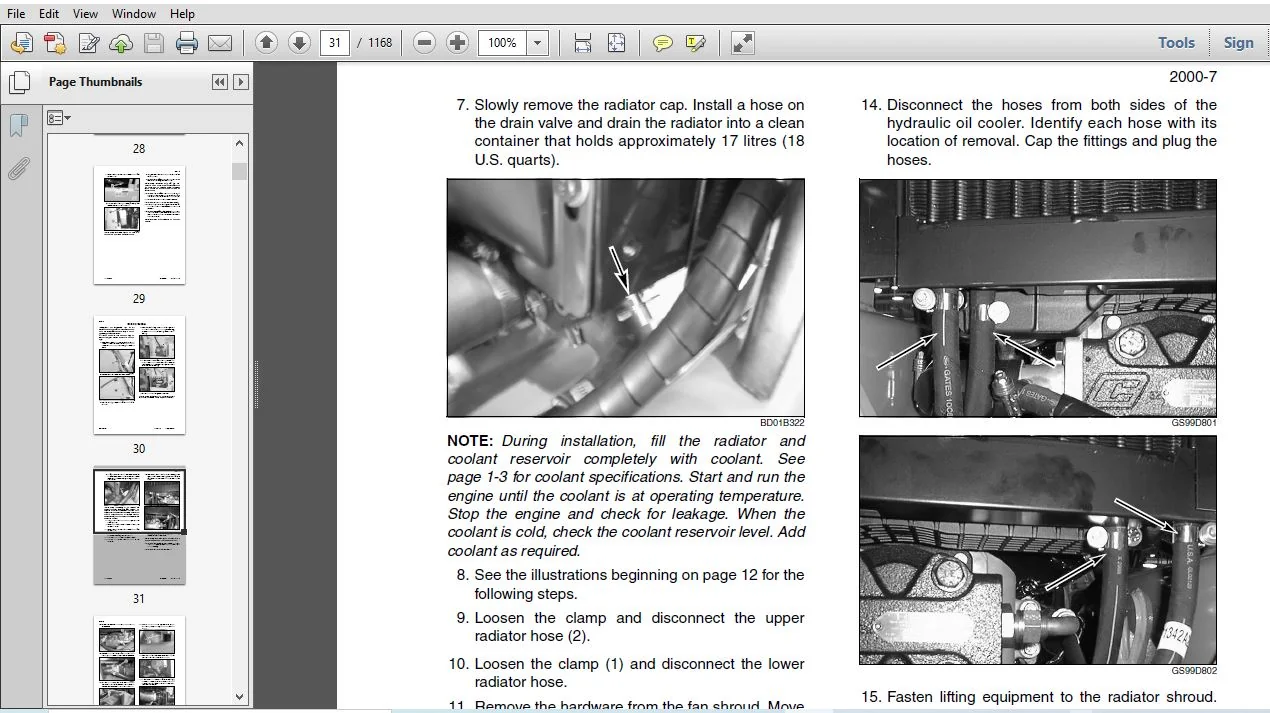

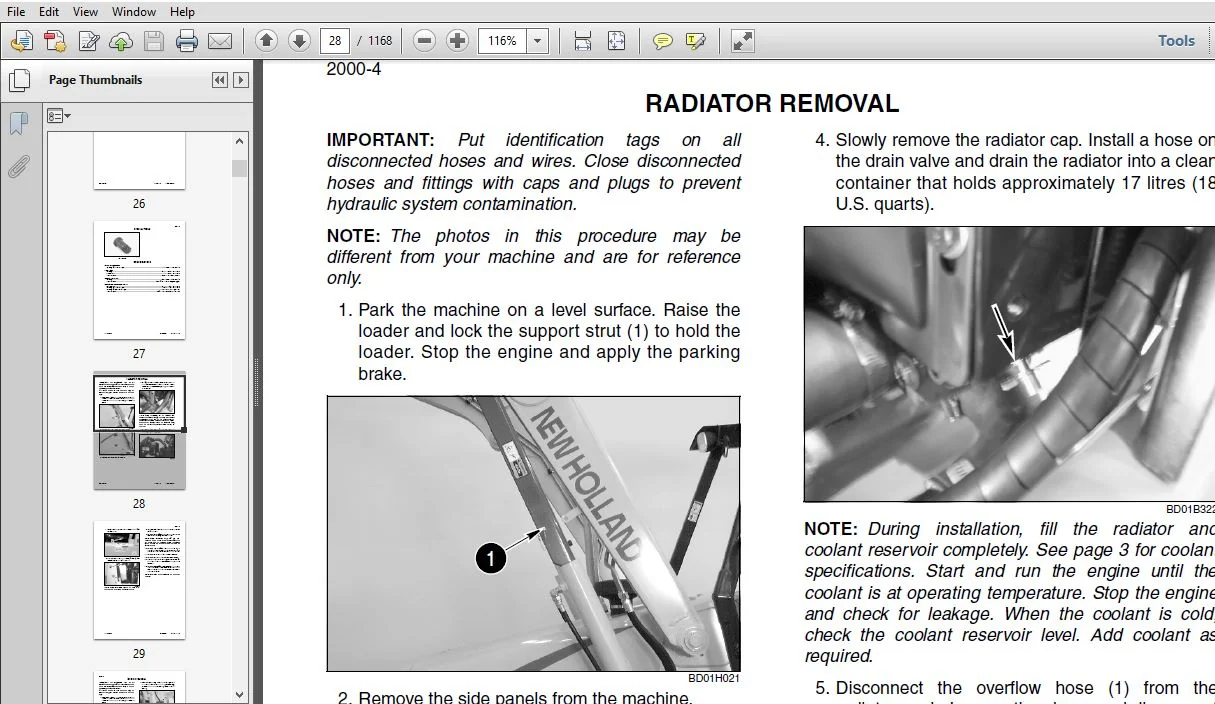

Image Preview:

Description:

New Holland U80 Loader Landscaper Service Repair Manual (6-81730) – New Holland U80 Loader

RUN-IN PROCEDURE FOR REBUILT ENGINES (WITH A DYNAMOMETER)
The following procedure must be followed when using a PTO dynamometer to Run-In the engine. The dynamometer will control the engine load at each speed and will remove stress on new parts during Run-In. During the Run-In, continue to check the oil pressure, coolant level and coolant temperature.
1. Disconnect the wire to the electric shut-off on the injection pump so that the engine will not start. Crank the engine for 30 seconds until there is oil pressure, then reconnect the wire.
2. Remove the air from the cooling system at the temperature sending unit or aftercooler, if equipped.
3. Run the engine at 800 RPM for 3 to 5 minutes. The oil pressure should be a minimum of 1009 kPa. Check for leaks.
4. Increase the engine speed to 1200 RPM and increase the test load to 25% of the rated load. The coolant temperature should be a minimum of 70°C. Run the engine for 5 minutes.
5. Check the blowby. If the reading is steady, increase the engine speed to peak torque speed and increase the load to 50% of the peak torque load. Run the engine for 5 minutes.
6. Check the blowby. If the reading is steady, increase the engine speed to full throttle and increase the load until the RPM falls to rated torque speed. Run the engine for 5 minutes.
7. Check the gauges. If the readings are within limits, increase the load until the engine speed decreases to the peak torque RPM. Run the engine for 5 minutes.
8. Completely remove the load and reduce the engine speed to 1000 RPM. Run the engine for 3 to 5 minutes.
9. Shut off the engine.

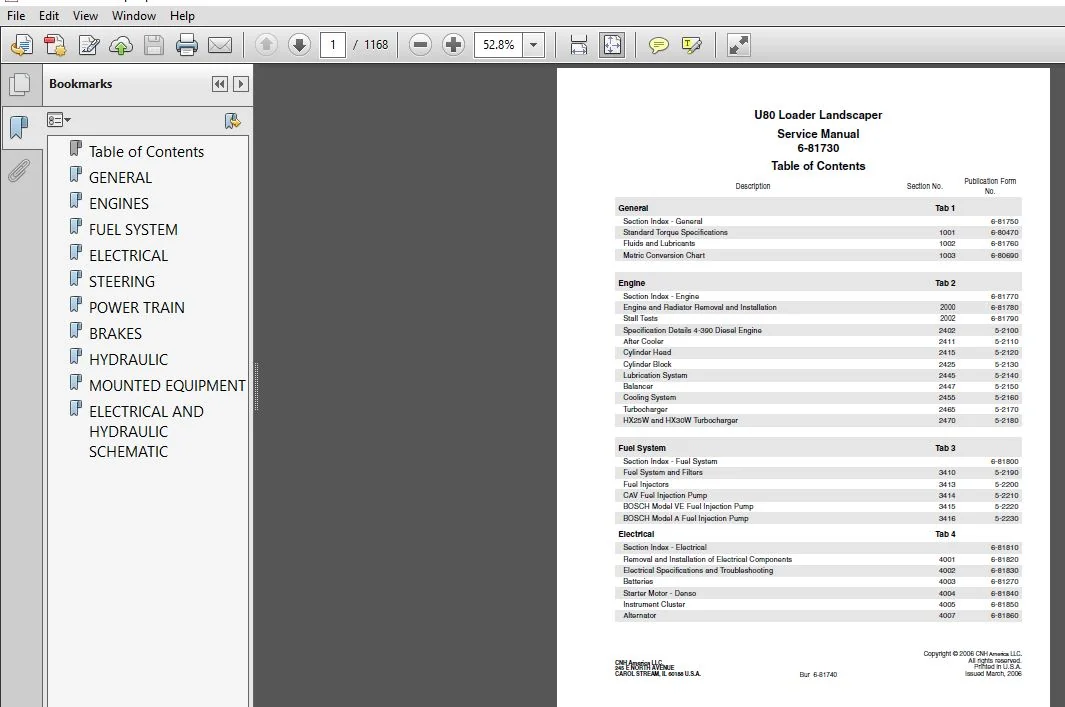

Table Of Contents:

New Holland U80 Loader Landscaper Service Repair Manual (6-81730) – New Holland U80 Loader

General Tab 1
Section Index – General 6-81750
Standard Torque Specifications 1001 6-80470
Fluids and Lubricants 1002 6-81760
Metric Conversion Chart 1003 6-80690
Engine Tab 2
Section Index – Engine 6-81770
Engine and Radiator Removal and Installation 2000 6-81780
Stall Tests 2002 6-81790
Specification Details 4-390 Diesel Engine 2402 5-2100
After Cooler 2411 5-2110
Cylinder Head 2415 5-2120
Cylinder Block 2425 5-2130
Lubrication System 2445 5-2140
Balancer 2447 5-2150
Cooling System 2455 5-2160
Turbocharger 2465 5-2170
HX25W and HX30W Turbocharger 2470 5-2180
Fuel System Tab 3
Section Index – Fuel System 6-81800
Fuel System and Filters 3410 5-2190
Fuel Injectors 3413 5-2200
CAV Fuel Injection Pump 3414 5-2210
BOSCH Model VE Fuel Injection Pump 3415 5-2220
BOSCH Model A Fuel Injection Pump 3416 5-2230
Electrical Tab 4
Section Index – Electrical 6-81810
Removal and Installation of Electrical Components 4001 6-81820
Electrical Specifications and Troubleshooting 4002 6-81830
Batteries 4003 6-81270
Starter Motor – Denso 4004 6-81840
Instrument Cluster 4005 6-81850
Alternator 4007 6-81860
Steering Tab 5
Section Index – Steering 6-81870
Removal and Installation of Steering Components 5001 6-81880
Steering Specifications, Pressure Checks and Troubleshooting 5002 6-81890
Steering Control Valve 5003 6-81900
Steering Cylinders 5004 6-81910
Front Axle – Two Wheel Drive 5005 6-81920
Front Axle – Four Wheel Drive 5006 6-81930
Power Train Tab 6
Section Index – Power Train 6-81940
Removal and Installation of Power Train Components 6001 6-81950
Standard Transmission Specifications, Pressure Checks and Troubleshooting 6002 6-81960
Wheels and Tires 6003 6-81970
Rear Axle and Planetaries 6004 6-81980
Standard Transmission 6007 5-1000
Brakes Tab 7
Section Index – Brakes 5-1010
Removal and Installation of Brake Components 7001 5-1020
Master Cylinder 7003 5-1030
Hydraulics Tab 8
Section Index – Hydraulics 5-1040
Removal and Installation of Hydraulic Components 8001 5-1050
Hydraulic Specifications, Troubleshooting, and Pressure Checks 8002 5-1060
Cleaning the Hydraulic System 8003 5-1070
Hydraulic Pump 8004 5-1080
Loader Control Valve 8005 5-1090
Cylinders 8006 5-1100
Three Point Hitch Control Valve 8007 5-1110
Accumulator for Machines with Optional Ride Control 8009 5-1120
Solenoid Valve for Machines with Optional Ride Control 8010 5-1130
Flow Control Valve 8011 5-1140
Lock Valve 8012 5-1150
flow Control Priority Valve 8013 5-1160
Mounted Equipment Tab 9
Section Index – Mounted Equipment 5-1170
Pedals and Levers 9001 5-1180
Air Conditioning Troubleshooting For Systems With R-134a Refrigerant 9002 5-1190
Air Conditioning System Service For Systems With R-134a Refrigerant 9004 5-1200
Air Conditioning Components Service For Systems With R-134a Refrigerant 9005 5-1210
Loader 9006 5-1220
ROPS Cab and Canopy 9007 5-1230
Pedestal Seat 9009 5-1240
Electric Schematic and Hydraulic Schematic Foldout In Rear Pocket 5-1250
