New Holland W110C Tier 4 Wheel Loader Service Manual (84581910B) New Holland W110C – PDF Download

Description

New Holland W110C Tier 4 Wheel Loader Service Manual (84581910B) New Holland W110C

FILE DETAILS:

New Holland W110C Tier 4 Wheel Loader Service Manual (84581910B) New Holland W110C

• New Holland Wheel Loader W110C Tier 4 Service Manual_84581910B
• Size: 227 MB
• Format: PDF
• Language: English
• Number of Pages: 1075 pages
• Brand: New Holland
• Type of document: Service Manual
• Model: W110C Tier 4
• Part No: 84581910B

NEW HOLLAND W110C TIER 4 WHEEL LOADER SERVICE MANUAL (84581910B) NEW HOLLAND W110C – PDF DOWNLOAD:

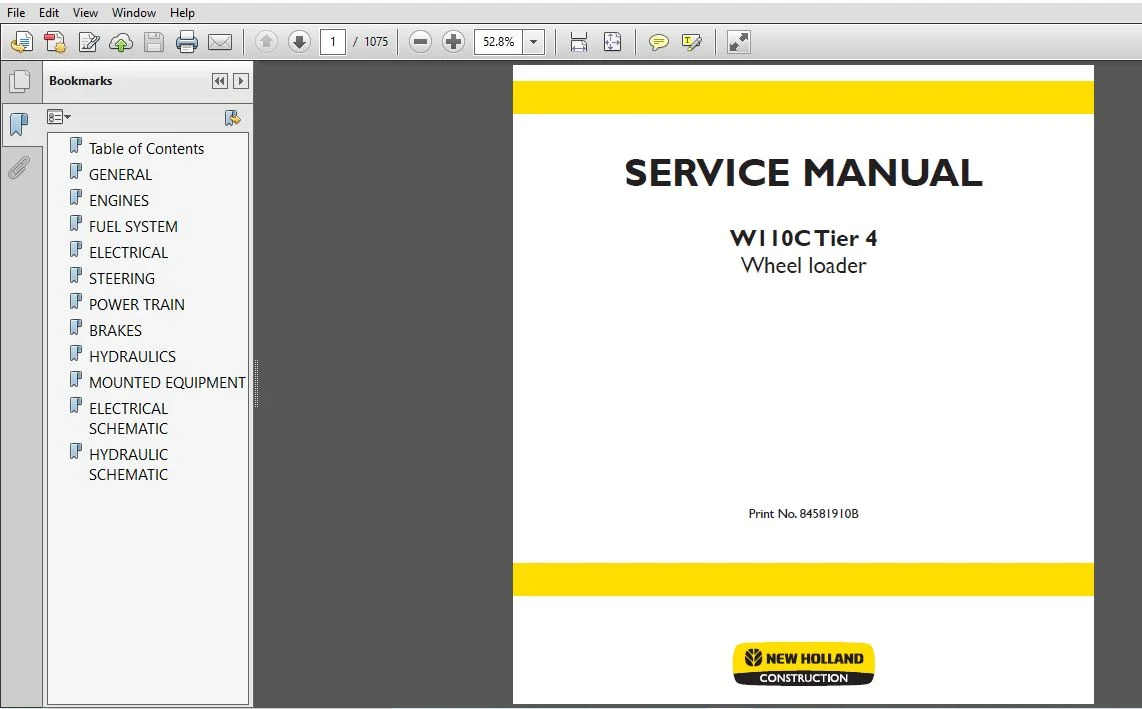

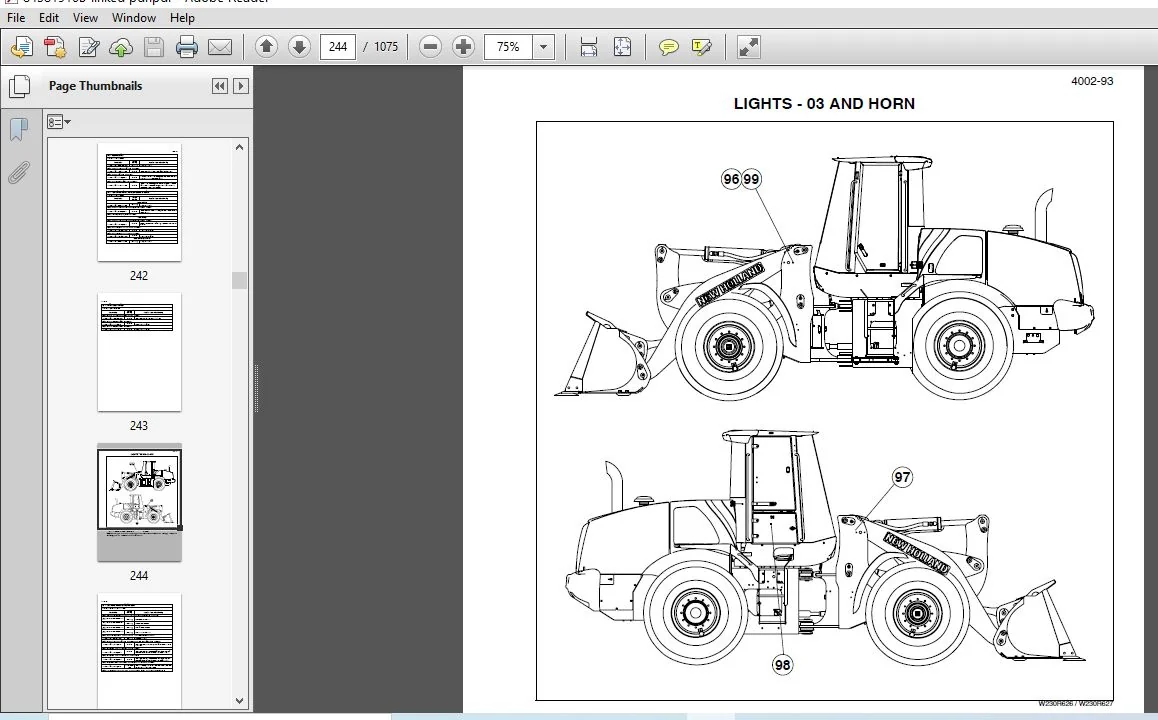

SCREENSHOTS OF THE MANUAL:

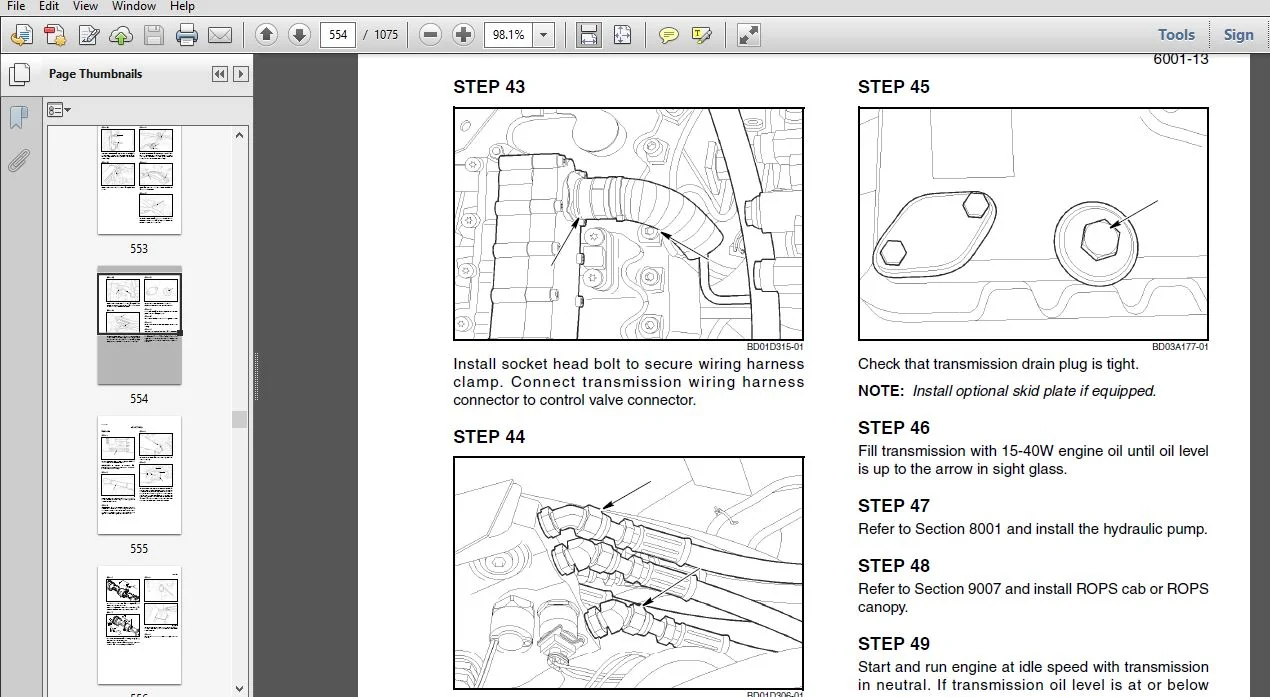

SAMPLE PAGE FROM THE MANUAL:

New Holland W110C Tier 4 Wheel Loader Service Manual (84581910B) New Holland W110C

• Use No. 2 diesel fuel in the engine of this machine.
• The use of other fuels can cause the loss of engine power and high fuel consumption. In very cold temperatures, a mixture of No. 1 and No. 2 diesel fuels is temporarily permitted. See the following Note. NOTE: See your fuel dealer for winter fuel requirements in your area.
• If the temperature of the fuel lowers below the cloud point (wax appearance point), wax crystals in the fuel will restrict the fuel filter and cause the engine to lose power or not start. The diesel fuel used in this machine must meet the specifications as shown below in, “Specifications for Acceptable No. 2 Diesel Fuel”, or “Specification D975-81” of the American Society for Testing and Materials.
• Fuel Storage If you keep fuel in storage for a period of time, you can get foreign material or water in the fuel storage tank. Many engine problems are caused by water in the fuel. Keep the fuel storage tank outside and keep the fuel as cool as possible. Remove water from the storage container at regular periods of time. Fill the fuel tank at the end of the daily operating period to prevent condensation in the fuel tank. What is selective Catalytic Reduction (SCR) The main components of the SCR system include the SCR catalyst, the Diesel Exhaust Fluid (DEF)/ AdBlue® injection unit, the DEF/AdBlue® tank, and the DEF/AdBlue® dosing control unit.
• How does Selective Catalytic Reduction (SCR) work? During combustion, harmful Nitrogen Oxide (NOx) molecules are formed in the exhaust. By injecting a DEF/AdBlue® solution into the exhaust prior to a catalyst, the NOx can be converted to harmless elemental Nitrogen and water. This happens when the NOx molecules react inside the catalyst with the heat generated by the engine and the ammonia in the DEF/AdBlue® solution.
• During cold engine operation at low engine coolant and ambient air temperatures, water vapor will be visible from the exhaust when the engine operates. This water vapor will resemble steam or light white smoke and will dissipate as the engine and machine components warm and is considered normal.
• NOTE: After engine shutdown, the SCR system will perform a purge cycle, which permits the supply module to continue to run for up to 70 seconds. This is to be considered normal and requires no action from the operator. What is Diesel Exhaust Fluid (DEF)/AdBlue®? DEF/AdBlue® is a non-toxic aqueous urea solution ( 32.5 %) with a slight ammonia odor used to chemically reduce NOx emissions from heavy-duty diesel powered vehicles. DEF/AdBlue® is neither explosive nor harmful to the environment and is classified under the minimum-risk category of transportable fluids. DEF/AdBlue® quality is defined by ISO 22241-1.
• The American Pet roleum Insti tute (API®) has a voluntary certification program for DEF/AdBlue®. To ensure DEF/ AdBlue® satisfies the requirements of ISO 22241. DEF/AdBlue®. API Diesel Exhaust Fluid Certification Mark is a registered trademark of API in the United States and or other countries.

TABLE OF CONTENTS:

New Holland W110C Tier 4 Wheel Loader Service Manual (84581910B) New Holland W110C

Steering Tab 5
Section Index – Steering
Removal and Installation of Steering Components 5001
Steering Specifications, Pressure Checks, and Troubleshooting 5002
Steering Cylinders 5005
Center Pivot 5006
Auxiliary Steering Motor and Pump 5008
Power Train Tab 6
Section Index – Power Train
Removal and Installation of Power Train Components 6001
Transmission Specifications, Pressure Checks, and Troubleshooting 6002
Transmission 6003
Front Axle 6004
Rear Axle 6004
Drive Shafts, Center Bearing, and Universal Joints 6005
Wheels and Tires 6006
Transmission Control Valve 6007
Brakes Tab 7
Section Index – Brakes
Removal and Installation of Brake Components 7001
Hydraulic Brake Troubleshooting 7002
Brake Pump 7003
Brake Accumulators 7004
Parking Brake 7008
Hydraulics Tab 8
Section Index – Hydraulics
How to Read Hydraulic Schematics 8000
Removal and Installation of Hydraulic Components 8001
Hydraulic Specifications, Troubleshooting, and Pressure Checks 8002
Cleaning the Hydraulic System 8003
W110C Wheel Loader
Repair Manual
84581910B
Table of Contents
Description Section No.
Copyright © 2012 CNH Italia S.p.A.
All rights reserved.
Printed in E.C.
Issued July, 2012
CNH Italia S.p.A.
Via Plava, 80
10135 Torino
Italia 84581910B
Loader Control Valve 8005
Cylinders 8006
Coupler Solenoid Locking Valve 8007
Ride Control Accumulator 8013
Ride Control Valve 8014
Mounted Equipment Tab 9
Section Index – Mounted Equipment
Air Conditioning Troubleshooting and System Checks 9002
Air Conditioner System Service 9003
Removal And Installation Of Air Conditioning And Heater Components 9004
Loader 9006
Roll Over Protective Structure (ROPS), Cab Structural Frame (CSF) 9007
Cab Glass Installation 9010
GENERAL
Standard Torque Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1001
Fluids and Lubricants . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1002
Metric Conversion Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1003

PLEASE NOTE:

• This is the SAME MANUAL used by the dealerships to diagnose your vehicle
• No waiting for couriers / posts as this is a PDF manual and you can download it within 2 minutes time once you make the payment.
• Your payment is all safe and the delivery of the manual is INSTANT – You will be taken to the DOWNLOAD PAGE.
• So have no hesitations whatsoever and write to us about any queries you may have : heydownloadss @gmail.com
