New Holland W110C Tier 4 Wheel Loader Service Repair Manual (84581910A) New Holland W110C – PDF Download

Description

New Holland W110C Tier 4 Wheel Loader Service Repair Manual (84581910A) New Holland W110C

FILE DETAILS:

New Holland W110C Tier 4 Wheel Loader Service Repair Manual (84581910A) New Holland W110C

• Format: PDF
• Language: English
• Number of Pages: 1090 pages
• Brand: New Holland
• Type of document: Service Manual
• Model: W110C Tier 4
• Part No: 84581910A

NEW HOLLAND W110C TIER 4 WHEEL LOADER SERVICE REPAIR MANUAL (84581910A) NEW HOLLAND W110C – PDF DOWNLOAD:

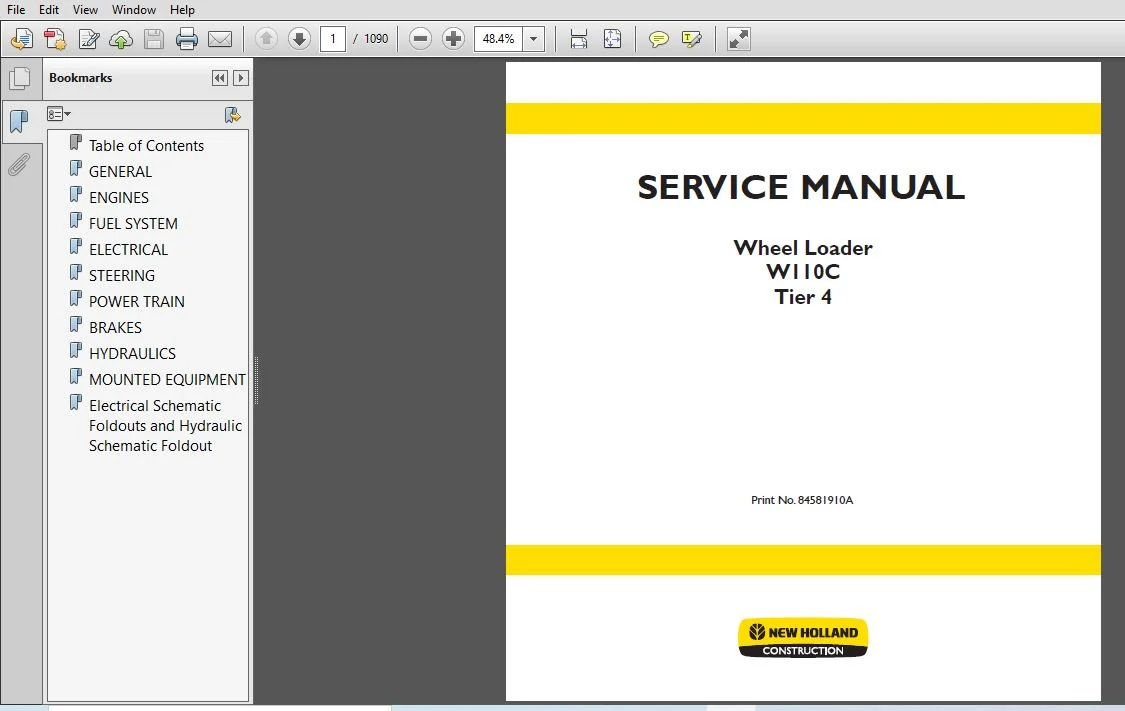

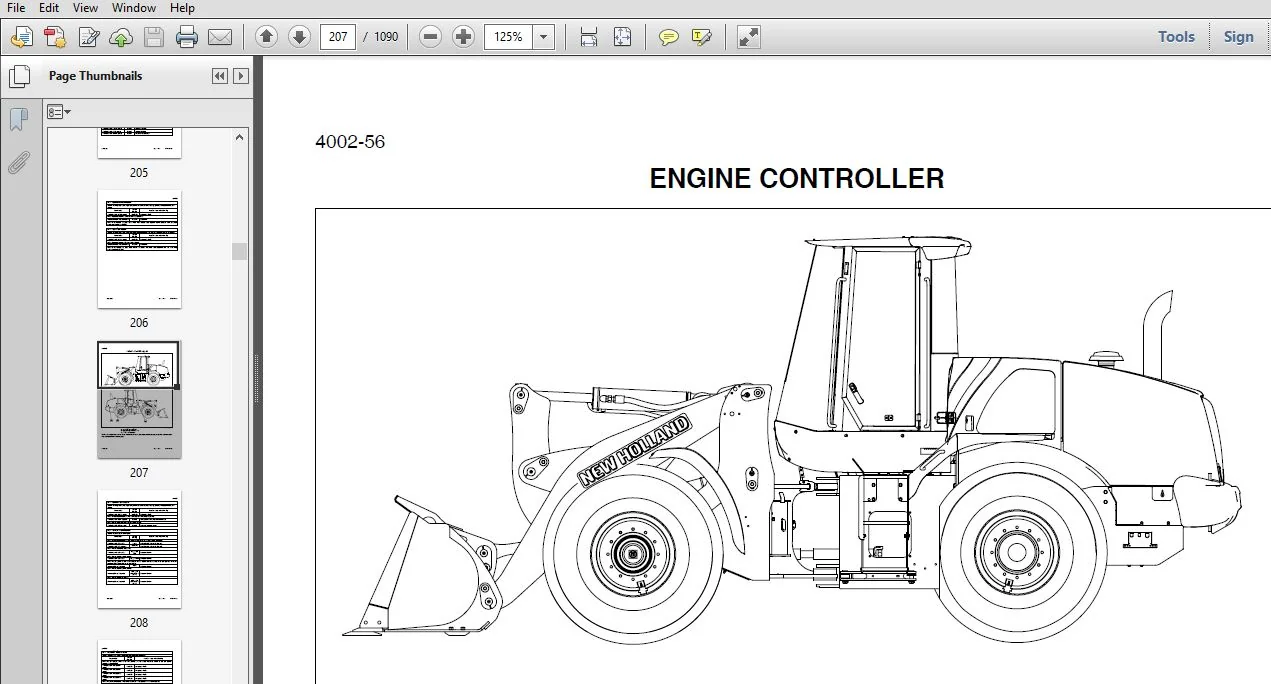

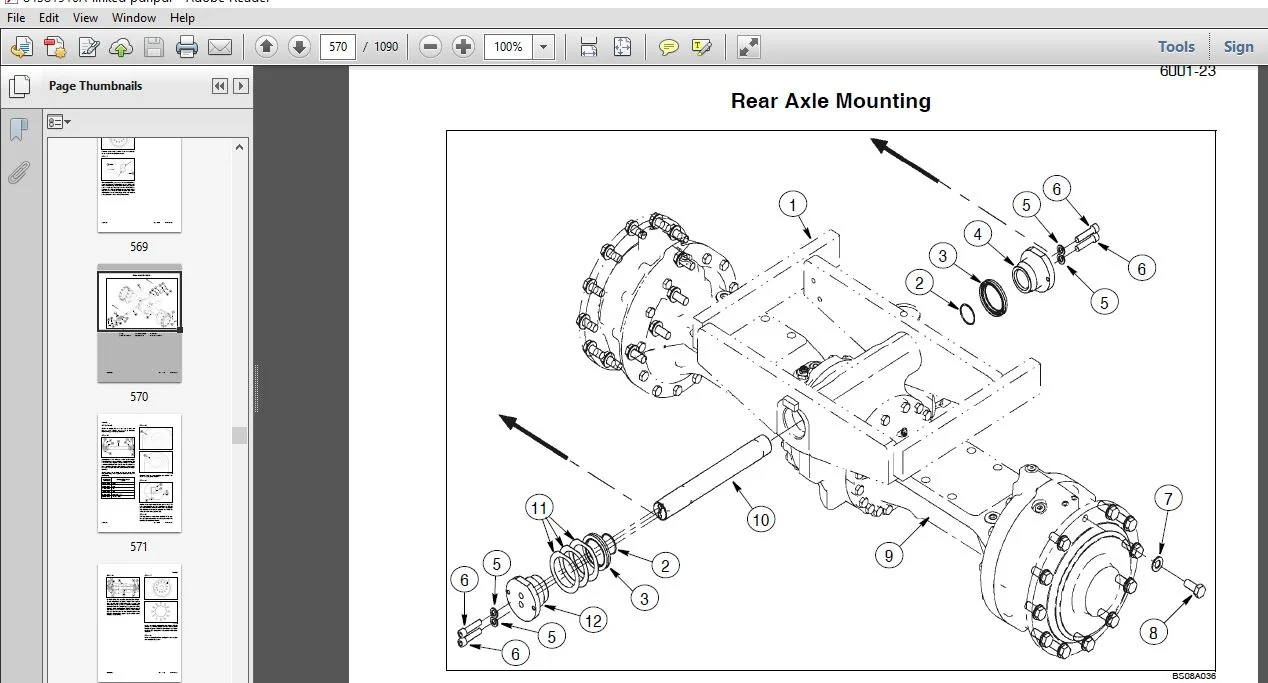

SCREENSHOTS OF THE MANUAL:

DESCRIPTION:

New Holland W110C Tier 4 Wheel Loader Service Repair Manual (84581910A) New Holland W110C

• Use No. 2 diesel fuel in the engine of this machine. The use of other fuels can cause the loss of engine power and high fuel consumption. In very cold temperatures, a mixture of No. 1 and No. 2 diesel fuels is temporarily permitted. See the following Note.
• NOTE: See your fuel dealer for winter fuel requirements in your area.
• If the temperature of the fuel lowers below the cloud point (wax appearance point), wax crystals in the fuel will restrict the fuel filter and cause the engine to lose power or not start.
• The diesel fuel used in this machine must meet the specifications as shown below in, “Specifications for Acceptable No. 2 Diesel Fuel”, or “Specification D975-81” of the American Society for Testing and Materials.
• Fuel Storage If you keep fuel in storage for a period of time, you can get foreign material or water in the fuel storage tank. Many engine problems are caused by water in the fuel.
• Keep the fuel storage tank outside and keep the fuel as cool as possible. Remove water from the storage container at regular periods of time. Fill the fuel tank at the end of the daily operating period to prevent condensation in the fuel tank.
• How does Selective Catalytic Reduction (SCR) work? During combustion, harmful Nitrogen Oxide (NOx) molecules are formed in the exhaust. By injecting a DEF/AdBlue® solution into the exhaust prior to a catalyst, the NOx can be converted to harmless elemental Nitrogen and water. This happens when the NOx molecules react inside the catalyst with the heat generated by the engine and the ammonia in the DEF/AdBlue® solution. During cold engine operation at low engine coolant and ambient air temperatures, water vapor will be visible from the exhaust when the engine operates.
• This water vapor will resemble steam or light white smoke and will dissipate as the engine and machine components warm and is considered normal. NOTE: After engine shutdown, the SCR system will perform a purge cycle, which permits the supply module to continue to run for up to 70 seconds. This is to be considered normal and requires no action from the operator.

TABLE OF CONTENTS:

New Holland W110C Tier 4 Wheel Loader Service Repair Manual (84581910A) New Holland W110C

General Tab 1
Section Index – General
Standard Torque Specifications 1001
Fluids and Lubricants 1002
Metric Conversion Chart 1003
Engines Tab 2
Section Index – Engines
Engine and Radiator Removal and Installation 2000
Stall Tests 2002
After Cooler 2003
SCR System Sensors 2020
SCR Catalyst 2030
Engine Intake Temperature/Humidity Sensor 2040
DEF/ADBLUE Heater Control Valve 2050
DEF/ADBLUE DNOx Supply Module 2060
DEF/ADBLUE Dosing Injector 2070
DEF/ADBLUE Supply Tank 2080
DEF/ADBLUE Supply Tank Level and Temperature Sensor/Pick-up and Heater 2090
DEF/ADBLUE Supply Filters 2100
For Engine Repair, See the Engine Service Manual 84392403
Fuel System Tab 3
Section Index – Fuel System
For Fuel System Repair, See the Engine Service Manual 84392403
Electrical Tab 4
Section Index – Electrical
Removal and Installation of Starter and Alternator 4001
Electrical Specifications and Troubleshooting 4002
Batteries 4003
Instrument Cluster 4005
Steering Tab 5
Section Index – Steering
Removal and Installation of Steering Components 5001
Steering Specifications, Pressure Checks, and Troubleshooting 5002
Steering Cylinders 5005
Center Pivot 5006
Auxiliary Steering Motor and Pump 5008
Power Train Tab 6
Section Index – Power Train
Removal and Installation of Power Train Components 6001
Transmission Specifications, Pressure Checks, and Troubleshooting 6002
Transmission 6003
Front Axle 6004
Rear Axle 6004
Drive Shafts, Center Bearing, and Universal Joints 6005
Wheels and Tires 6006
Transmission Control Valve 6007
Brakes Tab 7
Section Index – Brakes
Removal and Installation of Brake Components 7001
Hydraulic Brake Troubleshooting 7002
Brake Pump 7003
Brake Accumulators 7004
Parking Brake 7008
Hydraulics Tab 8
Section Index – Hydraulics
How to Read Hydraulic Schematics 8000
Removal and Installation of Hydraulic Components 8001
Hydraulic Specifications, Troubleshooting, and Pressure Checks 8002
Cleaning the Hydraulic System 8003
Loader Control Valve 8005
Cylinders 8006
Coupler Solenoid Locking Valve 8007
Ride Control Accumulator 8013
Ride Control Valve 8014
Mounted Equipment Tab 9
Section Index – Mounted Equipment
Air Conditioning Troubleshooting and System Checks 9002
Air Conditioner System Service 9003
Removal And Installation Of Air Conditioning And Heater Components 9004
Loader 9006
Roll Over Protective Structure (ROPS), Cab Structural Frame (CSF) 9007
Cab Glass Installation 9010
Electrical Schematic Foldouts and Hydraulic Schematic Foldout In Rear Pocket

PLEASE NOTE:

• This is the SAME exact manual used by your dealers to fix your vehicle.
• The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
• Any queries / doubts regarding your purchase, please feel free to contact [email protected]
