New Holland W170 W170TC Wheel Loader Workshop Manual 604.13.497.00 – PDF DOWNLOAD

Description

New Holland W170 W170TC Wheel Loader Workshop Manual

FILE DETAILS:

New Holland W170 W170TC Wheel Loader Workshop Manual

Language : English
Pages : 593
Downloadable : YES
Format : PDF
Size : 51.4 MB
Print No. 604.13.497.00

DESCRIPTION:

New Holland W170 W170TC Wheel Loader Workshop Manual

GENERALITIES :

Read this Manual carefully before starting, operating, maintaining, fuelling or servicing the machine. Read and comply with all safety precautions before any intervention. Do not allow unauthorised personnel to operate or service this machine. Do not wear rings, wrist watches, jewellery, loose or hanging garments, such as ties, torn clothing, scarves, unbuttoned or unzipped jackets that can get caught in moving parts.

• Wear certified safety clothes such as: hard hat, noslip footwear, heavy gloves, ear protection, safety glasses, reflector vests, respirators. Ask your employer about specific safety equipment requirements. Keep the operator’s compartment, step plates, grab-rails and handles clean and clear of foreign objects, oil, grease, mud or snow to minimize the danger of slipping or stumbling.
• Remove mud or grease from your shoes before attempting to mount or operate the machine. Do not jump on or off the machine. Always keep both hands and one foot, or both feet and one hand in contact with steps and grab rails. Do not use controls or hoses as hand holds when climbing on or off the machine. Hoses and controls are movable parts and do not provide solid support. Besides, controls may be inadvertently moved and cause unexpected movement of the machine or its attachments.
• Never operate the machine or its attachments from any position other than sitting in the driver’s seat. Keep head, body, limbs, hands and feet inside the operator’s compartment at all times to reduce exposure to external hazards. Be careful of possible slippery conditions of the steps and hand rails as well as of the ground around the machine. Do not leave the machine until it is has come to a complete stop. Check the seat safety belt at least twice per year and replace it if it shows signs of wear, fraying or other weakness that could lead to failure.

TABLE OF CONTENTS:

New Holland W170 W170TC Wheel Loader Workshop Manual

GENERALITIES Section 0
ENGINE Section 1
TRANSMISSION Section 2
BRAKE SYSTEM Section 3
STEERING SYSTEM Section 4
BUCKET BOOMS AND FRAME Section 5
EQUIPMENT HYDRAULIC SYSTEM Section 6
ELECTRICAL SYSTEM Section 7
CAB Section 8

NEW HOLLAND W170 W170TC WHEEL LOADER WORKSHOP MANUAL 604.13.497.00 – PDF DOWNLOAD:

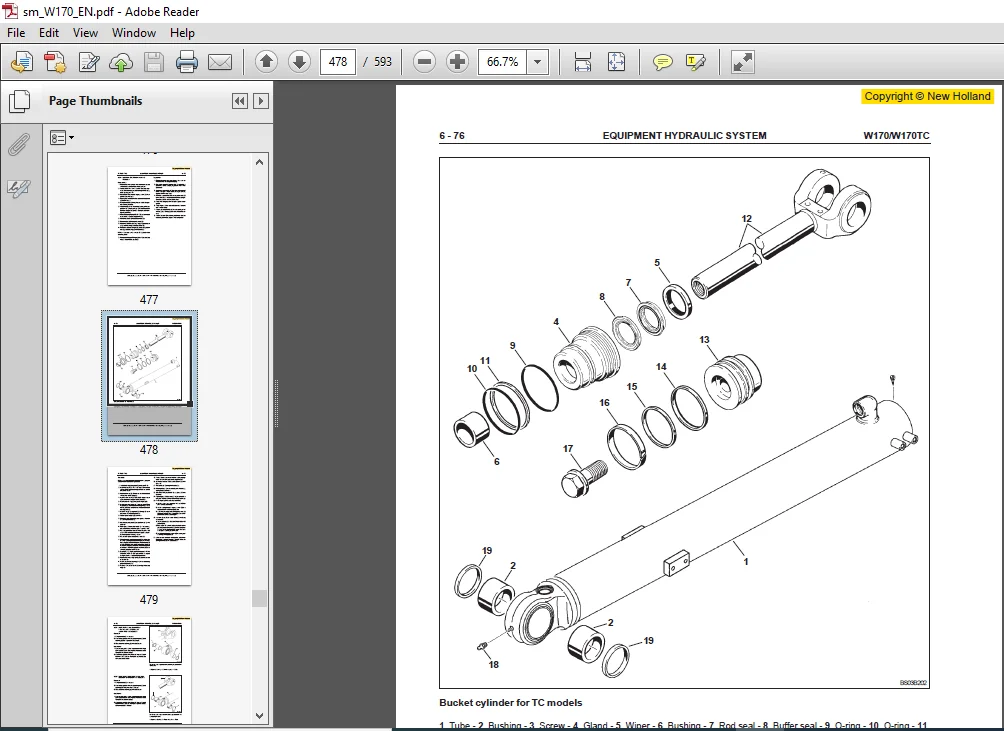

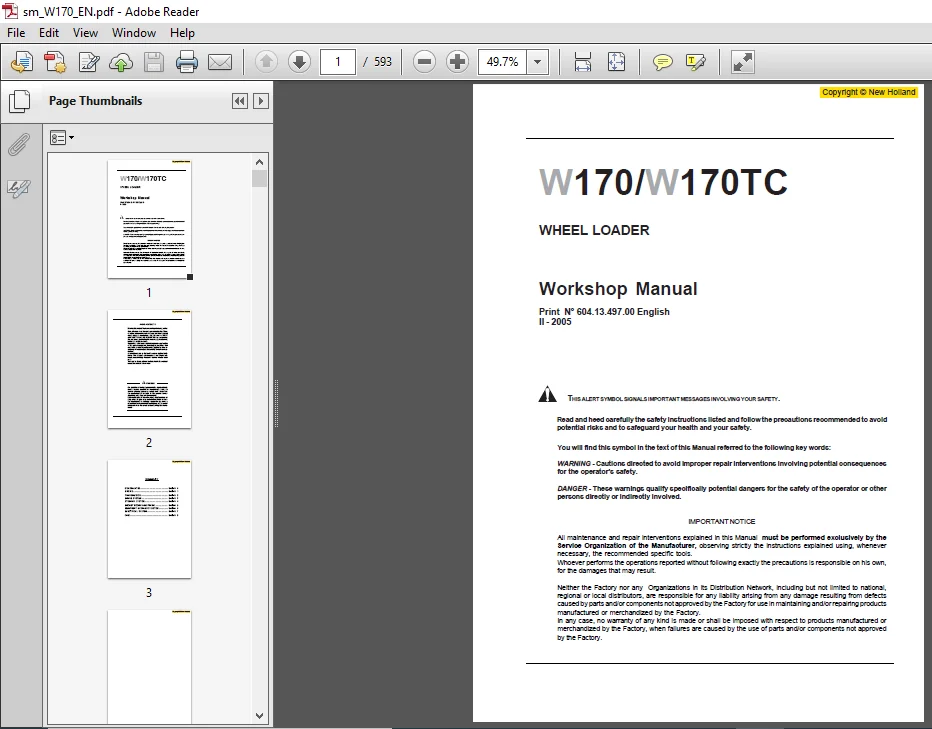

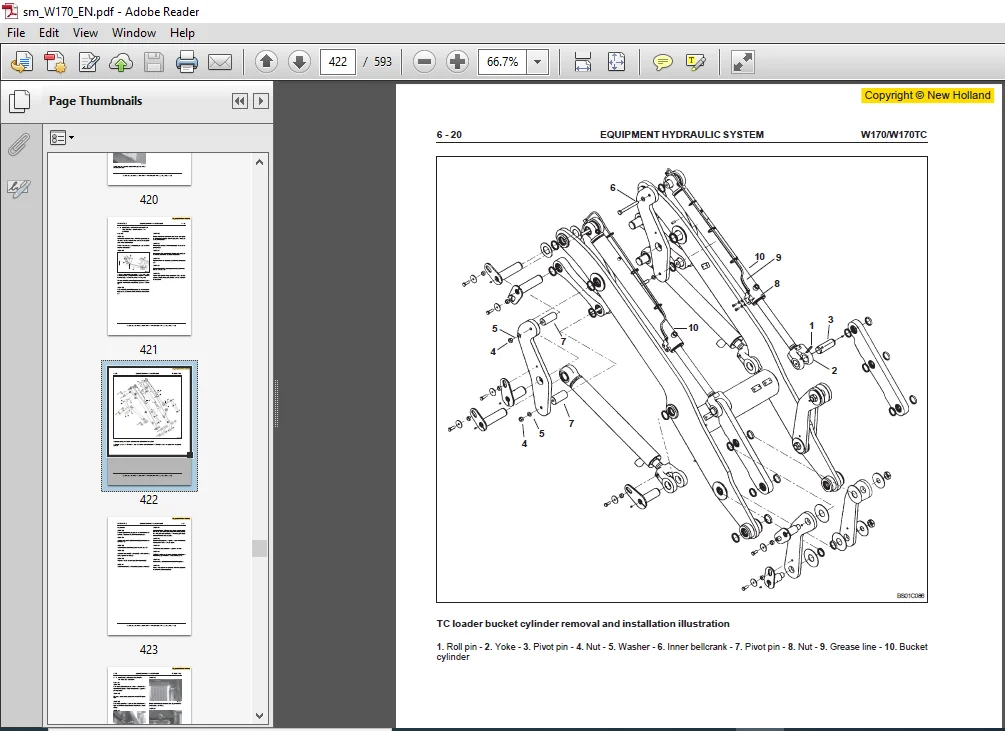

IMAGES PREVIEW OF THE MANUAL:

PLEASE NOTE:

• This is the SAME manual used by the dealers to troubleshoot any faults in your vehicle. This can be yours in 2 minutes after the payment is made.
• Contact us at [email protected] should you have any queries before your purchase or that you need any other service / repair / parts operators manual.
