NEW HOLLAND W170C Loader SERVICE REPAIR MANUAL 47373612B – PDF DOWNLOAD

Description

NEW HOLLAND W170C Loader SERVICE REPAIR MANUAL

FILE DETAILS:

NEW HOLLAND W170C Loader SERVICE REPAIR MANUAL

Size: 99.3 MB
Format: PDF
Language: English
Number of Pages : 892 pages
Brand: New Holland

DESCRIPTION:

NEW HOLLAND W170C Loader SERVICE REPAIR MANUAL

SAMPLE PAGE FROM THE MANUAL:

• Remove all dirt and grease from the area of the center pivot. Park the machine on a level surface. Lower the bucket until the bucket is flat on the floor. Stop the engine and apply the parking brake. Remove the covers from both sides of the machine.
• Disconnect the front wiring harness from the cab floor. Remove any tie straps that fasten the front wiring harness to the chassis near the center pivot. Loosen and remove the nut and washer that fasten the chassis ground wire and cab ground wire to the studs.
• Loosen and remove the bolt, lock washer, and nut that fasten the clamp on the front wiring harness to the bracket on the rear frame. Move the front wiring harness out of the way. Loosen and remove the fill cap for the hydraulic reservoir.
• Connect a vacuum pump to the hydraulic reservoir. Start the vacuum pump. Disconnect the brake hose from the backside of front brake line bracket. Install a plug in the tube and a cap on the fitting. Disconnect the hoses for the steering cylinder.
• Install caps on the fittings and plugs in the hoses. Loosen and remove the bolts, lock washers, and self-locking nuts that fasten the mounting bracket for the hoses to the bracket on the front frame. Loosen and remove the bolts, flat washers, and self-locking nuts that fasten the bracket for the hoses to the rear frame.
• Disconnect the supply hose. Install a cap on the hose and a plug in the fitting. Stop the vacuum pump. Loosen and remove the self-locking nut and bolt that hold the pivot pin for the steering cylinder rod eye.
• Remove the pivot pin from the rear frame and the steering cylinder rod eye. 24. Remove the washer from the rear frame. Move the steering cylinder out of the way. Repeat steps 22, 23 and 24 for the other steering cylinder. Loosen and remove the Ferry head screws and retainers that fasten the drive shaft to the front yoke. Move the drive shaft out of the way. Place two stands below and in contact with the front frame.

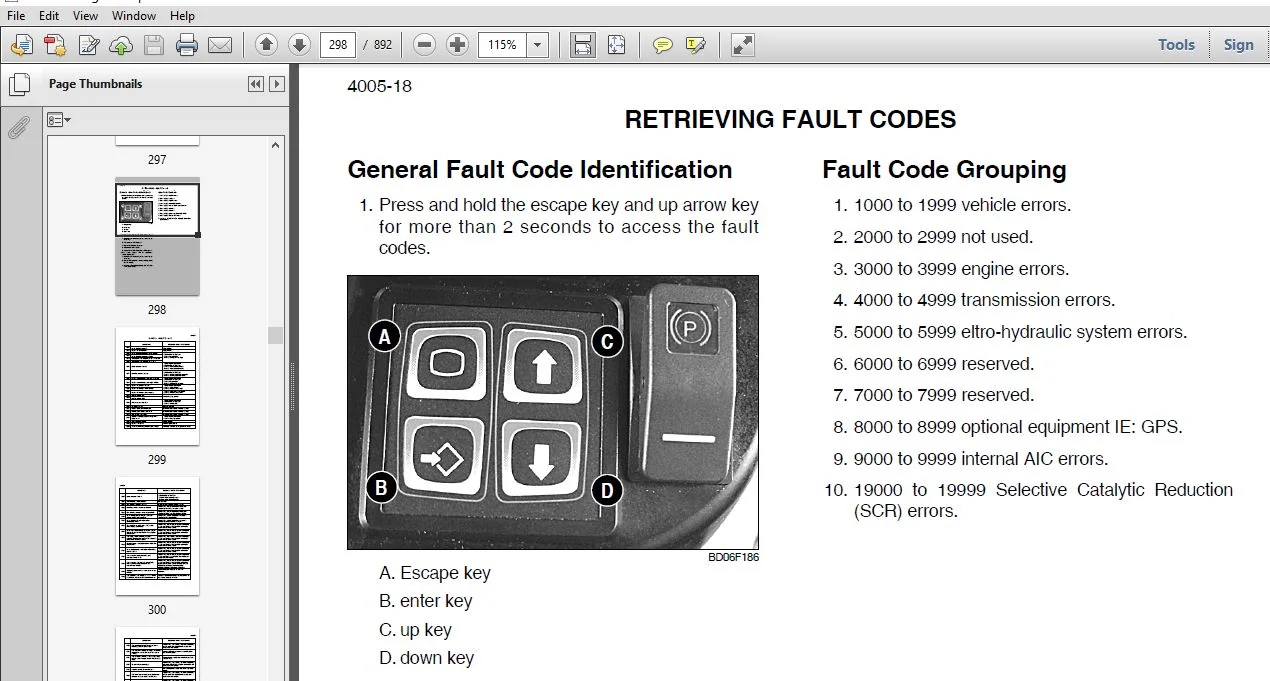

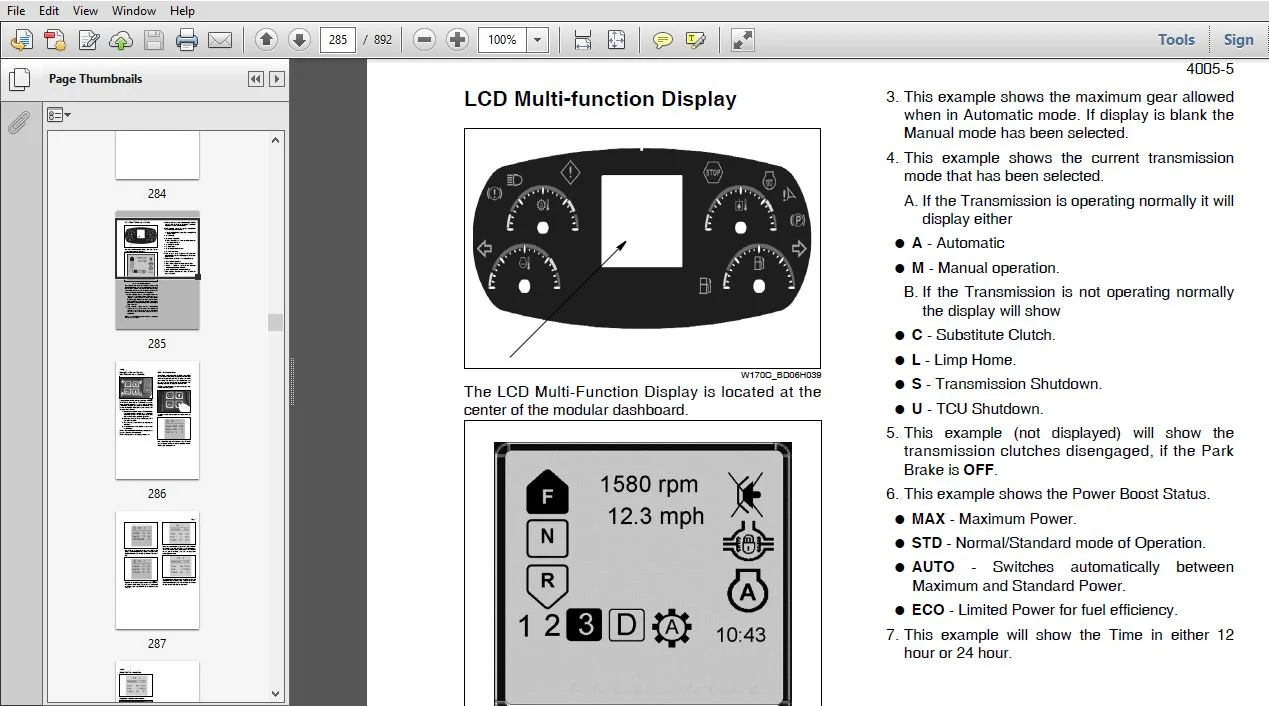

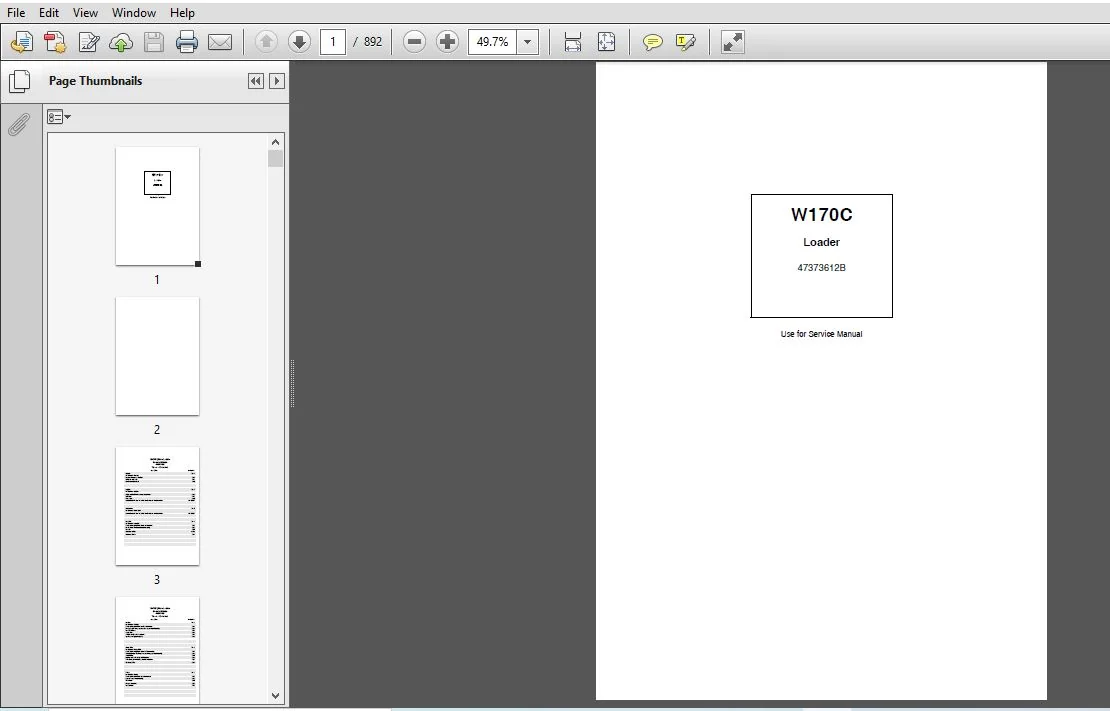

IMAGES PREVIEW OF THE MANUAL:

NEW HOLLAND W170C LOADER SERVICE REPAIR MANUAL 47373612B – PDF DOWNLOAD:

TABLE OF CONTENTS:

NEW HOLLAND W170C Loader SERVICE REPAIR MANUAL

General Tab 1
Section Index – General
Standard Torque Specifications 1001
Fluids and Lubricants 1002
Metric Conversion Chart 1003
Engines Tab 2
Section Index – Engines
Engine and Radiator Removal and Installation 2000
Stall Tests 2002
After Cooler 2003
For Engine Repair, See the Engine Service Manual – Sold Separately 604.13.689
Fuel System Tab 3
Section Index – Fuel System
For Engine Repair, See the Engine Service Manual – Sold Separately 604.13.689
Electrical Tab 4
Section Index – Electrical
Removal and Installation of Starter and Alternator 4001
Electrical Specifications and Troubleshooting 4002
Batteries 4003
Jump Post Option 4003a
Instrument Cluster 4005
Steering Tab 5
Section Index – Steering
Removal and Installation of Steering Components 5001
Steering Specifications, Pressure Checks, and Troubleshooting 5002
Steering Cylinders 5005
Center Pivot 5006
Auxiliary Steering Motor and Pump 5008
Joystick Steering System (JSS) 5009
Power Train Tab 6
Section Index – Power Train
Removal and Installation of Power Train Components 6001
Transmission Specifications, Pressure Checks, and Troubleshooting 6002
Transmission 6003
Multitrac MT-L 3075 II/3085 II/3095 II Axles 6004
Drive Shafts, Center Bearing, and Universal Joints 6005
Wheels and Tires 6006
Brakes Tab 7
Section Index – Brakes
Removal and Installation of Brake Components 7001
Hydraulic Brake Troubleshooting 7002
Brake Pump 7003
Brake Accumulators 7004
Parking Brake 7008
W170C Wheel Loader
Service Manual
47373612B
Table of Contents
Description Section No.
Hydraulics Tab 8
Section Index – Hydraulics
Removal and Installation of Hydraulic Components 8001
Hydraulic Specifications, Troubleshooting, and Pressure Checks 8002
Cleaning the Hydraulic System 8003
Hydraulic Pump 8004
Loader Control Valve 8005
Cylinders 8006
Coupler Solenoid Locking Valve 8007
Ride Control Accumulator 8013
Ride Control Valve 8014
Mounted Equipment Tab 9
Section Index – Mounted Equipment
Air Conditioning Troubleshooting and System Checks For Systems with HFC-134a Refrigerant 9002
Air Conditioner System Service 9003
Removal And Installation Of Air Conditioning And Heater Components 9004
Loader 9006
Roll Over Protective Structure (ROPS), Cab Structural Frame (CSF) 9007
Cab Glass Installation 9010
Rear View Camera Installation and Removal
