New Holland W190C Tier 4 Wheel Loader Service Manual (84525157) NH W190C

FILE DETAILS:

New Holland W190C Tier 4 Wheel Loader Service Manual (84525157) NH W190C

• New Holland Wheel Loader W190C Tier 4 Service Manual_84525157
• Size: 117 MB
• Format: PDF
• Language: English
• Number of Pages: 1010 pages
• Brand: New Holland
• Type of document: Service Manual
• Model: W190C Tier 4
• Part No: 84525157

NEW HOLLAND W190C TIER 4 WHEEL LOADER SERVICE MANUAL (84525157) NH W190C – PDF DOWLOAD:

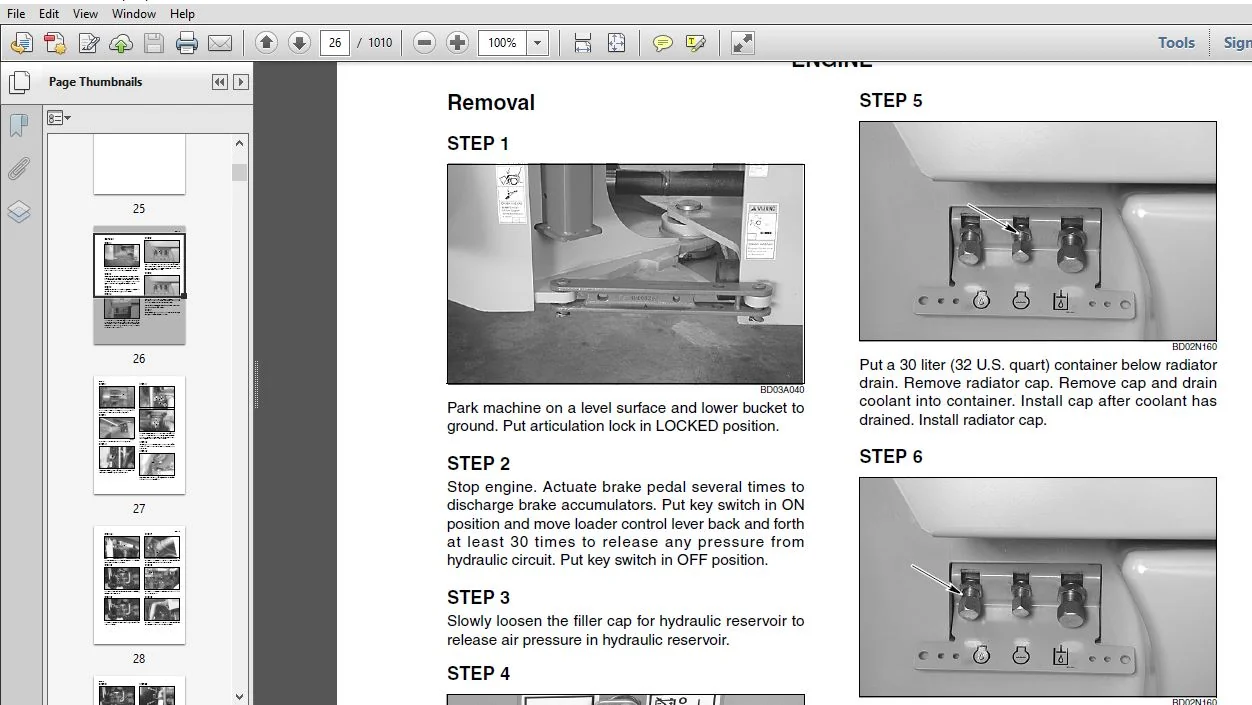

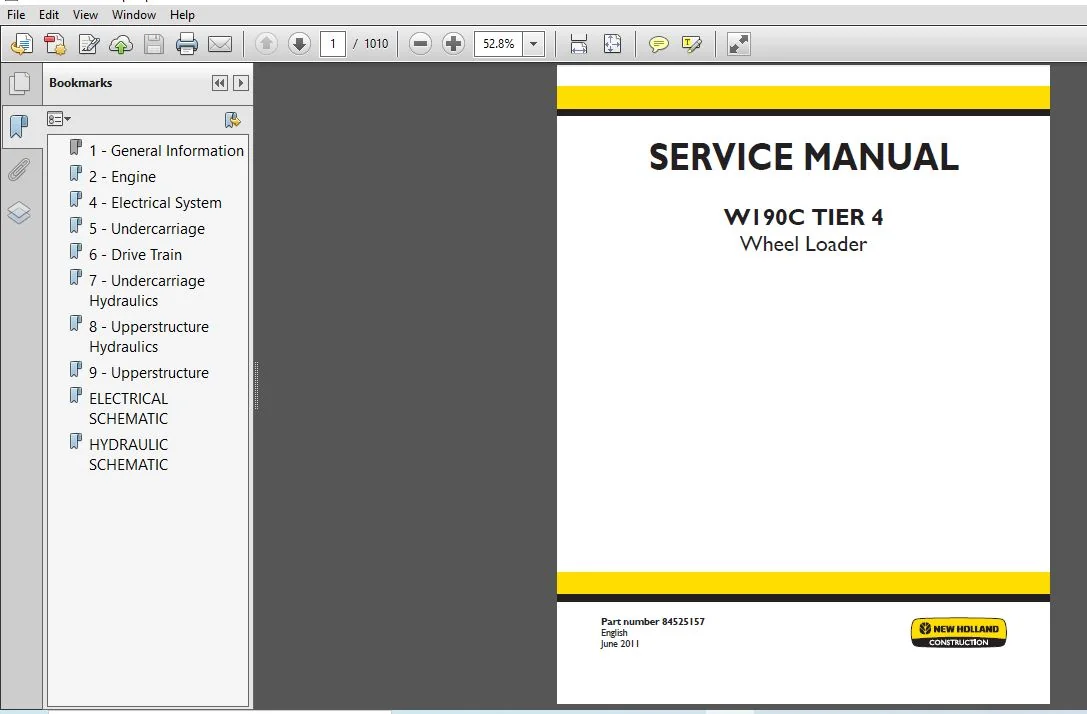

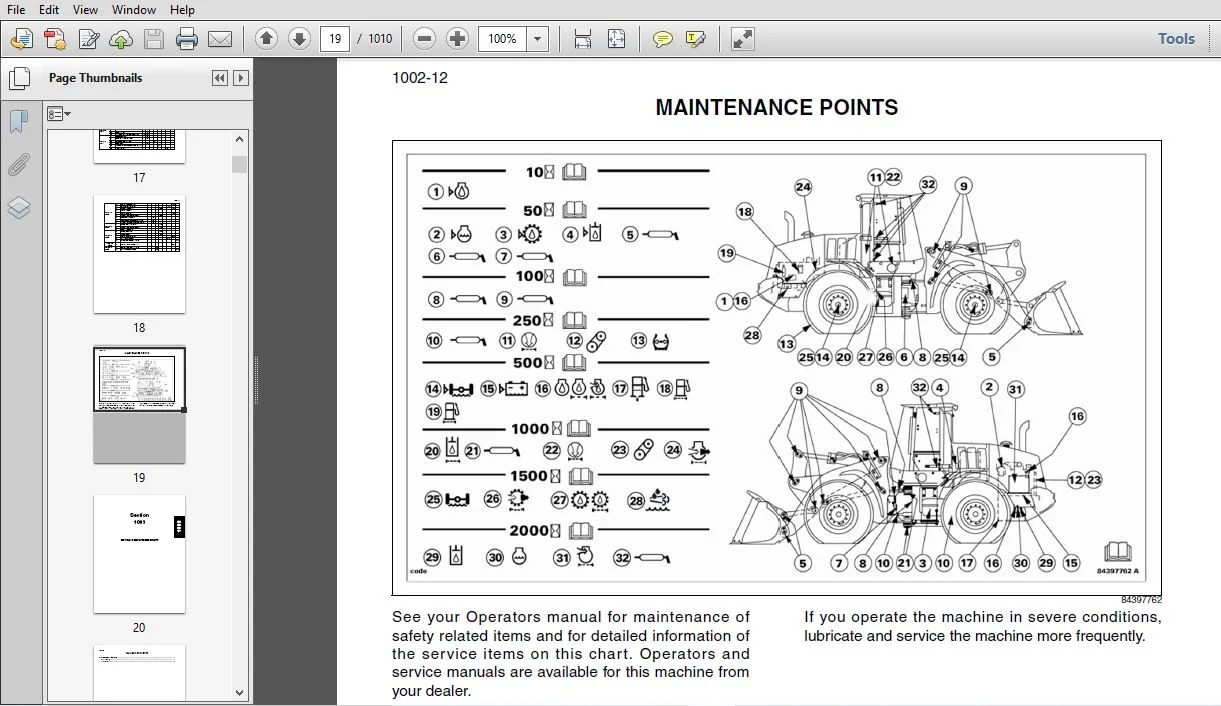

SCREENSHOTS OF THE MANUAL:

DESCRIPTION:

New Holland W190C Tier 4 Wheel Loader Service Manual (84525157) NH W190C

• What is Selective Catalytic Reduction (SCR)? The main components of the SCR system include the SCR catalyst, the Diesel Exhaust Fluid (DEF)/ AdBlue® injection unit, the DEF/AdBlue® tank, and the DEF/AdBlue® dosing control unit. How does Selective Catalytic Reduction (SCR) work? During combustion, harmful Nitrogen Oxide (NOx) molecules are formed in the exhaust.
• By injecting a DEF/AdBlue® solution into the exhaust prior to a catalyst, the NOx can be converted to harmless elemental Nitrogen and water. This happens when the NOx molecules react inside the catalyst with the heat generated by the engine and the ammonia in the DEF/AdBlue® solution.
• During cold engine operation at low engine coolant and ambient air temperatures, water vapor will be visible from the exhaust when the engine operates. This water vapor will resemble steam or light white smoke and will dissipate as the engine and machine components warm and is considered normal.
• NOTE: After engine shutdown, the SCR system will perform a purge cycle, which permits the supply module to continue to run for up to 70 seconds. This is to be considered normal and requires no action from the operator.
• What is Diesel Exhaust Fluid (DEF)/AdBlue®? DEF/AdBlue® is a non-toxic aqueous urea solution ( 32.5 %) with a slight ammonia odor used to chemically reduce NOx emissions from heavy-duty diesel powered vehicles. DEF/AdBlue® is neither explosive nor harmful to the environment and is classified under the minimum-risk category of transportable fluids. DEF/AdBlue® quality is defined by ISO 22241-1.
• The American Petroleum Institute (API®) has a voluntary certification program for DEF/AdBlue®. To ensure DEF/ AdBlue® satisfies the requirements of ISO 22241. DEF/AdBlue®. API Diesel Exhaust Fluid Certification Mark is a registered trademark of API in the United States and or other countries. Storage, handling, and transport NOTICE: Storage temperatures above 30 °C (86 °F) greatly reduce the shelf life of DEF/AdBlue®. DEF/AdBlue® has a typical shelf life of 6-12 months. Refer to the SHELF LIFE table below. In order for DEF/AdBlue® to remain in a usable condition, storage requirements need to be met.
• Store between -11 °C (12 °F) and 30 °C (86 °F). • Use only an approved DEF/AdBlue® container. • Keep container tightly closed. • Keep container in a cool, well-ventilated area. • Keep away from heat and direct sunlight.

TABLE OF CONTENTS:

New Holland W190C Tier 4 Wheel Loader Service Manual (84525157) NH W190C

1 – General Information………. 2
2 – Engine………………….. 24
4 – Electrical System………… 136
5 – Undercarriage……………. 444
6 – Drive Train……………… 542
7 – Undercarriage Hydraulics….. 746
8 – Upperstructure Hydraulics…. 782
9 – Upperstructure…………… 908
ELECTRICAL SCHEMATIC………….1006
HYDRAULIC SCHEMATIC…………..1010
