NEW HOLLAND W190C Wheel Loader SERVICE REPAIR MANUAL 47373613B – PDF DOWNLOAD

Description

NEW HOLLAND W190C Wheel Loader SERVICE REPAIR MANUAL

FILE DETAILS:

NEW HOLLAND W190C Wheel Loader SERVICE REPAIR MANUAL

Size: 97.3 MB
Format: PDF
Language: English
Number of Pages : 890 pages
Brand: New Holland

DESCRIPTION:

NEW HOLLAND W190C Wheel Loader SERVICE REPAIR MANUAL

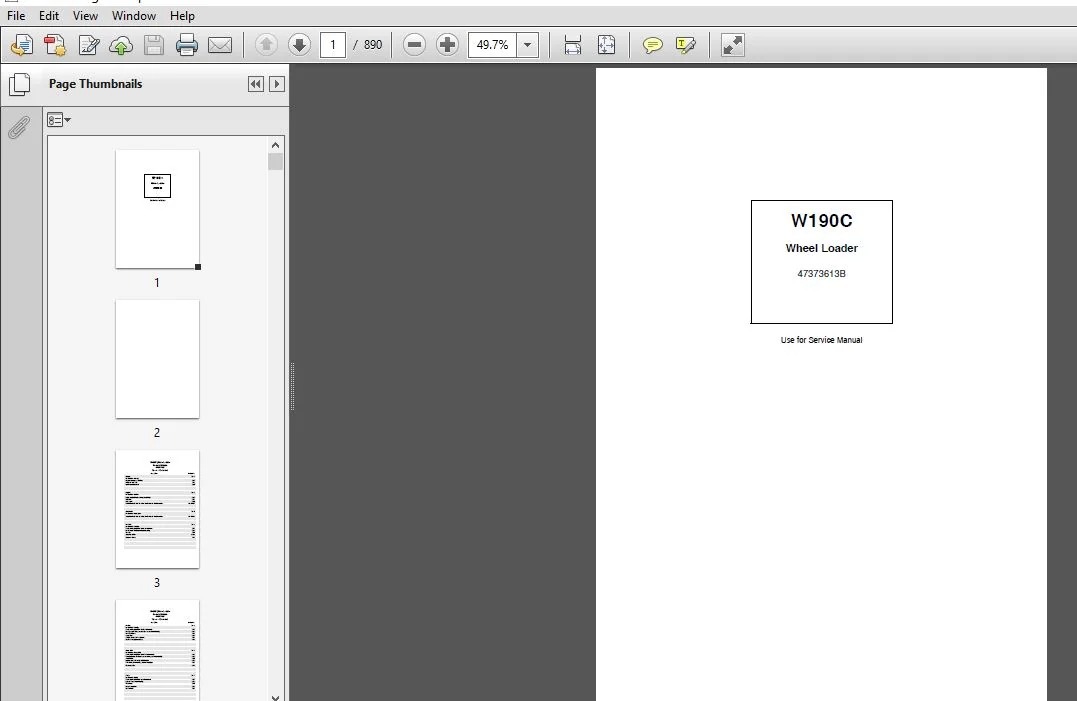

SAMPLE PAGE FROM THE MANUAL:

•  Park loader on level ground and lower bucket to ground. Put transmission in NEUTRAL, apply parking brake, and shut down engine,
•  Put master disconnect switch in OFF position.
• Remove all dirt and grease from auxiliary steering priority valve and adjacent area. See illustration on page
• Remove hydraulic reservoir fill cap.
• Connect a vacuum pump to hydraulic reservoir.
• Start vacuum pump.  Tag and disconnect suction hose from the suction port from auxiliary steering pump and motor. Install a cap on the fitting and a plug in the hose.
• Tag and disconnect tank return tube from the priority valve. Install a cap on the elbow and a plug in the tube. Stop the vacuum pump.
• Tag and disconnect the wiring from the steering solenoid Tag and disconnect the wiring from the pressure switch Tag and disconnect load sensing hose from auxiliary steering priority valve. Install a cap on the elbow and a plug in the hose. Tag and disconnect load sensing hose from the priority valve.
• Install a cap on the elbow and a plug in the hose. 14. Tag and disconnect steering pressure hose from priority valve. Install a cap on the fitting and a plug in the hose. Tag and disconnect pressure hose from priority valve. Install a cap on the fitting and a plug in the hose.

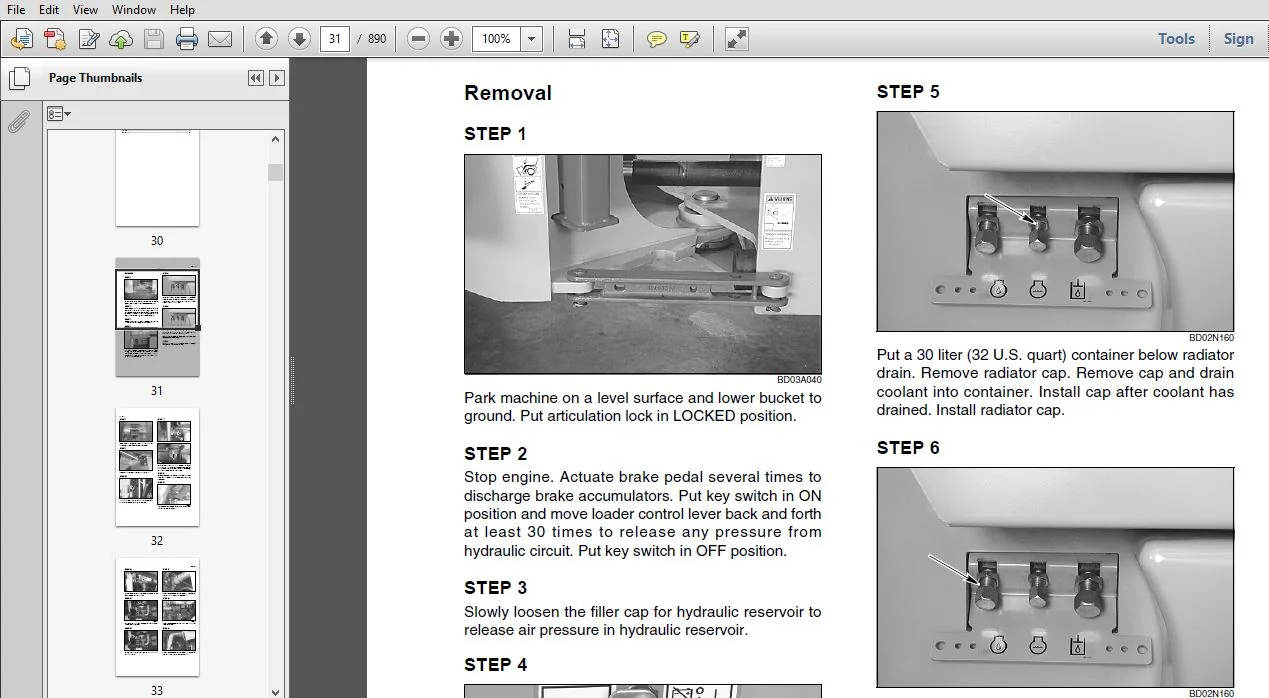

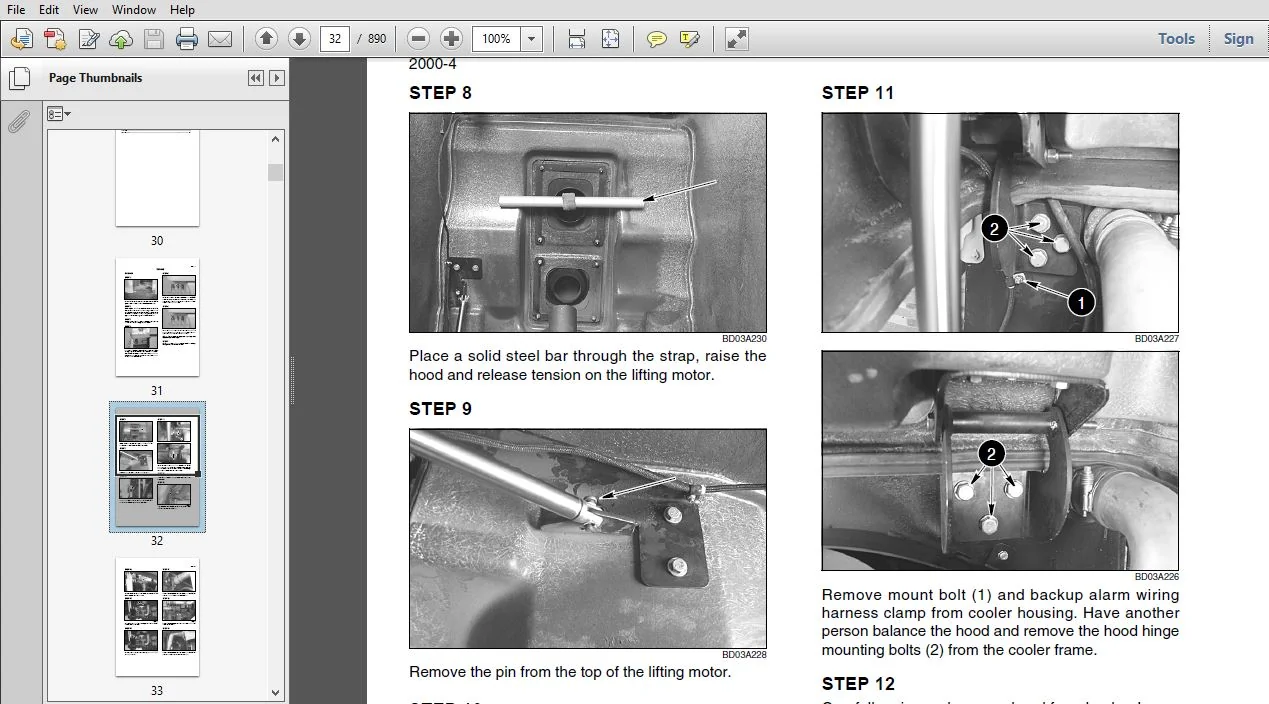

IMAGES PREVIEW OF THE MANUAL:

NEW HOLLAND W190C WHEEL LOADER SERVICE REPAIR MANUAL 47373613B – PDF DOWNLOAD:

TABLE OF CONTENTS:

NEW HOLLAND W190C Wheel Loader SERVICE REPAIR MANUAL

General Tab 1
Section Index – General
Standard Torque Specifications 1001
Fluids and Lubricants 1002
Metric Conversion Chart 1003
Engines Tab 2
Section Index – Engines
Engine and Radiator Removal and Installation 2000
Stall Tests 2002
After Cooler 2003
For Engine Repair, See the Engine Service Manual – Sold Separately 604.13.689
Fuel System Tab 3
Section Index – Fuel System
For Engine Repair, See the Engine Service Manual – Sold Separately 604.13.689
Electrical Tab 4
Section Index – Electrical
Removal and Installation of Starter and Alternator 4001
Electrical Specifications and Troubleshooting 4002
Batteries 4003
Jump Post Option 4003a
Instrument Cluster 4005
Steering Tab 5
Section Index – Steering
Removal and Installation of Steering Components 5001
Steering Specifications, Pressure Checks, and Troubleshooting 5002
Steering Cylinders 5005
Center Pivot 5006
Auxiliary Steering Motor and Pump 5008
Joystick Steering System (JSS) 5009
Power Train Tab 6
Section Index – Power Train
Removal and Installation of Power Train Components 6001
Transmission Specifications, Pressure Checks, and Troubleshooting 6002
Transmission 6003
Multitrac MT-L 3075 II/3085 II/3095 II Axles 6004
Drive Shafts, Center Bearing, and Universal Joints 6005
Wheels and Tires 6006
Brakes Tab 7
Section Index – Brakes
Removal and Installation of Brake Components 7001
Hydraulic Brake Troubleshooting 7002
Brake Pump 7003
Brake Accumulators 7004
Parking Brake 7008
W190C Wheel Loader
Service Manual
47373613B
Table of Contents
Description Section No.
Hydraulics Tab 8
Section Index – Hydraulics
Removal and Installation of Hydraulic Components 8001
Hydraulic Specifications, Troubleshooting, and Pressure Checks 8002
Cleaning the Hydraulic System 8003
Hydraulic Pump 8004
Loader Control Valve 8005
Cylinders 8006
Coupler Solenoid Locking Valve 8007
Ride Control Accumulator 8013
Ride Control Valve 8014
Mounted Equipment Tab 9
Section Index – Mounted Equipment
Air Conditioning Troubleshooting and System Checks For Systems with HFC-134a Refrigerant 9002
Air Conditioner System Service 9003
Removal And Installation Of Air Conditioning And Heater Components 9004
Loader 9006
Roll Over Protective Structure (ROPS), Cab Structural Frame (CSF) 9007
Cab Glass Installation 9010
Rear View Camera Installation and Removal
